Unbuilt Lockheed Projects Of The '30s

J

joncarrfarrelly

Guest

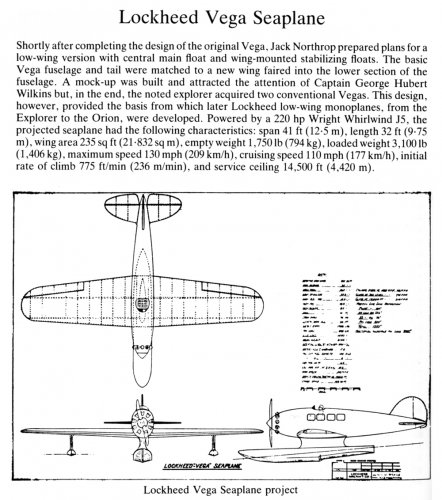

Vega seaplane that eventually formed the basis of the low-wing Lockheed 'star' series.

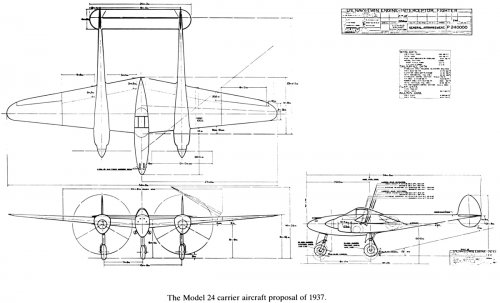

Naval 'Lightning', proposed spring of 1937, 54' span, length of 34'6", powered by Pratt & Whitney R-1535 14-cylinder radials. The R-1535's greatest claim to fame was powering Howard Hughes H1 racer.

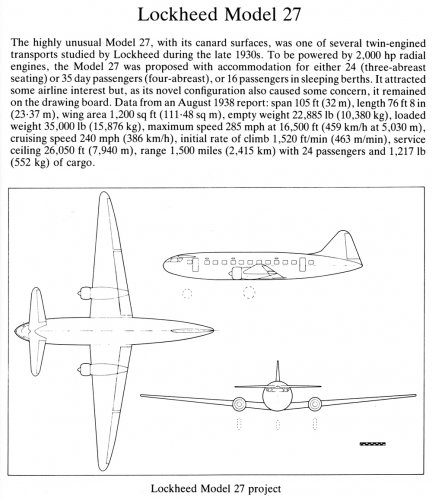

Canard airliner.


Attachments

  • VEGA_SEA_01.jpg
    399.5 KB · Views: 720
  • MODEL_24_01.jpg
    212.3 KB · Views: 848
  • MODEL_27_01.jpg
    328 KB · Views: 731

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
230
I wonder how that navalized Lightning would do with R2800s instead of R1535s?


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
667
Reaction score
149
I'm left wondering how it'll manage to land on a carrier without an arrestor hook.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
230
For those interested in "hooked Lightnings" (of the Lockheed type), the Warbird Tech book on the P-38 has some excellent three-views of different configurations proposed, both air-cooled and liquid-cooled.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi joncarrfarrelly!

Drawings of Lockheed Model 24, Lockheed Model 27 and Vega Seaplane

source---? ( or Lockheed Aircraft Since 1913 ???)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
Lockheed Aircrafts Since 1913


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi flateric!

Thank you very much.

what still projects are shown in pages: 482-494 (Selected Projects)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
Nugo, 90% of your posts are "please show me that and that". Does it mean that everyone should run and scan the books for you? I don't think so. Please read the forum rules. You can quite easily obtain copy of Francillion's book for own use to get the full info.

Thank you.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
You can quite easily obtain copy of Francillion's book for own use to get the full info

i.e. www.abebooks.com
;)


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
5
Would the swept wing have improved on the low Vne/Mach compressibility limit of the P-38?
