Unbuilt experimental F-104

zhuravlik

ACCESS: Restricted
Joined
May 14, 2007
Messages
43
Reaction score
0
I cannot remember from wich magazine cover i've seen it.
It was some 4 years ago...
It was pictured in nasa markings on the cover.
Something like that...
(is this a weissmann planform?)
Please help me and excuse my bad english.

Best regards
Zhuravlik


Attachments

  • weissmann.gif
    4.5 KB · Views: 926

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Wing & Airpower. (U.S.Magazine)

I have to look for the correct issue.


zhuravlik

ACCESS: Restricted
Joined
May 14, 2007
Messages
43
Reaction score
0
Excellent!
Could be FEB 2004,Stars of NASA,Bryant NASA Flight Research Center Lockheed F-104?
Unfortunately i can't see the cover.
A pdf would be fantastic!

Best regards

Zhuravlik


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Wings Februar 2004 ,Vol 33 no2.

No illustration on the cover. In the text only small caption
with the drawing.Wing planform must be reversed in the drawing above
(wingspan most wide in front)
Designation : NLF-104 - proposed modification by Norhrop /Grumman
for one of the NASA's Starfighters with Natural Laminar Flow Delta Wing.

Capition states : never before published rendering by Tom Tullis....

So far the above mentioned magazinearticle . 'Stars of Nasa' by Roy Bryant


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
It's based on the reverse delta research, which demonstrated that you could achieve near laminar flow without any aids; i.e.-it was achieved by just the shape of the wing itself.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
685

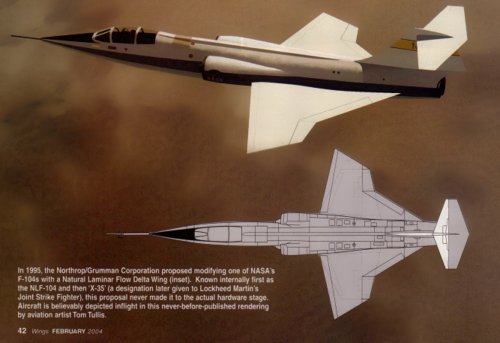

Source: Wings Februar 2004 ,Vol 33 no1., page 42


Attachments

  • NG_NASA_NFL-104_1995_Wings_February2004_page42.jpg
    86.6 KB · Views: 658

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi!


Attachments

  • NG_NASA_NFL-104_1995_Wings_February2004_page42[1].jpg
    587.6 KB · Views: 321
