UK Requirements: SR(A) 1236 CASOM

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,583
Reaction score
7,561
Contenders
General Dynamics Tomahawk/Airhawk
AGM-137 TSSM
Loral Vought ALCAM (ATACMS derivative)
McDonnell-Douglas AGM-84E
Rockwell Extended-Range AGM-130E with Williams P8300 turbofan
Brunswick Defense ITALD
Texas Instruments JSOW

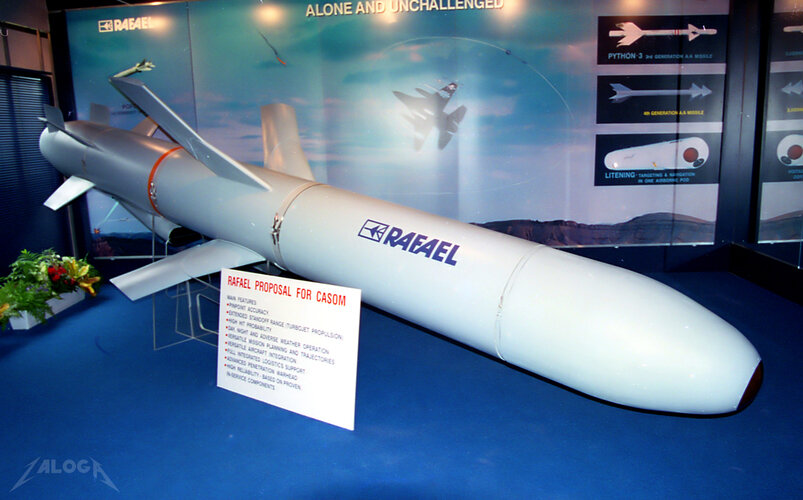

Rafael AGM-142
DASA/Hunting/Bofors KEPD250
Aerospatiale ASMP-C (HE warhead, 300km range)
BAeD Golden Eagle (KEP/tandem charge warhead, 100km+ range)
BAeD REVISE
BAeD MANTIS

Source:

John Fricker "RAF Operational Requirements" Air International May 1993


Attachments

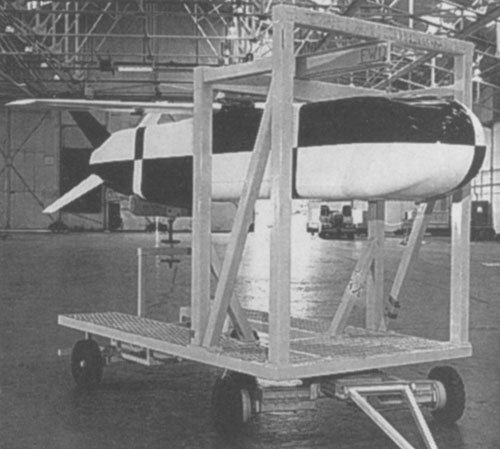

  • REVISE.jpg
    41.1 KB · Views: 568

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,438
Reaction score
310
Actually, the version of TSSAM being proposed for this competition was a derivative of the USAF/USN air-launched version, stretched to attain the necessary range. Doing the stretch itself was a very simple effort given the modular nature of the missile. I know, I was there.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
110
overscan said:
Contenders
General Dynamics Tomahawk/Airhawk
AGM-137 TSSM
Loral Vought ALCAM (ATACMS derivative)
McDonnell-Douglas AGM-84E
Rockwell Extended-Range AGM-130E with Williams P8300 turbofan
Brunswick Defense ITALD
Texas Instruments JSOW
Rafael AGM-142
DASA/Hunting/Bofors KEPD250
Aerospatiale ASMP-C (HE warhead, 300km range)
BAeD Golden Eagle (KEP/tandem charge warhead, 100km+ range)
BAeD REVISE
BAeD MANTIS

Source:

John Fricker "RAF Operational Requirements" Air International May 1993

I see that the turbojet powered variant of the Al Hakim/PGM-500/2000 family is missing?

Did the "Pegasus" missile appear at a date later than May of 1993?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,583
Reaction score
7,561
Update from Air International October 1994:

GEC-Marconi/BAe Dynamics: Pegasus
McDonnell-Douglas/Hunting: Grand Slam (SLAM derivative, 5.3m length, 0.343m diameter, 1088kg weight, 450kg warhead, 343km+ range)
Rockwell: enhanced AGM-130 powered by turbofan
Matra: variant of a classified long range, single large warhead version of Apache
Aerospatiale: Asura (Air to SUrface RAmjet) higher speed conventional ASMP-C, Mach 3.0, 370km range.


tround

I really should change my personal text
Joined
Oct 28, 2012
Messages
149
Reaction score
19
range : 400km in 7 mn
terminal velocity : mach 2
warhaed weight : 240kg
total weight : 900kg
inertial guidage with FLIR


Attachments

  • ASURA.jpg
    163.3 KB · Views: 400

tround

I really should change my personal text
Joined
Oct 28, 2012
Messages
149
Reaction score
19
sorry


Attachments

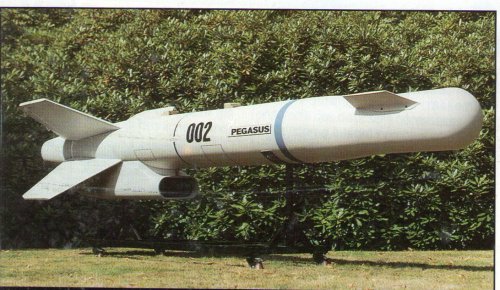

  • PEGASUS.jpg
    365.9 KB · Views: 374

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,606
Reaction score
1,864
Website
beyondthesprues.com
tround said:
range : 400km in 7 mn
terminal velocity : mach 2
warhaed weight : 240kg
total weight : 900kg
inertial guidage with FLIR


I assume ASURA is the ASMP-C entry?


tround

I really should change my personal text
Joined
Oct 28, 2012
Messages
149
Reaction score
19
It's the same missile .The " first " name was ASMP C .


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,395
Reaction score
1,118
On a similar theme, MANTIS was derived from REVISE rather than them being separate entries. REVISE was a submunitions ejector demonstrator BAeD developed (and captive flew under a Tornado) with the then Defence Research Agency:

REsearch Vehicle for In-flight Submunition Ejection

REVISE Plus was a planned family of stand-off weapons using the same basic (but possible larger) airframe- MANTIS ended up going full circle and was offered as a long-range stand-off anti-armour submunitions dispenser under the name AUTIS (AUtonomous Target Interdiction System).


batigol

ACCESS: Confidential
Joined
Jun 8, 2009
Messages
55
Reaction score
72

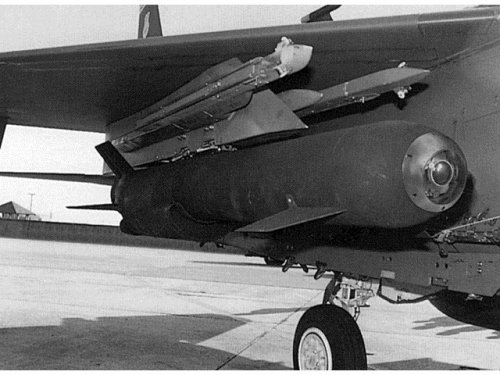

From an AGM-130 google search, this looks like the turbofan -130E proposal.


Attachments

  • p1484.jpg
    121.9 KB · Views: 150
