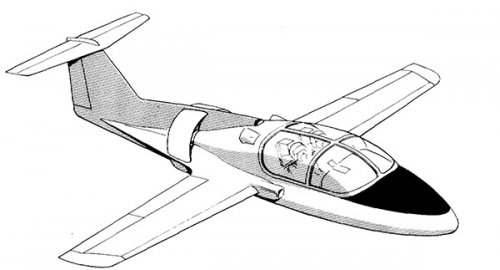

NGT submissions (as in 1981) include General Dynamics M-210, Gulf Stream, Rockwell Nova. I include a Fairchild design concept looking like a mini A-10.


Attachments

  • US- NGT General Dynamics M210-81.jpg
    US- NGT General Dynamics M210-81.jpg
    18.2 KB · Views: 1,248
  • US- NGT- Gulfstream American Peregrine 81 .jpg
    US- NGT- Gulfstream American Peregrine 81 .jpg
    57.3 KB · Views: 1,713
  • US- NGT Rockwell Nova-81_1.jpg
    US- NGT Rockwell Nova-81_1.jpg
    31.4 KB · Views: 1,550
  • US- NGT Fairchild-81_1.jpg
    US- NGT Fairchild-81_1.jpg
    20.4 KB · Views: 2,068

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,988
http://www.flightglobal.com/PDFArchive/View/1980/1980%20-%201712.html
http://www.flightglobal.com/PDFArchive/View/1980/1980%20-%201713.html
http://www.flightglobal.com/PDFArchive/View/1980/1980%20-%201714.html

NGT

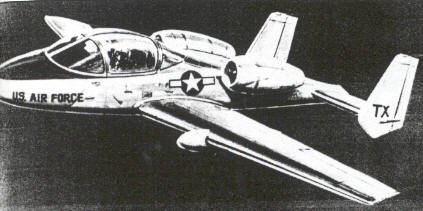

Fairchild is working on a trainer configuration based on its A-10. Also under consideration are wing-root and underwing engine installations.

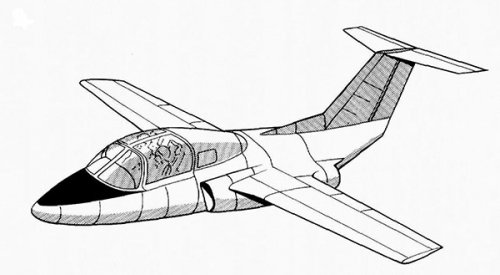

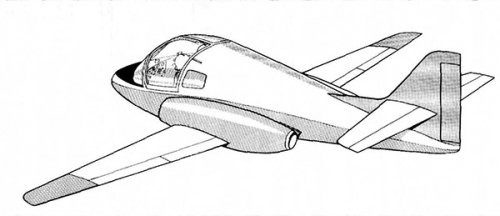

General Dynamics is proposing a T-tail design but engine type has still to be selected. Like all NGT designs it is in the 5,000lb weight-class.

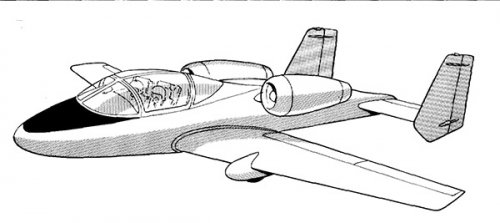

Rockwell's Nova NT-1 is powered by two podded Williams Research WR-44 turbofans of 1,000lb thrust.

Vought has teamed with VFW to offer a unique derivative of the RFB Fantrainer powered by two Allison 2S0-C30 turbines driving a ducted fan.


Attachments

  • NGT-Vought-VFW.jpg
    37.3 KB · Views: 258
  • NGT-Rockwell.jpg
    34.4 KB · Views: 671
  • NGT-General Dynamics.jpg
    NGT-General Dynamics.jpg
    43 KB · Views: 254
  • NGT-Fairchild.jpg
    35.8 KB · Views: 1,934

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

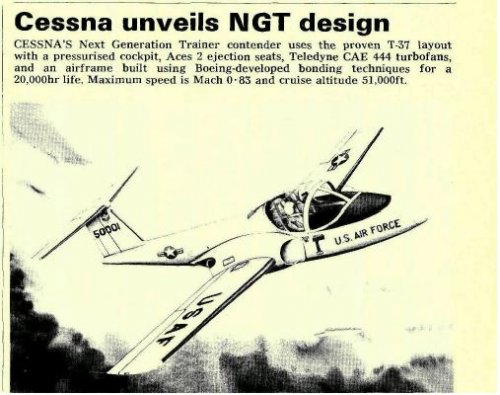

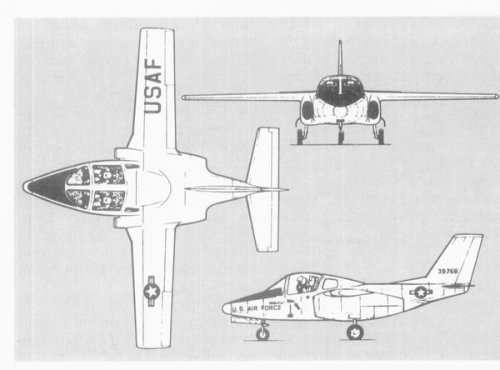

and from Cessna,a modern T-37.
http://www.flightglobal.com/PDFArchive/View/1982/1982%20-%200489.html?search=gulfstream%20ngt%20aircraft%201982


Attachments

  • Cessna NGT.JPG
    Cessna NGT.JPG
    38.8 KB · Views: 220

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
Most of these NGT designs looked than the Fairchild-Republic YT-46A, which was also called "Eaglet", interestingly (I believe this was not an official name but perhaps a company name). The Fantrainer just looks smashing in USAF guise!


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
From FlugRevue 1/1981:

- Rockwell NGT proposal (NOVA concept)
- General Dynamics NGT proposal


Attachments

  • GD_NGT_02.JPG
    28.7 KB · Views: 198
  • GD_NGT_01.JPG
    23.5 KB · Views: 174
  • Rockwell_NGT_01.JPG
    18.5 KB · Views: 584

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429
Pictures from advertisements and various clippings that appeared in AvWeek.



Rockwell NOVA (see project's individual topic for large versions)

index.php
index.php

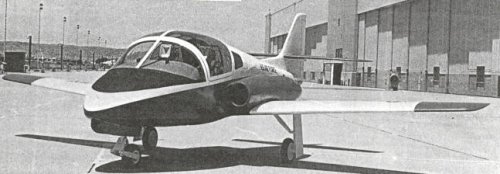

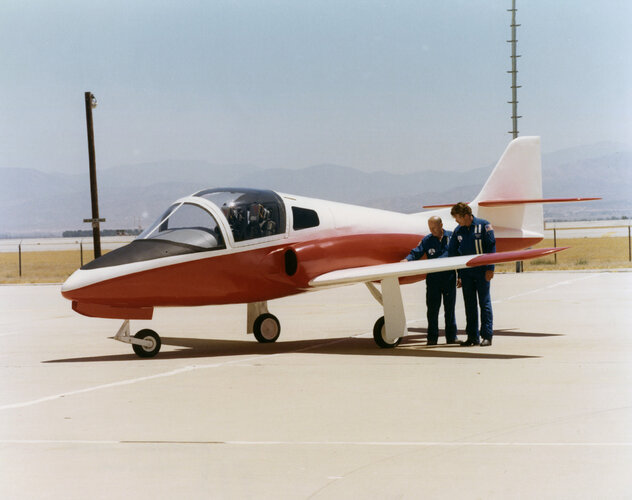

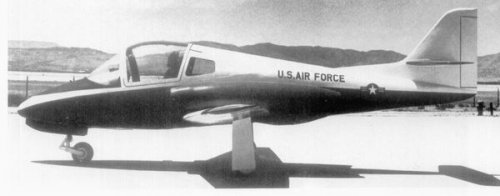

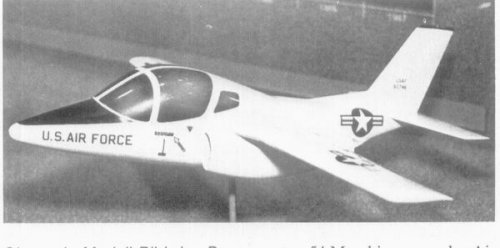

Rutan/Ames Model 73 demonstrator (Fairchild-Republic) (see project's individual topic for large version)

index.php


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429
Great set of pictures, but the last image represents the Rutan/Ames Model 73 demonstrator, not the T-46.

Correct, Stephane...nothing escapes the attentive eyes of forum members, which is good of course. ;)
I'm going to try to scan the equivalent of a dozen pictures a day (which at the rate I am finding things could keep me busy for several months) and post them in the relevant sections, although I'm afraid it's going to take a lot of collaboration from the moderators to find them the proper threads.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429

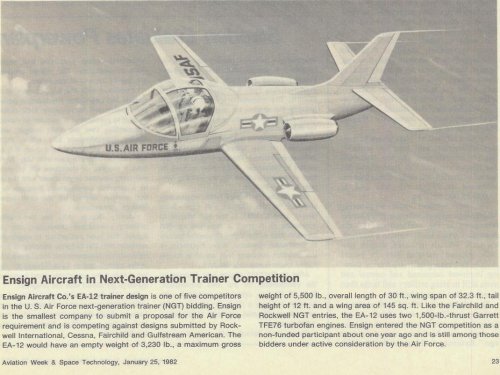

The NGT entry from Ensign (who were these guys?)


Attachments

  • Ensign NGT.JPG
    Ensign NGT.JPG
    140.8 KB · Views: 195

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
Great stuff as usual, AeroFranz! I wasn't aware that the Peregrine design had been modified to such an extent (at least on paper). As for Ensign, I'm as puzzled as you are! ???


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,550
Reaction score
1,249
Some Info about Ensign Aircraft company and Next Generation Trainer (NGT) selection.
SELECTION of the US Air Force Next Generation Trainer (NGT) is expected in the spring, reports Bill Sweetman from California. Five companies have submitted final technical proposals for a primary jet trainer to replace the Cessna T-37. Cost proposals were due in by December 14. The USAF requires 600 NGTs from the late 1980s. Of the five companies sponsored through contract definition, Vought and General Dynamics have declined to respond to the final request for proposals. This eliminates the Vought/VFW Eaglet, a Fantrainer derivative and the only "offshore" element in the competition. Surviving contract definition are Cessna, Fairchild, and Rockwell. Cessna, having started out with a proposal to re-engine and update existing T-37s, is now offering what amounts to a new aircraft. Retaining the basic
T-37 mid-wing layout, Cessna's NGT sub-scale has new engines, redesigned cabin with pressurisation and ejection
seats, a larger wing, and a T-tail. Fairchild's approach to the competition includes a piloted prototype used to substantiate technical data. The total cost of $500,000 is comparable with the expenditure required to gather the same data through windtunnel testing, says Fairchild. The prototype is a 1,5001b, 0-62-scale model, built in foam-cored
glassfibre by Burt Rutan's organisation at Mohave, California. The exact scale was determined by the output of the most readily available FAAcertificated engines, two Microturbo TRS-18s of 2201b thrust each. In 18 flights, totalling 20-8hr, the prototype explored deep stall, aggravated stall, and post-stall flight regimes; confirmed windtunnel predictions of stability and damping in all axes; and demonstrated that the twin tail layout is spin-resistant. No spins were performed, but the aircraft was observed at sideslip angles of 30° using asymmetric thrust. Rockwell's Near-term Optimum Value (Nova) trainer was unveiled in mock-up form some time ago. Proposed when the company's North American Division was short of work following the cancellation of the B-1A, Nova's prospects may be harmed by President Reagan's decision to build 100 B-1B's.Gulfstream American, not one of the original five contenders, is proposing the Peregrine. The sole prototype has passed the 50hr mark in flight-tests at Bethany and Savannah "with no major problems". A few changes have been made, including adding anhedral to the wing. Gulfstream American will offer the Peregrine for export irrespective of the outcome of NGT. Smallest of the five airframe bidders is Ensign Aircraft, based near Long Beach, California. Previously engaged in subcontract design, manufacture, and engineering, including assistance with some certification programmes, Ensign began privateventure work on NGT designs in February 1980. Ensign's EA-12 NGT design is entirely conventional, but makes the greatest use possible of advanced automated manufacturing processes in its production. This, Ensign believes, would cut production overheads and make it more economical for the USAF to slow or suspend production without increasing unit costs or incurring high restart expenses. Ensign considers that this approach favours the new contractor, especially the aircraft itself presents a few technical challenges.
Source: Flight International - 19th December 1981


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
From Richard;


the one fan entry was V-538.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
From CammNut on June 24, 2007:

Apparently Promavia asked Stelio Frati to design the Jet Squalus - basically a jet-powered SF.260 - to meet the NGT requirement. No idea if it was ever offered.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429
Stephane, good job splitting the topic while maintaining both the links and relevant keywords in the titles. ;)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,684
Reaction score
7,988

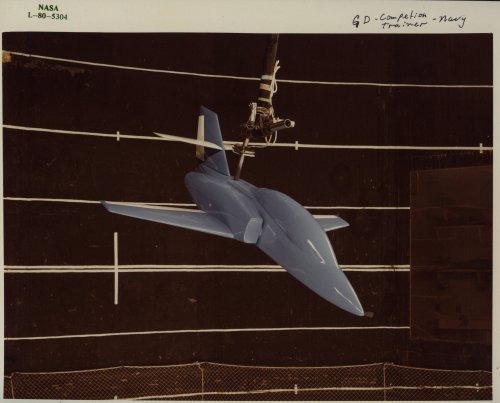

NASA tests of General Dynamics M-210 model


http://crgis.ndc.nasa.gov/historic/20-Foot_Spin_Tunnel_(645)_Models_and_Tests_N-Z#General_Dynamics_M-210


Attachments

  • L-80-5304.jpg
    611.3 KB · Views: 843

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

http://archive.aviationweek.com/image/spread/19800630/19/2


Attachments

  • 1.png
    417.4 KB · Views: 665
  • 2.png
    496.3 KB · Views: 602

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
525

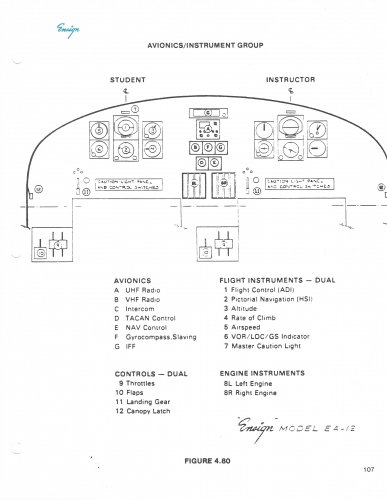

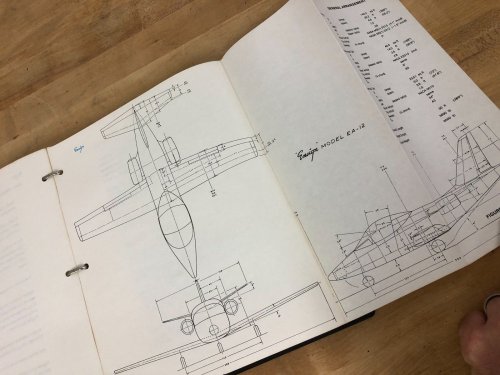

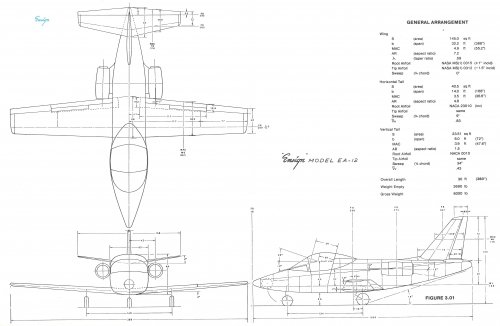

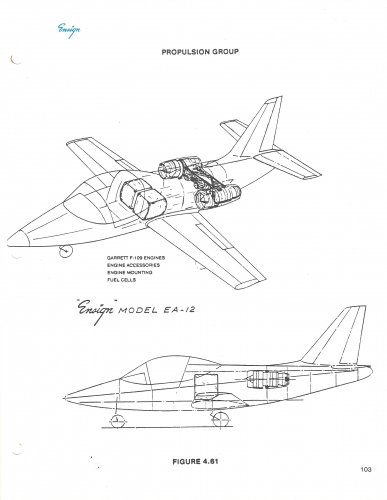

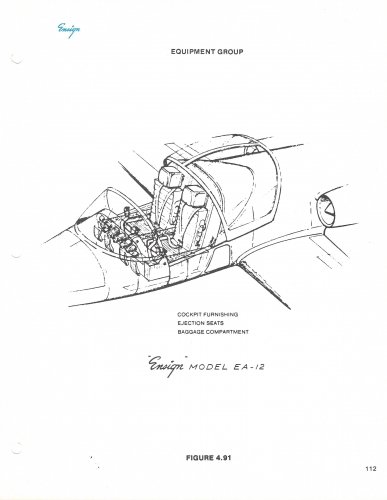

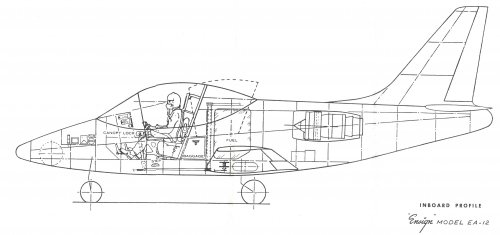

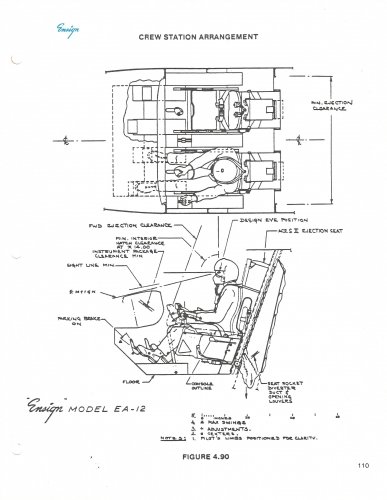

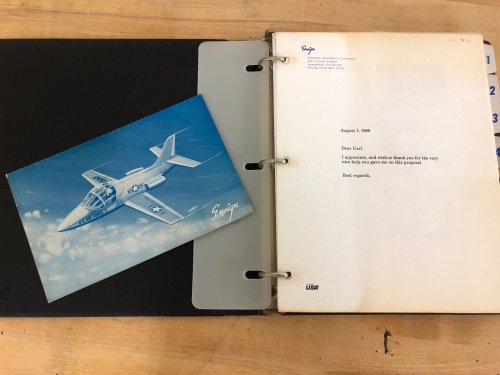

Ensign Aircraft EA-12 Flight Manual Proposal

Design for NGT.

https://www.ebay.com/itm/Original-Rare-Ensign-Aircraft-EA-12-Flight-Manual-Proposal-T-37-Tweet-T-38-Talon/223046721231?hash=item33ee9edecf:g:BQsAAOSwaeRbPjOv&autorefresh=true


Attachments

  • NGT 3.jpg
    NGT 3.jpg
    260.6 KB · Views: 123
  • NGT 2.jpg
    NGT 2.jpg
    211.9 KB · Views: 467
  • NGT 1.jpg
    NGT 1.jpg
    191.3 KB · Views: 481

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
858
Re: Ensign Aircraft EA-12 Flight Manual Proposal

Neat! Thanks for posting. I especially loved that NGT proposal.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Re: Ensign Aircraft EA-12 Flight Manual Proposal

Brillaint,that you RAP,

and that makes us to ask,there was a series to this company,from EA-1 to EA-11 ?.


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
525

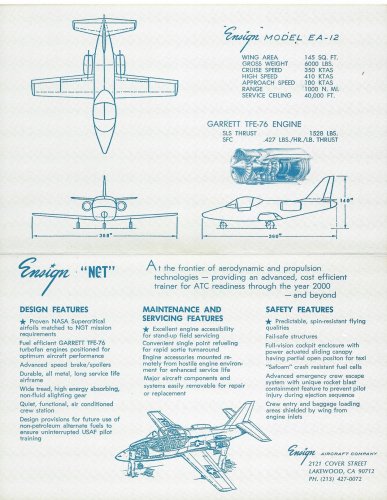

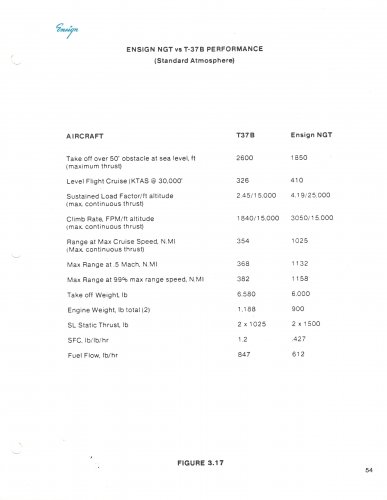

More on the Ensign NGT proposal.


Attachments

  • Ensign 10.jpg
    Ensign 10.jpg
    290.1 KB · Views: 81
  • Ensign 5.jpg
    Ensign 5.jpg
    427.1 KB · Views: 78
  • Ensign 4.jpg
    Ensign 4.jpg
    522.3 KB · Views: 84
  • Ensign 3.jpg
    Ensign 3.jpg
    386.9 KB · Views: 95
  • Ensign 6.jpg
    Ensign 6.jpg
    388.6 KB · Views: 96
  • Ensign 8.jpg
    Ensign 8.jpg
    915.2 KB · Views: 100
  • Ensign 11.jpg
    Ensign 11.jpg
    1.2 MB · Views: 126
  • Ensign 1.jpg
    Ensign 1.jpg
    943.9 KB · Views: 127
  • Ensign 2.jpg
    Ensign 2.jpg
    897.5 KB · Views: 120

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,232
Reaction score
269
Cool. I believe I talked to Ensign at the time and the notes may survive somewhere. They lodged a protest which the GAO cheerfully threw out on its ear:


There's a reference in here to the Ensign Aircraft Company in 1964...

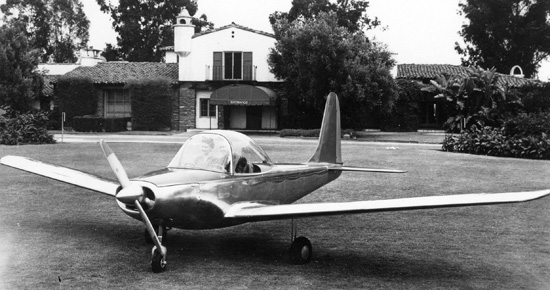

The name Ernest Adler then links to a post-war private airplane, the All-American Ensign:




hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Many great thanks to you my dear Lowobservable,

and that means,this civil design was EA-10 ?.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,304
Reaction score
1,884
RAP, many thanks for sharing!


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,017
Reaction score
468
Rockwell NGT


Attachments

  • Rockwell NGT.jpg
    Rockwell NGT.jpg
    56.6 KB · Views: 114

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
706
Reaction score
525
Cessna upgraded T-37 NGT.


Attachments

  • Cessna NGT 1.jpg
    Cessna NGT 1.jpg
    723.4 KB · Views: 106
  • Cessna NGT 2.jpg
    Cessna NGT 2.jpg
    411.5 KB · Views: 91
  • Cessna NGT 3.jpg
    Cessna NGT 3.jpg
    733.5 KB · Views: 98

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,636
According to this March 1981 GAO report, the USAF were directed by Congress in December of 1980 to also consider the T-34C as 'an alternative solution to the NGT requirement'.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,713
Reaction score
934
Spent an enjoyable day with Gerald Balzer yesterday and came across a few things I had not found before. The man has an amazing collection!

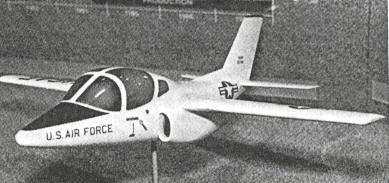

Here is a photo of the Rockwell Nova NGT mockup, courtesy of the Gerald Balzer Collection.

Enjoy the Day! Mark


Attachments

  • zRockwell Nova NGT Mock Up.jpg
    zRockwell Nova NGT Mock Up.jpg
    545.4 KB · Views: 82

allysonca

ACCESS: Secret
Top Contributor
Senior Member
Joined
Mar 11, 2011
Messages
244
Reaction score
605

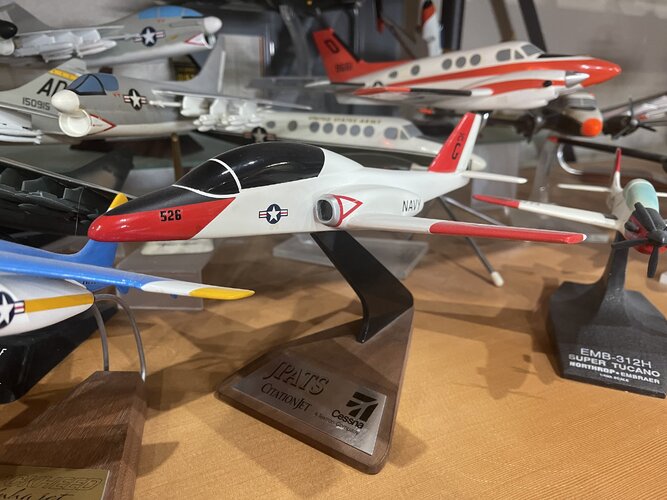

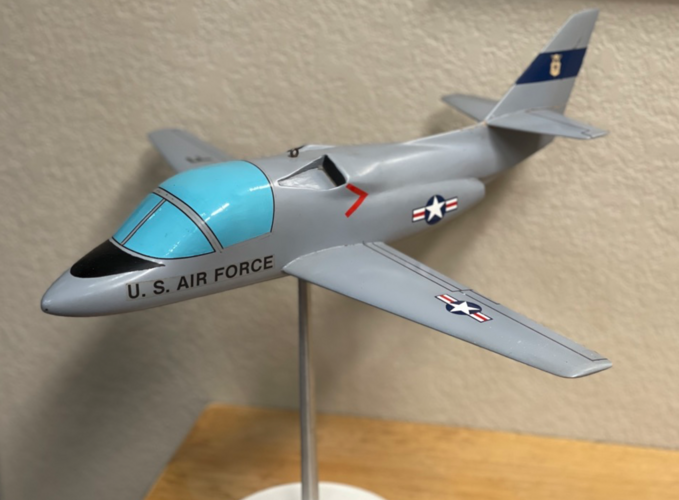

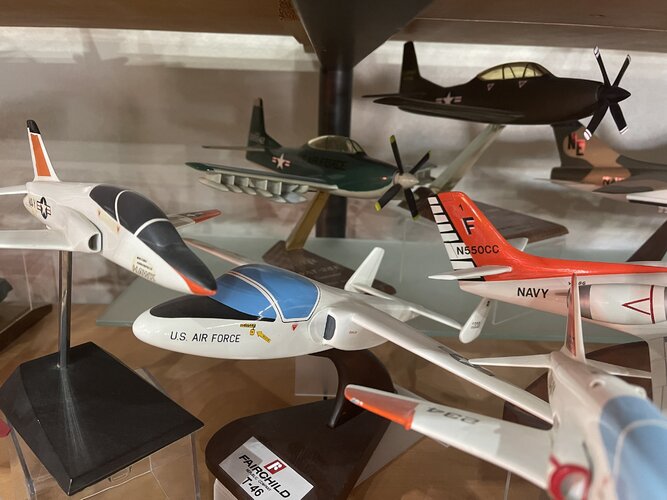

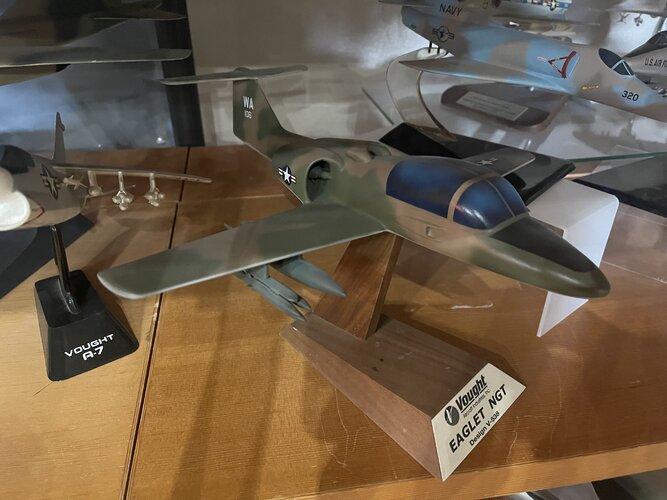

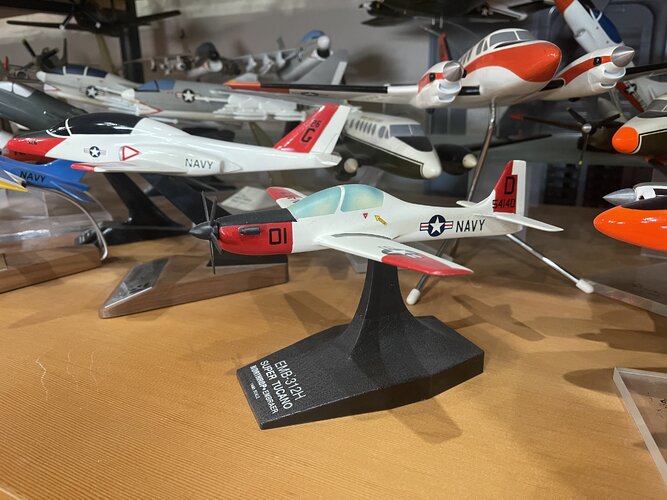

Thought I would give you a few models currently residing on my shelves to pique your interest....... enjoy


Attachments

  • Gulfstream NGT.png
    Gulfstream NGT.png
    1.7 MB · Views: 59
  • IMG_9140.jpg
    2.5 MB · Views: 55
  • IMG_9136.jpg
    2.8 MB · Views: 51
  • IMG_9139.jpg
    2.6 MB · Views: 53
  • IMG_9138.jpg
    2.4 MB · Views: 70

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,232
Reaction score
269
Spent an enjoyable day with Gerald Balzer yesterday and came across a few things I had not found before. The man has an amazing collection!

Here is a photo of the Rockwell Nova NGT mockup, courtesy of the Gerald Balzer Collection.

Enjoy the Day! Mark

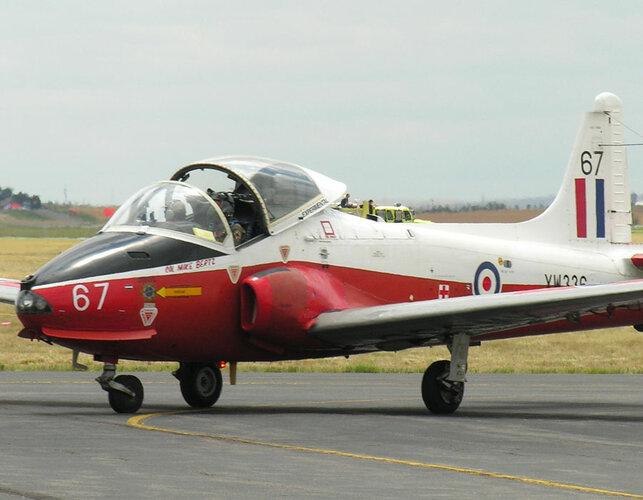

Seems like a lot of work to come up with a 1980s Jet Provost...

jet provost.jpg


Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,688
Reaction score
3,243
One of the interesting points is how the USAF then was convinced side-by-side seating was preferable for NGT while at the same time the RAF had reverted back to tandem seating for its AST.412 (Tucano).
The merits of both layouts have been heavily debated and researched but side-by-side trainers now seem to be largely extinct for military basic and advanced training. Only elementary training using standard civil trainers retains side-by-side.


norseman

ACCESS: Confidential
Joined
Jul 22, 2009
Messages
51
Reaction score
58
You mean a 1950's Jet Prvost! :)

Aah, read it wrong, see where you were going with that.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,947
Reaction score
509
One of the interesting points is how the USAF then was convinced side-by-side seating was preferable for NGT while at the same time the RAF had reverted back to tandem seating for its AST.412 (Tucano).
The merits of both layouts have been heavily debated and researched but side-by-side trainers now seem to be largely extinct for military basic and advanced training. Only elementary training using standard civil trainers retains side-by-side.
My question is, was that a result of changes in training procedures, or to meet cost goals by reducing frontal area => drag => operating costs?


Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,688
Reaction score
3,243
My question is, was that a result of changes in training procedures, or to meet cost goals by reducing frontal area => drag => operating costs?
A mix of both, mainly training procedures.
The Central Flying School's opinion in 1975 (when asked by the Irish Air Corps of all air forces!) for elementry/basic training was:

They concluded the preferred the side-by-side layout.
Positives: Easier for observation and instructor watching pupil, better internal view, builds rapport, economy in instruments.
Negatives: harder to monitor student's switch selection in a wide cockpit, different visual attitudes in left & right-hand seat to learn, empty seat syndrome on first solo, lower aircraft performance.

Tandem seating positives: improves weapon aiming skills, better view for student, simpler ergonomics, slimmer fuselage, student not distracted by instructor’s actions.
Negatives: greater risk of mis-selecting switches as student unmonitored, instructor needs to use precise dialogue, poor view for instructor (better in later ‘stepped’ types).

For advanced trainers tandem worked best for performance but also students had to get used to sitting in a single-seat cockpit anyway and weapon-aiming instruction was much easier.
