Type Spec 149: alternatives to the Grumman A-6

AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,166
Reaction score
27
hmmm...maybe that position provides the greatest separation between engine intake and probe during possible fuel sprays during disconnection? not sure...

Regarding Raywinder, sounds like a distant ancestor of SideARM.


Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
521
Reaction score
97
AeroFranz said:
hmmm...maybe that position provides the greatest separation between engine intake and probe during possible fuel sprays during disconnection? not sure...

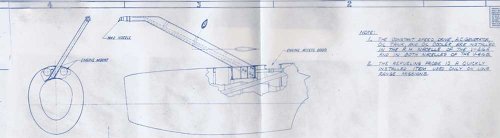

Here is the drawing of the refueling probe. By the notes it was
a bolt on type to be used only for long ranged missions


Attachments

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
521
Reaction score
97
One more, then I had better stop before this becomes the V-416 thread

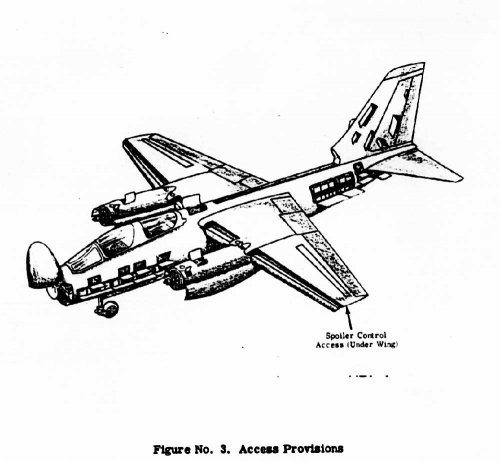

Here is a drawing of the maintenance access provisions for the aircraft.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
102
Bill S said:
One more, then I had better stop before this becomes the V-416 thread
So what? I for one certainly wouldn't mind a V-416 Vigilante thread!!!

And until someone can come up with that much material on the competing projects, this is just fine!


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,166
Reaction score
27
I second the notion ;)

Thanks for the IFR probe drawing. It shows that basically it would be impossible for fuel spray during disconnect to enter the intake, unless it would miraculously follow a 90 degree trajectory with respect to the local airflow.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Just to muddy the waters a little:

Although the NAGPAW program was accepted by the Navy's' BuAer as a proprietary concept, Chance Vought learned of North American's effort and also submitted an unsolicited proposal just two months prior to the award date. Ironically, (or coincidentally?) Vought had picked the name Vigilante [sic] for their proposed aircraft.
Source:
Aerofax A-5 Vigilante by Michael Grove and Jay Miller


Tailspin Turtle

CLEARANCE: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
691
Reaction score
15
Website
www.tommythomason.com
overscan said:
Just to muddy the waters a little:

Although the NAGPAW program was accepted by the Navy's' BuAer as a proprietary concept, Chance Vought learned of North American's effort and also submitted an unsolicited proposal just two months prior to the award date. Ironically, (or coincidentally?) Vought had picked the name Vigilante [sic] for their proposed aircraft.
Source:
Aerofax A-5 Vigilante by Michael Grove and Jay Miller
It gets more confusing. The A3J was on contract in 1955. In 1957, North American submitted a single-engine proposal that they called the Vigilante for the TS 149 requirement (the desired weight and mission were incompatible; NAA opted to bet that BuAer would prefer an airplane that met the desired weight). It looked nothing like the sleek A3J. The artwork on the cover of the proposal included an illustration of the A3J, which obviously hadn't been formally named at the time.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Some interesting dates from Grumman A-6 Intruder by Robert F Dorr.

128F drawing- twin T56 turboprops - September 1956
Requirement issued - October 1956
128M drawing - M wing twin turbojets - 27 February 1957
128M3 drawing- M wing, main gear stowed under the engine nacelles 6 March 1957
128M4 drawing - M wing, J52 engines. 16 March 1957
128N - low mounted, conventional wing, "same period"
128M2 drawing - M wing, refined layout, electronics stored aft of the crew. 14 May 1957
Letter received inviting submission. 15 May 1957
Grumman submit proposal. 19 August 1957
Grumman informed they had won. 30 December 1957
128P drawing- Largely the Intruder was we know it. 29 March 1959.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Spangenberg index files show Vought V-416 proposals in 1957.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
From Tony Buttler's American Secret Projects: Bombers, Attack Aircraft and ASW

Bell - V/STOL design (no further info)
Boeing 806-1A single engine, top inlet, supersonic design (3 view, description)
Boeing 807 - turboprop submission. (No further info)

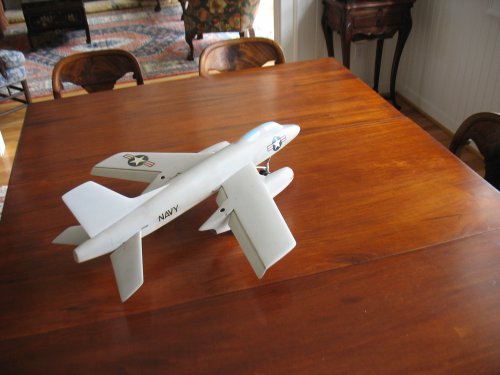

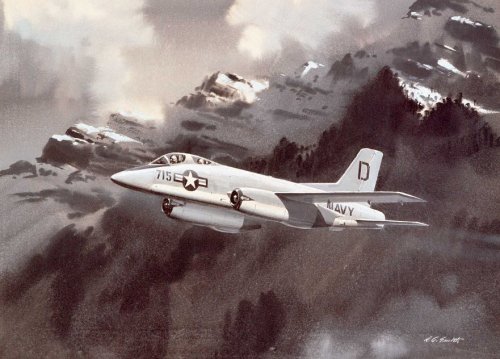

Douglas 715 - as described above. (2 model photos, 3 view, description)
Douglas 725 - A4D-3 Skyhawk with new nose and modified cockpit (3 view, artwork, description)

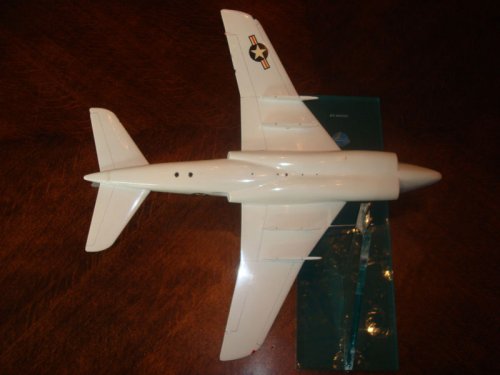

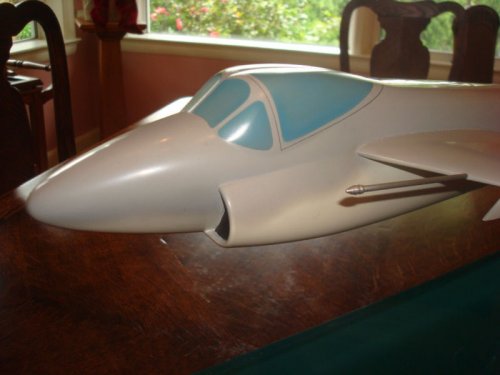

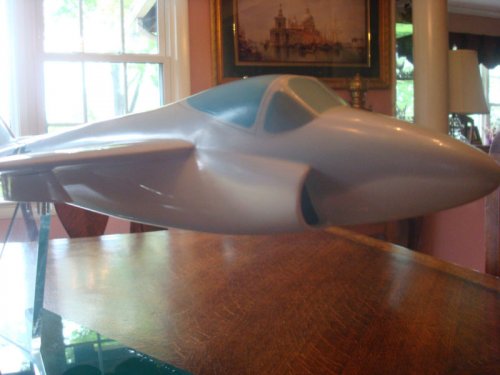

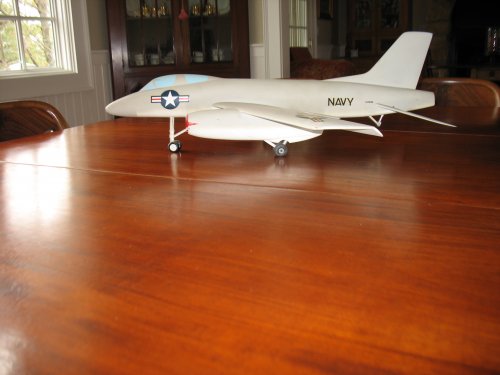

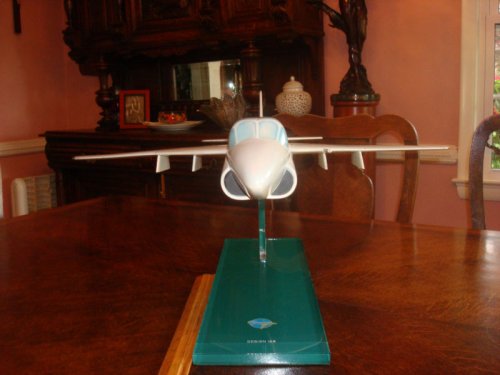

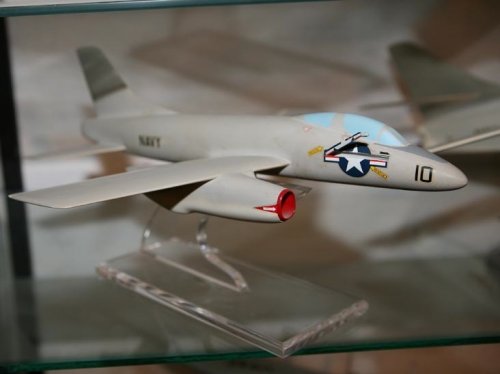

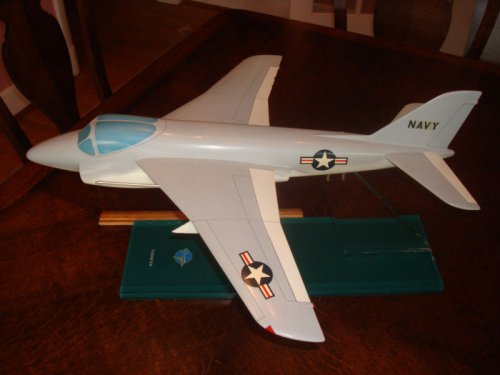

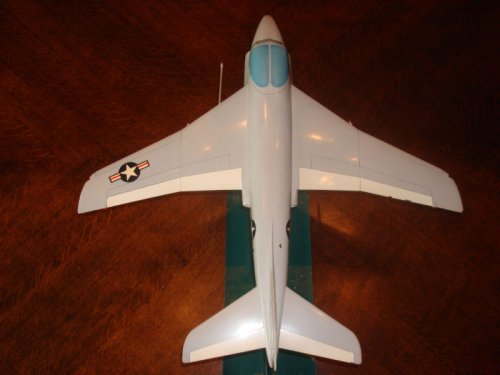

Grumman G-128 (built as the A2F/A-6 Intruder)
Lockheed CL-364-2 (3 view, description)
Martin 345, 346 (no further info)
North American (no further info)
Vought V-416/A/B/C (3 views, artworks, descriptions)


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,669
Reaction score
40
Thank's Overscan!
You have been busy!! ;D

Regards
Pioneer


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,548
Reaction score
188
Hi All -

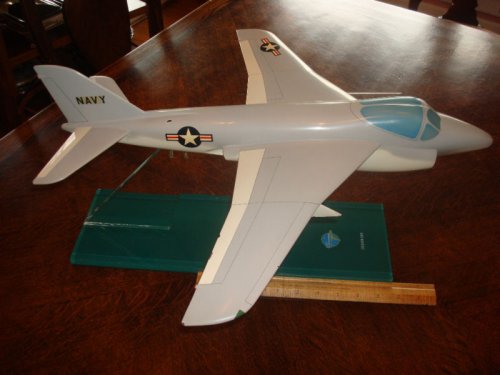

Interesting early look at the evolution of the A2F Intruder:

http://cgi.ebay.com/INHOUSE-GRUMMAN-FACTORY-DESIGN-128-A2F-1-A-6-MODEL-/270741571586?pt=LH_DefaultDomain_0&hash=item3f09748802

Silly price though....

Enjoy the Day! Mark


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
Hi,

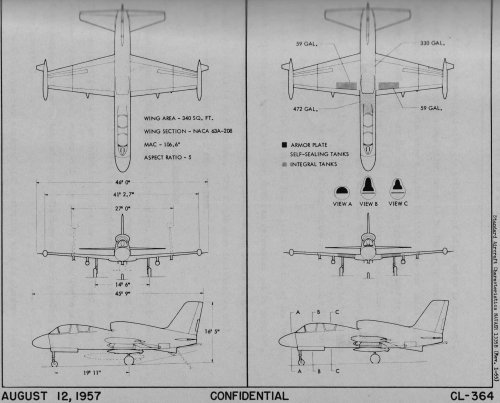

the Lockheed CL-364;

http://www.unicraft.biz/


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
102
No, hesham, that's the Lockheed CL-364, as the caption implies.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
Stargazer2006 said:
No, hesham, that's the Lockheed CL-364, as the caption implies.
Ok,I will correct it.


Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
12
XB-70 Guy said:
I never heard of a RAY WINDER missile before.
...neither me.
Perhaps Ray Winder stood for the AIM-9C Sidewinder 1C with SARAM 8Semi-Active Radar Alternate Head)
or possibly a forgotten (and never developed) anti-radiation version?

Nico


Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
12
overscan said:
XB-70 Guy said:
I never heard of a RAY WINDER missile before.
Ray Winder was a passive radar homing Sidewinder from 1957, put together by John Boyles and Tom Amlie at NOTS. It generated little interest as Russian fighters generally did not use radar at the time.
I'm sorry,
I quoted and answered before scrollin all the topic
Nico


CaseyKnight

I really should change my personal text
Joined
Jul 25, 2011
Messages
28
Reaction score
1
Pioneer said:
Possibly more chances than one may think!
After all the Buccaneer was designed and developed with the financial assistance of the U.S Governments Military Assistance Program (MAP)!
Also I have read that the U.S Navy officials often and freely visited the Hawker Siddeley facilities to inspect the progress of the Buccaneer development - with it being stated in some circles that HS's progress and innovation to particular problem were taken back to Grumman, who was at the time developing the A-6 Intruder!
It was said that the US Navy officials liked what they sore!!
Why didn't the Navy give the info to the other contractors?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
My dear Tailspin,


do you know the proposals from Bell and North American ?.


nugo

CLEARANCE: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
2

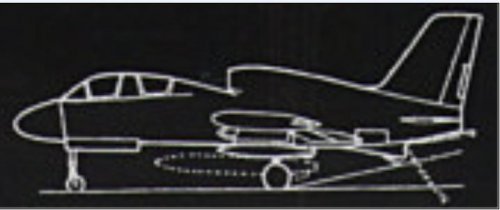

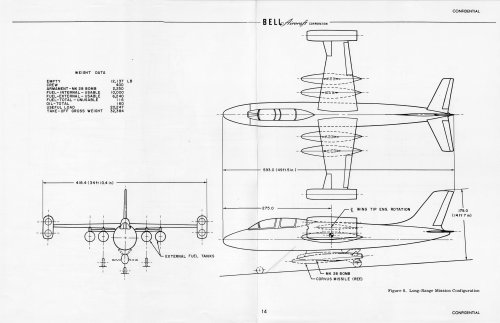

Bell Model 2001 (a.k.a. D-2001)---Navy Attack Airplane, maybe competitor of the TS-149 specification.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,669
Reaction score
40
CaseyKnight said:
Pioneer said:
Possibly more chances than one may think!
After all the Buccaneer was designed and developed with the financial assistance of the U.S Governments Military Assistance Program (MAP)!
Also I have read that the U.S Navy officials often and freely visited the Hawker Siddeley facilities to inspect the progress of the Buccaneer development - with it being stated in some circles that HS's progress and innovation to particular problem were taken back to Grumman, who was at the time developing the A-6 Intruder!
It was said that the US Navy officials liked what they sore!!
Why didn't the Navy give the info to the other contractors?
Sorry my friend, I just found this!

I think it was because the USN and Grumman were as thick as thieves! Plus don't quote me, but I think Grumman might have already been selected as the winner for the RFP that was Type Spec 149!

Regards
Pioneer


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
nugo said:
Bell Model 2001 (a.k.a. D-2001)---Navy Attack Airplane, maybe competitor of the TS-149 specification.

I think you are right my dear Nugo.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
Wow,oh my God;


thank you very very much my dear Tailspin,amazing projects,and for NAA,in the
drawing,they called the report as 57H-424.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,164
Reaction score
155

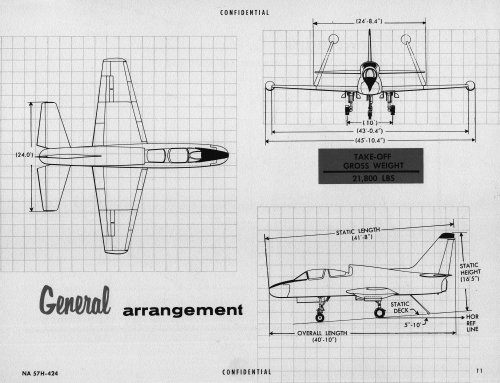

Hhmm, the Lockheed CL-364 (post#54 by hesham) and the NAA TS-149 "Vigilante" /57H-424 look very alike.


Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
521
Reaction score
97

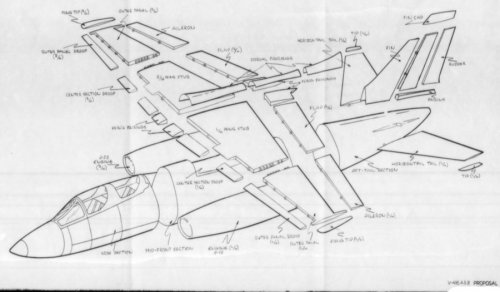

V-416A&B Major Components Drawing VAHF Archives


Report 10934A Page 3 Rev 7/29/57


"Chance Vought Aircraft has been invited to participate in a design competition for an all-weather, low-level, carrier-based, two-place, attack airplane in accordance with Type Specification No. TS-149 dated 19 February 1957 as modified by Amendment No. 2 dated 24 May 1957."


"Two separate configurations will be proposed - one a twin J-52 engine airplane which meets the specification requirements and contains Contractor furnished and developed electronic equipment called out in Type Specification and Government TS-149 that the Contractor considers essential for optimum mission accomplishment. This airplane will be identified as the Model V-416A. The second configuration will be identified as the Model V-416B and will differ from the Model V-416A in that it will contain Contractor and Government furnished and developed electronic equipment which meets all the requirements call out in Type Specification TS-149."


bill


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
102

Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
PaulMM (Overscan) said:
From Tony Buttler's American Secret Projects: Bombers, Attack Aircraft and ASW

Bell - V/STOL design (no further info)
Boeing 806-1A single engine, top inlet, supersonic design (3 view, description)
Boeing 807 - turboprop submission. (No further info)
Douglas 715 - as described above. (2 model photos, 3 view, description)
Douglas 725 - A4D-3 Skyhawk with new nose and modified cockpit (3 view, artwork, description)
Grumman G-128 (built as the A2F/A-6 Intruder)
Lockheed CL-364-2 (3 view, description)
Martin 345, 346 (no further info)
North American (no further info)
Vought V-416/A/B/C (3 views, artworks, descriptions)

My dear Paul,

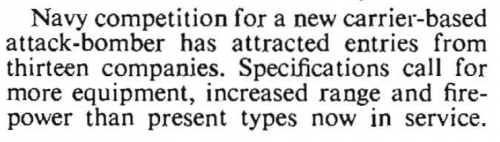

in Air Pictorial 10/1957,there was thirteen companies and not eight,so maybe those
companies were involved;


Convair,Fairchild,McDonnell,Northrop & Republic ?,for McDonnell,it was M-121.


Attachments

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,669
Reaction score
40
PaulMM (Overscan) said:
Just to muddy the waters a little:

Although the NAGPAW program was accepted by the Navy's' BuAer as a proprietary concept, Chance Vought learned of North American's effort and also submitted an unsolicited proposal just two months prior to the award date. Ironically, (or coincidentally?) Vought had picked the name Vigilante [sic] for their proposed aircraft.
Source:
Aerofax A-5 Vigilante by Michael Grove and Jay Miller
Has anything more been discovered regarding this unsolicited Vought 'NAGPAW' competitor??

Regards
Pioneer


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,548
Reaction score
188
Impressive - thanks! Mark


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,669
Reaction score
40
Very nice find allysonca!!

Thanks for sharing :p

Regards
Pioneer


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163

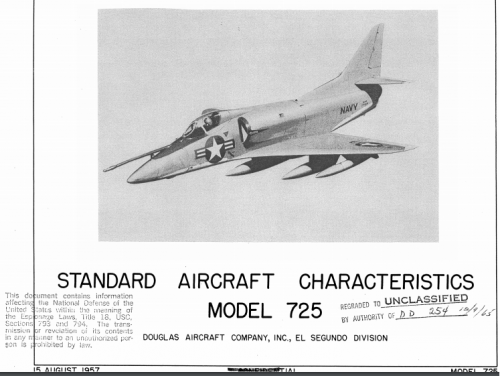

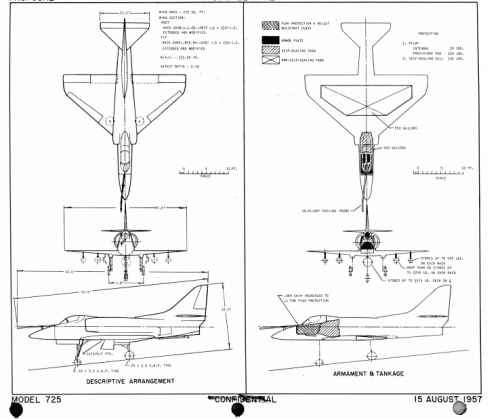

Douglas D-725 was a lightly modified A-4 submitted to TS-149

http://www.alternatewars.com/SAC/Douglas_Model_725_SAC_-_15_August_1957.pdf


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
PaulMM (Overscan) said:
Douglas D-725 was a lightly modified A-4 submitted to TS-149

http://www.alternatewars.com/SAC/Douglas_Model_725_SAC_-_15_August_1957.pdf
Amazing find my dear Paul,and we can put them here.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,339
Reaction score
1,093
Nice find my dear Tailspin.
