Tupolev Tu-98 Projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,475

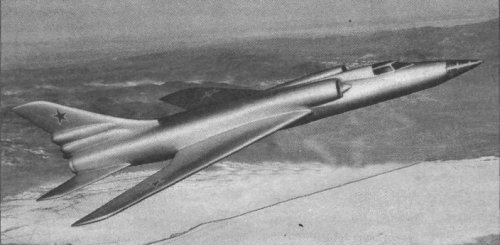

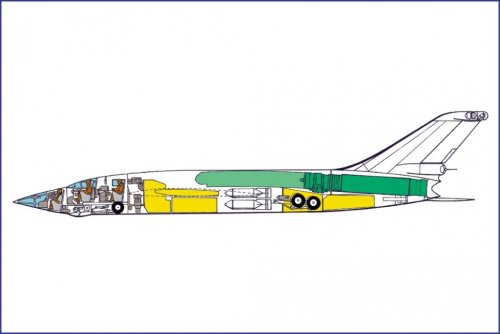

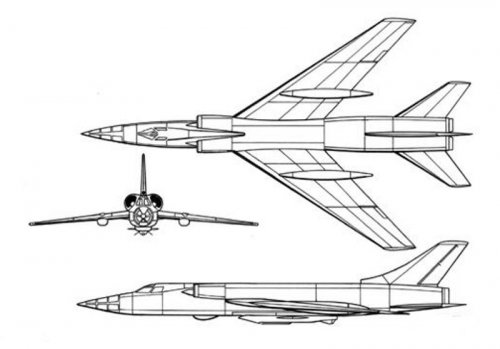

Source:

Long range Interceptor Tu-128 Aviakolletsiya Jan 2007


Attachments

  • 98(1).jpg
    61.1 KB · Views: 1,791
  • 98(2).jpg
    41.9 KB · Views: 1,537
  • 98A.jpg
    29.3 KB · Views: 1,589

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Sources: S.Ganin, A.Karpenko, V.Kolnogorov "Russian bombers"
              V.Rigmant "Under sign ANT and Tu"


Attachments

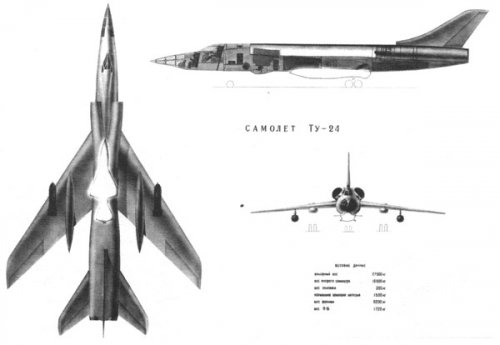

  • Tu-98 A (Tu-24).jpg
    Tu-98 A (Tu-24).jpg
    173.5 KB · Views: 1,472

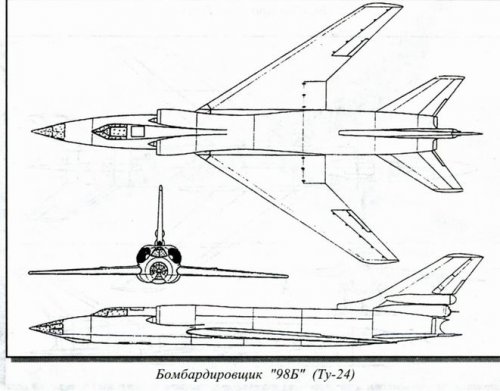

  • Tu-98 B (Tu-24).jpg
    Tu-98 B (Tu-24).jpg
    47.3 KB · Views: 1,378
  • Tu-127.jpg
    51.7 KB · Views: 331

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com

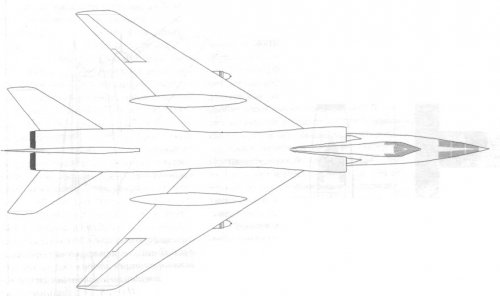

The second image Overscan posted looks a lot like an F-105 Thunderchief! I believe it's also pictured in SSP: Bombers Since 1945.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688

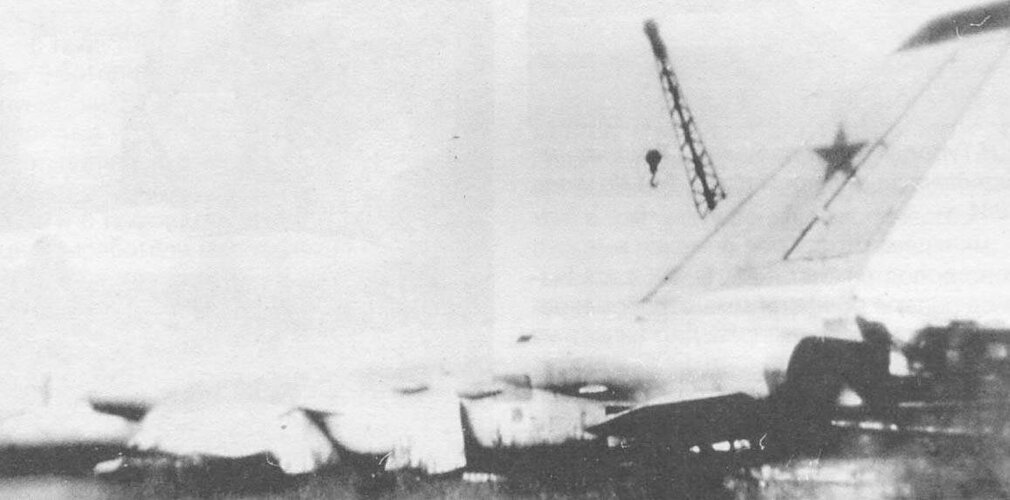

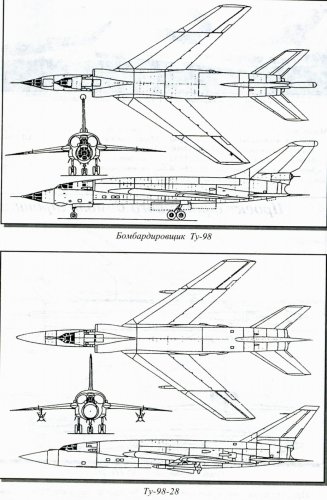

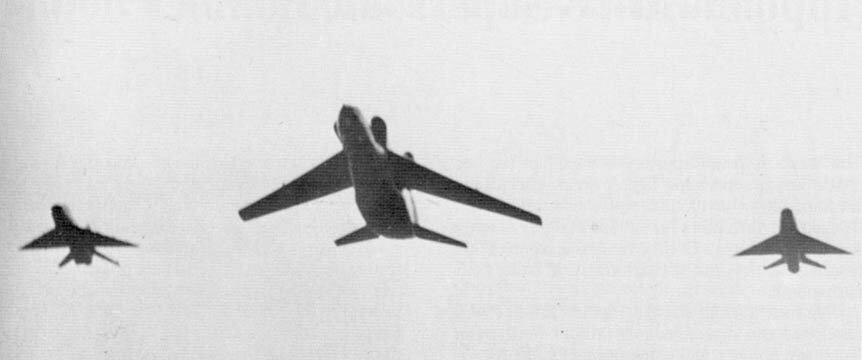

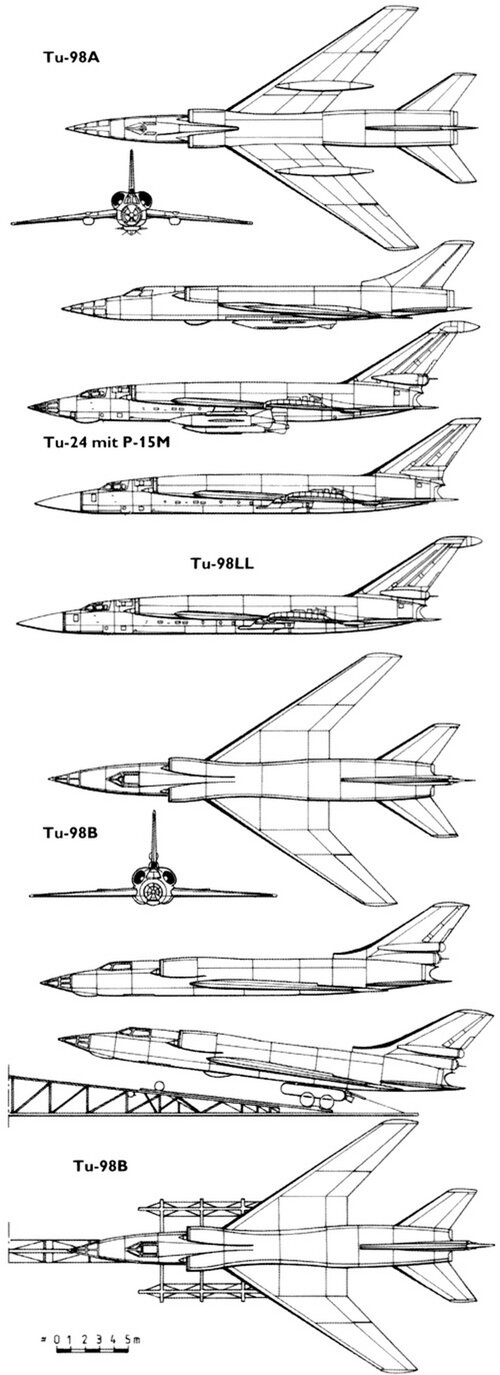

Attachments

  • Tupolew-Tu-98-zeichnung (6).jpg.4041096.jpg
    Tupolew-Tu-98-zeichnung (6).jpg.4041096.jpg
    91.2 KB · Views: 259
  • Tupolew-Tu-98-zeichnung (5).jpg.4041080.jpg
    Tupolew-Tu-98-zeichnung (5).jpg.4041080.jpg
    73.4 KB · Views: 239
  • Tupolew-Tu-98-zeichnung (4).jpg.4041064.jpg
    Tupolew-Tu-98-zeichnung (4).jpg.4041064.jpg
    34.7 KB · Views: 221
  • Tupolew-Tu-98 (3).jpg.4041048.jpg
    Tupolew-Tu-98 (3).jpg.4041048.jpg
    68.9 KB · Views: 159
  • Tupolew-Tu-98 (2).jpg.4041032.jpg
    Tupolew-Tu-98 (2).jpg.4041032.jpg
    54.9 KB · Views: 181
  • Tupolew-Tu-98 (1).jpg.4041016.jpg
    Tupolew-Tu-98 (1).jpg.4041016.jpg
    79.1 KB · Views: 165

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498

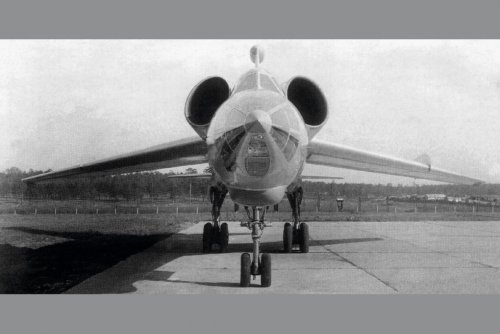

Hi,

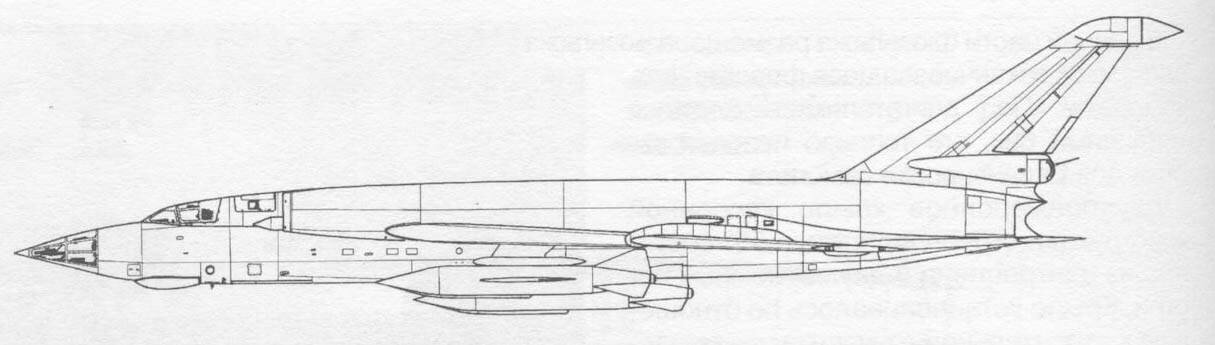

here is the Tu-98.

Аэрокосмическое обозрение №01 (20) 2006


Attachments

  • 98-3.png
    702.1 KB · Views: 152
  • 98-2.png
    791.1 KB · Views: 164
  • 98-1.png
    374 KB · Views: 154

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,413
Reaction score
1,451
That 98-3 looks like a big F-105. What kind of engine would it have had? :eek:


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580

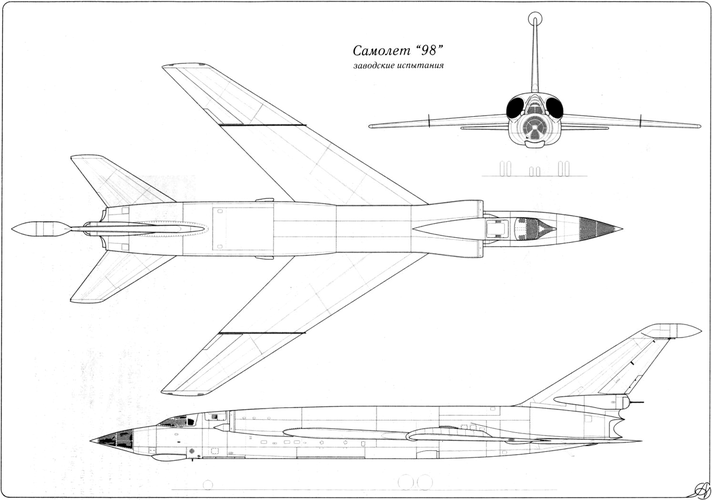

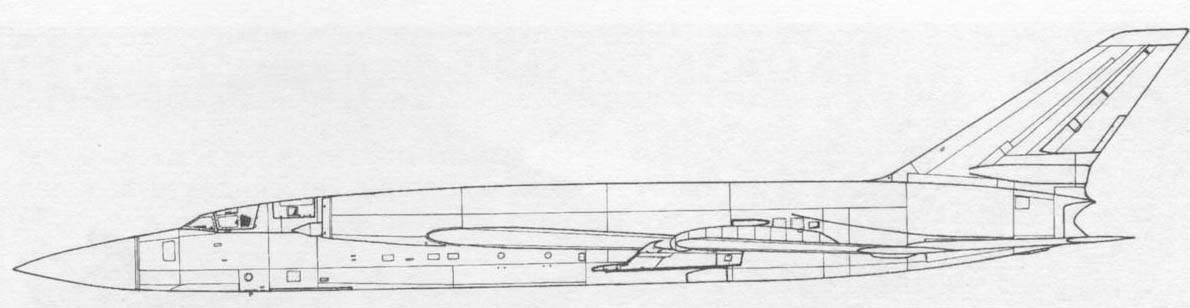

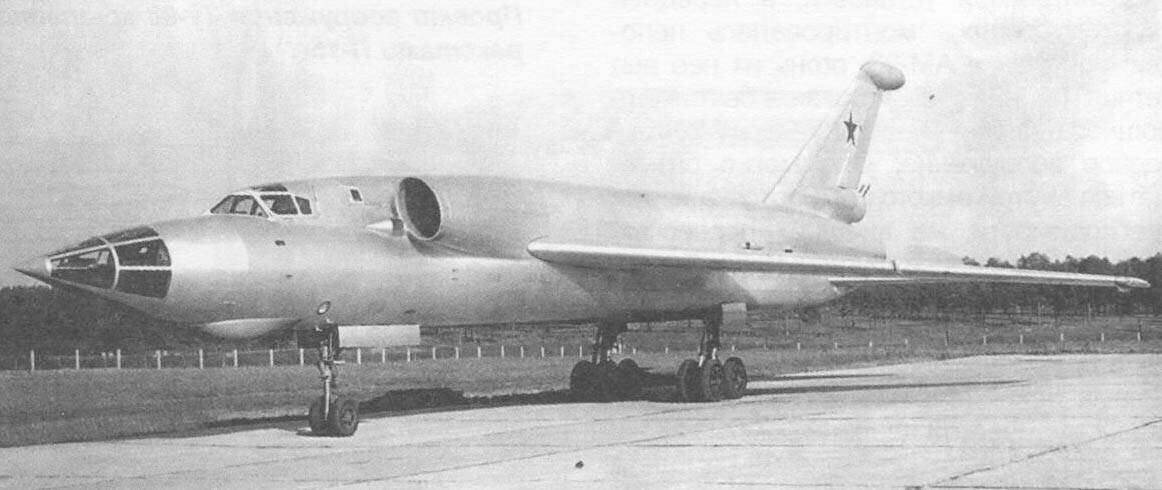

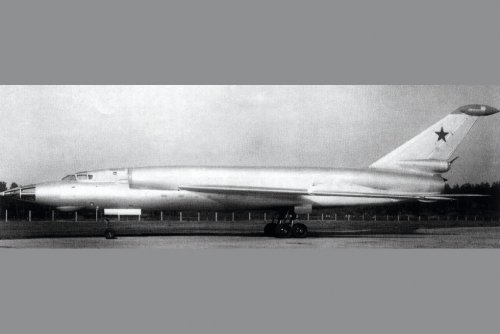

Hi! Tu-98.
http://www.aviation-gb7.ru/Tu-98.htm#Tu98

"According to the results of research and development work has been concluded on the possibility of creating a heavy supersonic bomber. The development of the future of the Tu-98 began in accordance with the Decree of the USSR Council of Ministers dated 12 April 1954,. OKB Tupolev was instructed to create a triple frontline bomber maximum speed of 1300 ... 1400 km / h at an altitude of 10 000 ... 11 000 m (1150 ... 1200 km / h at altitudes 6000 ... 7000 m with the engines besforsazhny maximum mode). Practical flight range with a normal bomb load 3000 kg (maximum - 5000 kg) was set more than 2 300 km, and with an additional fuel tank - 2550 ... 2700 km. Ceiling on purpose -. 13 000 ... 13 500 meters The first machines are required to present a copy of the factory tests in July, while the state - in December of 1955.

The plane was calculated under two Turbojet AL-7F with afterburning thrust of 9500 kgf (the maximum - 6500 kg), but provides an alternative types of power plants on the basis of two VC-9 with the calculated thrust of 12,000 kg or two sparok 11 AM (AM 15) at 11,400 kg. EDO AM Cradles was put in February 1955 of two engine AL-7F with a 50-hour resource to the first prototype. Head of works on the car "98" Tupolev appointed DS Markov, for pilot production at OKB responsible engineer AI Zaleski.

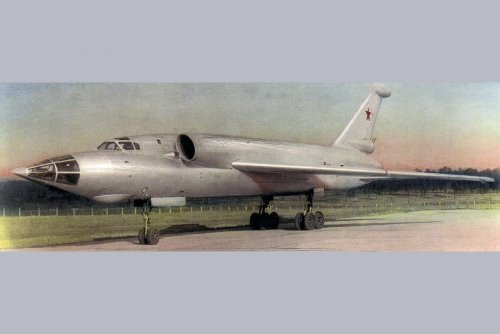

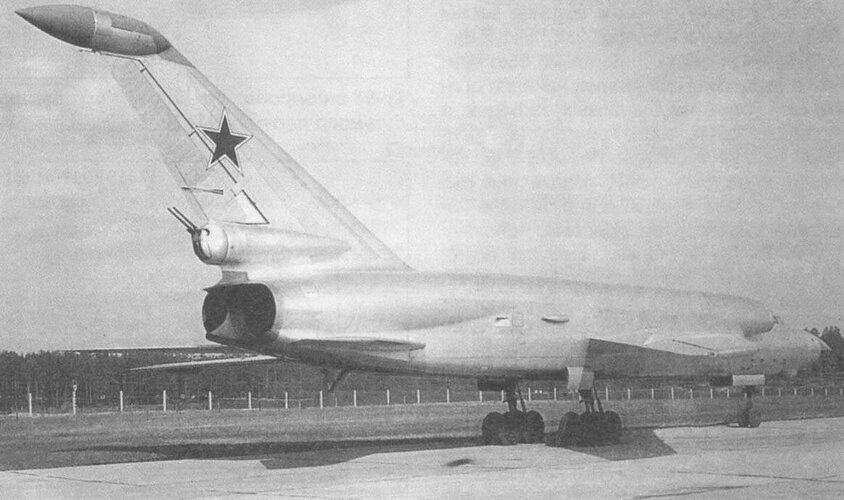

In March 1955 the first customer EDO filed preliminary design and layout of the aircraft. In July, the car rolled off the assembly line, but only 7 September 1956 the second, after the engine AL-7F, the test pilot, VF Kovalev and navigator KI Malkhasyan made its first flight. Lead engineer appointed Gribakin. "

"Flight tests of the Tu-98 were very hard. There were several reasons: first of all - problems with the operation and fine-tuning the new irreversible hydraulic control system and a control system of the front landing gear. Most of the drive motor. By the end of 1957, it managed to perform 30 flights with a total flying 25 hours 12 minutes. In one of the flights in the "98th" reached a speed of 1238 km / h at an altitude of 12 000 m, which corresponds to Mach 1.15.

Test flights on the "98th" continued until 1959. Despite the great efforts of EDB, the heroism of the test pilots, it was not possible to bring the aircraft to transfer it to the level of state tests.
Over time, the customer began gradually to lose interest in the aircraft. "

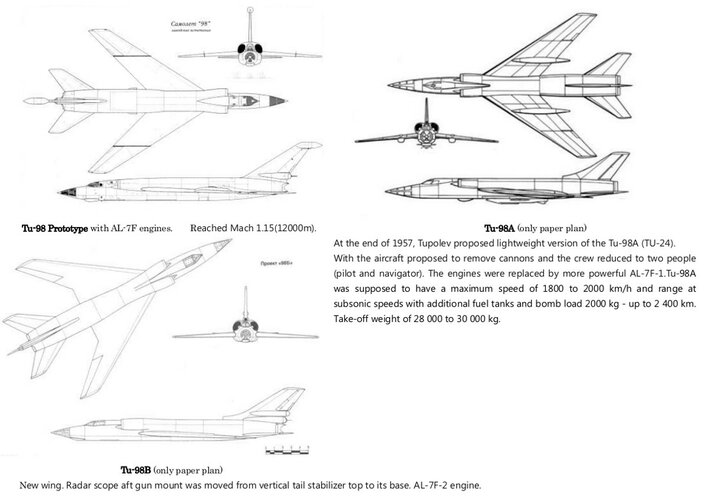

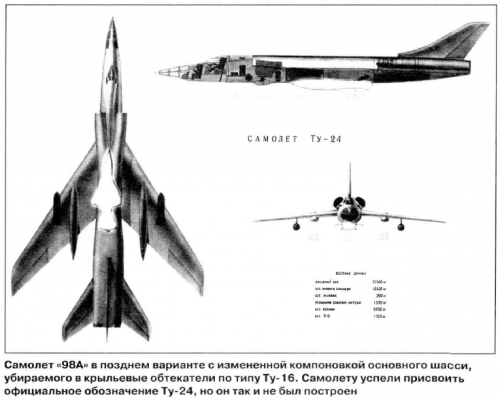

"At the end of 1957, Tupolev proposed lightweight version of the customer "98A" (TU-24). With the aircraft proposed to remove cannons and the crew reduced to two people (pilot and navigator). The engines were replaced by more powerful AL-7F-1, provided for the suspension missiles P-15A and P-15M in the bomb bay, and on underwing pylons. Start missiles had to be carried out at an altitude of 14,000 meters at a speed of 1400 ... 1500 km / h. In this starting distance of 60 ... 70 km, and in the case of starting at a height of 100 ... 200 m at a speed of 950 ... 1000 km / h - 50 km.

The bomber variant, with take-off weight of 28 000 ... 30 000 kilograms, "98A" was supposed to have a maximum speed of 1800 ... 2000 km / h and range at subsonic speeds with additional fuel tanks and bomb load 2000 kg - up to 2 400 km . The ceiling, depending on the operating mode of the engines, was expected at around 13 000 ... 17 000 m. "

"In addition to the machines "98A" in the bureau is considering several options, "98b" aircraft engine AL-7F-2, HP-15 and AL-9 and with a controlled stabilizer. It was supposed to use the new wing with the increased area of ​​center, which had to get out of the main landing gear. Radar scope aft gun mount was moved to the top of the keel to its base.

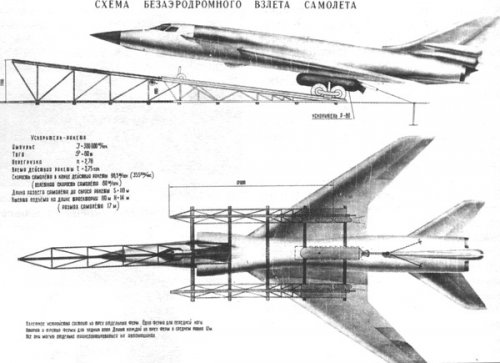

The variants require an airfield start with special light mobile farm. With the help of powerful solid rocket booster F-80 thrust of 800 tons of the aircraft had accelerated to a speed of 355 km / h. Considered as single-engine version with HP Turbojet-9 or WD-19 and a high-rise project "98B". "

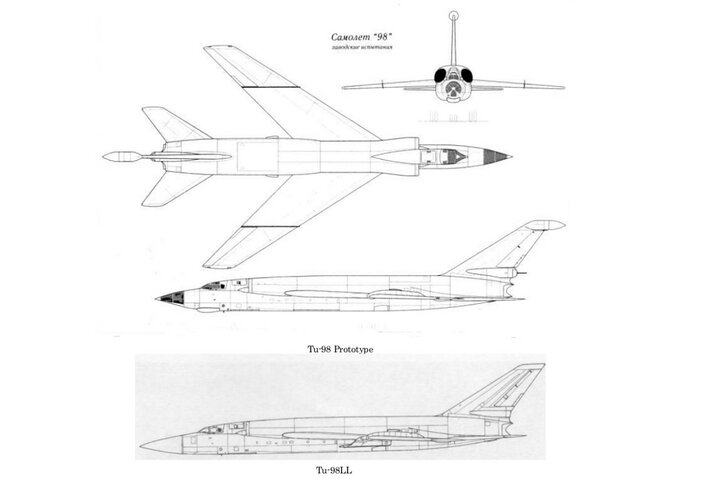

"After the cessation of work on the prototype "98" in July of 1958 it was decided to write off and pass into scrap metal, but due to the beginning of the development of the Tu-128 was offered at its base to create a flying laboratory for testing weapons.

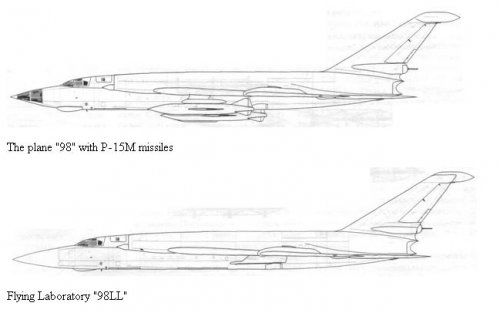

Alteration of the aircraft "98" under the flying laboratory, received the designation "98LL" (in official documents meets the designation Tu-98A) engaged in Voronezh Design Bureau branch factory №64 under the leadership of AI Putilov. When retrofitting a prototype "98" dismantled the chart bow cabin, "initiative" and "Argon", all the cannon and bomber weapons. In the bow of the first layout installed, and then himself RLP. Under the wings there were two pylons with launchers for the missiles K-80. Tests in which simulated an armed, took place from 1959 to 1960-th years. Lead test pilot was Mikhail Kozlov.
"


Attachments

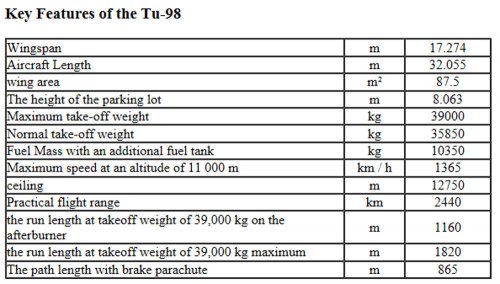

  • Tu-98_specification.jpg
    116.7 KB · Views: 93
  • Tu98.jpg
    29 KB · Views: 88

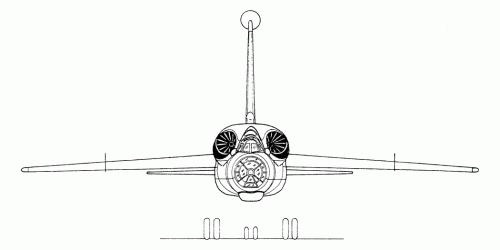

  • Tu-98 front view.gif
    Tu-98 front view.gif
    16.3 KB · Views: 77

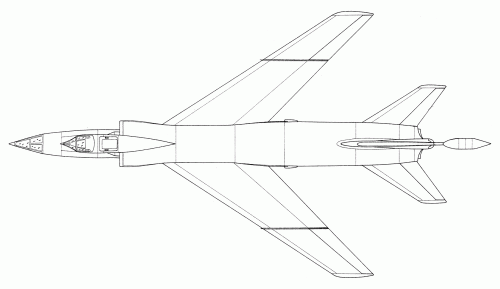

  • Tu-98 plan view.gif
    Tu-98 plan view.gif
    42 KB · Views: 76

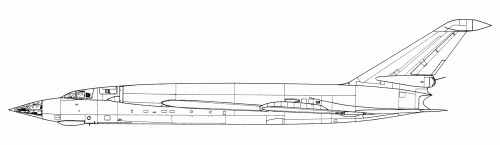

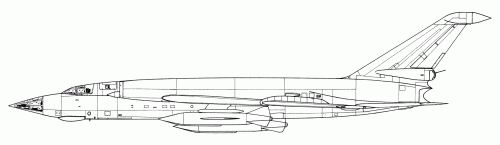

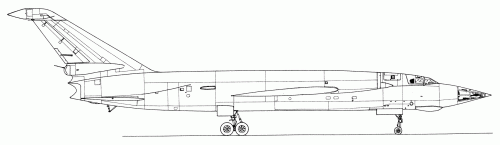

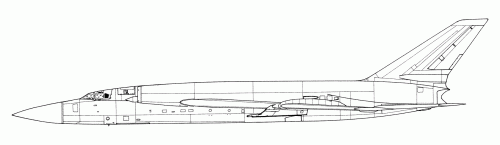

  • Tu-98 side view 2.gif
    Tu-98 side view 2.gif
    36.7 KB · Views: 77
  • Tu-98 side view.gif
    Tu-98 side view.gif
    33.7 KB · Views: 77
  • Tu-98LL.gif
    32.6 KB · Views: 80
  • Tu-98B.gif
    24 KB · Views: 76
  • Tu-98A.gif
    37.1 KB · Views: 86
  • Tu-98.gif
    6.5 KB · Views: 80

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580

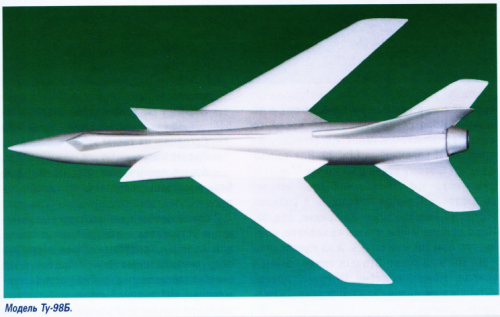

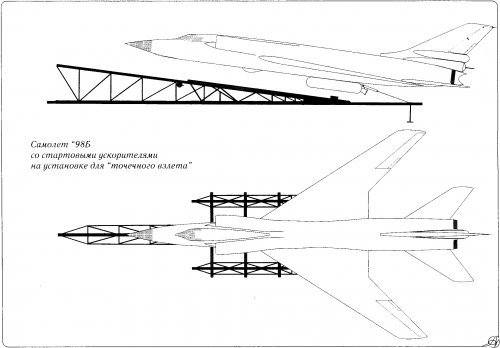

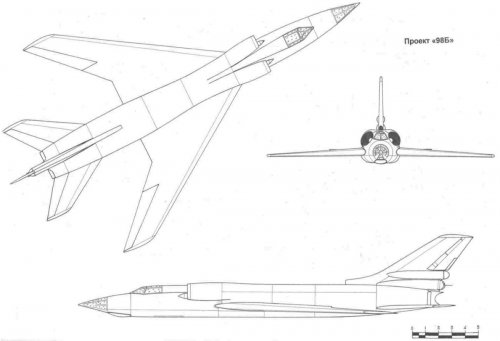

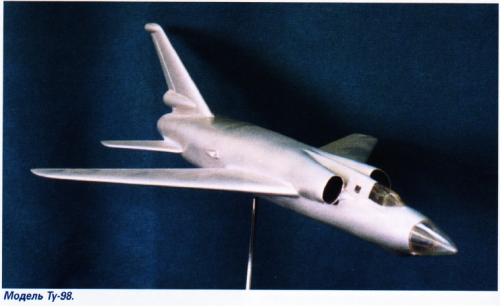

Hi! Tu-98B three side view, one of the take off position and display model which clearly shows apprication of the area rule.

http://www.airwar.ru/other/draw2/tu98kr.html


Attachments

  • Tu-98B.jpg
    76.2 KB · Views: 100
  • The plane 97B starting accelerators on a point of take-off.jpg
    The plane 97B starting accelerators on a point of take-off.jpg
    310.5 KB · Views: 73
  • Bottom model shoews Tu-98B.jpg
    Bottom model shoews Tu-98B.jpg
    105.6 KB · Views: 72

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580

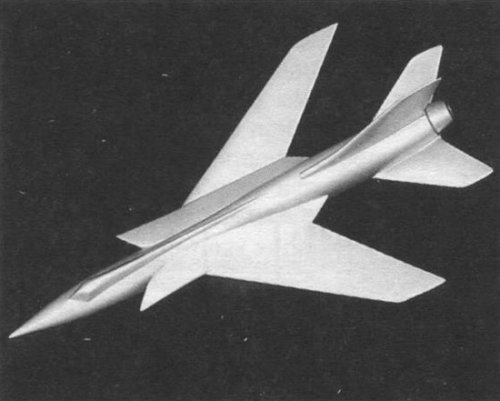

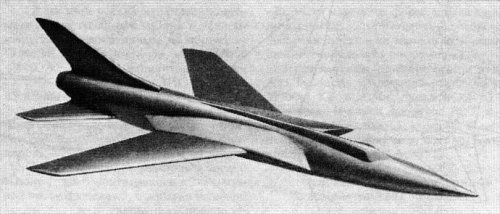

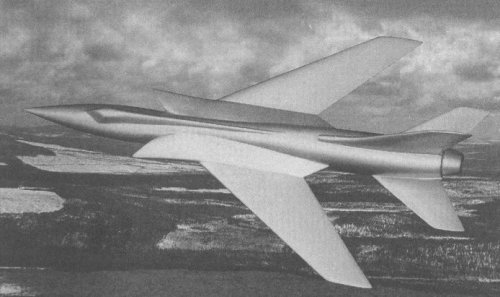

And this single engine model also shows Tu-98B?

http://aviadejavu.ru/Site/Arts/Art2499.htm


Attachments

  • One variant of this model of aircraft 98.jpg
    One variant of this model of aircraft 98.jpg
    74.3 KB · Views: 72
  • Impact model of the single plane 97B.jpg
    Impact model of the single plane 97B.jpg
    87.7 KB · Views: 72
  • IMG_6677.JPG
    101.8 KB · Views: 74

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580

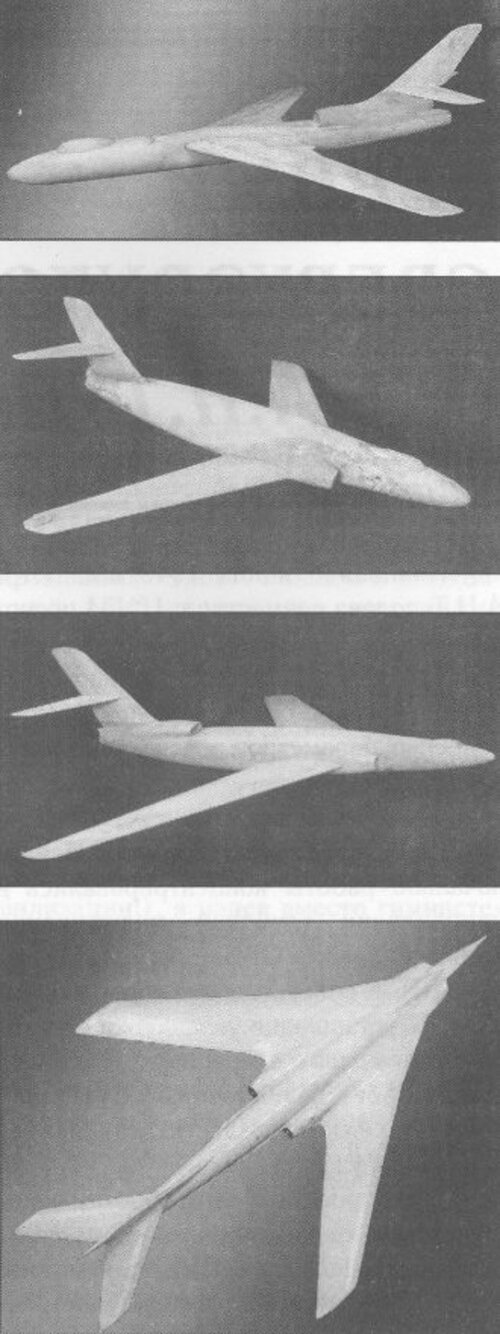

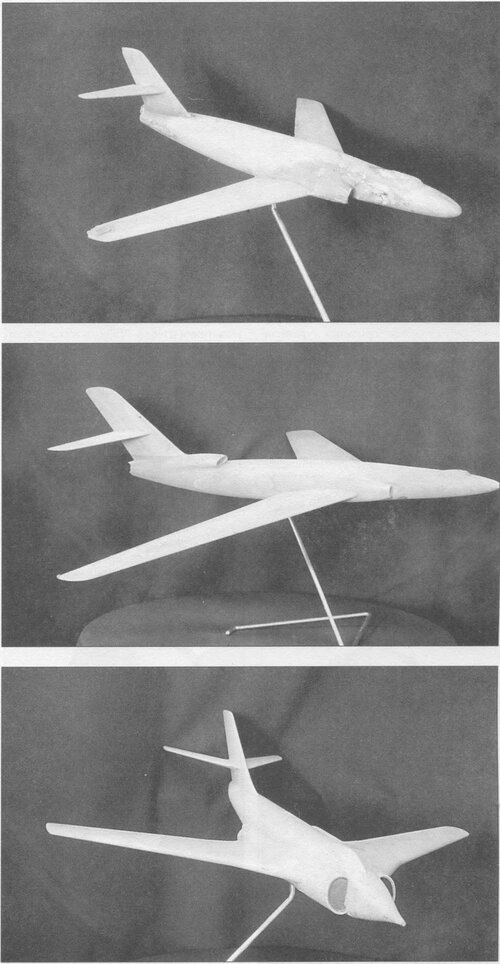

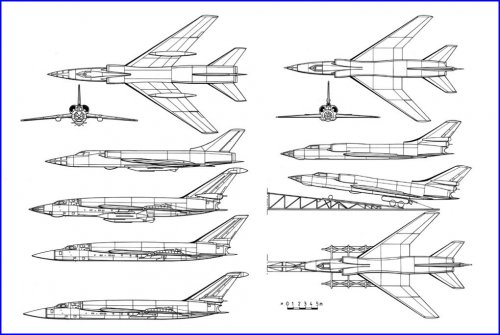

What is this aircraft? "5201"? One of the "98" early study?


Attachments

  • Versions of the draft 5201.jpg
    Versions of the draft 5201.jpg
    74.7 KB · Views: 80

Granit

ACCESS: Confidential
Joined
Feb 13, 2010
Messages
54
Reaction score
0
blackkite said:
What is this aircraft? "5201"? One of the "98" early study?

Preliminary versions of the project "5201". Later it turned into a Tu-98.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580
Oh!! Thanks a lot. :D
How do you think about Tu-98B? I found single engine design and twin engine design. ???
Also how do you think about Tu-98A? I found one desgin which had undercarriage pod at the wing and another design without undercarriage pod at the wing.

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2202.0;attach=18491;image
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=2202.0;attach=575516;image


Attachments

  • Tu-98A.jpg
    39.6 KB · Views: 82

Granit

ACCESS: Confidential
Joined
Feb 13, 2010
Messages
54
Reaction score
0
blackkite said:
Also how do you think about Tu-98A? I found one desgin which had undercarriage pod at the wing and another design without undercarriage pod at the wing.

Tu-98A (Tu-24) designed as a "lightweight" version of the Tu-98. Initially undercarriage housed in the fuselage.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498

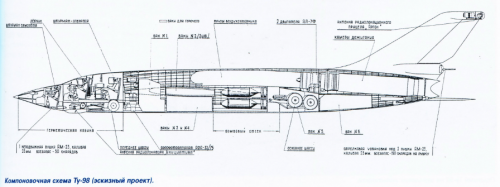

From; Ту-22. Стратегический бомбардировщик, ракетоносец, разведчик


Attachments

  • 1.png
    169.8 KB · Views: 190
  • 2.png
    183.7 KB · Views: 212

Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
83
Reaction score
85

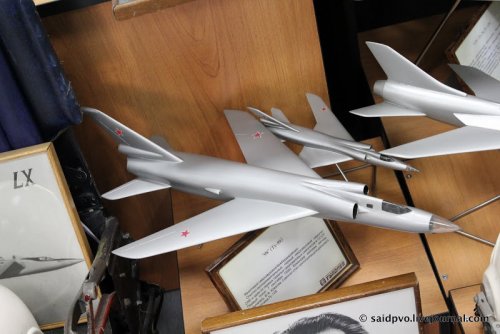

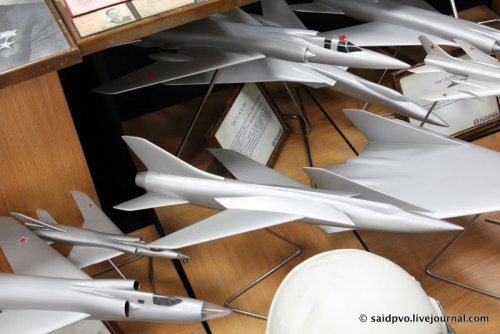

And this single engine model also shows Tu-98B?


I propose the fact that "98B" also carried the name "Aircraft 129".

"24. Model of the supersonic front-line bomber-bomber Tu-129 (1959 project)." - https://saidpvo.livejournal.com/171597.html

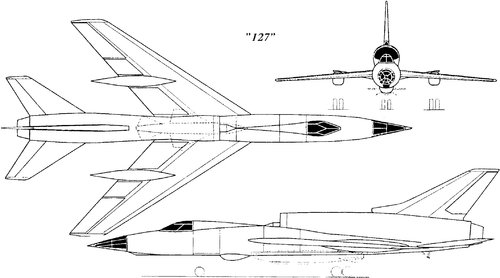

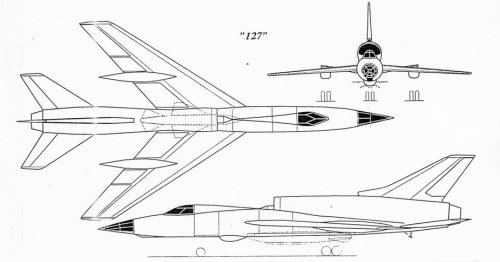

"Within the general framework of the '127', the '129' project was prepared as its development. In layout, this was reminiscent of the Republic F-105 Thunderchief fighter-bomber." - Yefim Gordon & Vladimir Rigmant, Tupolev OKB (Midland Publishing, 2005), pp. #189.

Notice that "127" was developed from "98" and "129" was developed from "127". So basically, the single engine "98B" could also be "129".

aviadejavu.ru/Site/Crafts/Craft20967.htm
