TL-30 Chinese Anti-Radar Missile

totoro

ACCESS: Secret
Joined
Jan 11, 2011
Messages
466
Reaction score
227
High speed in this context should still be subsonic.
So it seems to be more like a loitering ARM weapon than a direct reaction one like HARM.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,010
Reaction score
1,230
High speed in this context should still be subsonic.
So it seems to be more like a loitering ARM weapon than a direct reaction one like HARM.

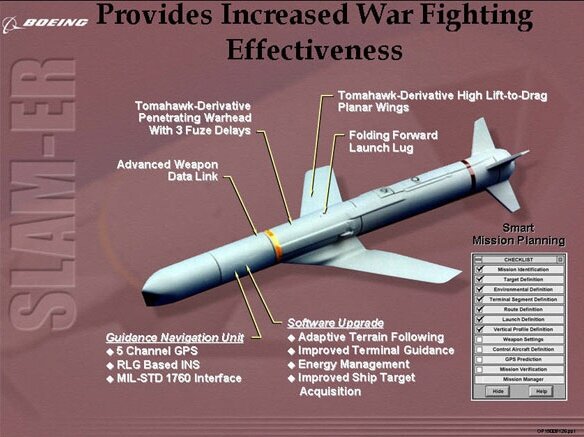

Indeed ... reminds a bit to the SLAM-ER



stealthflanker

ACCESS: Top Secret
Senior Member
Joined
Feb 12, 2010
Messages
963
Reaction score
851
I'm curious, why does it need another set of dorsal fin. Some form of "fix" for aerodynamics imbalance or maybe an attempt to allow skid to turn steering ?

So the missile could use rapid response skid steering on terminal while for cruise it will use more efficient Bank To Turn to assure best possible airflow for the inlet.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,065
Reaction score
602
I'm curious, why does it need another set of dorsal fin. Some form of "fix" for aerodynamics imbalance or maybe an attempt to allow skid to turn steering ?

So the missile could use rapid response skid steering on terminal while for cruise it will use more efficient Bank To Turn to assure best possible airflow for the inlet.

Faired antennas ?

cheers,
Robin.


stealthflanker

ACCESS: Top Secret
Senior Member
Joined
Feb 12, 2010
Messages
963
Reaction score
851
Faired antennas ?

cheers,
Robin.

Seems unlikely.

For Anti radiation missile application, you would want some more antennas, at least 4 or more so one can do interferometric (or phase comparison monopulse, the other term) angle direction finding.

The most common type is the spiral or conical antenna arranged in this manner



There is variation of that but not gimballed/solid state like British ALARM. Latest AGM-88 use Log Bladed antenna which is triangular in shape and arranged behind the mmwave active radar seeker, there is however about 6 of those antenna forming a ring in the missile.
