TIKHONRAVOV I-302 jet project

Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
4
Website
aviationprojects.blogspot.com

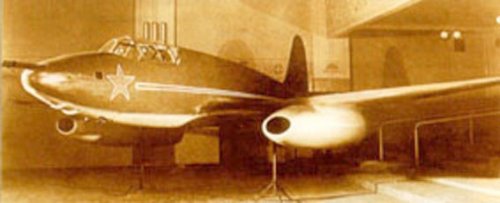

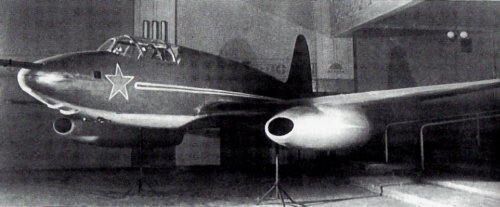

The TIKHONRAVOV I-302 was one of the Soviet jet/rocket fighter bomber built in 1943 as an unpowered version but due to the lacking required materials.The second prototype as a twin jet engines fighter just stop as the mock up before all the program was cancelled.


Attachments

  • aa14.jpg
    21.5 KB · Views: 552
  • aa15.jpg
    32 KB · Views: 470

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
600
Reaction score
311
A bit more on this design from a file dated 1999 that I have just come across on a neglected disk.

DESIGNATION: Tikhonravov 302 (I-302, 302P)
DESCRIPTION: Single Seat Experimental Fighter

The 302P was a clean straight-wing aircraft of conventional layout, but powered by a rocket engine in the tail and two ramjets with rectangular variable exausts beneath the wings. Delivery of thr ramjets (PVRD) were delayed, and it was decided to proceed with a rocket engine (RD-2M) alone until the ramjets were ready.

The RD-2M also had some problems, and the 302 design was tested in a glider configuration as a 302P ("P" stays for Planer or Glider). Armament and some engine control equipment were removed. After several flights in 1943 and wind tunnel tests the flight stability was perfected, but there were no powered flights. The layout of 302 later reappeared in early jet designs (I-211,I-215 etc).

DETAILED SPECIFICATION:

ENGINE: 1 x NII-3 or RD-1400 or RD-2M ramjets (1,400 kgs st or 3,100 lb st)
WING SPAN: 11.4 m
LENGTH: 8.0 m
WING AREA: 17.8 sq m
ACCOMODATION: 1 pilot

FIRST FLIGHT: 1943
ARMAMENT: 4 x 20 mm ShVAK Cannon


See also http://www.secretprojects.co.uk/forum/index.php/topic,9116.msg81946.html#msg81946

SOURCES:
Alexandre Savine WWW Pages 1997
The History Of Soviet Aircraft From 1918 by Nemecek, Vaclav - Willow


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

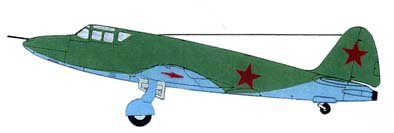

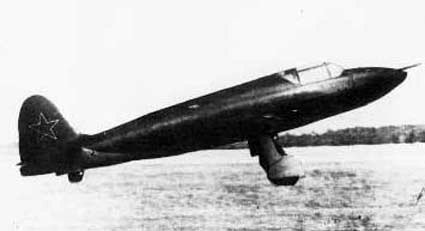

Here is a couple of pics I have of the "302" (variously called "Aircraft 302" and "302P"):


Attachments

  • MK Tikhonravov 'Aircraft 302'.gif
    MK Tikhonravov 'Aircraft 302'.gif
    27.2 KB · Views: 340
  • Tikhonravov 302P.jpg
    Tikhonravov 302P.jpg
    12.5 KB · Views: 333

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
208

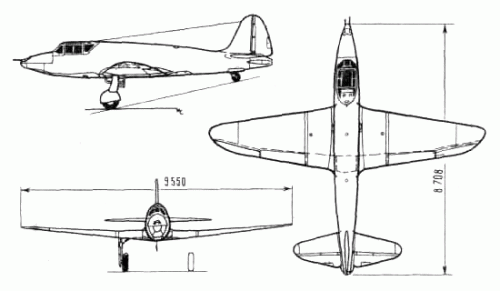

Here a large one.


Attachments

  • kostikov_302.jpg
    196.8 KB · Views: 315

hs1216

ACCESS: Confidential
Joined
Oct 5, 2006
Messages
110
Reaction score
9
Many of the soviet rocket fighters utilized Rocket/Ramjet propulsion such as the BI-1. Does anyone have any information on the soviet ramjet program during the war years? Did it ever amount to hardware?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

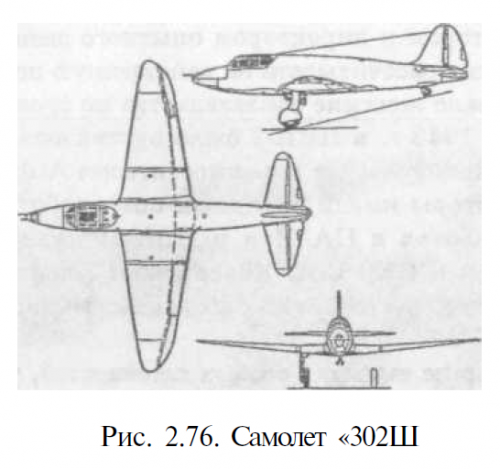

What was Tikhonravov I-302Sh ?.


Attachments

  • 9.png
    150.6 KB · Views: 26
  • 10.jpg
    6.1 KB · Views: 180
