The F-4 Phantom II - any alternatives?

H_K

ACCESS: Top Secret
Joined
Feb 21, 2010
Messages
533
Reaction score
1,080
My equally dodgy paper that has scaled down Speys (it's rigged to favour the Spey VG machine of 50,000lb) says two are 5,050lb
Sounds heavy. I wonder if that would refer to total propulsion system weight, i.e. including accessories, maybe also exhaust nozzles etc rather than just the dry engines?


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
3,299
Reaction score
2,012
My equally dodgy paper that has scaled down Speys (it's rigged to favour the Spey VG machine of 50,000lb) says two are 5,050lb
Sounds heavy. I wonder if that would refer to total propulsion system weight, i.e. including accessories, maybe also exhaust nozzles etc rather than just the dry engines?
Spey 202 is 4,000lb including reheat chamber.
I dimly reccal something like it being about 2,400lb without.

Having spent 2 hour digging through my files and the Internet. I'm just plaun tired and annoyed.
I cannot find my photocopy of Gunstons table for jet engines. Which including some figures for the RB.153.
I cannot remember where the Internet dite that a vast table of engine data lurks. Nor the precise search terms that threw it up.
I thought I llinked to it once.....can't remember which post on which topic here.

Last edited:

H_K

ACCESS: Top Secret
Joined
Feb 21, 2010
Messages
533
Reaction score
1,080

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,701
Reaction score
8,229
Ding, dong, the link is dead... www : world wide web and also, wicked witch of the west.


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
3,299
Reaction score
2,012
Just a speculative one...
Two Adour 3,142lb
Produce 10,640lb dry and 16,080lb reheated.
But two weigh 3,142lb as early versions and 3,266lb later on.

But a bit late.....however it might have assisted Dassault had he had that up his sleeve to counter Breguet.......

Last edited:

MadRat

ACCESS: Confidential
Joined
Jan 29, 2010
Messages
66
Reaction score
43
I'm surprised they never developed an interceptor for USN forces based on Vigilante. Giving it the F-4's radar set, Sparrow, Sidewinder, and a gun matched to its range and big wing might have been something special.

The USAF could have followed through with a 2-seat Crusader or brought Sparrow to the F-106A. The F-106 had lots of perfectly good proposals made for further development. Its a shame SAGE development costs always hamstrung talk of new F-106A. It should have been decoupled with SAGE and the F-106A would have been much more affordable. The F-106A was really under-developed. Would have loved to see it get an F-18 derived radar and AMRAAM is the 90's to let it soldier on another decade or two. Those airframes were built for longevity but could have used some focus on ease of maintenance.

I saw Viggen mentioned a couple of times. I doubt the USAF or USN would have went with anything like Viggen. Plus the Viggen would have been way late to the show. A Viggen in French maritime service would have been interesting.

Last edited:

H_K

ACCESS: Top Secret
Joined
Feb 21, 2010
Messages
533
Reaction score
1,080
Nice @Archibald. I might try something similar ;-)

- Forward fuselage: Etendard IV E (2 seater)
- Mid-fuselage: Mirage F3 (w/ large intakes)
- Rear fuselage: Vickers 583 (2x RB-153)
- Wing, tail & landing gear: Etendard IVB (scaled +50%)

Here's a rough draft of my "Etendard V" proposal for an F-4 Phantom alternative. I worked off the Mirage F3 for the most part (9.3t empty) as that seemed like the right starting point, with a 50% enlarged Etendard IV B wing (with BLC) and added 2x RB-153 engines.

Looks nice IMHO... my weight target of 9t empty might be a little optimistic (maybe I've oversized the wing a little) but I'll stick to it for now! In many respects the result could be compared to a ~0.9x scale Crusader III...

Dimensions
Length 16.6m / 54.5ft
Span 11.8m / 38.7ft
Span folded 9.6m / 31.5ft
Weight: 9t empty, 9.5t empty equipped
Fuel: 4t internal
TO Weight clean: 13.5t
Engines: 2x RB.153-61R (6,850lb dry, 11,750lb wet)


Attachments

  • Etendard V 50px = 1m v2.png
    Etendard V 50px = 1m v2.png
    119.1 KB · Views: 43
  • Etendard V vs. F-4 vs. Mirage F3 50px=1m.png
    Etendard V vs. F-4 vs. Mirage F3 50px=1m.png
    323.1 KB · Views: 43
Last edited:

zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
3,299
Reaction score
2,012
It would pay to look at EE P.39 a Anglicized Mirage IIIV on page 217 of BSP.2
As this shows the twin RB.153 engines.
Also Folland Fo.147 (1961) on page 269.

Page 274 shows HS.1173 (1964/65) with RB.172-57R.
Page 273 shows P.45 (1964) twin RB.172-49R

Page 188 Earlier RB.142/4 scaled turbofan. Used on Type 581 schemes A,B, and C.


H_K

ACCESS: Top Secret
Joined
Feb 21, 2010
Messages
533
Reaction score
1,080
It would pay to look at EE P.39 a Anglicized Mirage IIIV on page 217 of BSP.2
As this shows the twin RB.153 engines.
Also Folland Fo.147 (1961) on page 269.

Page 274 shows HS.1173 (1964/65) with RB.172-57R.
Page 273 shows P.45 (1964) twin RB.172-49R

Page 188 Earlier RB.142/4 scaled turbofan. Used on Type 581 schemes A,B, and C.

All good examples. The Fo.147, P.45 and HS.1173 were all interesting on the smaller end of the size spectrum. Type 581 was rather massive! Hard to find one in the same size range that I have in mind...

I do have a preference for real prototypes vs. paper designs, so maybe the F8U-3 Crusader III would be a closer comparable (completely different engine of course). Here goes!


Attachments

  • Etendard V vs. F8U-3 Crusader III.png
    Etendard V vs. F8U-3 Crusader III.png
    157.3 KB · Views: 22
Last edited:

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,339
Reaction score
936
Well there is always the 'evil' Gyron Junior.....
How about the RB.153-61R (6,850lb dry thrust, 11,750lb AB), which was basically a 2/3rds scale Spey… from the drawings I have, it basically fits into the same size & weight as a non-afterburning Avon or Atar 8.

So… a scaled-up Etendard with twin RB.153s. Now that would be something.

Timeframe might fit the Aeronavale’s DAFNE program (1964), for which the twin Spey proposals seemed just a little too big (Dassault MD800 and Breguet Br 120).

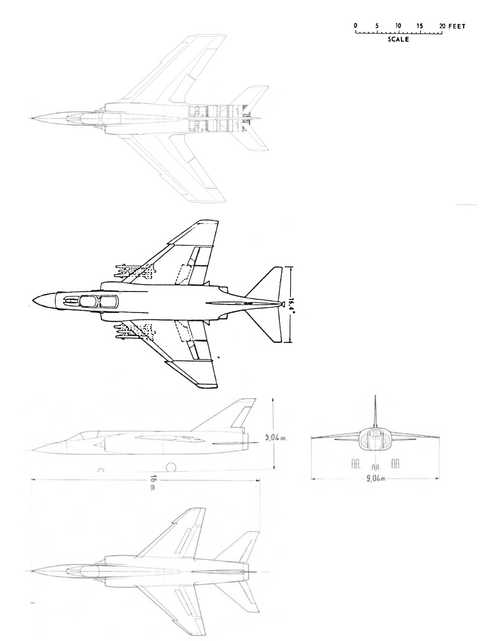

Dassault MD 800
md-800-jpg.291919


Breguet Br. 120 D
br120-jpg.4430
The Br.120D, is that a side by side cockpit arrangement? This profile, the cockpit looks so Sukhoi T6-1/Su-24 from that head-on profile.

Regards
Pioneer
