Tethered and hovering observation flight platforms

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
890
Some very interesting programs (some built, some not) found in an appendix of a 1972 report done by Battelle for ARPA and entitled: A SURVEY AND TECHNICAL SYSTEMS ASSESSMENT OF DRONE AIRCRAFT FOR TACTICAL RECONNAISSANCE AND SURVEILLANCE (the whole report is extremely interesting).

Depicted or mentioned in this appendix are:

- U.S. Army AMCA's ELTAS

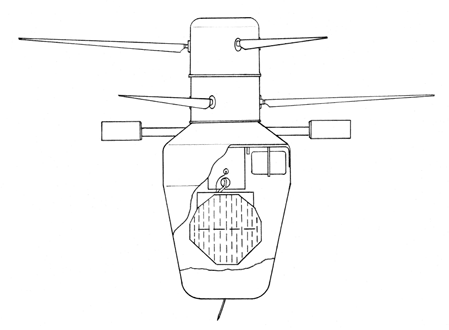

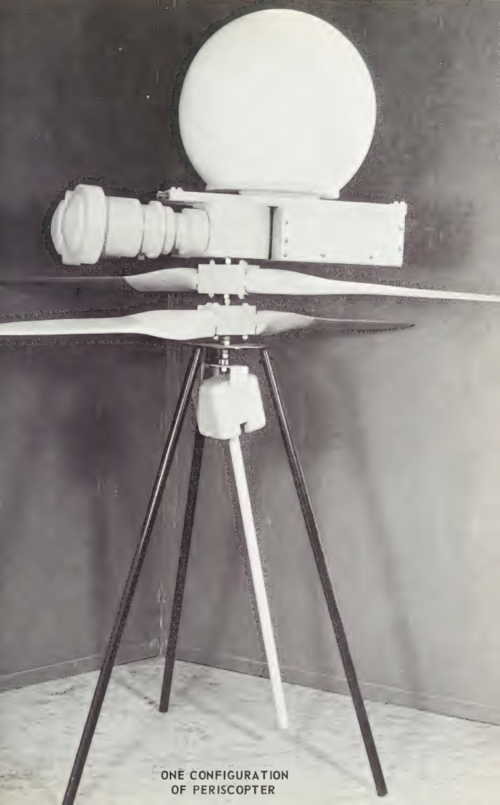

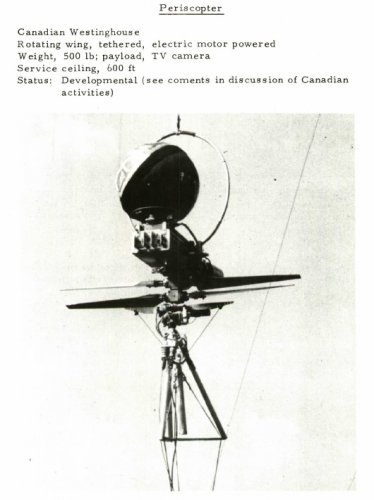

- Canadian Westinghouse Periscopter

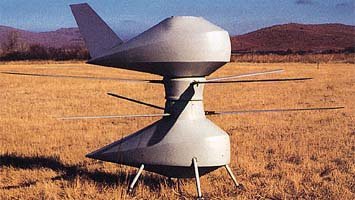

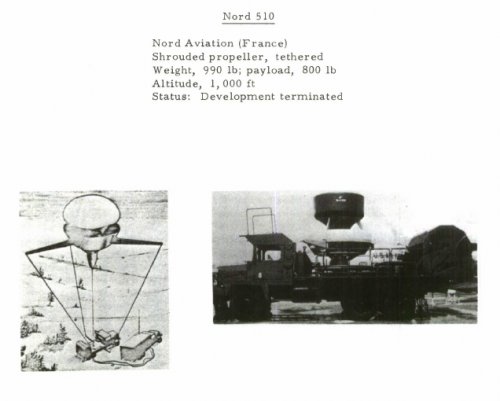

- Nord Aviation Nord 510

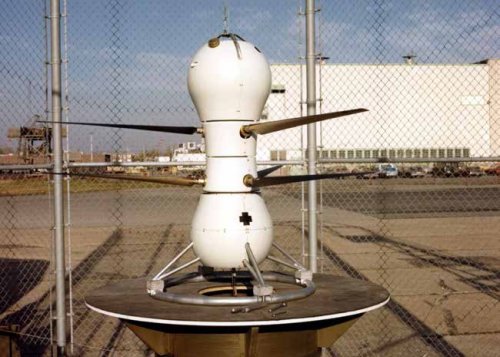

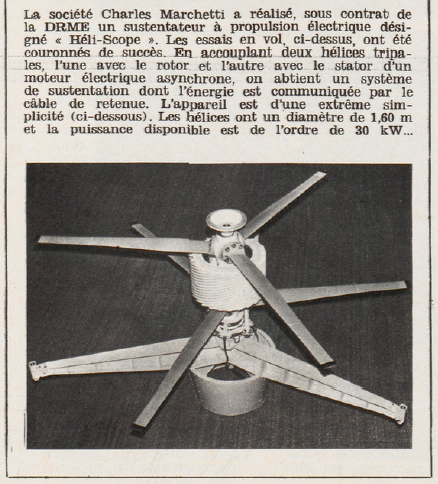

- Societe Charles Marchetti Heliscope

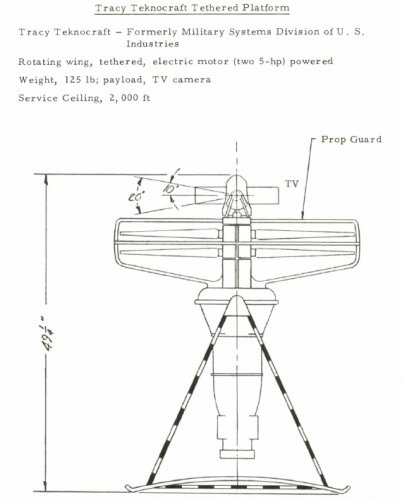

- Tracy Teknocraft Tethered Platform

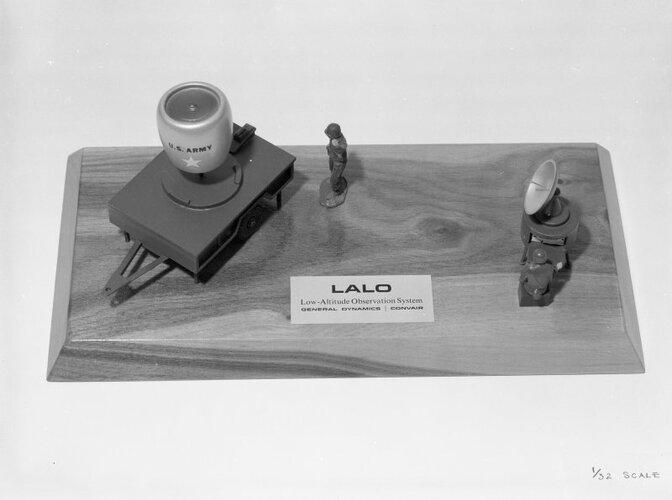

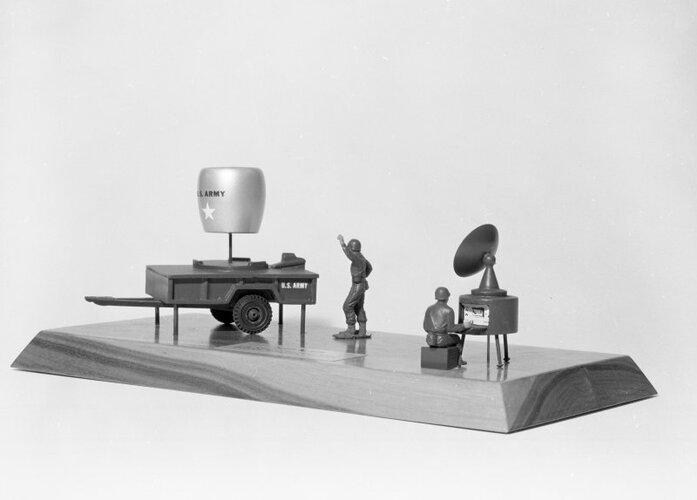

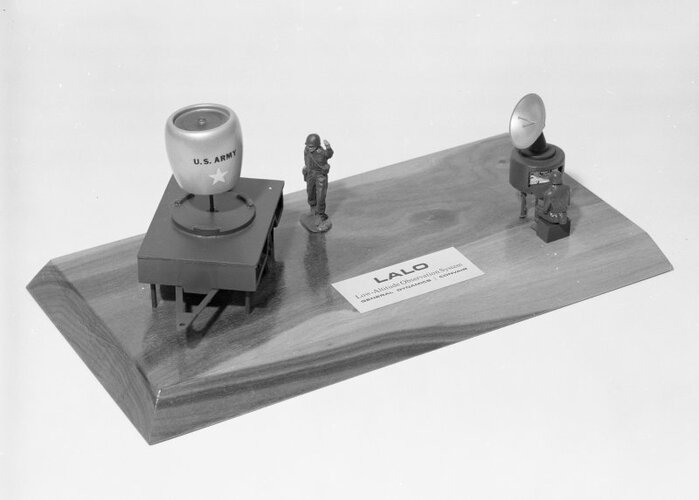

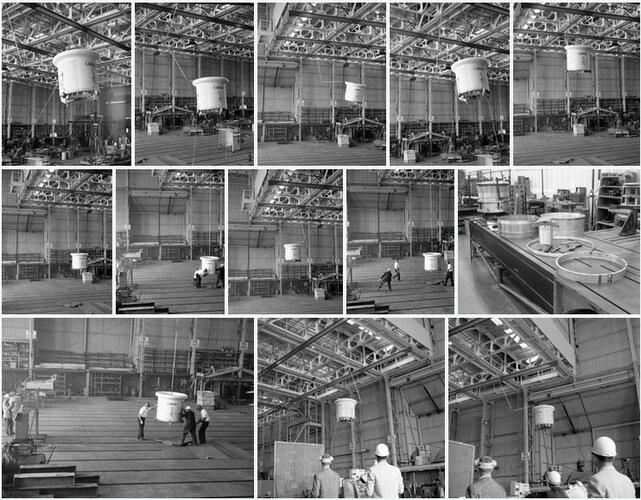

- Convair General Dynamics LALO

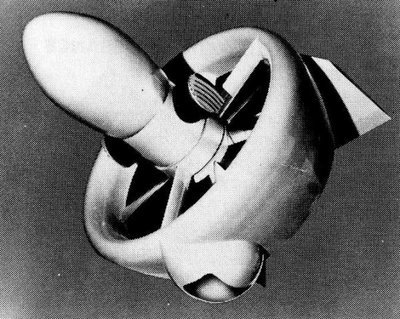

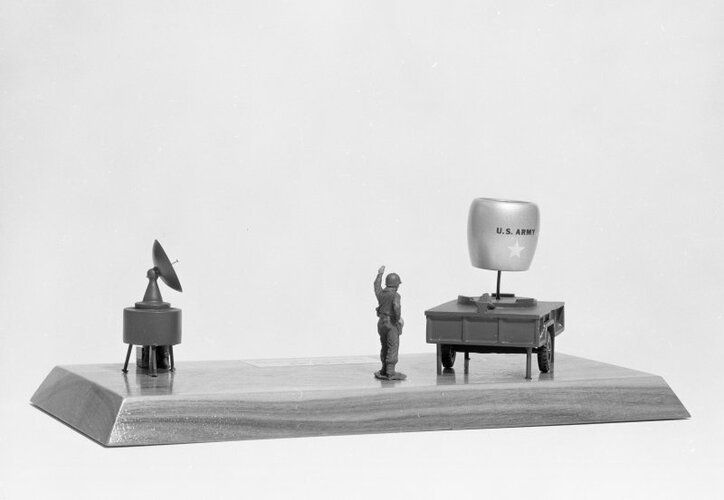

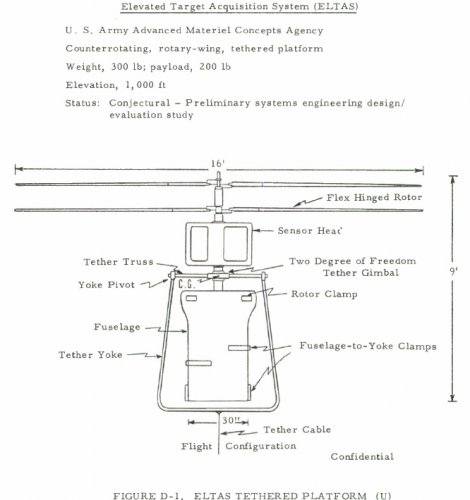

The U. S. Army's Advanced Materiel Concepts Agency (AMCA) has developed a concept paper for an Elevated Target Acquisition System (ELTAS). The evaluation of this concept has progressed to the stage of a preliminary systems engineering design study. The ELTAS flight vehicle would be an unmanned, electrically-powered, counterrotating, rotary-wing, tethered platform. The vehicle would carry approximately 200 lb of primary mission equipment, including a laser target designator, and would operate at elevations up to 1,000 ft. The necessary electrical power and critical data links would be provided through the tether. (...)

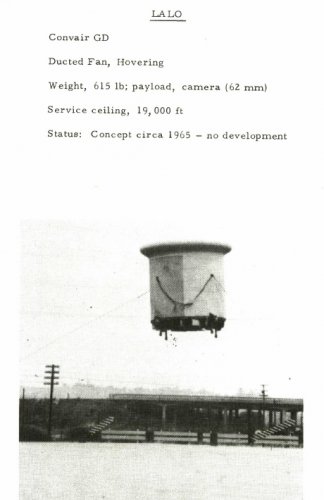

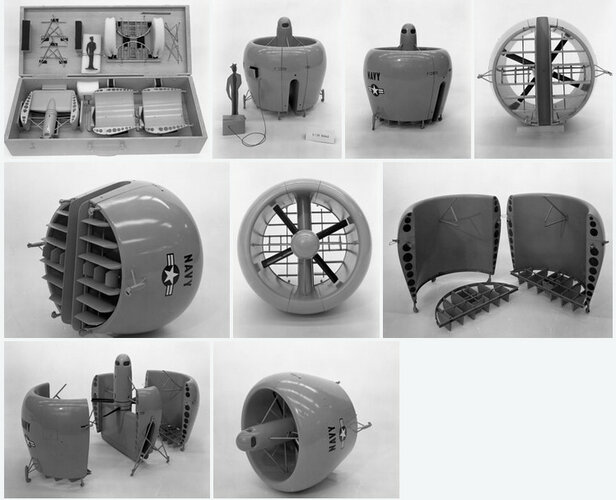

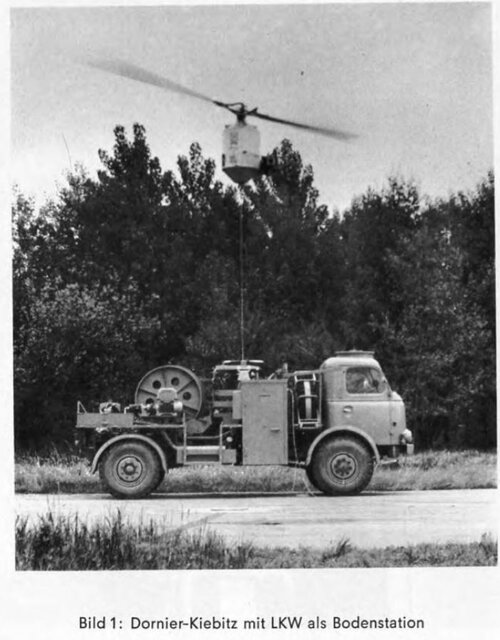

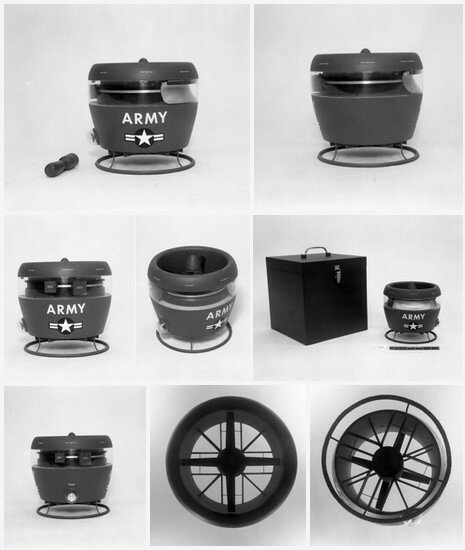

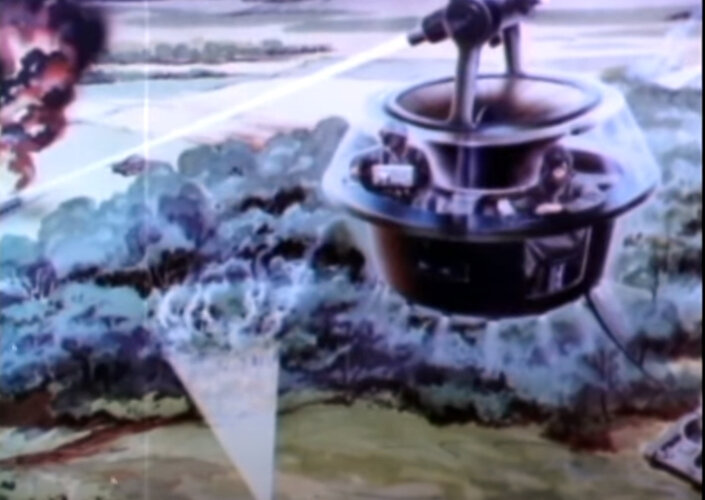

One concept proposed by General Dynamics involved a free hovering platform based upon a ducted fan propulsion principle. The tethered platform gives the hard link to the ground station and the long endurance can be achieved by supplying electrical power or even fuel through the tether. Dornier's Kiebitz is the most publicized example of this type of system and it is probably the most advanced conceptually and developmentally.

All of the developmental tethered platform systems have encountered vehicle stability problems. None of the concepts has involved a vehicle in which the countertorque problem was solved in the conventional helicopter fashion using a counter-torque auxiliary rotor. In fact, the most of the concepts do not involve the use of helicopter type, large-diameter rotors. Some have attempted to use relatively high-disk-loading, counter rotating propellers (e.g., the QH-50) and ducted fans. The Kiebitz, the ELTAS concept, and the Marchetti Heliscope are closest to being rotating wing-type vehicles. The Kiebitz uses tip jets to drive the rotor, thus avoiding the counter-torque problem. The Marchetti vehicle and several others use counter-rotating electric motors to drive propellers or rotors. Stability problems have been common. Most of the systems, the Kiebitz included, have not attained the all-weather objective which has been established for these systems. Most have been unsuccessful in all but relatively low winds.
There is also evidence that the small-amplitude unsteadiness and vibrations inherent in the use of these platforms have raised doubt about their compatibility with certain sensors. Most of the tethered platform developments have not been able to achieve the endurance objectives, even though the energy is continuously supplied from the ground.
Basically, this is a reliability problem.

In October 1969, the Army Combat Developments Command established an approved Advanced Development Objective (ADO) for an Unmanned Aerial Surveillance System (UASS). Apparently, a helicopter type of vehicle was envisioned, probably inspired by the Canadair CL-227 concept.


Attachments

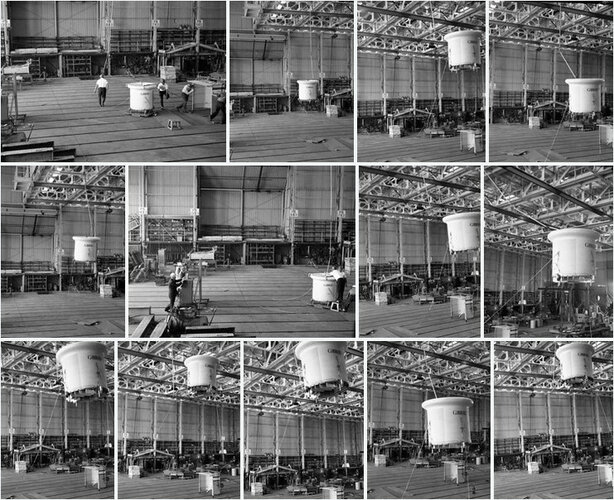

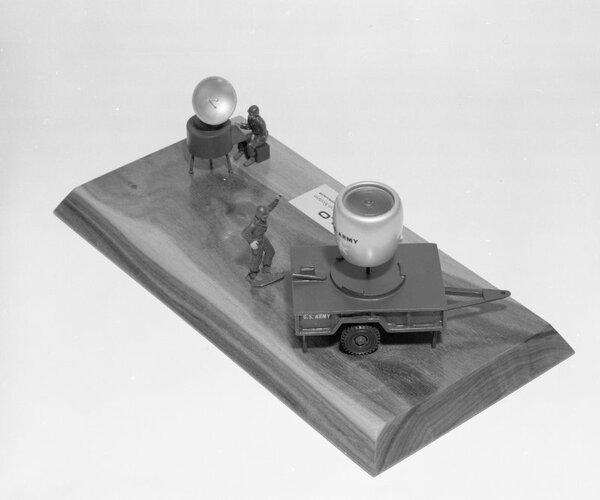

  • eltas.jpg
    114 KB · Views: 1,080
  • lalo.jpg
    112.2 KB · Views: 74

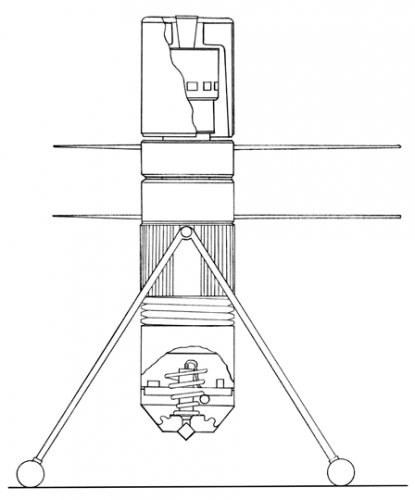

  • teknocraft.jpg
    95.1 KB · Views: 846

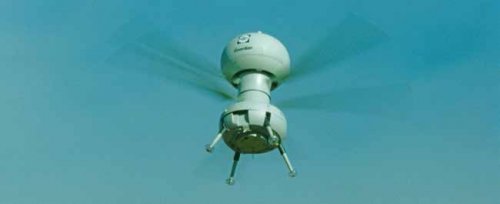

  • heliscope.jpg
    111.8 KB · Views: 902
  • nord510.jpg
    89.5 KB · Views: 941
  • periscopter.jpg
    151 KB · Views: 995

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,225
Reaction score
6,861
Most of the systems, the Kiebitz included, have not attained the all-weather objective which has been established for these systems. Most have been unsuccessful in all but relatively low winds.
Most have been unsuccessful in all but relatively low winds. There is also evidence that the small-amplitude unsteadiness and vibrations inherent in the use of these platforms have raised doubt about their compatibility with certain sensors. Most of the tethered platform developments have not been able to achieve the endurance objectives, even though the energy is continuously supplied from the ground.
Basically, this is a reliability problem.

I always wondered why systems like Kiebitz hadn't gone into production despite their seeming advantages.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
176
Website
cluttonfred.info
That's a great clip, thanks for sharing. It seems like a fantastic configuration for a little UAV, even today, with potential for being very quiet with both engine and prop shielded by the duct.


eshelon

unconventional solutions
Joined
Jul 11, 2012
Messages
89
Reaction score
57

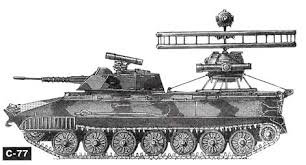

(fictional) infantry fighting vehicle with armed (ATGM?) tethered platform?


Attachments

  • plam.ru_tethered.jpg
    10.4 KB · Views: 72

eshelon

unconventional solutions
Joined
Jul 11, 2012
Messages
89
Reaction score
57
This time, a real project.

(Reconnaissance, Surveillance, Targeting Vehicle (RST-V) program)
COVER (Commander's Observation Vehicle for Elevated Reconnaissance) features an existing compact, electrically-tethered, ducted-fan lifting vehicle (Aerobot) mated to an existing highly-mobile, transportable vehicle (Flyer II ) that is representative of future scout and reconnaissance vehicles.

no picture found

source - http://fas.org/man/dod-101/sys/land/rst-v.htm


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
890
CARDE and Canadair's tethered and hovering observation flight platforms:

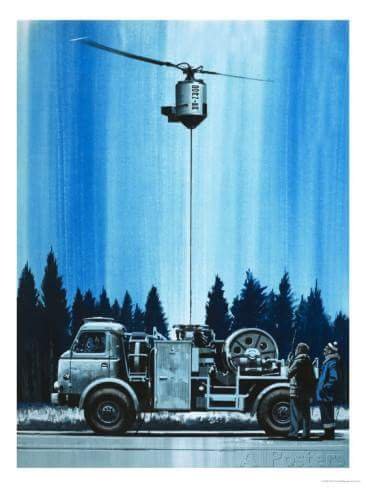

  • CARDE "Periscopter"

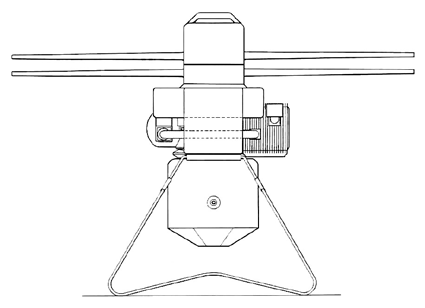

  • Canadair "Dynacopter"
  • Canadair CL-227 "Dynacopter"
  • Canadair CL-227 Phase I
  • Canadair CL-227 Phase II

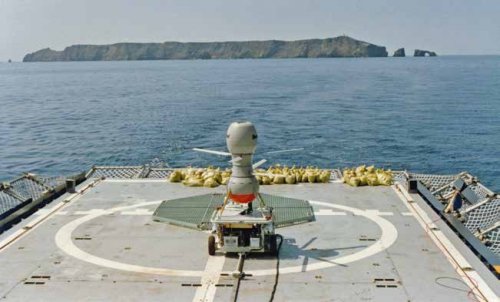

  • Bombardier CL-227 Phase III "Sentinel"
  • Bombardier CL-327 Guardian
  • Bombardier CL-427 Kestrel

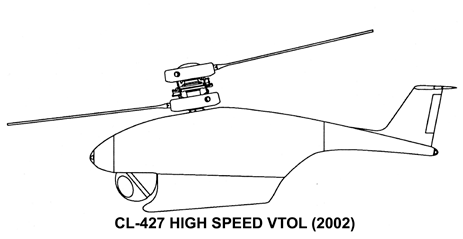

  • Bombardier CL-427 Puma

All of these are covered in the following topic:
Canadair CL-227, CL-327 and CL-427 VTOL drones


Attachments

  • CL-427 Puma.jpg
    CL-427 Puma.jpg
    29 KB · Views: 31
  • CL-427 Kestrel.png
    CL-427 Kestrel.png
    26 KB · Views: 22
  • CL-327 after launch.jpg
    CL-327 after launch.jpg
    8 KB · Views: 21
  • CL-227 Phase III on deck.jpg
    CL-227 Phase III on deck.jpg
    46.3 KB · Views: 22
  • CL-227 Phase II before first public demo.jpg
    CL-227 Phase II before first public demo.jpg
    11.4 KB · Views: 21
  • CL-227 #1 in 1978.jpg
    CL-227 #1 in 1978.jpg
    69 KB · Views: 19
  • CL-227 Dynacopter.png
    CL-227 Dynacopter.png
    57.6 KB · Views: 15
  • Dynacopter.png
    30 KB · Views: 16
  • Periscopter.png
    31.8 KB · Views: 18

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241

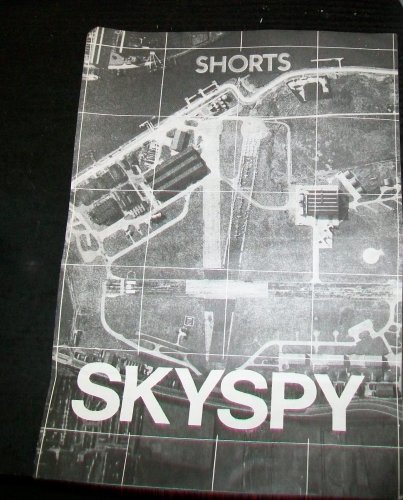

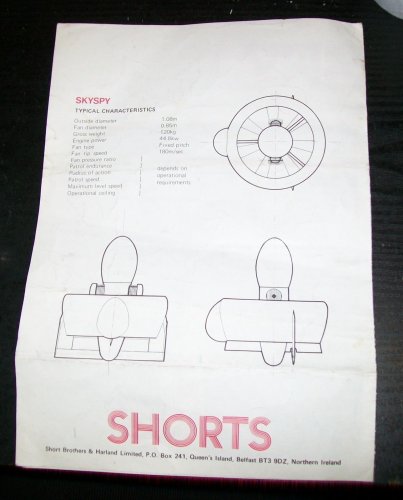

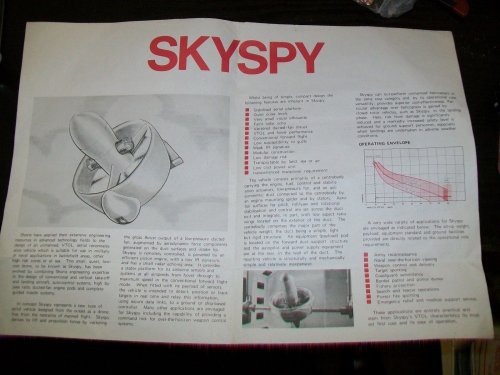

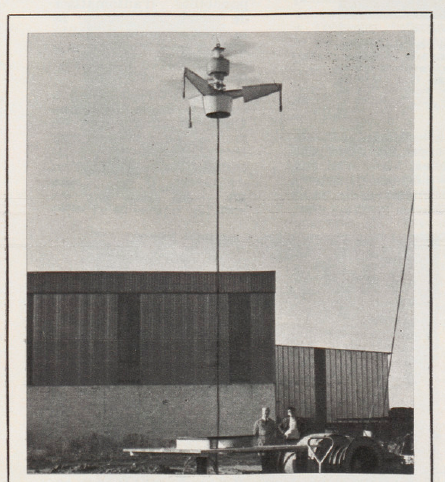

Shorts Skyspy (1972)
