T-14 Armata - new gen Russian tank

lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
578
Reaction score
2
Website
defense-and-freedom.blogspot.de
I reworked the T-14 Armata article on wikipedia.


The version before had crude translations from Russian sources, was misleading and used many wrong expressions.

I invite you guys to further refine it.
I wasn't sure which of the two machineguns was coaxially installed with the turret roof sensor, for example.
The missile launch by main gun was previously presented as if it was a novelty; I added that this was introduced by the Soviets already, but didn't remember by which tank exactly and in which year.


BTW, I think at least the rooftop radar is almost certainly a special kit, not to be installed on all tanks. Maybe one per company. Its claimed range of up to 100 km is very questionable, but I lack sources to refute it.


Hot Breath

I really should change my personal text
Joined
Mar 12, 2014
Messages
196
Reaction score
0
covert_shores said:
Yes gun fired missiles are normal for russian tanks since, well at least the 1980s (without looking it up)
It was introduced on the T-64 IIRC but it was only the T-80 which it was in widespread use.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,443
Reaction score
744
9M112 Kobra entered service on the T-64B in 1976. 39 years ago. 1978, T-80B.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
Jane's analysis

http://www.janes.com/article/51469/russia-s-armour-revolution


aam641

One needs a personality to have a personal text!
Joined
Dec 27, 2011
Messages
103
Reaction score
0
I did some calculations from this picture, using 695cm for the length of the recovery vehicle.

Hull length of 864cm (734cm excluding overhangs)
Height of 168cm to hull roof and 263cm to turret roof

The gun is elevated at 9 degrees and the distance between the muzzle and turret ring is about 695cm. For comparison, 2A46M is 668cm long (including the room for recoil). So either this vehicle is equipped with 2A46M, or 2A82 uses the same barrel as 2A46, but with one-piece ammunition.


stealthflanker

CLEARANCE: Secret
Joined
Feb 12, 2010
Messages
261
Reaction score
5
AdamF said:
I did some calculations from this picture, using 695cm for the length of the recovery vehicle.

Hull length of 864cm (734cm excluding overhangs)
Height of 168cm to hull roof and 263cm to turret roof

The gun is elevated at 9 degrees and the distance between the muzzle and turret ring is about 695cm. For comparison, 2A46M is 668cm long (including the room for recoil). So either this vehicle is equipped with 2A46M, or 2A82 uses the same barrel as 2A46, but with one-piece ammunition.
That looks reasonable. Though i believe the gun is slightly longer than your calculation.



My calculation using this http://sta.sh/0xx6t4wbmsx image using roadwheel diameter as referece however yield me lower value of 8.4 m.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131

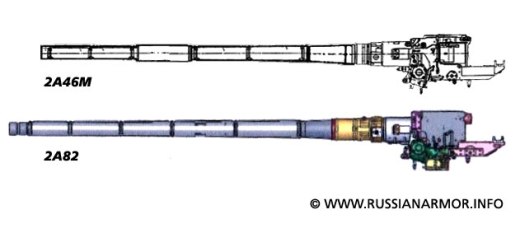

http://www.janes.com/article/52464/russia-s-t-14-armata-mbt-has-new-gen-era


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://nextbigfuture.com/2015/07/russias-armata-spurring-revival-in-main.html


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://www.janes.com/article/53540/armour-experts-sceptical-over-t-14-invisibility-claims?utm_campaign=%5bPMP%5d_PC5308_J360%2012.08.15%20_KV_Deployment&utm_medium=email&utm_source=Eloqua


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://thediplomat.com/2015/08/its-official-russias-deadliest-tank-will-be-ready-for-battle-in-2020/


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,129
Reaction score
100
New Russian tank T-14 “Armata” : A Documentary Film from Russian TV.

The most secret and the latest Russian military tank T-14 “Armata” was first shown to journalists at the site. The leading TV channel “Star” Alexei Egorov got the unique opportunity to see the behavior of the new off-road, sit inside the “Almaty was” to learn about the secrets of the armor of the tank, its engine, and the most important thing – to see firsthand how the T-14 fires!
Video:
https://youtu.be/TCGdvMkDlVc
Code:
https://youtu.be/TCGdvMkDlVc
Read more at: http://defence-blog.com/army/new-russian-tank-t-14-armata-a-documentary-film.html


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://nextbigfuture.com/2015/11/russia-making-tank-killer-with-152-mm.html


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,279
Reaction score
27
bobbymike said:
http://nextbigfuture.com/2015/11/russia-making-tank-killer-with-152-mm.html
thank you again for posting Sir.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://nextbigfuture.com/2016/01/video-of-russian-armata-t14-tank.html


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://nationalinterest.org/blog/the-buzz/surprise-russias-lethal-t-14-armata-tank-production-15480


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://www.nextbigfuture.com/2016/09/russia-shows-video-of-new-armata-tank.html


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,990
Reaction score
194
https://sputniknews.com/military/20160922/1045580324/armata-armor-piercing-protection.html

https://sputniknews.com/russia/20160928/1045788621/russia-armata-robot.html


stealthflanker

CLEARANCE: Secret
Joined
Feb 12, 2010
Messages
261
Reaction score
5
Grey Havoc said:
https://sputniknews.com/military/20160922/1045580324/armata-armor-piercing-protection.html
wow. so Russian afganit also act as Iron Fist. Im very interested on the specification of the grenade and radar used.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,990
Reaction score
194
Some interesting speculation on the armour layout from the linked post onwards: http://www.tank-net.com/forums/index.php?showtopic=39816&page=42#entry1282124


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,279
Reaction score
27
Grey Havoc said:
Some interesting speculation on the armour layout from the linked post onwards: http://www.tank-net.com/forums/index.php?showtopic=39816&page=42#entry1282124
interesting speculation 'tanks for postin..'

UAS as part of the APS for Armata as well maybe


kaiserbill

CLEARANCE: Top Secret
Joined
Jun 7, 2006
Messages
1,252
Reaction score
39
"Speculation" that some there insist as fact based on wishful thinking. This is alluded to by a poster in that thread.
A diminishing handful of good posters still left...but..not the place I would go to for info on Armata, due to a whole slew of posters who use it for "political" point scoring against whatever entity they dislike.


Anderman

CLEARANCE: Confidential
Joined
Sep 30, 2006
Messages
149
Reaction score
3
Grey Havoc said:
Some interesting speculation on the armour layout from the linked post onwards: http://www.tank-net.com/forums/index.php?showtopic=39816&page=42#entry1282124
Everytime i want to go there my virus scanner screams ALARM :mad:


stealthflanker

CLEARANCE: Secret
Joined
Feb 12, 2010
Messages
261
Reaction score
5
Anderman said:
Grey Havoc said:
Some interesting speculation on the armour layout from the linked post onwards: http://www.tank-net.com/forums/index.php?showtopic=39816&page=42#entry1282124
Everytime i want to go there my virus scanner screams ALARM :mad:
It's a legit site.

For some reason tho, sometime the link does not direct you to the forum but to advertisement site instead.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
831
Reaction score
62
My system will not allow access either, the site is flagged as dangerous.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
http://www.realcleardefense.com/2017/01/27/spotted_new_version_of_russia039s_armata_series_of_acvs_289839.html


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,279
Reaction score
27
bobbymike said:
http://www.realcleardefense.com/2017/01/27/spotted_new_version_of_russia039s_armata_series_of_acvs_289839.html
wow, great find BM. Tank you for posting.


muttbutt

CLEARANCE: Secret
Joined
Jan 31, 2010
Messages
201
Reaction score
1
Remember back in the day when every intell agency would spend months if not years trying to get a bad photo from a camera hidden in a hat of every new bit of kit....now you just wait a few hours for someone to upload their pics from their Iphone. ;D


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
578
Reaction score
2
Website
defense-and-freedom.blogspot.de
Foo Fighter said:
My system will not allow access either, the site is flagged as dangerous.
Tank-net is fine and safe, but once in a while someone posts a malicious link in it (it's a forum, after all), and for some reason it's hard to get that warning removed.


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,916
Reaction score
24
lastdingo said:
Foo Fighter said:
My system will not allow access either, the site is flagged as dangerous.
Tank-net is fine and safe, but once in a while someone posts a malicious link in it (it's a forum, after all), and for some reason it's hard to get that warning removed.
Tank Net, apart from it's questionable bunker mentality is classed as a suspicious site because it is hosted on a server with a different URL to the virtual URL that Tank Net actually uses. This is a common feature of sites where one gets malicious software. The Tank Net folks are well aware of this problem but appear unwilling or unable to do anything about it. All you need to do is set an exception in your browser and you'll be passed through without question.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,990
Reaction score
194
http://www.tboverse.us/HPCAFORUM/phpBB3/viewtopic.php?f=6&t=21296


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200

kaiserd

I really should change my personal text
Senior Member
Joined
Oct 25, 2013
Messages
667
Reaction score
47
flateric said:
absolute BS
Agreed. Would wonder if a garbled reference to a depleted uranium round but that may just be a case of trying to make sense of nonsense.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,196
Reaction score
115
The speculation in that thread makes sense that this might be for the 152 mm self-propelled artillery piece based on the Armata chassis.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200
No, it doesn't make sense whatsoever.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,196
Reaction score
115
flateric said:
No, it doesn't make sense whatsoever.
Why not? We know the Russians have had 152mm nuclear artillery shells in the past and that they intend to field a version of the Koalitsya artillery piece on an Armata chassis. A new indirect fire nuclear round makes a lot more sense than a direct fire nuclear shell.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200
from Vasily Kashin
I think I found the source of that nonsense. It is this 2 years old article https://rg.ru/2015/05/14/armata-site.html which tells us that Rosatom (Russian nuclear agency) is participating in the development of the new generation ammo for Armata. It does not say that it will be nuclear. As I understand Rosatom will help to develop a new generation of fuses for the shells which will somehow use the technology used in the nuclear warheads and will make the HE and HEAT shells more effective.
from Mikhail Barabanov (CAST)
Some of the institutes (NII) involved in the research of the physics of the explosion (including, for example, the developers of HEAT), historically are part of the nuclear industry system.
Rosatom institutes are also involved in design of Sukhoi SSJ100, Su-35 and Okhotnik UCAV. That doesn't mean they are nuclear-powered or involvement is related to tactical nukes carriage. Not everything that Sandia or Livermore labs do, has direct relationship to nukes.


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,279
Reaction score
27
www.defenseone.com/technology/2017/04/us-army-exploring...new.../136943/

"“Look at what the Russians have been doing in low-fission, high-fusion, sub-kiloton tactical nuclear technology,” he said. “It appears that they are putting a big effort…in both miniaturizing the warheads and using sub-kiloton low-yield warheads.”

Why is that significant? By shrinking the warhead, you can shoot it out of a wider variety of guns, including, potentially, 152-millimeter tank cannons."


only thing that does make sense against a dispersed high tech force


aviationweek.com/awindefense/us-army-could-adopt-kinetic-energy-projectile


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200
Well, if Kerber is basing his assumptions on publications in Rossiyskaya Gazeta military section, then US intelligence community is FUBAR.
