This was the last variant of the prolific Ouragan / Mystere family.
It replaced the Atar 101 of standard SMB-2 by an Atar 9. The Mirage III engine had 1500 kgp more power, and this aparently pushed top speed to mach 1.4 (this seem unclear, sources says mach 1.2). Only one was built and used as testbed for the
Atar 9.
Any 3-view, photos and specs of the aircraft ?


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,251
Reaction score
919
Hi Archie ! :)


There were two SM B4 "test bed" for the ATAR 9 :

-SM B4-01 : first flight 09/02/58 with an ATAR 9 "stade 1" (5 400 kgp ?). Max speed M 1,06

-SM B4-02 : first flight 15/10/58, with an ATAR 9 "stade 1". Later With an ATAR 9 "stade 2" (6 000 kgp): Max speed : M 1,30


Before the SM B4 test bed, there was a "tout temps" (I don't know in english : all weather ?) project with an ATAR 9 and a little radar in a little "point" in the upper front of the air entry. But He was canceled.


Source : Docavia 13 : Les chasseurs Dassault Ouragans, Mystères et Super-mystères, Jean Cuny, 1980, page 389


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,847
Reaction score
5,679
Thanks Mr Ventilateur de Delta (as Google would translate your member name).
All weather is the correct word (Javelin FAW = Fighter All Weather).

I'm interested in the modifications from the SMB-2 to the SMB-4. I suppose the rear part of the aircraft was quite different because of the afterburner and longer engine.
Any 3-view or pics of the aircraft ? ;D

I'm not suprised there had been an AW (All Weather) SMB-2 project : all its ancestors has had their own two-seat AW variant !
(MD-451, MD-453, Mystere IVN).
The fact that the AW SMB-2 was never built surely explain by the fact that the Vautour was already in service and the Mirage IIIC was coming...

Model of the SMB-2 (in 1/72) is coming (can't remember what builder) and I still have some Atar 9 exhausts. ;D


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,346
Reaction score
1,532
"..all its ancestors has had their own two-seat AW variant ! "

But if you have a look into Cunys "Les Avions De Combat Francais", then you'll
see, that for the SMB-4 "AW" the second crew member would have had to be
a very small person, the cockpit looks like a single seater. ;D


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,847
Reaction score
5,679
Maybe Mini-me as become NOSA in the french air force ? ;D


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
209

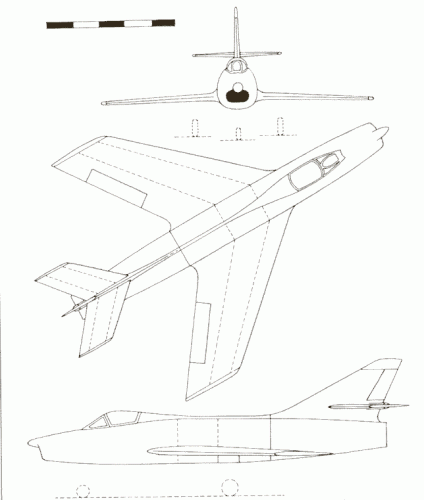

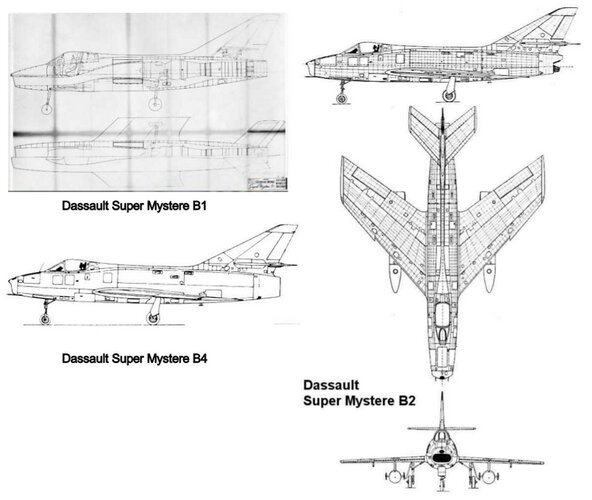

Ecce SM B-4... 8) Not difficult, thanks to Jean Cuny Le Grand ;)
Project and prototype differed in details: project was longer (14.35 vs 13.95), heavier (9700 KG versus 9250) and slightly less fast in reaching 12,000 m (3' 50" vs 3' 45")


Attachments

  • SM B-4.gif
    SM B-4.gif
    12.5 KB · Views: 443

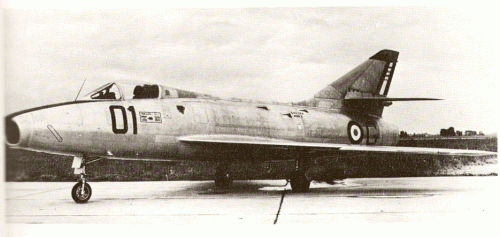

  • SM B-4_photo.gif
    SM B-4_photo.gif
    186 KB · Views: 396

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,847
Reaction score
5,679
Worst thing is I remembered I had the book after posting... hammering my head against the wall... ::)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203
General Characteristics Dassault Super Mystère B.4

First flight: February 1958
Status: Prototype
Role: Multipurpose jet fighter
Number built: 2
Crew: 1
Length: 14 m (46 ft)
Wingspan: 10.5 m (34.4 ft)
Wing area: 35 m² (376.7 ft²)
Height: 4.2 m (13.78 ft)
Empty weight: 7,000 kg (15,432 lbs)
Loaded weight: 10,000 kg (22,046 lbs)
Max. takeoff weight: 12,000 kg (26,455 lbs)
Powerplant: 1 x SNECMA Atar 9B afterburning turbojet
  • without afterburner: 4,250.1772 kgf (41.68 kN, 9,370 lbf)
  • with afterburner: 6,000 kgf (58.84 kN, 13,227.758 lbf)

Performance

Maximum speed:
  • At sea level: 1,100+ km/h (683.5+ mph, 594+ kts) (with & without full power)
  • At 11,000 m (36,089 ft): 1,487 km/h (924 mph, 803 kts) (full power)
Never-exceed speed: Mach 1.4 (1,728 km/h, 1,074 mph, 933 kts)

Rate of climb: 150 m/s (492 ft/s) (full power)

Time to 11,000 m (36,089 ft): 2.84 min

Service ceiling: 16,750 m (54,954 ft)

Range:
  • Normal: 1,100 km (683.5 mi, 594 nmi)
  • Max: 2,300 km (1,429 mi, 1,242 nmi)
Wing loading:
  • Empty weight: 200 kg/m (40.96 lb/ft²)
  • Loaded weight: 285.714286 kg/m (58.52 lb/ft²)
  • Max. takeoff weight: 342.857143 kg/m (70.22 lb/ft²)
Thrust/weight (without afterburner):
  • Empty weight: 0.60
  • Loaded weight: 0.425
  • Max. takeoff weight: 0.35
Thrust/weight (with afterburner):
  • Empty weight: 0.85
  • Loaded weight: 0.60
  • Max. takeoff weight: 0.50

Armament

Guns: 2 x 30mm DEFA 552 revolver cannons (150 rpg, 300 rds total)

Missiles:
  • 2 x AS-30L air-to-ground missiles
or
  • 2 x Rafael Shafrir-1 infrared-homing air-to-air missiles
Rockets: 2× Matra rocket pods with 18× SNEB 68 mm unguided rockets each

Bombs: 2 x 500 kg (2 x 1,100 lbs)
