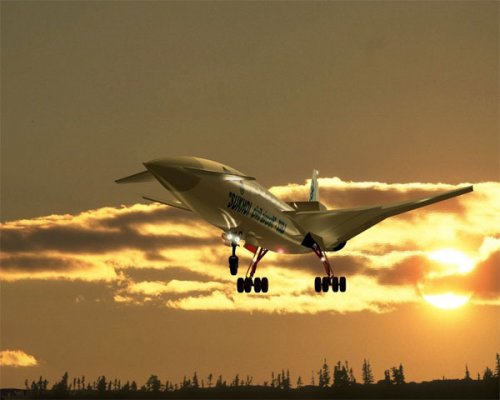

If we can't built so far we at least can draw in CATIA quiet supersonic business jets.


Attachments

  • IMG_0909.jpg
    26.9 KB · Views: 845
  • SSBJ01sm.jpg
    42.4 KB · Views: 909

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
flateric said:
If we can't built so far we at least can draw in CATIA quiet supersonic business jets.

Are we to assume that this foreplane design has superceded the S-21 and S-51 SSBJ proposals?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
Yes, drawings are about 3 years old, but personally I don't think that it ever will be flying as C-21 and C-51 did.
Surprisingly close to one of Raytheon QSP configuration.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

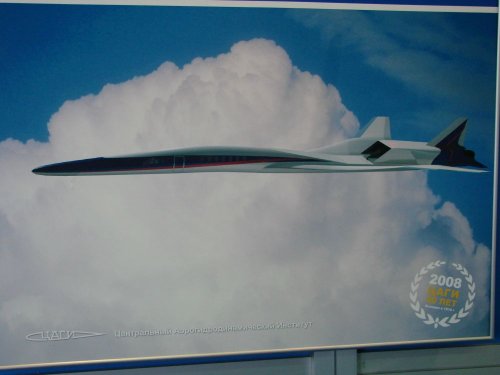

TSAGI QSP SSBJ design presented on MAKS 2007. In words of TSAGI representative, this configuration is their own research, not related neither to HISAC program, nor Sukhoi SSBJ


Attachments

  • DSC01143s.jpg
    66 KB · Views: 730

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

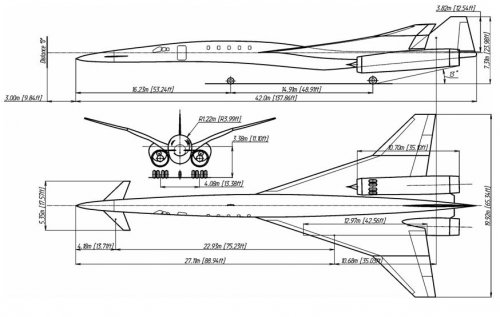

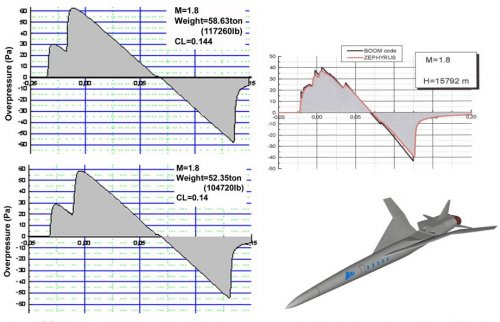

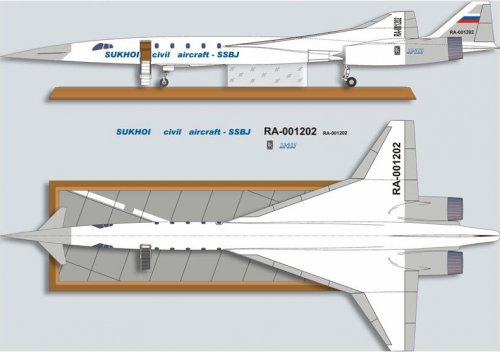

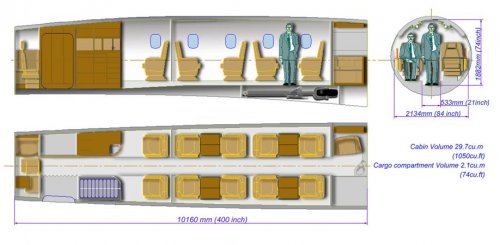

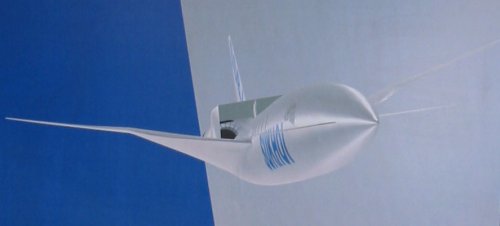

Some new info found on Sukhoi SSBJ, and some new design iterations dated 2006, courtesy www.mati-fatal.ru


Attachments

  • Sukhoi_SSBJ_5_sm.jpg
    399.3 KB · Views: 145
  • Sukhoi_SSBJ_4_sm.jpg
    160.2 KB · Views: 134
  • Sukhoi_SSBJ_6_sm.jpg
    366.1 KB · Views: 131
  • Sukhoi_SSBJ_2_sm.jpg
    262.6 KB · Views: 151
  • Sukhoi_SSBJ_3_sm.jpg
    193.1 KB · Views: 601
  • Sukhoi_SSBJ_1_sm.jpg
    145.7 KB · Views: 608

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49

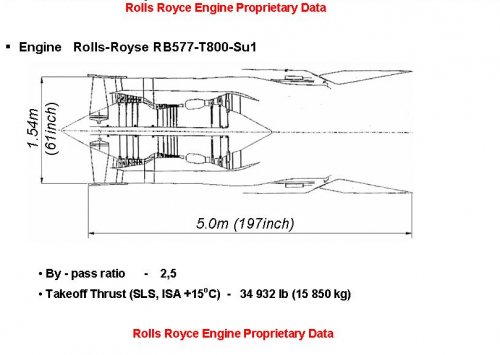

I have never heard about a "Rolls Royce RB577-T800-Su1?"

From the 2.5:1 bypass ratio, it is clear that this engine is neither a typical commercial turbofan or typical military turbofan?

Does it employ and afterburner? What can well tell about the design heritage from the RB577 designation? Was the starting point for the design a high bypass type such as the Trent or BR700 series, or the low bypass EJ200?

Personally, I am the most fascinated by this previously unknown turbofan. As we all know, availability of a suitable engine is the prerequisite for any SSBJ!


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
I believe that it's a Trent core with a smaller fan and lower BPR. A number of studies in the QSP days showed that it was a workable solution for a Stage 4 compliant SBJ, with no major jiggery-pokery in the suppressor, as long as you held the cruise Mach to 1.8.


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,017
Reaction score
250
It certainly looks nothing like an EJ200 and there doesn't seem to be an afterburner.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
No burner. The magic is the high horsepower and operating temperature tolerance of the Trent core.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
LowObservable said:
No burner. The magic is the high horsepower and operating temperature tolerance of the Trent core.

I can only assume that no "magic" will apply to the cruising SFC. I would imagine that the operating economics might be equivalent to a small widebody twin, in a best case scenario, but altogether superior to a SSBJ powered by a low bypass military turbofan derivative.

I do have to wonder about potential military applications for an engine in this segment. Would this sort of medium bypass engine be appropriate to the 2018 Bomber?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

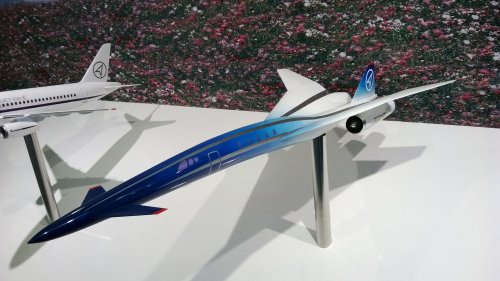

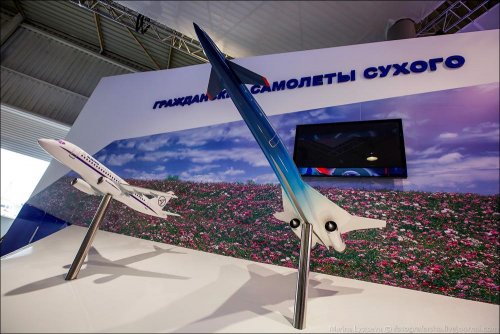

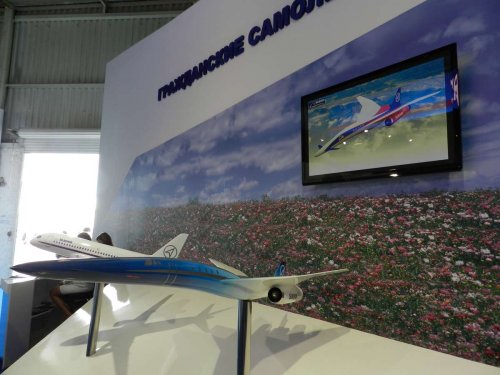

Model of Sukhoi SSBJ on display at MAKS 2013.

Source:
http://www.testpilots.ru/2013/09/oak-zadumalas-o-sozdanii-sverhzvukovogo-biznes-dzheta/
http://missiles2go.ru/2013/08/25/%D0%BC%D0%B0%D0%BA%D1%81-2013-%D0%BD%D1%83%D0%BB%D0%B5%D0%B2%D0%BE%D0%B9-%D0%B4%D0%B5%D0%BD%D1%8C-2-25-%D0%B0%D0%B2%D0%B3%D1%83%D1%81%D1%82%D0%B0/
http://fotografersha.livejournal.com/427012.html


Attachments

  • img_7623.jpg
    498.5 KB · Views: 56
  • 0_b2afa_d1763d2e_XXL.jpg
    119.3 KB · Views: 68
  • wp_20130825_117.jpg
    1.3 MB · Views: 72
  • ssbjA.jpg
    108.7 KB · Views: 55

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559

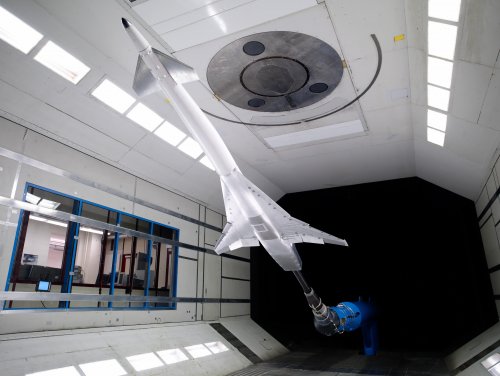

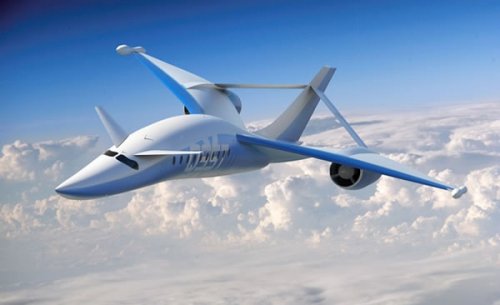

It is the airplane which was seen by something before. ;)


Attachments

  • HISAC[1].jpg
    402.4 KB · Views: 40
  • SAI SSBJ.jpg
    SAI SSBJ.jpg
    28.9 KB · Views: 55

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871

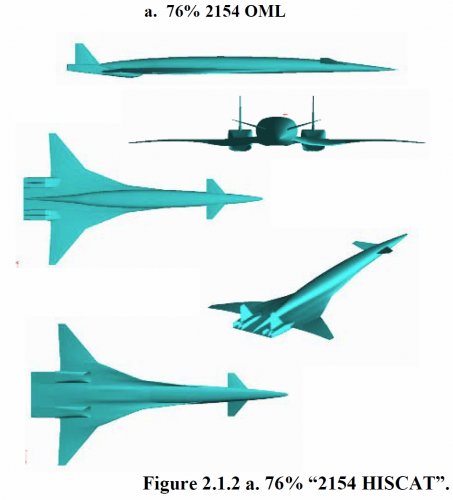

Sukhoi SBJ configuration with podded nacelles has its roots back in 2000, well before any info on SAI QSST was released (and both being quite different a/c), and much likely has been influenced by NASA HSR/HSCT studies, namely Boeing Model 1080-2154 HiSCAT (you'd remember that Boeing and Sukhoi had some SSBJ snu-snu in late 90s-early 00s).


Attachments

  • 1999 Boeing Model 1080-2154 HiSCAT.jpg
    1999 Boeing Model 1080-2154 HiSCAT.jpg
    235.7 KB · Views: 58

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559
Thanks!
I would like to see this beautiful SSBJ actually fly immediately. :D


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
unlikely, not talking about money even - as preferred concept now is one with top inlets above the tail fuselage
I did a small article on SSBJ for Dubai Airshow issue of Take-Off (if you are interested)
http://en.take-off.ru/pdf_to/to28.pdf
