Sukhoi Su-9 Fishpot

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54
May i ask , does anyone have some pictures of the cockpit of this jet ? Quite a shy bird , not much on it around, did found some quite nice Su-15 cockpit pics , but almost nothing for Su-9...

Also , does anyone have pictures of this bird armed with R-55 IR missiles???( all i ever saw on the subject was a profile on a russian site...)

Thnks you very much for your help!


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
794
Reaction score
204

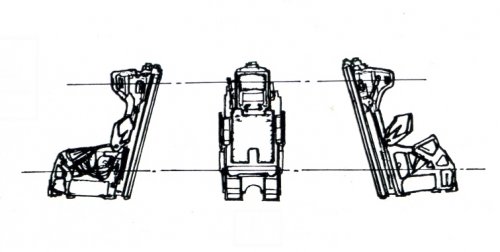

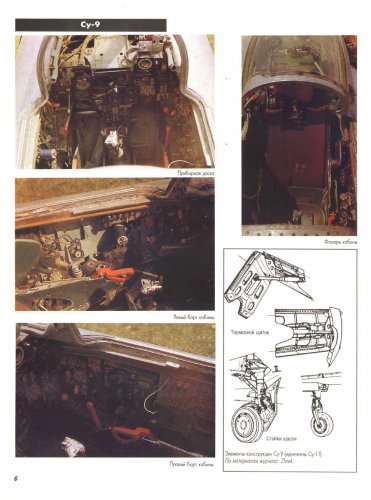

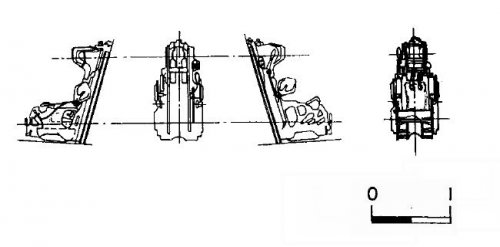

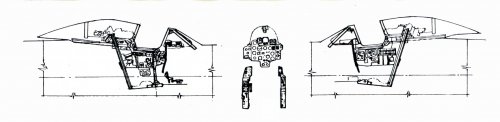

:-\...at the moment only in poor quality.
Sources: MHobby # 3-97,; Zlinek 1992


Attachments

  • coc.jpg
    56.8 KB · Views: 196
  • cock.jpg
    65.4 KB · Views: 188
  • cockp.jpg
    47 KB · Views: 166
  • P-38177.jpg
    200 KB · Views: 170
  • P-38178.jpg
    87.8 KB · Views: 155
  • P-38179.jpg
    529.4 KB · Views: 67

verner

ACCESS: Restricted
Joined
Dec 5, 2009
Messages
42
Reaction score
1

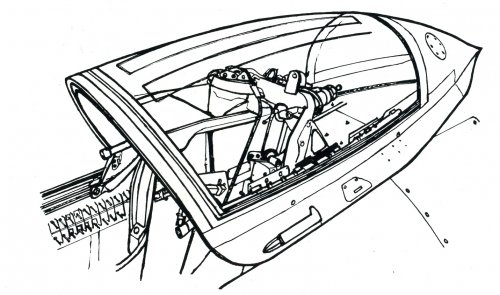

From M Hobby. Not great but something. I don't recall ever seeing IR Atolls on an Su-9.


Attachments

  • MHobby_1994_01 (02)_08_0001.jpg
    MHobby_1994_01 (02)_08_0001.jpg
    150.8 KB · Views: 125

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54

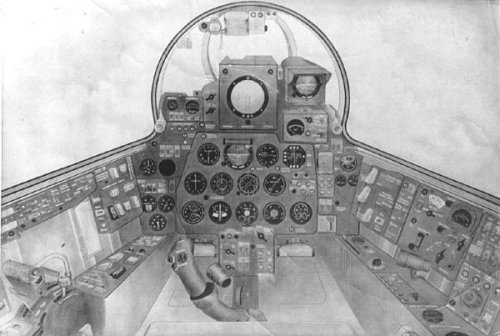

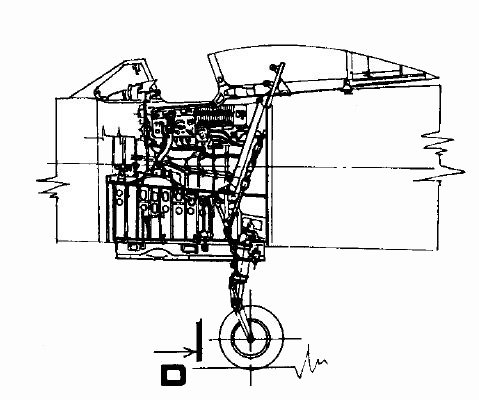

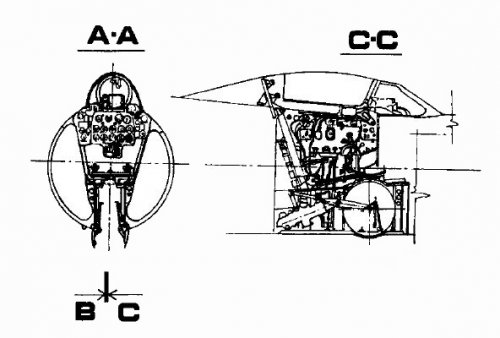

Thnak you for your replies Borovik and Verner. Quite interesting drawings and pics there .Meenwhile i did found something on a french forum , its a drawing of the cockpit ( instrument panel), and it does indeed show some interesting traits for the Su-9 , for instance , it doenst have anything like an optical sight!( understandable). I thought the cockpit would be more like a Mig-21( same generation , same radar etc) , but it looks very different ...

I'm even more eager now to see a nice cockpit shot!(Unfortunately the only ones available are of a derelict one ...i found one on airwar.ru too...

Also Verner, the IR missiles i'm talking about are not Atolls( K-13/R-3S) , the R-55 is an infrared developement of the K-5MS(RS-2US or in NATO code AA-1 Alkali)...

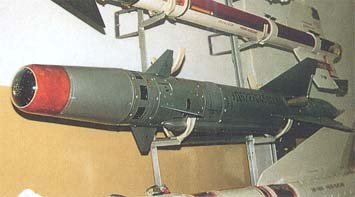

Heres the pics of the cockpit and the R-55 missile...


Attachments

  • r55.jpg
    25.8 KB · Views: 105
  • su-9cockpit.jpg
    54.8 KB · Views: 136

verner

ACCESS: Restricted
Joined
Dec 5, 2009
Messages
42
Reaction score
1
All I could find was this: (Are these them?)


Attachments

  • ts-9.jpg
    122.6 KB · Views: 123

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54
Nice picture ,thanks for looking it out, its not the R-55 tho!

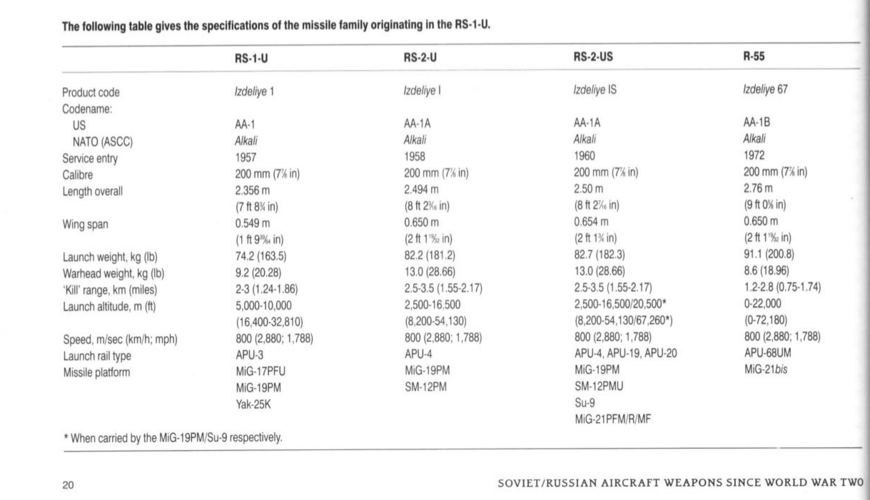

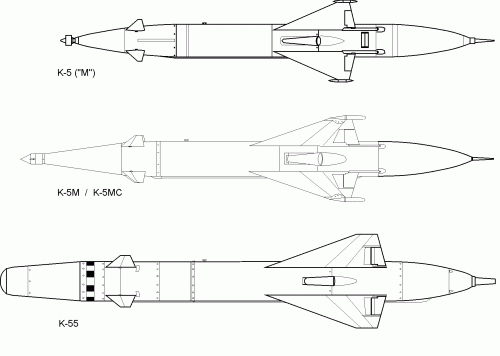

Those are RS-2US beam riders, the R-55 has a blunt IR nose , plus it doesnt have the aerials on the fins...here's a drawing of the 3 generations of K-5 familly for comparison ...


Attachments

  • k5_.gif
    20.8 KB · Views: 103

verner

ACCESS: Restricted
Joined
Dec 5, 2009
Messages
42
Reaction score
1

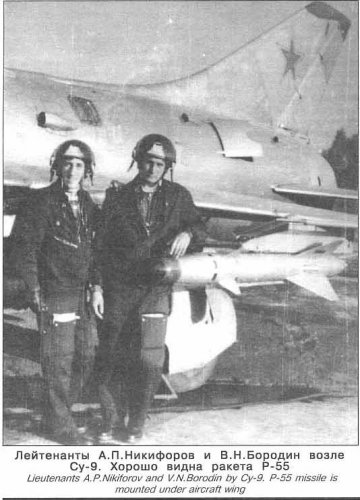

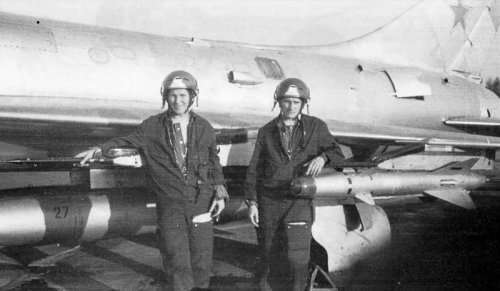

This was all I could find. cheers


Attachments

  • AiV_1998-06-20.jpg
    98.9 KB · Views: 113

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54
Holly molly , thats downright brilliant , where did you found that ?!

Thanks alot for your help Verner, hey i know who to ask for help now when i have very difficult aviation query ! :D


verner

ACCESS: Restricted
Joined
Dec 5, 2009
Messages
42
Reaction score
1
You're welcome. It's from a Russian book or mag called AIV. Cheers.


lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54
Would that be Aviatsia i Vremia by any chance ? a 1998 june issue?( at least judging by the caption's name ...)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,855
Reaction score
8,776
Slightly different photo, April's Aviatsiya i Kosmonautika.


Attachments

  • R-55.jpg
    72.4 KB · Views: 92

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
327
Reaction score
54
What a surprise, just found this, picture of Su-9 cockpit from 1965! :eek:
http://russianplanes.net/ID36380


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,855
Reaction score
8,776

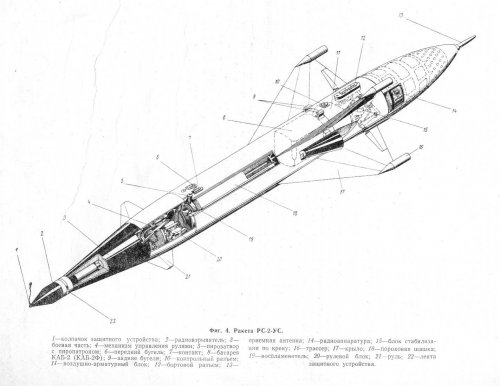

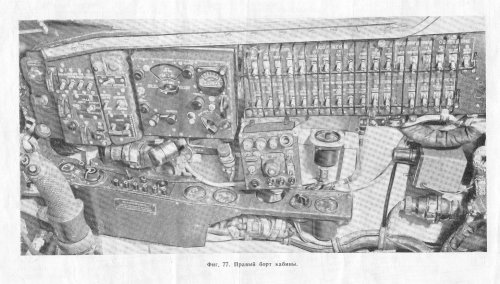

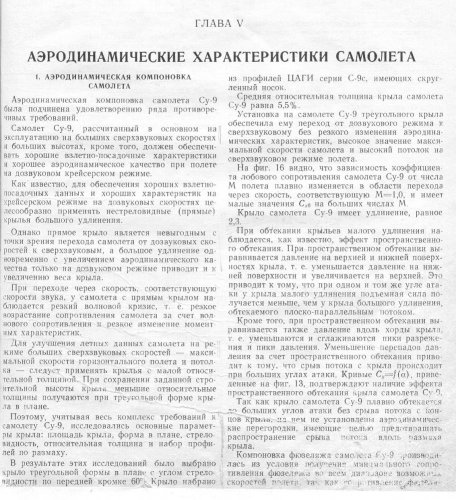

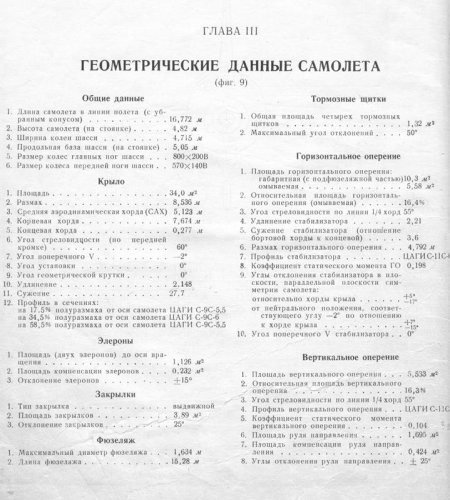

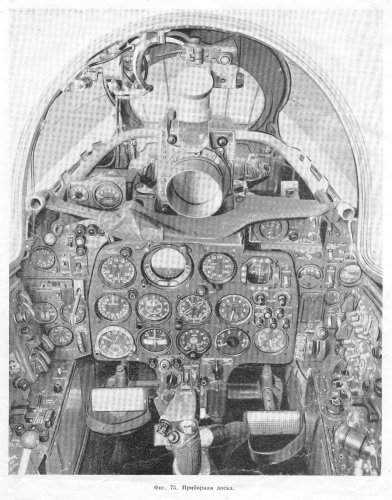

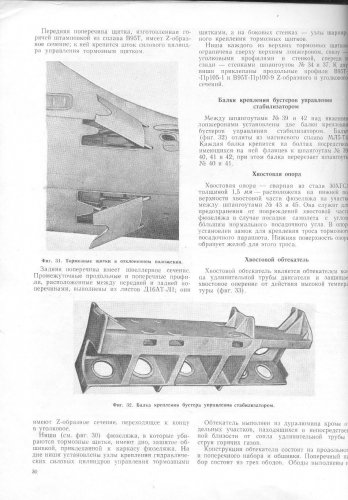

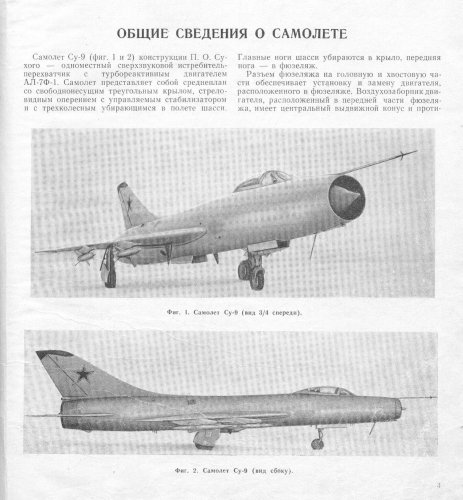

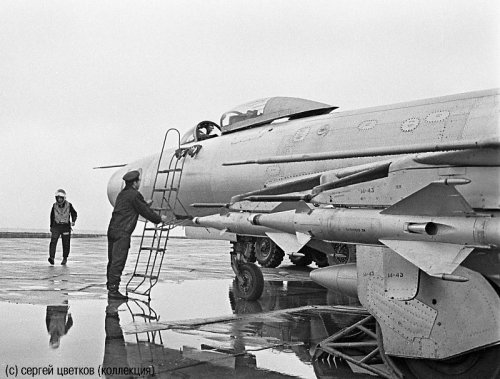

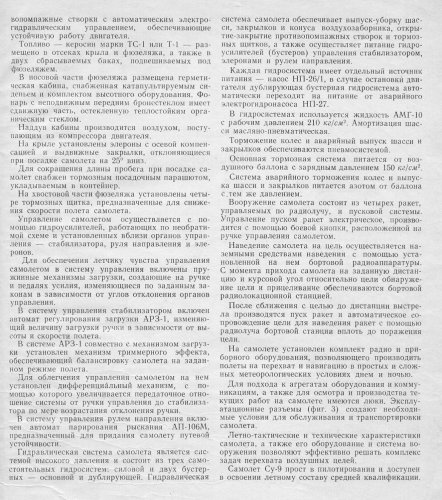

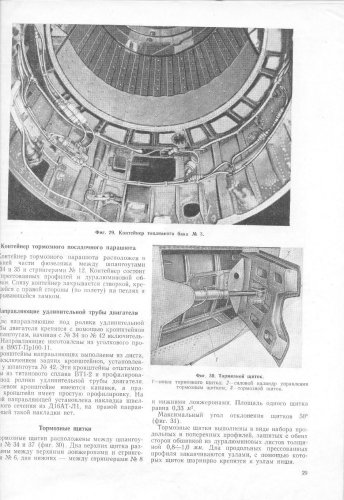

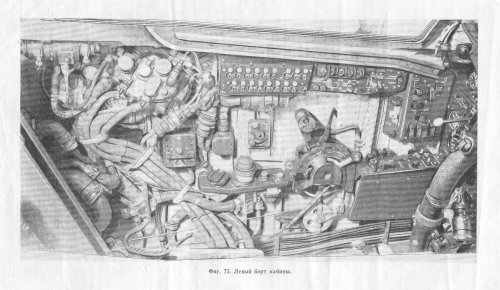

Su-9 with RS-2US - original material.


Attachments

  • 046q0Y.jpg
    255.3 KB · Views: 54
  • 046q0X.jpg
    286 KB · Views: 43
  • 046q0V.jpg
    332.6 KB · Views: 69
  • 046q0U.jpg
    124 KB · Views: 129
  • 046q0T.jpg
    306.9 KB · Views: 115
  • 046q0P.jpg
    380.8 KB · Views: 128
  • 046q0I.jpg
    236.8 KB · Views: 144
  • 046q0E.jpg
    314.4 KB · Views: 158

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,855
Reaction score
8,776
Last few :


Found at http://pvo.forum24.ru


Attachments

  • 046q17.jpg
    255 KB · Views: 54
  • 046q16.jpg
    303.1 KB · Views: 49
  • 046q12.jpg
    104.4 KB · Views: 77
  • 046q11.jpg
    52.9 KB · Views: 97
  • 046q1G.jpg
    134.7 KB · Views: 253
  • 046q1b.jpg
    364.2 KB · Views: 62
  • 046q0Z.jpg
    249.9 KB · Views: 49

Blitzer9856

ACCESS: Restricted
Joined
Aug 13, 2019
Messages
38
Reaction score
51
Does anybody know the detection and tracking ranges of the RP-9U radar of this jet?


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,990
Reaction score
4,603
I presume the bolted thing in front of the pylon is a refueling boom. Isn't that a unique arrangement?


046q1g-jpg.194867


Blitzer9856

ACCESS: Restricted
Joined
Aug 13, 2019
Messages
38
Reaction score
51
Nope, it´s the missile pylon for the RS-2US:
https://upload.wikimedia.org/wikipedia/commons/3/3e/K-5M_Air-to-Air_Missile.jpg
The boom in front of the pylon is to remove a protection cap at the missiles front. The cap is attached to it and will be removed right after launch.

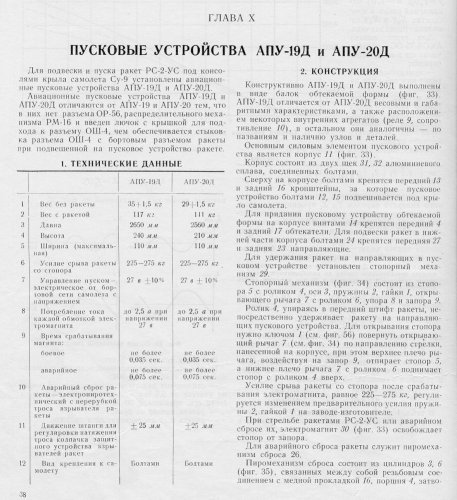

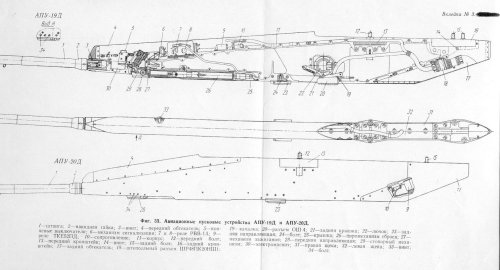

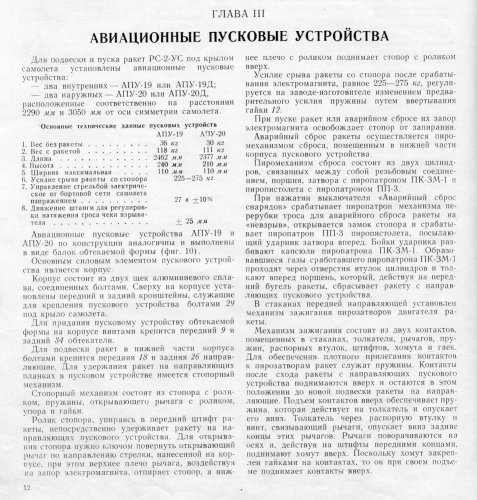

More specifically, the APU-19 and APU-20.

Later production Su-9s had the modernized APU-19D and APU-20D launch rails, with the OR-4 umbilical connectors for the missiles instead of the earlier OSh-56, and the electronic distribution box was removed.

The R-55 used the modified APU-68UM.
