Sukhoi PAK FA (T-50) early development

[flateric]

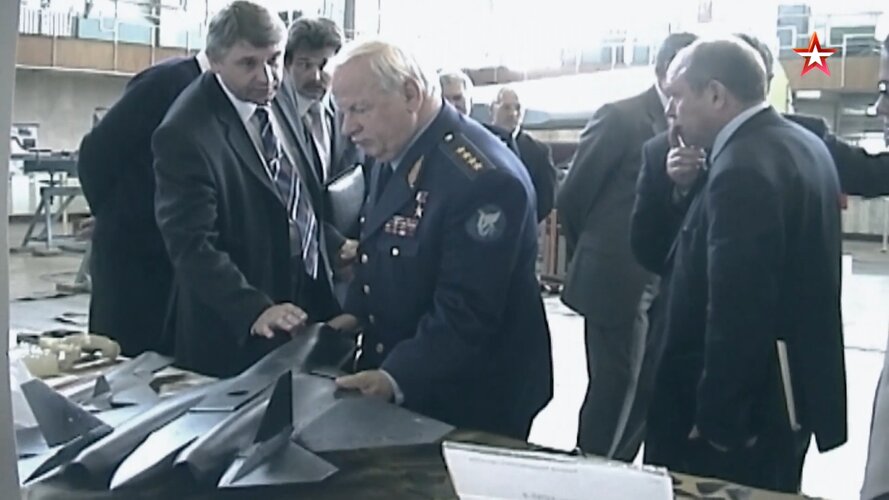

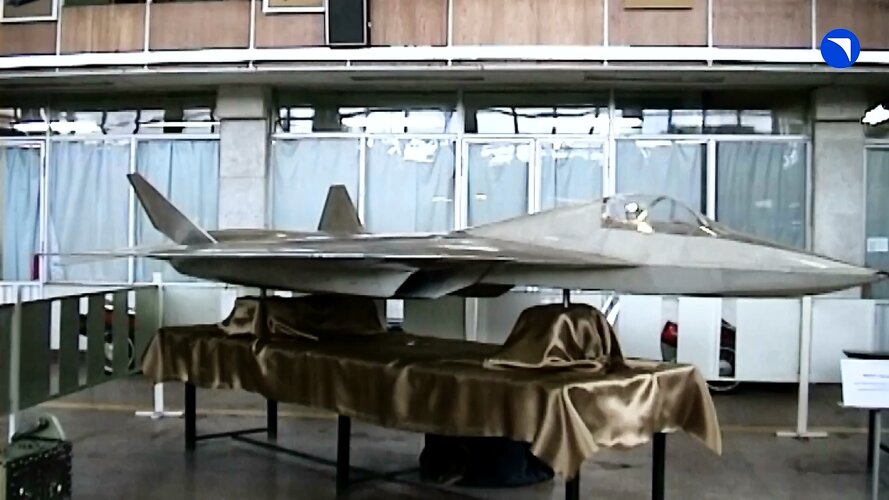

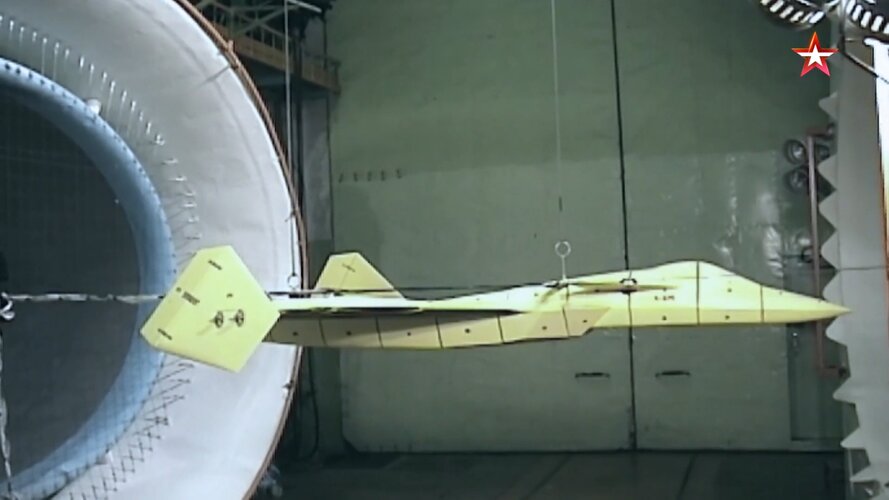

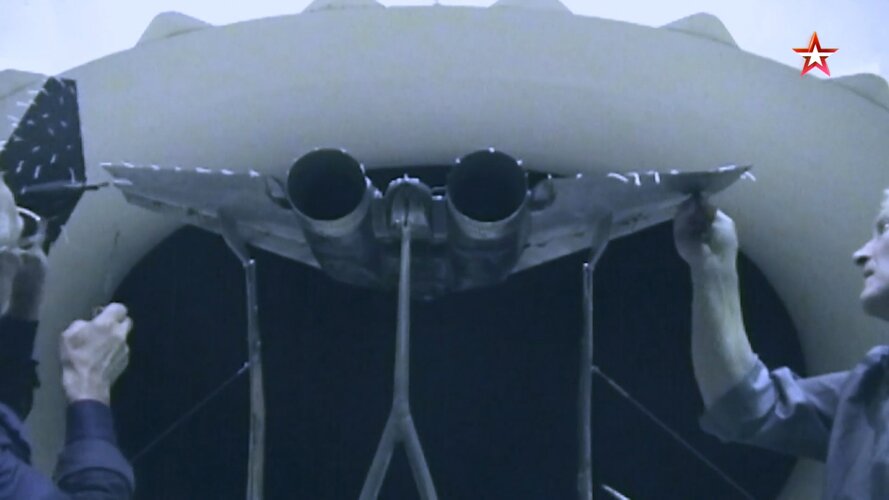

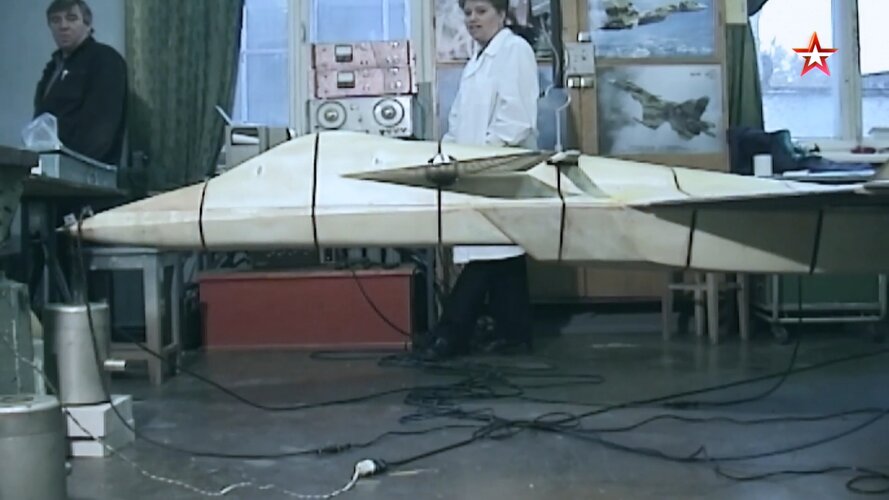

The famous Eeyore is finally saw the light of the day I guess

Д/с «Лучшие самолеты Сухого». Су-57

Д/с «Лучшие самолеты Сухого». Су-57 - Истребители Сухого - не просто словосочетание, это узнаваемый бренд в мире боевой авиации, знак высокого качества! За 80 с лишним лет опытно-конструкторское бюро создало множество самолетов, его машины стали настоящими легендами для военно-воздушных сил...

tvzvezda.ru



[flateric]

...



[Manuducati]

Thanks Flateric!

The "HIMAT-esque" design is very eye-catching!

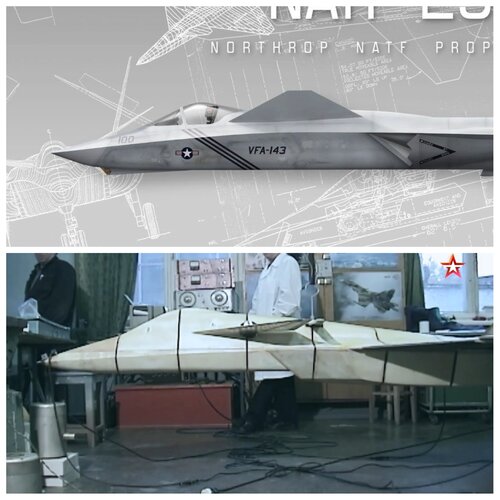

Some NATF-23 vibe from the profile view. Not implying any "stolen design" of course, just pointing some interesting similarities with Northrop studies.



[AGS-1787]

So what is this? A mock up of the t-50?



[helmutkohl]

...

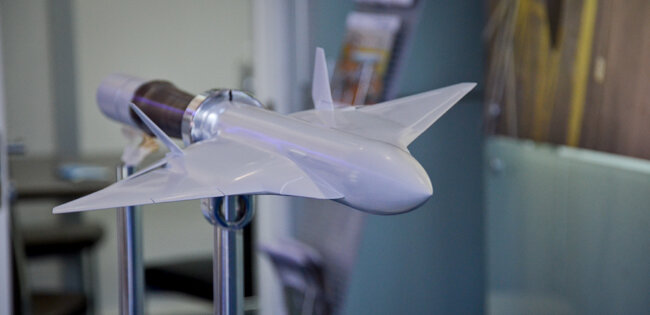

the model in the left looks almost exactly like this old CG, it was released a year or two before the T-50 was unveiled.
guess in the end it was pretty accurate



[stealthflanker]

That model with canard really reminds me of General Dynamics's ATF.



[flanker]

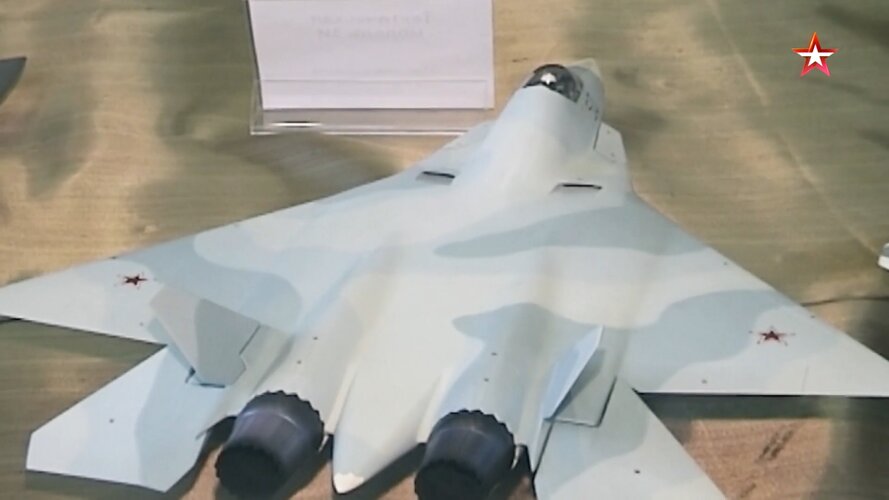

So my guess is that chronologically roughly it is;

1; "Eeyore"/NATF-23 looking ass.
2; Which later morphed into the attached version, lost the canards etc and got PChN's/LEVCON's instead.

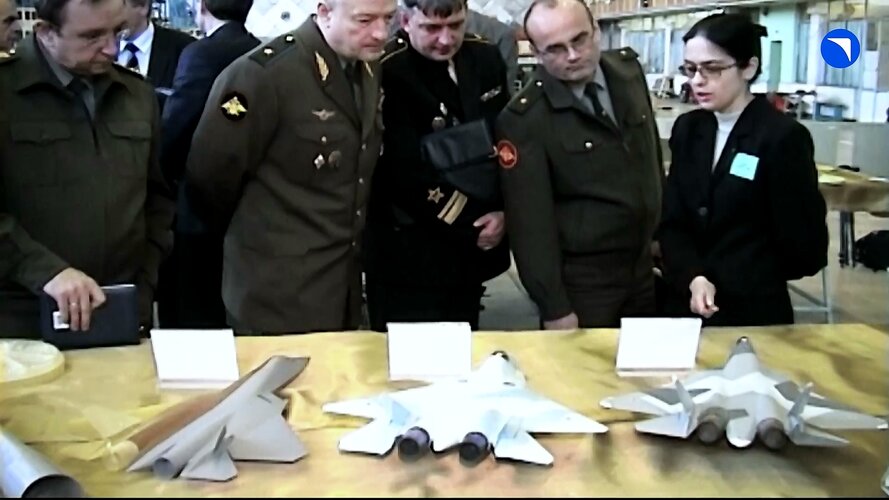

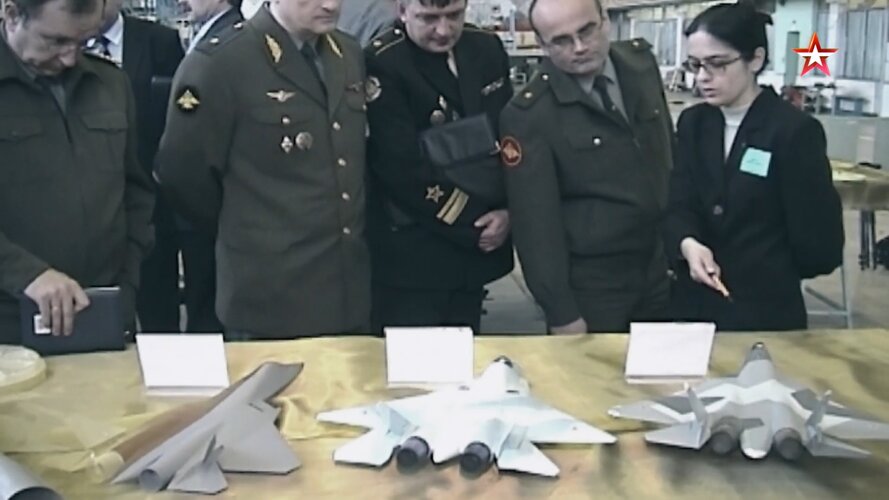

3; Then the middle model in the shot with 3 configurations, also the one that was up on Vympel site before it got removed.
4; Left model with the 3 configs
5; Right model with the 3 configs being the "last" T-50 configuration.

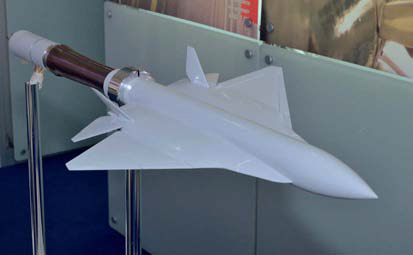

EDIT; Attached also a better version of the middle/Vympel posted configuration as well.



[QuadroFX]

The famous Eeyore is finally saw the light of the day I guess

Uploaded to YouTube for easy viewing:

View: https://youtu.be/5LVYjGMD_qI
