Specification F.5/49 Long Range Fighter

Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,261
Reaction score
137
Tony Buttler in BSP Vol 1 Fighters, makes reference to a short-lived RAF long-range fighter specification to which it was intended to adapt the DH.110.

I wondered what the specification called for and what changes were made to the DH.110.
Was it a single or dual seat fighter? Would the radar systems have been altered? Were there any other contenders drawn up?


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
440
Reaction score
141
I did a vigorous skim through parts of BSP Vol 1 Fighters (1st edition) and Appendixes 1 and 2 don't seem to mention a long-range interceptor version of the DH.110 for F.5/49 or the F.5/49 specification. Has anyone read the revised edition of BSP Vol 1 to see if it contains fighter proposals designed for F.5/49?


zen

CLEARANCE: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
990
Reaction score
28
From memory I don't recall that.
I do recall there was a larger fusilage version of the DH110 to accommodate the 35" dish AI set the RAF felt they needed.

And I recall that the Javelin got a 39" Diameter AI.22 set I think?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,443
Reaction score
744
In BSP, there is simply a mention of it being a short-lived RAF requirement for a long range fighter. That's it.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,443
Reaction score
744
Here's something! It was presumably a non-night fighter version of the DH-110.

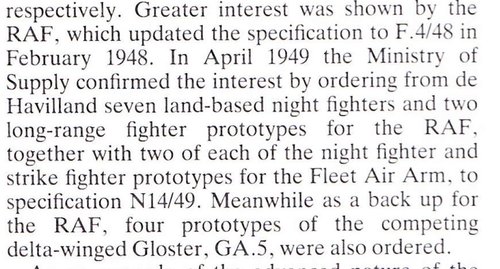

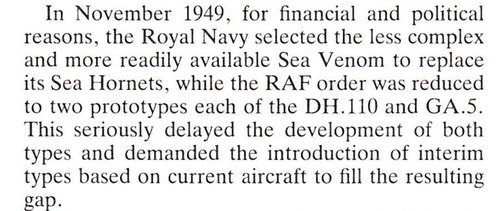

From Ian Birtles, Postwar Military Aircraft 5 - de Havilland Sea Vampire / Venom / Vixen (Ian Allan)


Attachments

TsrJoe

CLEARANCE: Secret
Senior Member
Joined
Jan 2, 2006
Messages
335
Reaction score
23
probably not an indicator but original company display models for the DH.110 were either in overall silver or overall black (as were the prototypes) I'm unsure if there were to be any specific role equipment differences tho ?


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,261
Reaction score
137
Feels a bit like shades of Mosquito perhaps, using one airframe to do everything. Its an intriguing short-lived specification.


yellowaster

CLEARANCE: Confidential
Joined
Jan 1, 2009
Messages
61
Reaction score
10
The F5/49 spec was presumably still extant in March 1950, since it was then being considered as a candidate for a long-range Intruder requirement (attacking bombers over their bases). Perhaps it didn't have quite enough range. In the event a variant of the Canberra was selected for the Intruder req, then cancelled in 1952, with a suggestion that a long range Javelin would be a better bet. Would be interesting to get the full story on F5/49 ...


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,261
Reaction score
137
I pulled the file from Kew on this last week. As ever it’s a more complicated tale.

The origin of Spec F.5/49 was Operational Requirement OR.234 and associated Spec F.17/47 issued in 1947 for a long-range fighter adapted from the OR.227 (F.4/46) night fighter. At this stage it seems de Havilland, Gloster and Hawker did some design work, but it’s not clear if they were formally submitted. OR.234 seems to have been suspended some time during 1948 but the MoS wrote up F.5/49 in early 1949, and the Air Staff revisited OR.234. It seems this activity was kickstarted by de Havilland's submission of a DH.110 variant to meet OR.234.

The DH.110 design had wingtip fuel tanks (giving 56ft span) and by all accounts a "complicated" fuel system (300gal replacing AI.9c radar, 1,550gal internally, 2x 190gal underwing drop tanks and 2x 200gal wingtip tanks). Cameras could be fitted, the navigator was retained despite removal of the radar. AUW was around 37,000lb, range around 2,700nm. Engines were two Avons.

By February 1950 Issue 2 of OR.234 was ready and de Havilland made a second submission as an "Intruder or Long Range Escort Fighter" the following April. The AI.9c radar was added back in. Gloster submitted a version of the F.4/48 (Javelin) in May with reheated RA.5s. Gloster seems to have only been interested in the high-altitude role. English Electric also submitted a Canberra, basically a PR.3 fuselage with B.2 wings with two RA.3 or Sapphires with reheat, extra integral tansk and optional tip-tanks and increased 61,000lb AUW. The MoS estimated the required AUW to meet the new OR.234 would be 120,000lb!! Typically, the OR had become bloated. The MoS was leaning more towards the Canberra for its load capacity.

Gloster followed up in July offering two more Javelin developments with unreheated Sa.50 Sapphires as high-altitude and all-weather fighters. At the same time, the Air Ministry were thinking of a two-seat intruder and that any long-range fighter would have to be a development of the intruder. Things seem a little murky in the available file, all the proposals seem only to have had cursory examination by the MoS with little in-depth work yet de Havilland had already been issued contracts for two F.5/49 prototypes a year before. The Canberra intruder seemed the best bet and F.5/49 went into abeyance and the two DH.110 prototypes were cancelled that July but work on OR.234 continued. By August the Gloster proposal was favoured but with some reservations. By February 1951 Glosters were looking at various aspect ratios and fuel tankage arrangements to improve performance. The result in April 1951 was a variant with a 66ft span 1,030sq ft area wing, 1,640gal of internal fuel plus 760gals in 2x ventral tanks, AUW 45,700lb. By March 1952 work was still ongoing, work now being more or less merged with that for the OR.309 variant for photo-recon. But with a planned production date of 1958 the RAF was concerned it was a project without value. On 17 September 1952 OR.234 was finally cancelled, a few months earlier Gloster had already been told to ignore OR.324 and focus on the Red Dean equipped all-weather fighter and OR.309 PR developments instead.
