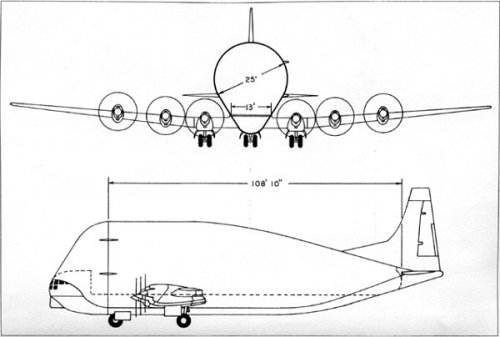

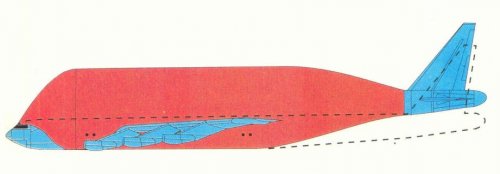

The recent modification of the B-747 for oversized cargo duties has maed me remember some Guppy-style projects I found some time ago. Here are some. I can not remember wher I found them, Sorry.


Attachments

  • b707 sst untitled.jpg
    b707 sst untitled.jpg
    16.3 KB · Views: 257
  • ssgup4a.jpg
    36.6 KB · Views: 239
  • pgprot1a.jpg
    38 KB · Views: 232
  • Colossal_Guppy.jpg
    40.1 KB · Views: 234

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
In Aviation Week 1974 14-25 a B-52 based project was shown, with four
additional engines.


Attachments

  • colossolaguppy.jpg
    28 KB · Views: 242

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
296
The recent modification of the B-747 for oversized cargo duties has maed me remember some Guppy-style projects I found some time ago. Here are some. I can not remember wher I found them, Sorry.

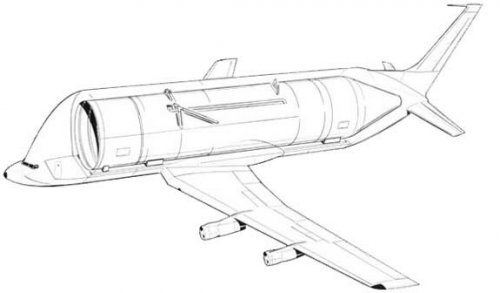

The drawing on the left of the proposed Aero Spacelines conversion of a Boeing 707 to carry large rocket boosters can be found on page 34 of the 2018 book Ultra-Large Aircraft, 1940-1970: The Development of Guppy and Expanded Fuselage Transports by William Patrick Dean. The Colossal Guppy is discussed and illustrated on pages 208-209 of Dean's book, and also on page 209 mention is made of a proposal by Conroy for a 747 guppy with a length of 235 feet and a 27 foot wide, 65,000 cubic foot cargo hold. The B-52 guppy would have had 12 turbojets in six podded pairs and a larger wingspan.
