Soviet Heavy Gunboat Project

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,200
Reaction score
635
I've just found this Soviet 1939-41 era gunboat project which I don't recall ever being built. It is a nice looking heavily armed ship with 2x2 152mm, 1x2 76mm, 1x4, 2x2 37mm and 4x2 12,7mm AA guns
on a 3.500tons displacement!
Maybe our Russian speaking guys could translate or enlighten us?

Weirdly the project number collides with the Kashin I class ASW Guided Missile Destroyers!

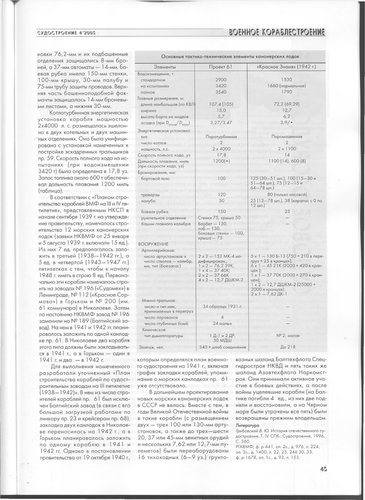

Attachments

Hardrada55

CLEARANCE: Confidential
Joined
May 31, 2008
Messages
78
Reaction score
14
Very exciting discovery! I like gunboats. Sure looks like it's got two twin-76.2mm mounts though, instead of just one.


Kingpin6100

CLEARANCE: Restricted
Joined
Jan 30, 2020
Messages
22
Reaction score
27
Weirdly the project number collides with the Kashin I class ASW Guided Missile Destroyers!

This is the really annoying thing about trying to research Soviet Navy projects. There isn't much information on the 1950s Project 24 Battleships, but information on the 1930s Project 24 Destroyers? Basically, it does not exist on the internet :(


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,200
Reaction score
635
Weirdly the project number collides with the Kashin I class ASW Guided Missile Destroyers!

This is the really annoying thing about trying to research Soviet Navy projects. There isn't much information on the 1950s Project 24 Battleships, but information on the 1930s Project 24 Destroyers? Basically, it does not exist on the internet :(
For the Project 24 Destroyer Leader (Armoured Super Destroyer) of 1936
Dimensions: Unknown
Displacement: 3.400tons standard. 3.650tons full load
Engine: around 100.000shp, 2-shafts, 87km/h,
Range: 11.100km
Armour: 50mm Belt and Deck probably over machinery
Armament:
4x2 130mm/50 B-13 Pattern 1936 Guns
2x4 37mm/67 70-K Guns
2x4 533mm Torpedo Tubes
50x Mines

This russian WOW wiki seems to have some info about it:
But I get my data way before World of Warships emerged, but I do not know from where...

Last edited:

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,647
Reaction score
1,787
Would have been quite useful to the Red Fleet during WWII if any had been built.
