Austro-Hungarian Navy non-capital ship designs

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
I've posted this on WoW subforum of Warship Projects but it laced attention, but just in case I post this here as well:

The Austro-Hungarian Kaiserliche und Königliche Kriegsmarine (Imperial and Royal War Navy), abbreviated as K.u.K. Kriegsmarine like other navies of the world developed and proposed a number of designs of various warship classes which did not left the shipyard or the drawing board. Here I will show you the non capital ship proposals aka the cruisers, destroyers and monitors.



Monitors

To my current knowledge these are the only known monitor projects:

Number XI and XII River monitors (to be named SMS Duna and SMS Tisza) were the largest Danube monitors ever laid down. Ordered in 1917 and never finished, though some sources say they were launched in 1918.

Data on the design
Dimensions: 73,9m x 13m x 1,7m
Displacement: 1.240tons standard
Engine Power: 2.100shp, 2 shafts
Maximum Speed: 19km/h (10knots)
Armour: 40mm Belt, 25mm Deck
Armaments:
2x1 190mm Guns
2x2 90m Guns
4x1 37m Guns
1x1 90m AA Gun

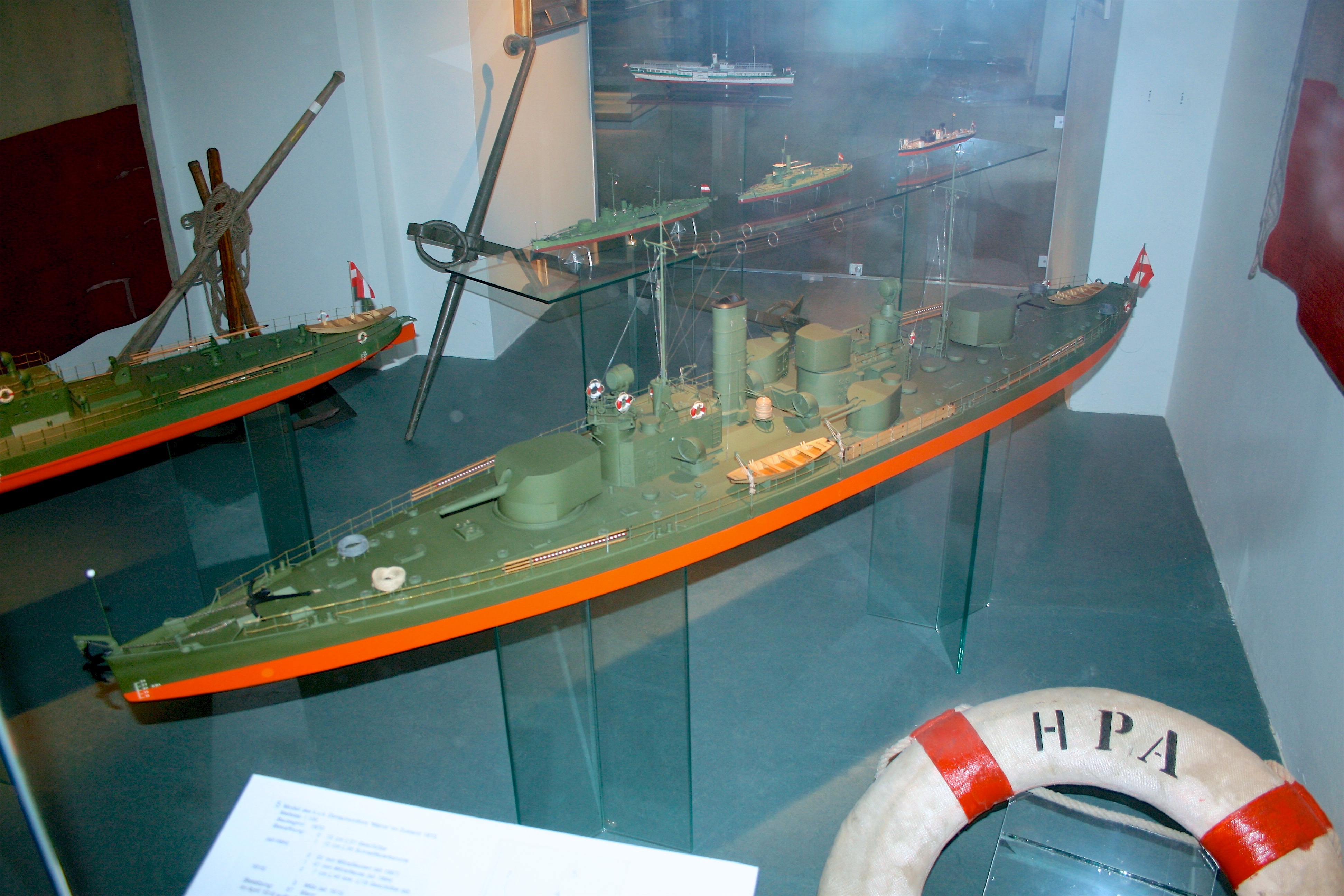

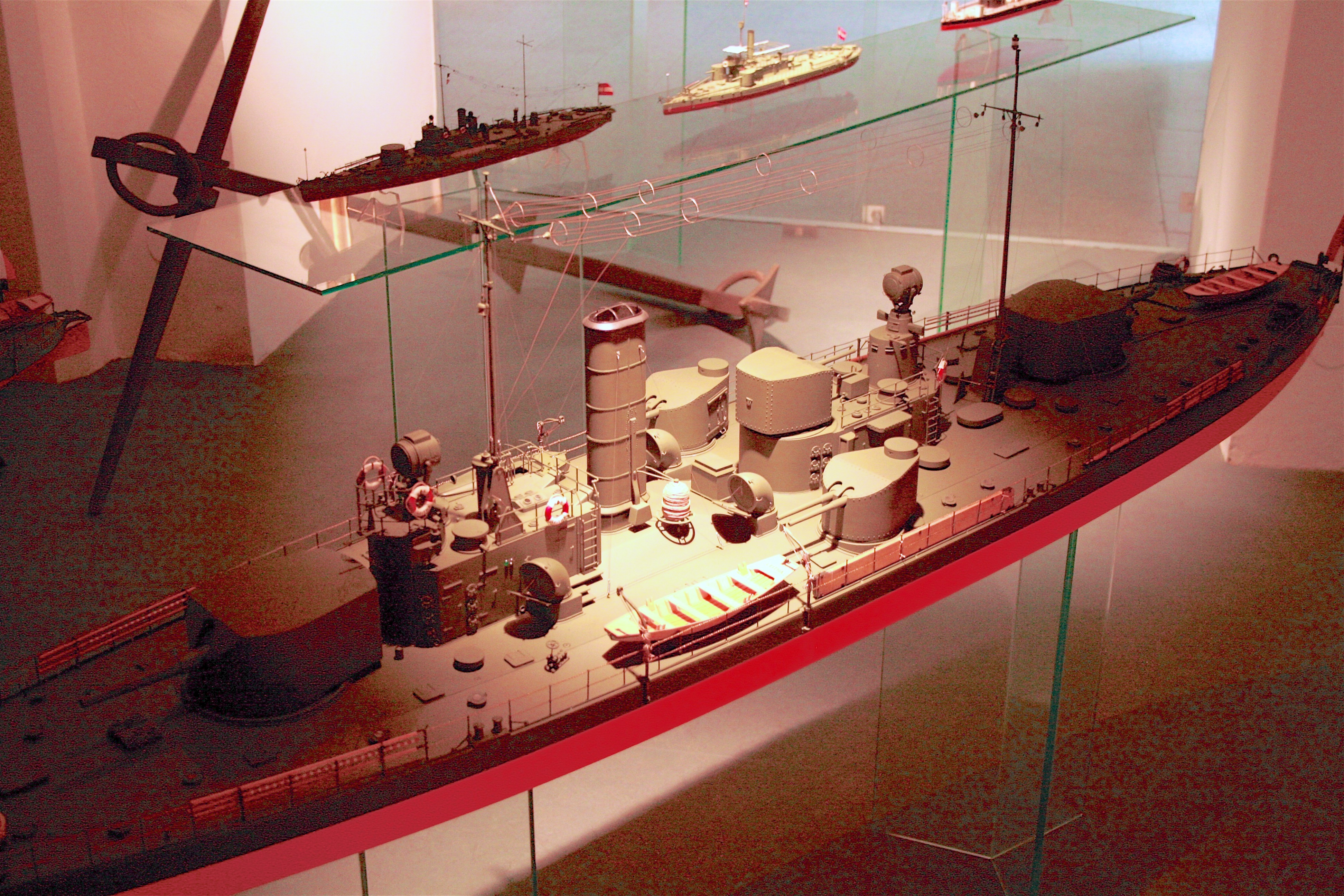

Here is a model of this proposal from the Heeresgeschichtliches Museum, Wien:

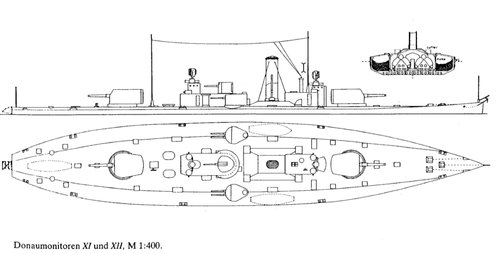

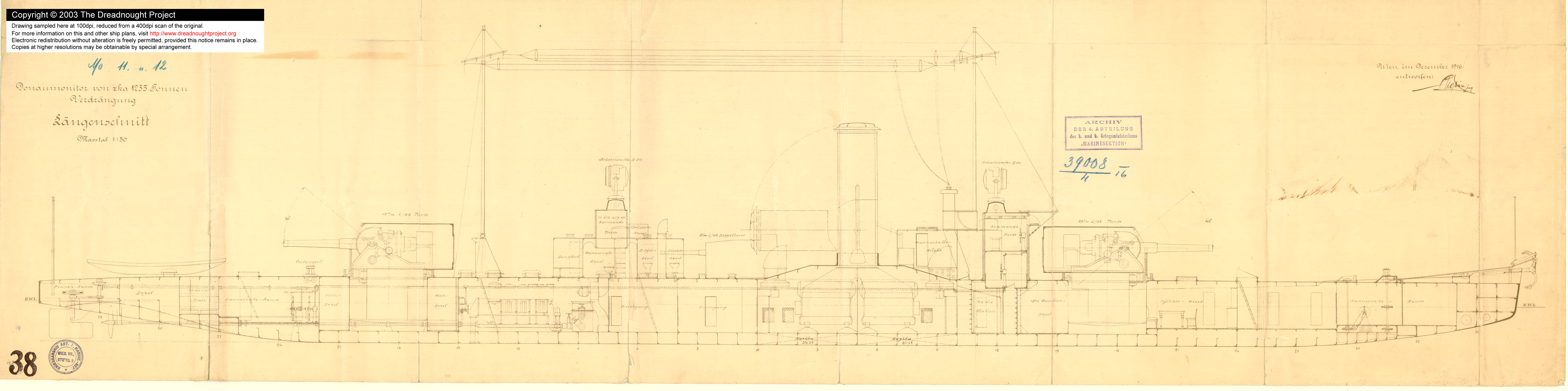

Plans of one of the prelinianry studies of this design from 1916:



And based on these photos and drawings, I've made a technical drawing of it:

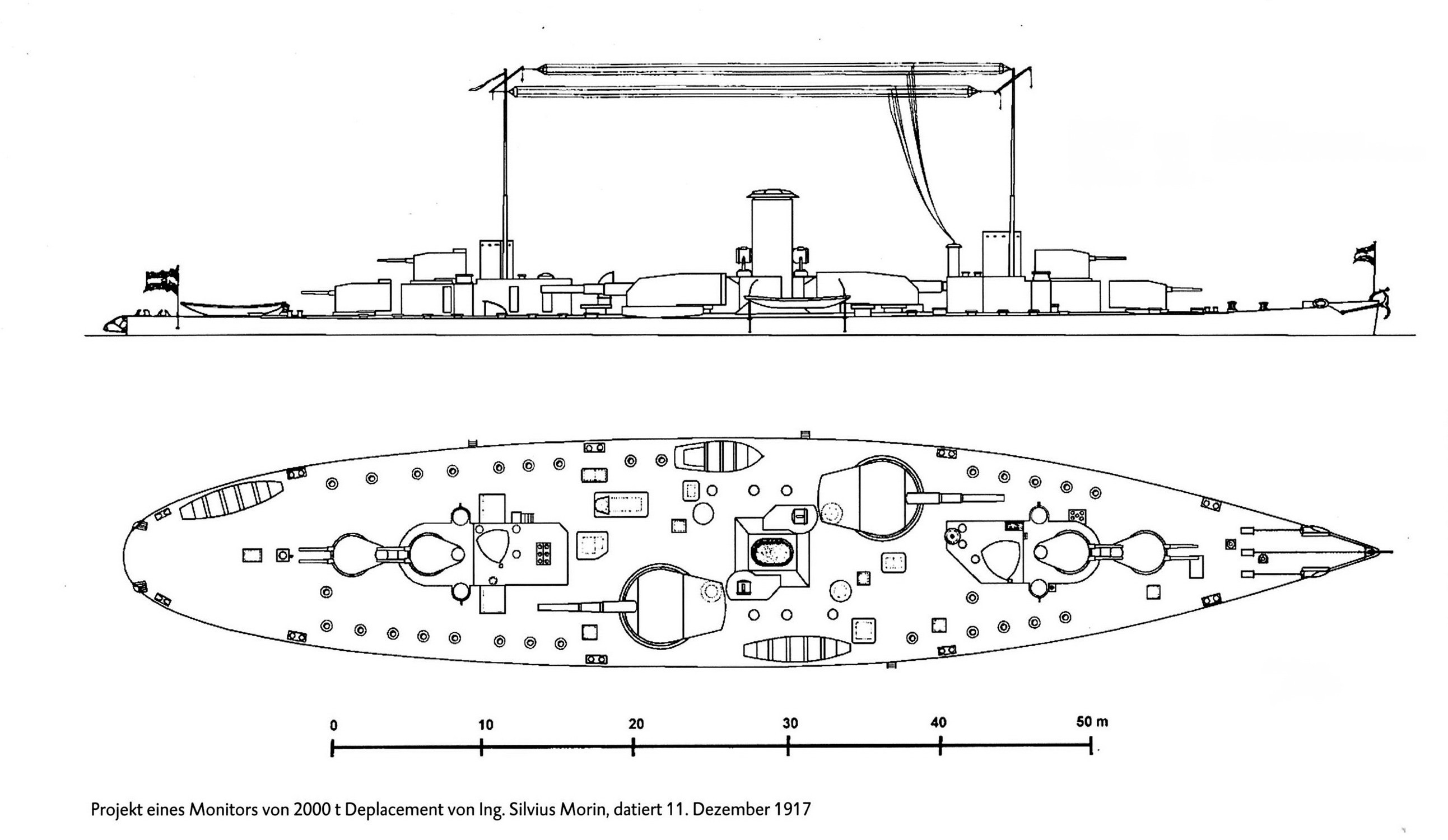

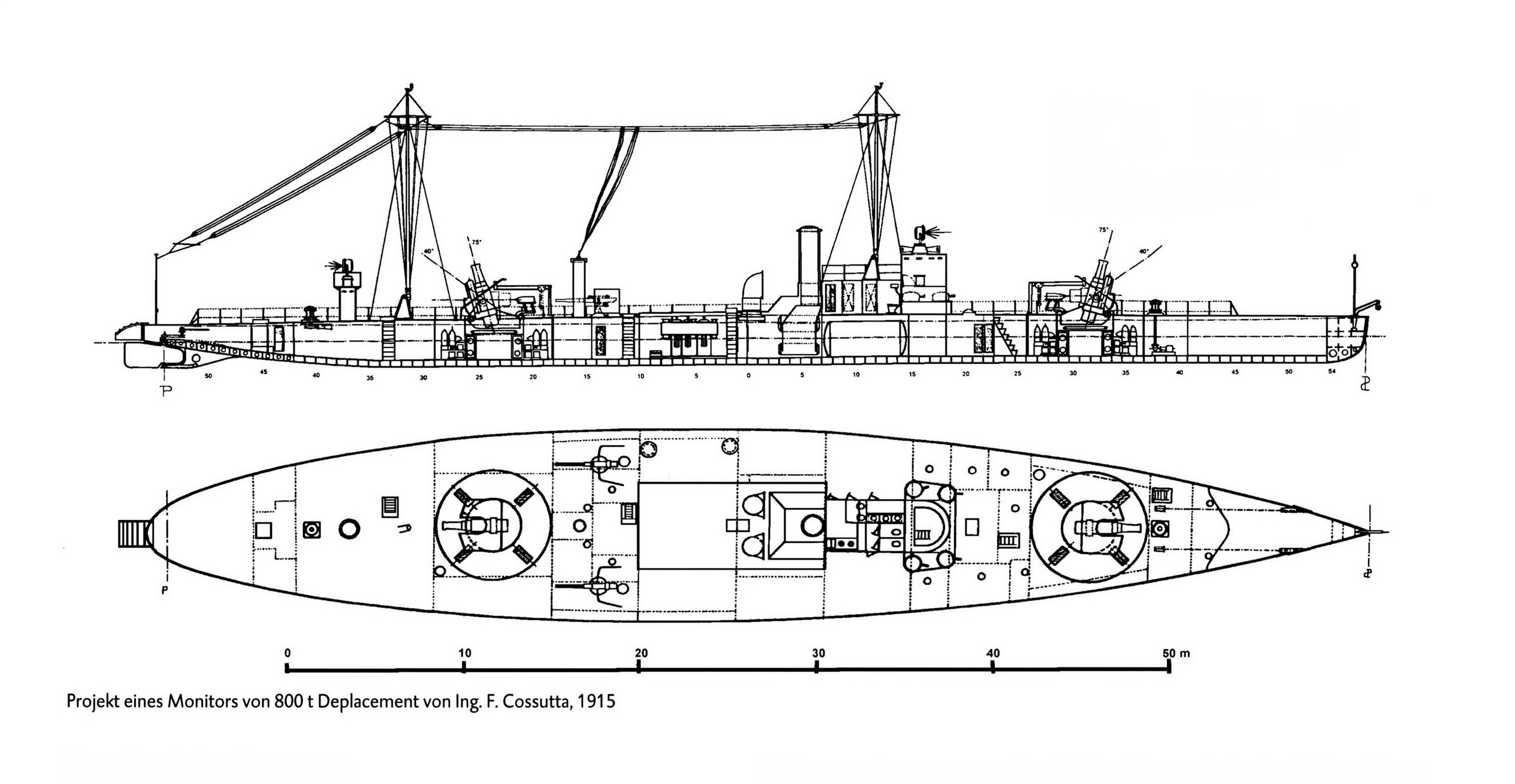

There was another monitor project during this time, it was also known as the Adria-Monitor Type, a pair of seagoing monitors were proposed at the end of 1917 to provide offshore fire support for the troops of the Dual Monarchy at the coasts of Italy. Not much is known about this design apart that they would displace 1500tons standard and would carry 2x 24cm cannons in 2 single turrets. None were laid down.

Based on the available data, the Duna Monitor and various similar sized monitors of other navies I've tried to-create this proposal:



Destroyers

Improved Tátra class Destroyers
8 destroyers of this class was authorised in September 1917, but only 4 units were actually ordered on 22nd of December, 1917. The steel shortage prevented their being laid down as only some 200tons of materials had reached the Shipyard at Porto Ré by the end of the war. The turbines and boilers, being built in Budapest were about 35% complete at the time.

Data on the design
Dimensions: 855m x 7,8m x 2,6m
Displacement: 880tons standard, 1.050tons full load
Engine Power: 20.500shp, 2 shafts
Maximum Speed: 60km/h (32,5knots)
Range: Unknown
Armaments:
2x1 120mm Guns
2x1 90m AA Gun
2x2 450mm Torpedo Tubes

Based on the data and the drawings of the existing Tátra class destroyers I've produced a drawing of it:


1.000ton Torepdo-Boat (Destroyer) design
In 1917 the admiralty planned new destroyers to not just replenish it's forces but expand them and continue the tradition of quality over quantity and designed both an 500ton and 1000ton ocean going fleet torpedo boats. While the 500ton torpedo boat was a true torpedo boat emphasizing speed and armament on a smaller hull and thus reduced range (this design was to be armed with 2x1 66mm guns and 2x2 53cm torpedoes with a speed of 61km/h (33knots) and 1850km range (1000nm)), this design considered too small for the admiralty and they choose the larger 1.000ton boat and the navy intended to build 12 such vessels.
The 1.000ton variant was to be armed with 3x1 12cm guns and 2x2 53cm torpedo tubes essentially double the firepower of the Tátra class destroyers while maintain a speed of 59km/h (32knots) for 20 hours and a range of 2800km (1500nm) at 37km/h (20knots). To achieve the high speed and required endurance the hull was made very economical hence the water drop shape which reduce resistance in water but on the other hand not provides much space on the aft as you can see. To provide space for the armament it was necessary to trunk as many funnels as possible and give a modern looking two funnelled ship with enough space to put the 3rd 12cm gun between them.
I wasn't able to find data about dimensions of these designs so a scaling of the drawing had to be done based on the Tatra drawings.
In the end the resulting dimensions as follows: length: 108,3m with a width of 10,5m and a draught of 3meters.

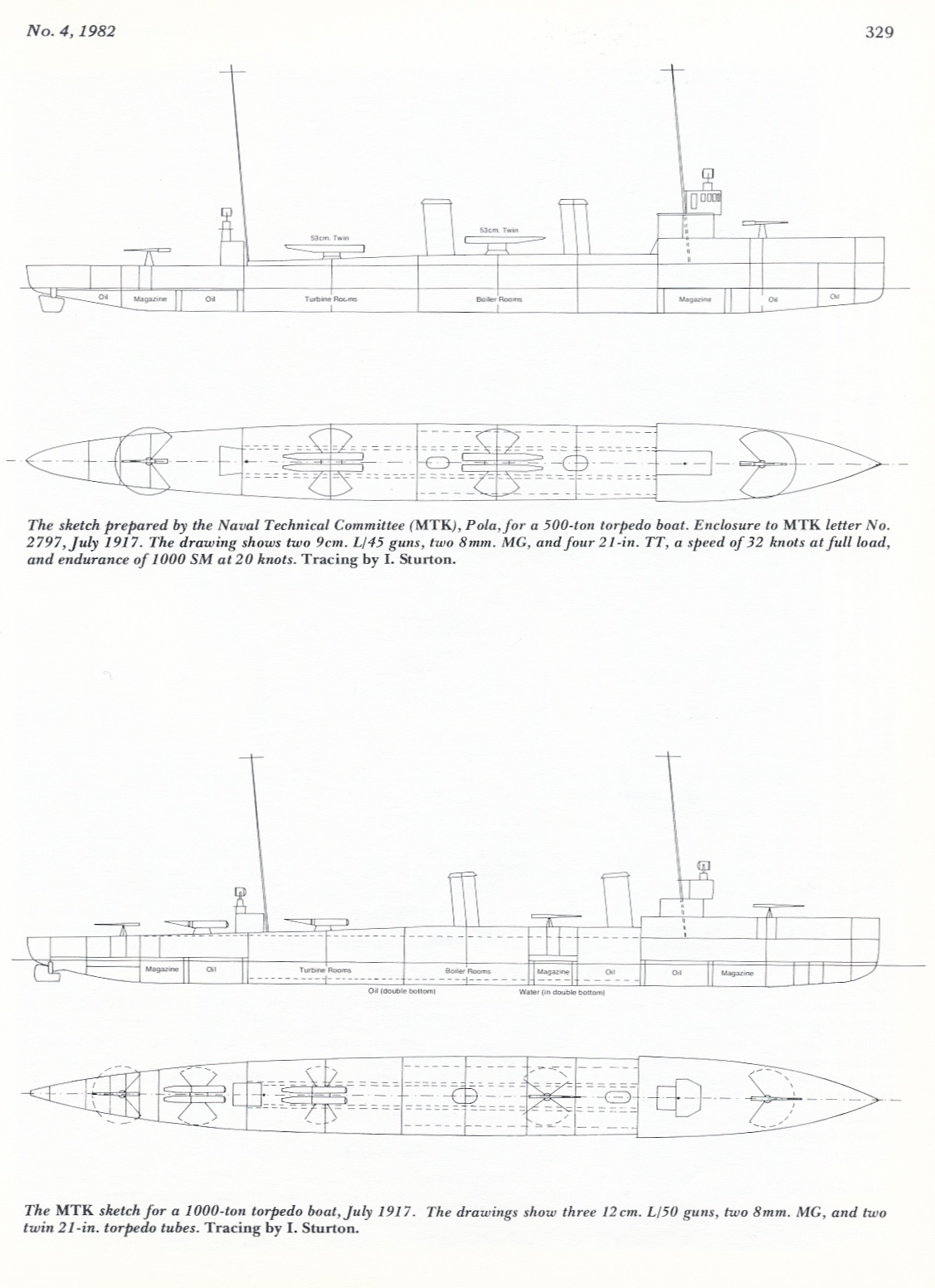

Official sketch of both the 500ton and 1000ton proposals:


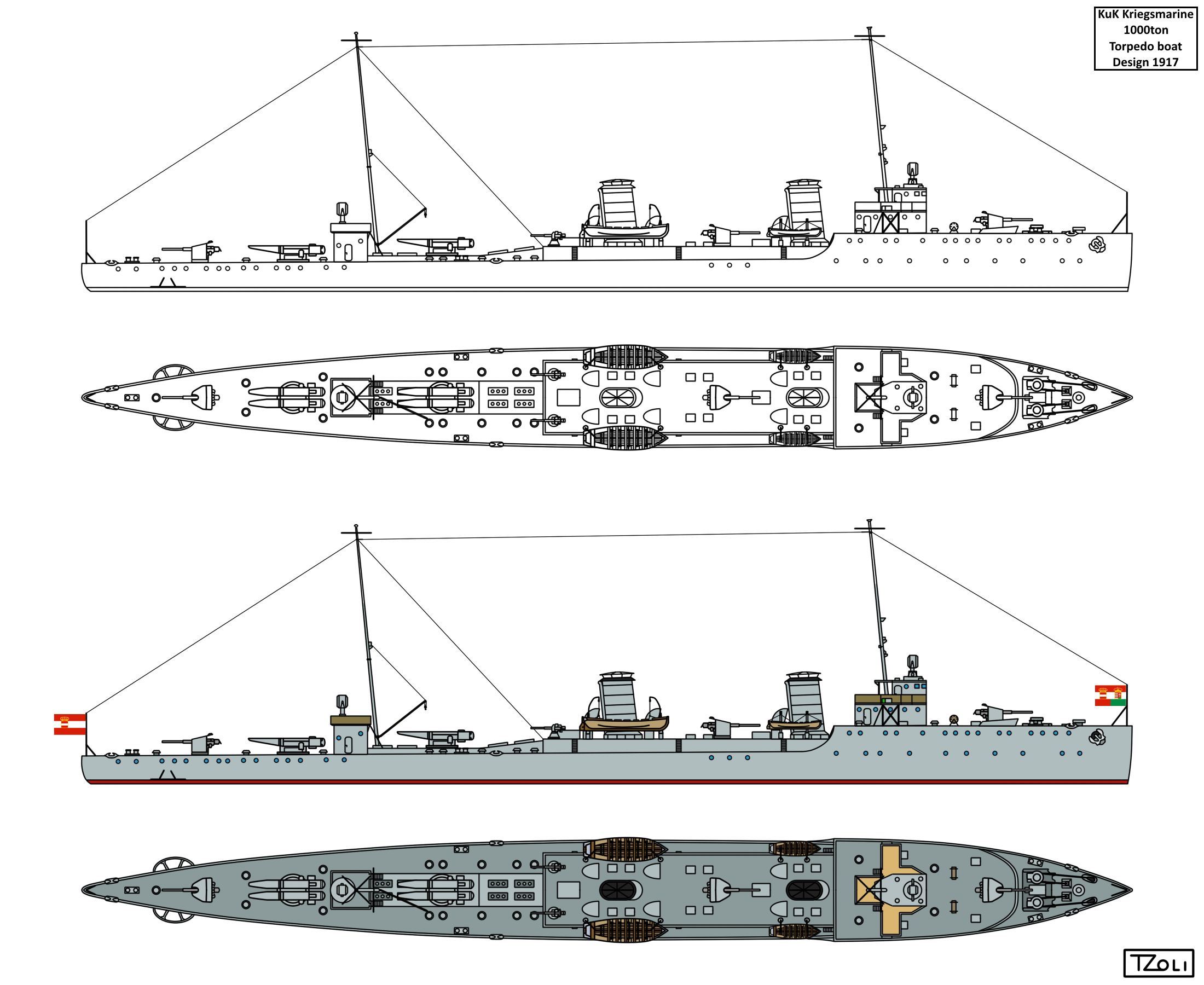

Based on the data and drawing I was able to make this drawing:


1.600ton Destroyer Leader design
In 1917 the Admiralty of the Austro-Hungarian Navy ordered a new type of destroyer, to lead destroyer and torpedo boat flotillas. This ship would had enough fuel storage to travel to the Mediterranean sea and thus large enough to carry the necessary fuel but would had been armed with strong armament as well. Displacement was set to 1600tons, to reduce design time the plans of existing ships (Tátra class) to be used but reality shown that construction time would not change dramatically if using modified existing designs or entire new ones.
Multiple design studies were presented to the admiralty but there seems to be only 3 designs survived in the archives:

An offer from the Hungarian firm Ganz-Danubius (Ganz és Társa-Danubius Villamossági-, Gép-, Waggon- és Hajógyár Rt. - Ganz and Partner-Danubius Electrical- Machine-, Wagon- and Shipbuilding Co.), Fiume/Budapest as follows:
Dimensions: 109,6 x 9,4 x 3m
Displacement: 1.615tons standard, 2.093tons full load
Engine Power: 41.000shp 2 shafts, 63km/h (34knots)
Armament: 2x1 15cm or 4x1 12cm guns, 2x AA guns, 2x2 53cm torpedo tubes

Another offer was from the MTK (Marinetechnische Komitee - Naval Technical Committee), Pola / Vienna as follows:
Dimensions: 110 x 9,5 x 2,9m
Displacement: 1.500tons standard, 1.900tons full load
Engine Power: 36.000shp 2 shafts, 65km/h (35knots)
Armament: 6x1 10cm guns, no mention of AA guns though, 4x2 53cm torpedo tubes

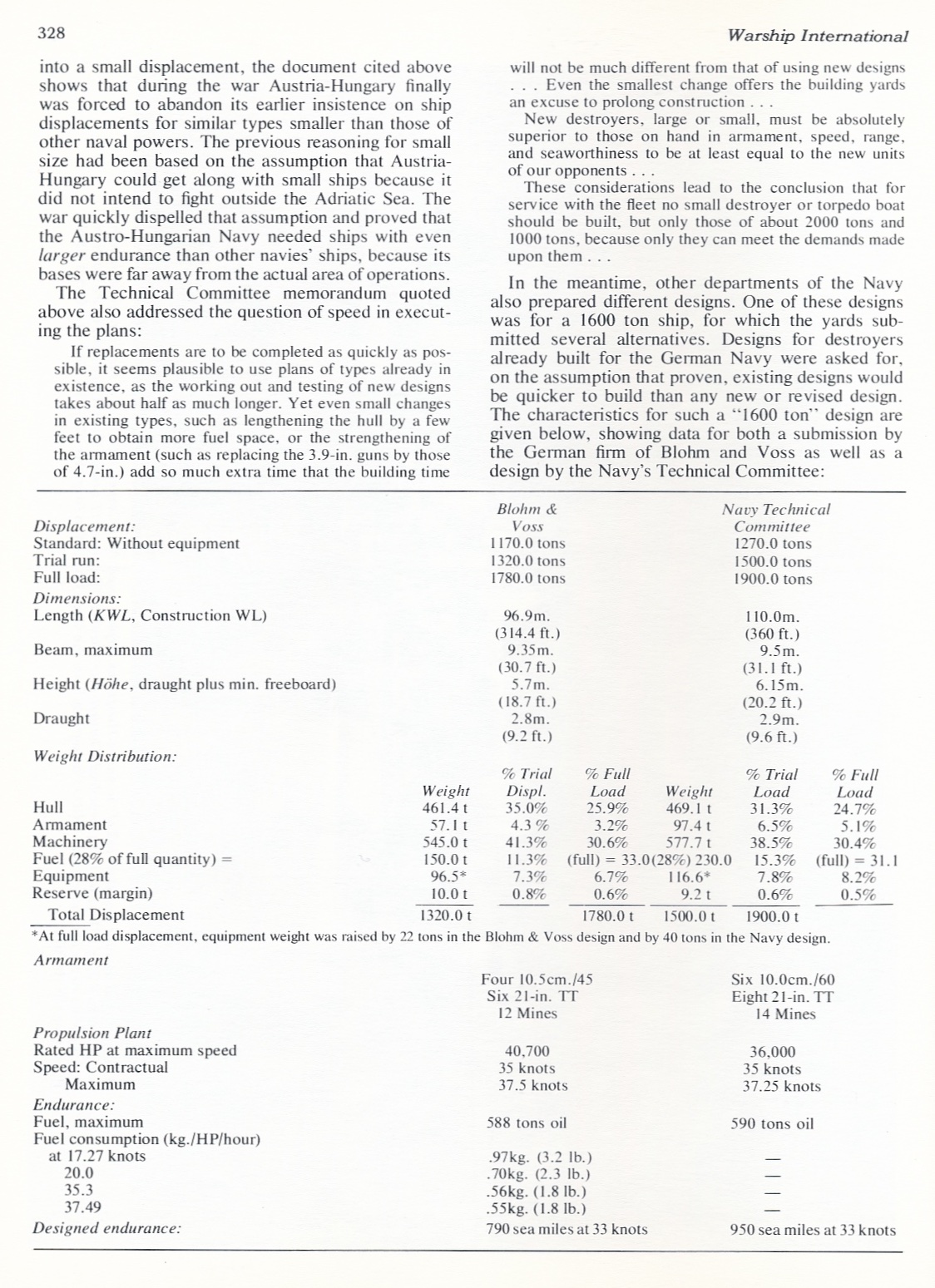

And there was an offer even from the German shipyard of Blohm & Voss, Hamburg which was producing destroyers for the German Navy:
Dimensions: 96,9 x 9,35 x 2,8m
Displacement: 1.320tons standard, 1.780tons full load
Engine Power: 30.700shp 2 shafts, 65km/h (35knots)
Armament: 4x1 10,5cm guns, no mention of AA guns though, 2x2,2x1 or 3x2 53cm torpedo tubes

Ganz-Danubius proposal:

MTK and Blohm & Voss proposals:

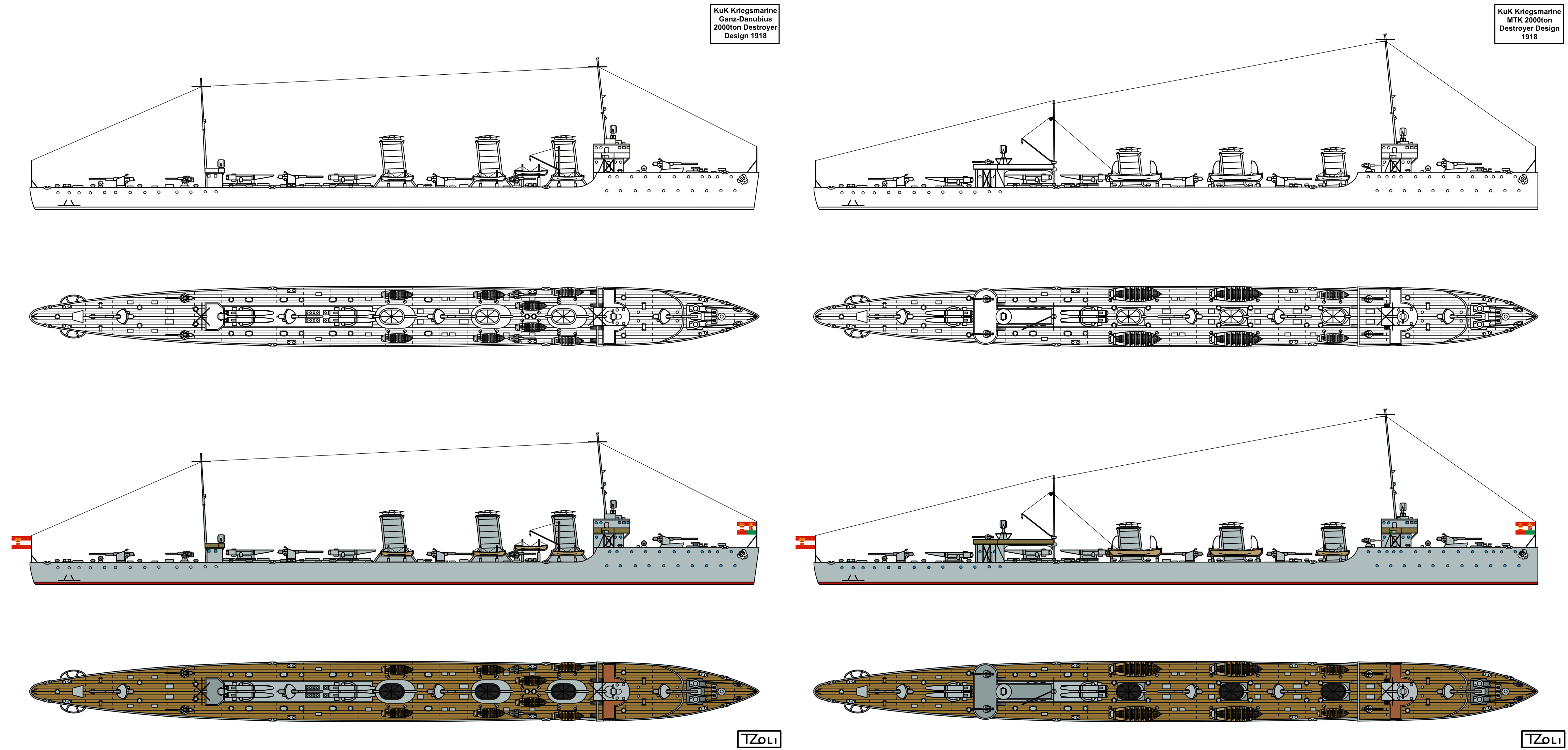

Here are my drawings of the MTK and Ganz-Danubius proposals based on the data above:


1.900-2.000ton Destroyer design
8 destroyers of 1900tons were authorised in September 1917, while the next month the Naval Technical Committee (K.u.K. Marinetechnisches Komitee) issued a specification for a 2000ton destroyer with the following details:

Dimensions: 115m x 10m x 3,8m
Maximum Speed: 63km/h (34knots)
Armaments: 4x1 15cm L/50, 4x1 6,6cm L/50 AA, 6x 53cm Torpedo Tubes

Two shipyards were invited to put forward their suggestions in line with this specification. Ganz-Danubius Fiume tendered their project in April 1918. The ships would had the following details:
Dimensions: 122,4m x 10,2m x 6,8m
Displacement: 2.272tons standard, 2.498tons full load
Engine Power: 43.000shp, 2 shafts
Maximum Speed: 63km/h (34knots)
Range: 5.600km at 30km/h (3.000nm at 16knots)
Armaments:
4x1 150mm Guns
4x1 105m AA Gun
2x2 533mm Torpedo Tubes

It was not until the 15th of August, 1918 that STT submitted alternative proposals for a 2440ton destroyer armed with 3x1 15cm guns and another 2650ton destroyer armed with 4x1 15cm guns:
Dimensions: 122,4m x 10,2m x 6,8m
Displacement: around 2.300tons standard, 2.650tons full load
Engine Power: 43.000shp 2 shafts
Maximum Speed: 63km/h (34knots)
Range: 5.600km at 30km/h (3.000nm at 16knots)
Armaments:
4x1 150mm Guns
4x1 66m AA Gun
3x2 533mm Torpedo Tubes (originally 2x2 but soon changed to 3x2)

This project was approved but the situation deteriorated rapidly and no vessels were ordered.

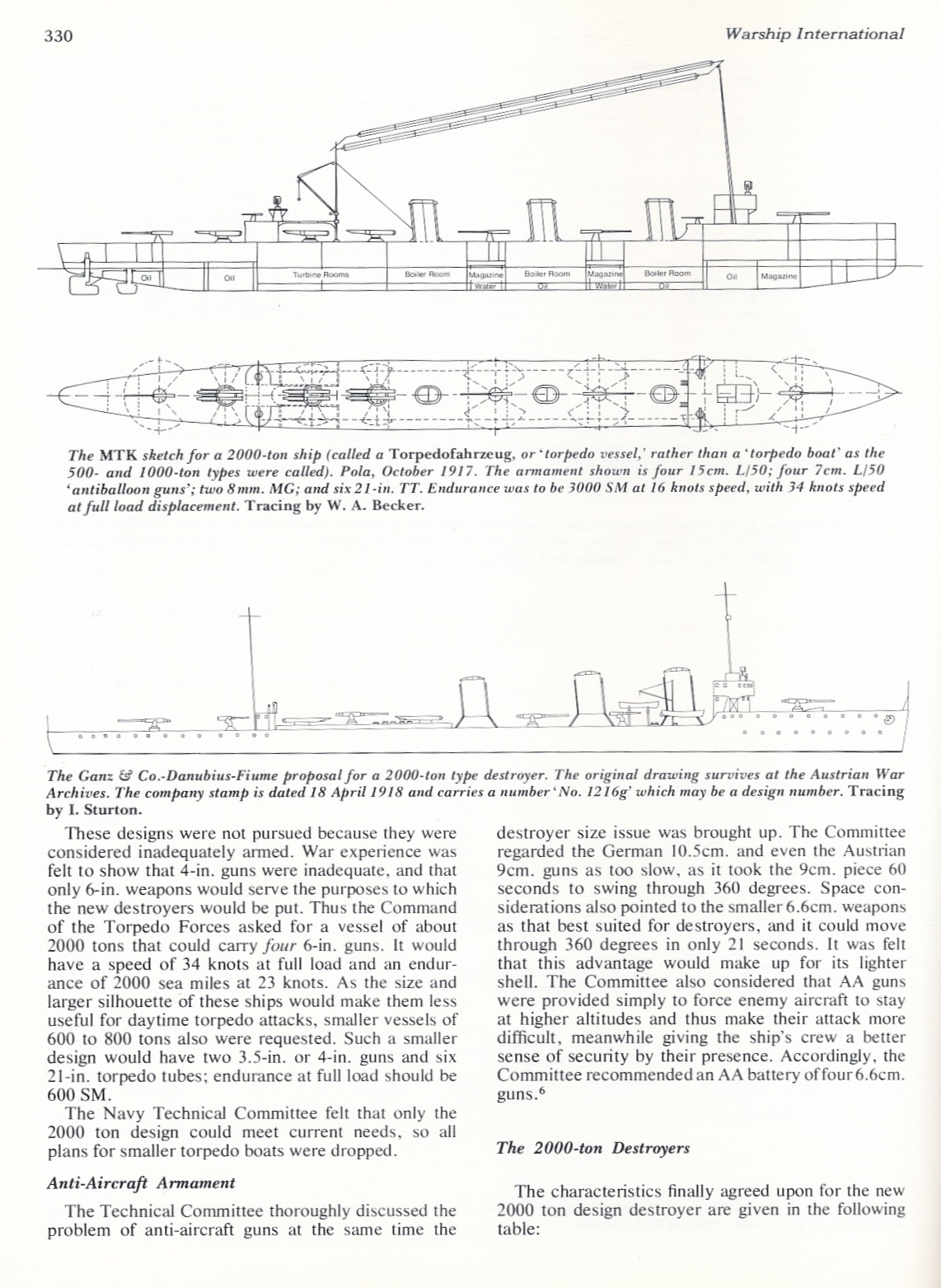

Original sketch drawings of both the MTK and Ganz-Danubius proposals:


And my drawing based on the above sketches and data:



Cruisers

There were a number of cruisers designs during WW I including the 3+1 intended for China:

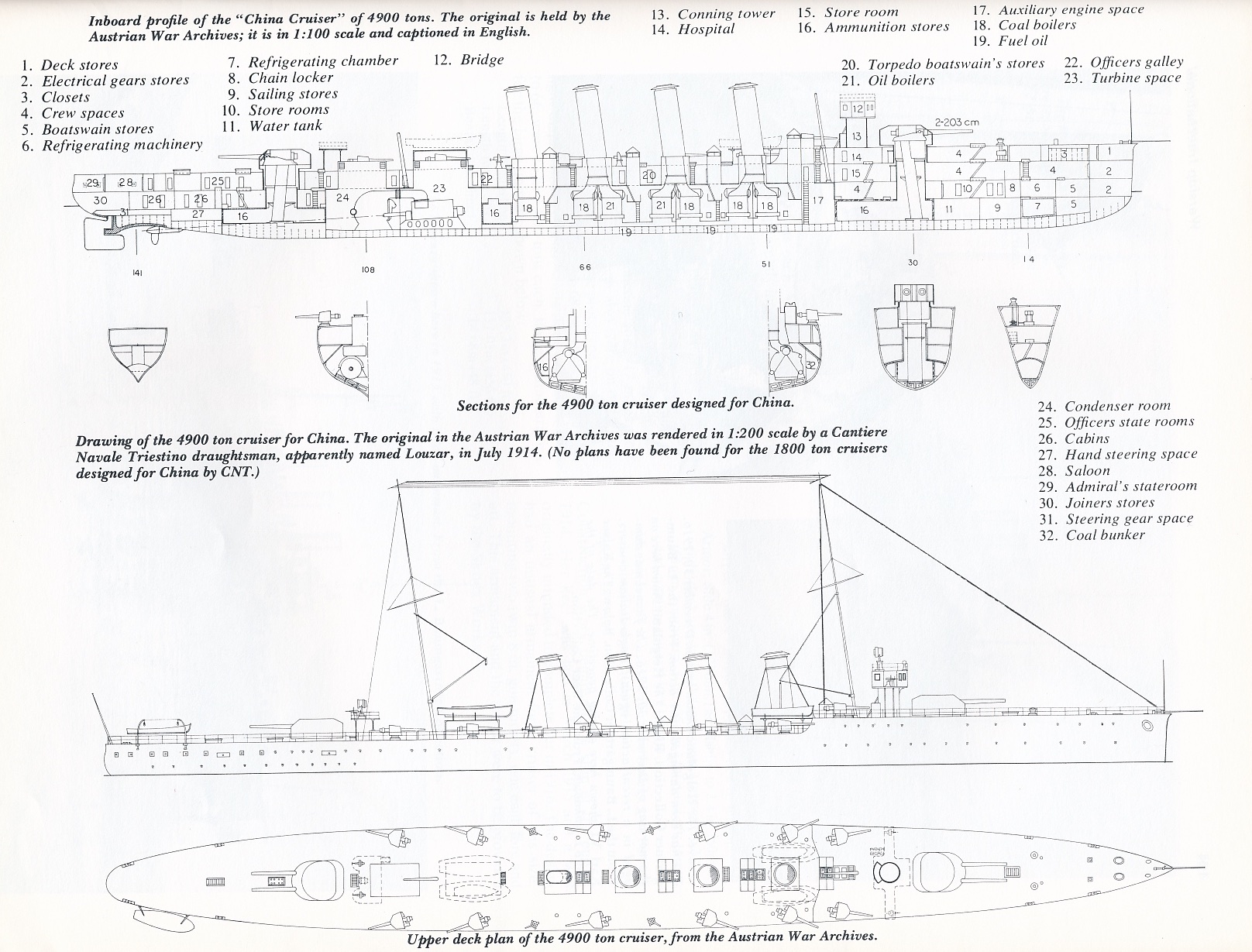

The large or great China cruiser:
In 1913 the Chinese government ordered 4 cruisers of two different designs from Cantiere Navale Trietino, Monfalcone (CNT). These were cruiser number 65,66,67 as well as 68 for the large cruiser. Preparatory work began in December 1914, the keel of the large Chinese cruiser being laid in March 1915. Her armament and armour were to be provided by the Skoda Works, while the turbines were to come from Ganz & Danubius AG, Budapest.
When Italy declared war on Austria-Hungary, only parts of the keel and some frames were erected. When Austrian troops recaptured the area in the 27th of October, 1917, these 4 cruisers showed remarkably little damage because construction was so little advanced.
The design of the large Chinese cruiser could be easily reworked to Austro-Hungarian standards, the 37.000shp turbine set and the entire boiler system were ready for delivery, and 31% of the hull material was already stockpiled, so plans were drawn up in April, 1918 to restart work on her but she was scrapped on the stocks postwar.

Original Design:
Dimensions: 137m x 14,68m x 4,88m
Displacement: 4.900tons standard
Engine Power: 37.000shp, 2 shafts
Maximum Speed: 52km/h (28knots)
Range: 5.600km at 24km/h (3.000nm at 13knots)
Armour: 100mm Belt, 63mm Deck
Armaments:
2x2 203mm Guns
12x1 120mm Guns
10x1 47mm Guns
4x1 37mm Guns
2x1 450mm Torpedo Tubes


Revised design for the KuK Marine:
Dimensions: 137m x 14,68m x 4,88m
Displacement: 4.900tons standard, 5350tons full load
Engine Power: 37.000shp, 2 shafts
Maximum Speed: 52km/h (28knots)
Range: 5.600km at 24km/h (3.000nm at 13knots)
Armour: 100mm Belt, 63mm Deck
Armaments:
8x1 150mm Guns
2x1 90mm AA Guns
2x2 450mm Torpedo Tubes



The small China cruisers:
Three small cruisers ordered in September 1913 that were to be built in 22-26 months from start of construction. Their armament was to be supplied by Skoda. All three were begun by early 1915 but Italian troops seized them on the stocks, when recaptured by the Austrian troops they had very little damage. Plans were envisioned to finish them to a simpler design featuring a revised armament.

Original Design:
Dimensions: 109,7m x 10,9m x 4m
Displacement: 1.800tons standard
Engine Power: 30.000shp, 2 shafts
Maximum Speed: 59km/h (35knots)
Range: Unknown
Armour: 0mm Belt, 25mm Deck
Armaments:
10x1 100mm Guns
4x1 47mm Guns
2x1 450mm Torpedo Tubes

Revised design for the KuK Marine:
Dimensions: 109,7m x 10,9m x 4m
Displacement: 1.800tons standard
Engine Power: 30.000shp, 2 shafts
Maximum Speed: 59km/h (35knots)
Range: Unknown
Armour: 0mm Belt, 25mm Deck
Armaments:
4x1 120mm Guns
8x1 66mm Guns
4x1 47mm Guns
2x1 450mm Torpedo Tubes

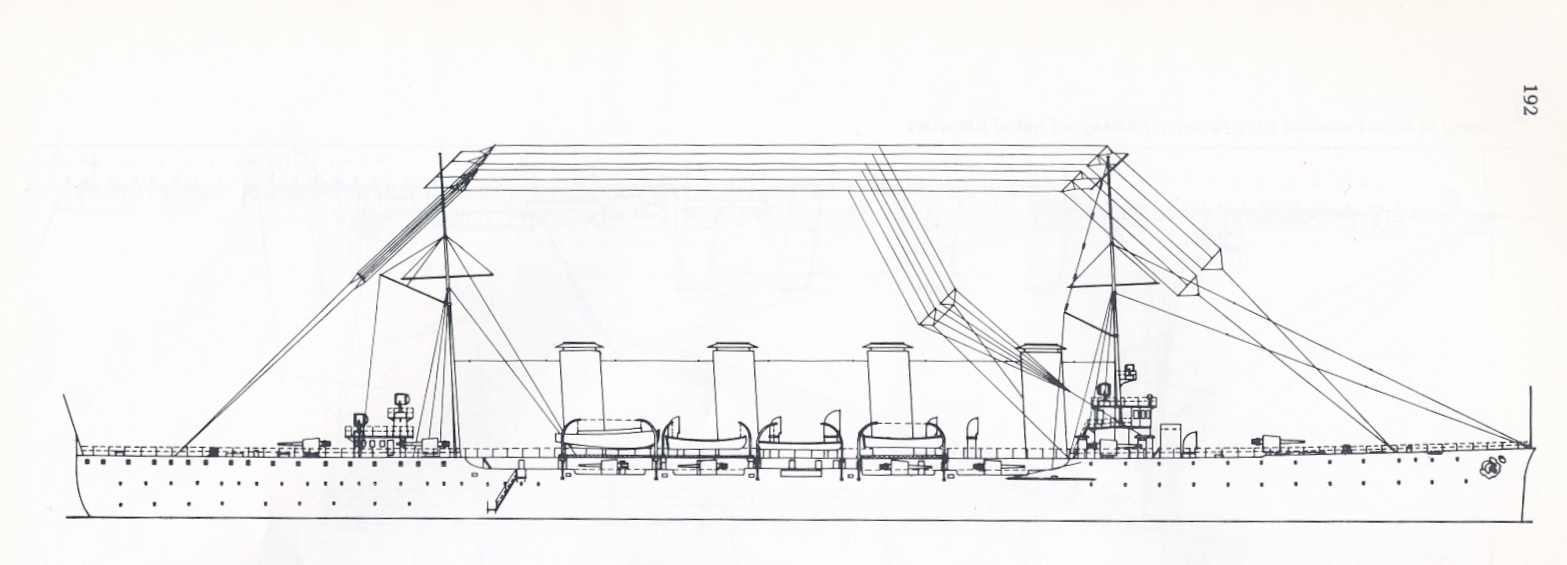

Ersatz Zenta class (Replacement Zenta class:
3 fast light cruisers, essentially scout cruisers, authorized on 28th of May, 1914, in the same 1914-15 naval budget as the Ersatz Monarch or improved Tegetthoffs. These cruisers were a continuation of and improvement on the previous designs, showing a clear switch from the scout role to the better armed fleet cruiser. 3 naval engineers proposed designs for the requirement of such cruisers: Franz Pitzinger, Silvius Morin and Johann Fiala, but only Fiala's desings were taken into consideration, but before a clear decision in favour of any one was taken, war broke out and the laying down of the first unit was postponed.

In December 1915, although Italy had now entered the war, the Naval Command demanded changes in the cruiser design which clearly reflected the lessons of the first year of the war and also the urgent need for fast but better armed cruisers for Adriatic warfare: more powerful main artillery, heavier AA guns and increased belt armour.

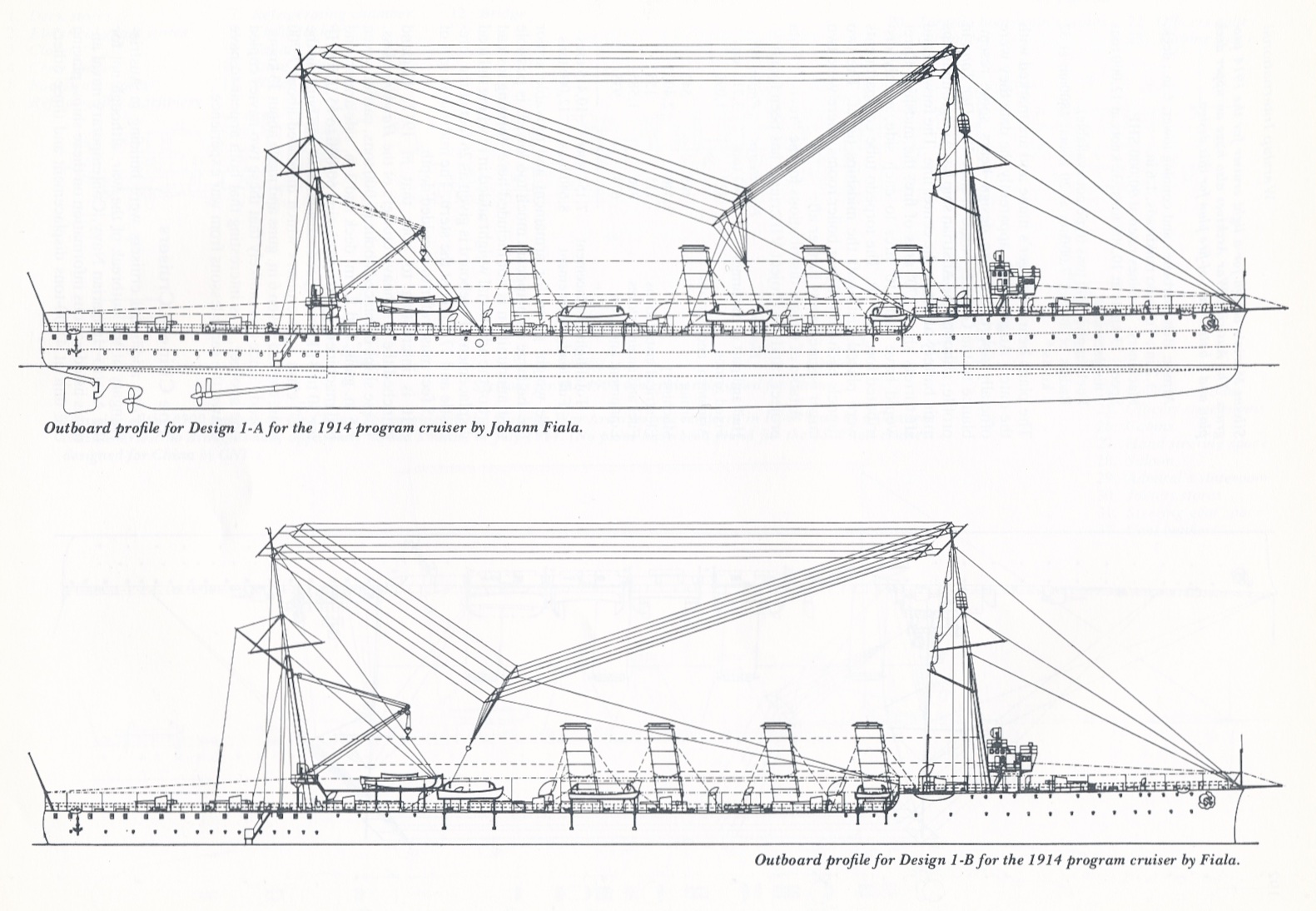

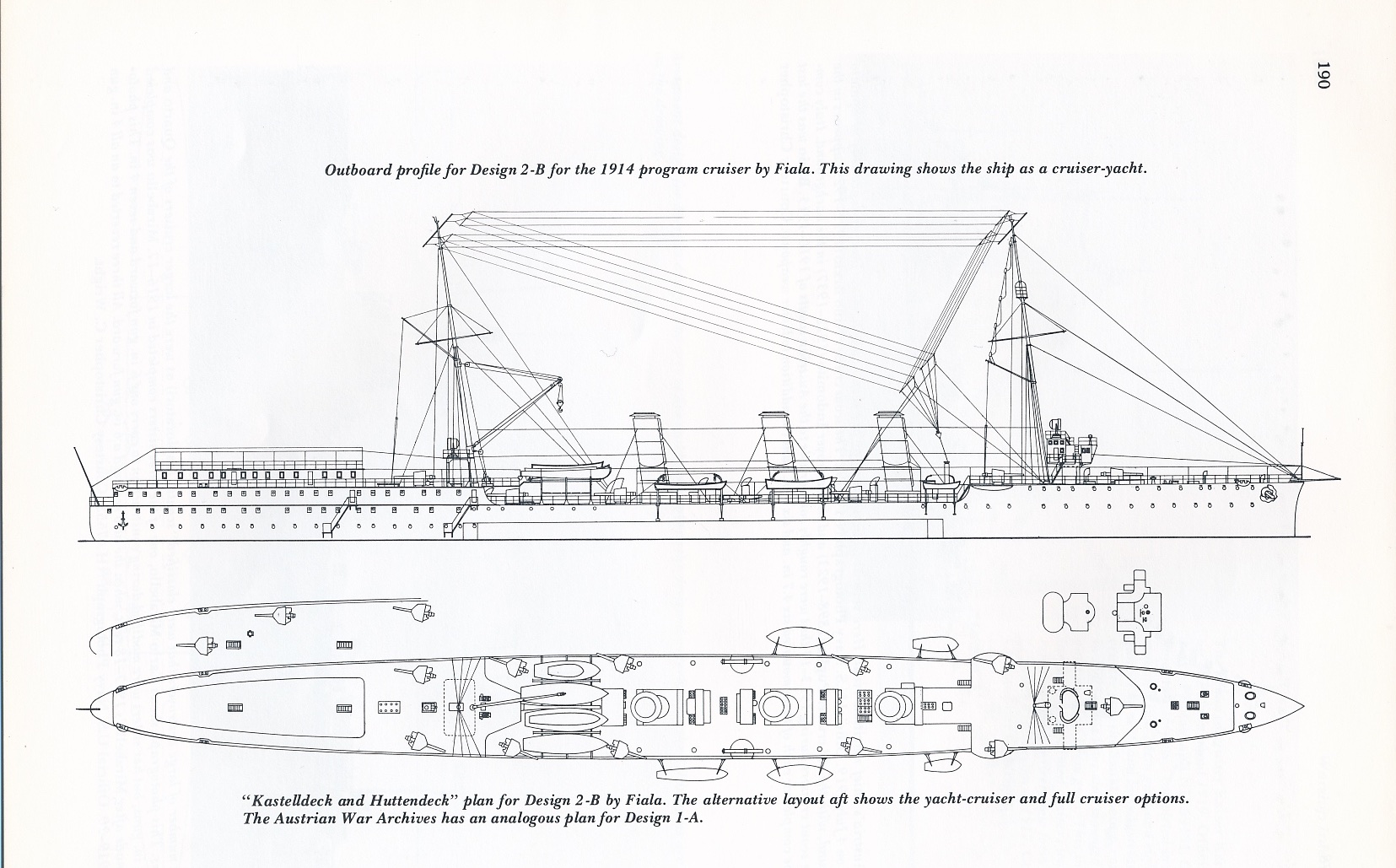

Other designers variants:
https://stefsap.wordpress.com/2015/10/18/austria-hungarys-naval-building-projects-1914-1918-cruisers/

Original Design:
Dimensions: 153,1m x 13,7m x 6,4m
Displacement: 4.950tons standard, 5.611 full load
Engine Power: 38.000shp, 2 shafts
Maximum Speed: 56km/h (30knots)
Range: Unknown
Armour: 20mm Belt, 38mm Deck
Armaments:
14x1 120mm Guns
1x1 47mm Gun
2x1 450mm Torpedo Tubes



Silvius Morin's variant:


Revised design:
Dimensions: 153,1m x 13,7m x 6,4m
Displacement: 8.640tons standard
Engine Power: 38.000shp, 2 shafts
Maximum Speed: 56km/h (30knots)
Range: Unknown
Armour: 150mm Belt, 38mm Deck
Armaments:
2x1 190mm Guns
6x1 150mm Guns
4x1 90mm AA Guns
1x2 533mm Torpedo Tubes


Project VII Heavy Cruiser
This design of a heavily armed and armoured cruiser first proposed for the Technical Committee of the Navy by Franz Pitzinger in 1917 and approved by the 1st of August, 1918. Apparently as the design emerged shortly after the British Hawkins class cruisers were launched and the Emerald class light cruisers under construction it is logical that the two navies designers concluded the same experience from war lessons.

Data on the design
Dimensions: 184,5m x 18,2m x 6,45m
Displacement: 10.000tons standard, 12.000tons full load
Engine Power: 90.000shp, 2 shafts
Maximum Speed: 61km/h (33knots)
Range: 12.900km at 37km/h (7.000nm at 20knots)
Armour: 150mm Belt, 30mm Deck
Armaments:
3x2 190mm Guns
4x1 90m AA Gun
2x1 533mm Underwater Torpedo Tubes




The above mentioned data and designs are from these books::
Conway's All the World's Fighting Ships 1906-1921,
Austro-Hungarian Warships of World War I by René Greger and
Warship International, No3, 1978, by Anthony Sokol.


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Added some more info, drawings and plans on the Monitors and destroyers


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,141
Reaction score
1,425

The Maros-class river monitors were actually built, but this video on SMS Leitha gives something of a feel for the naval design philosophy (at least with regards as to riverine units) that was prevalent in the Austrian-Hungarian Empire during the late 19th Century.


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
92
Reaction score
60

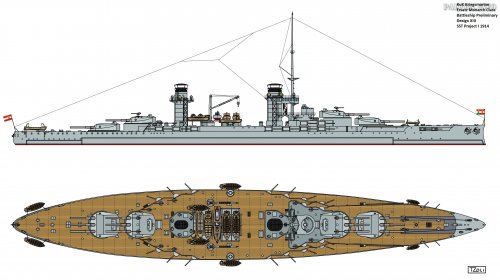

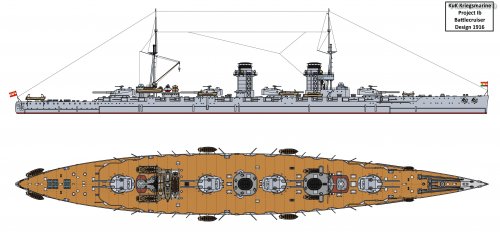

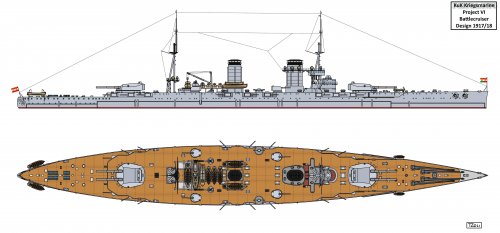

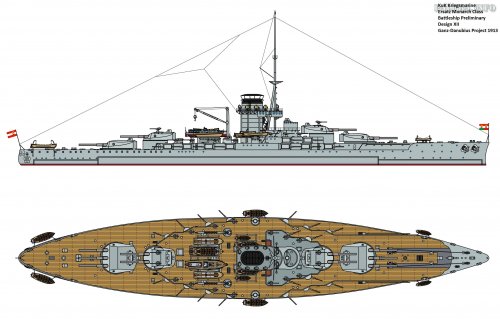

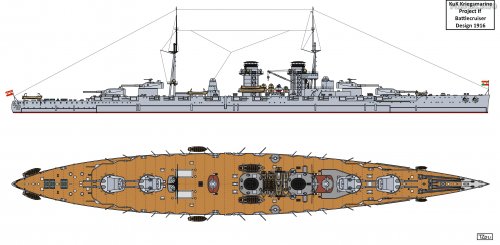

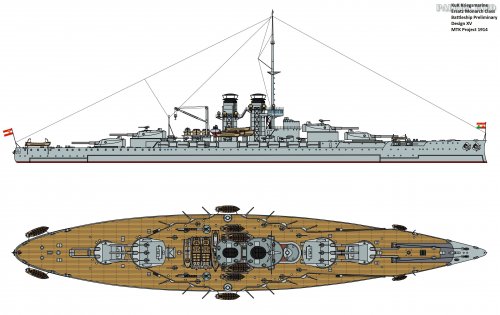

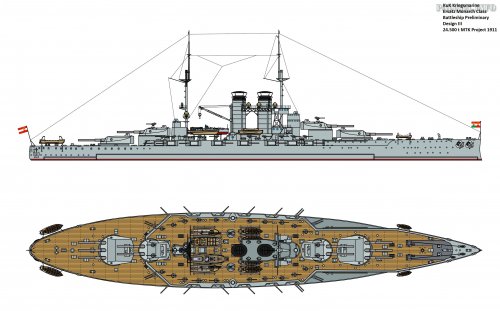

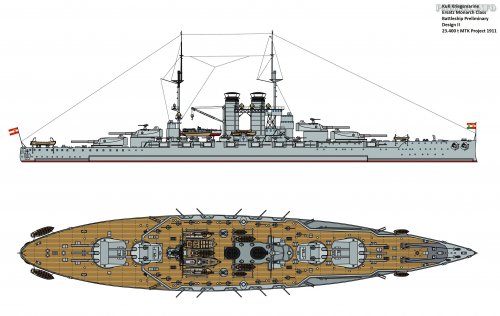

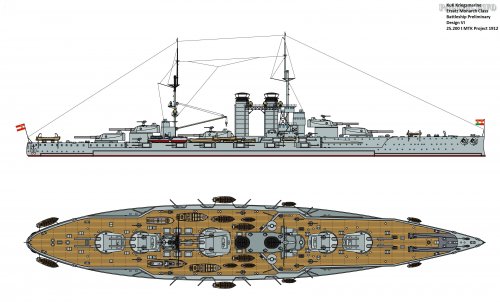

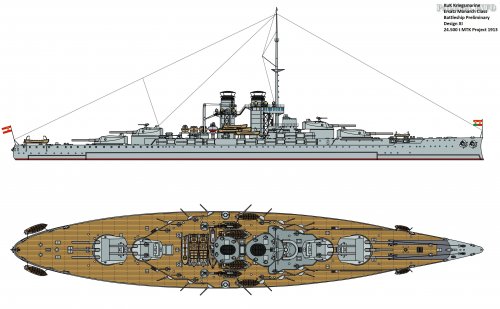

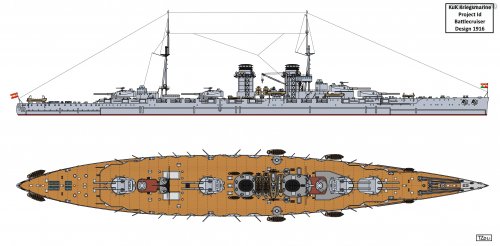

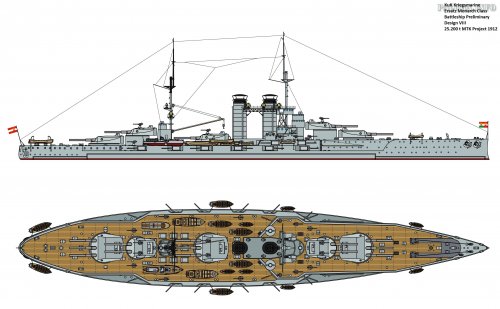

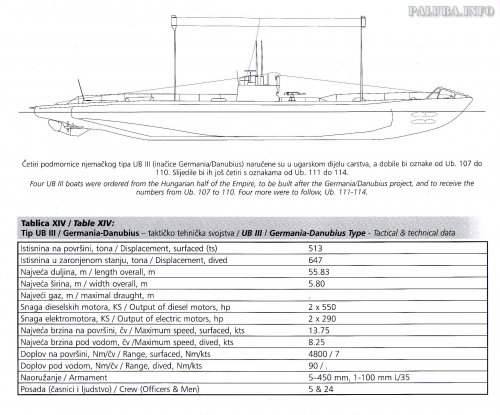

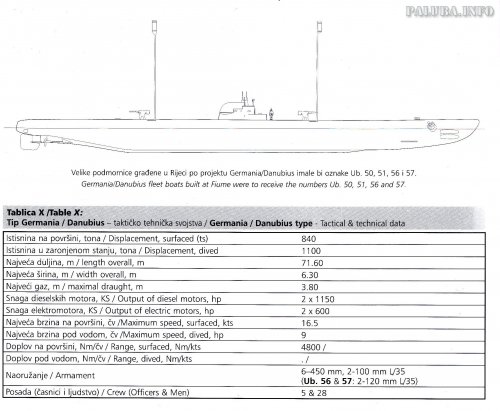

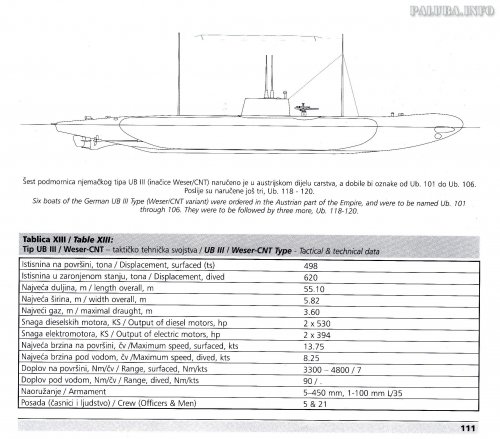

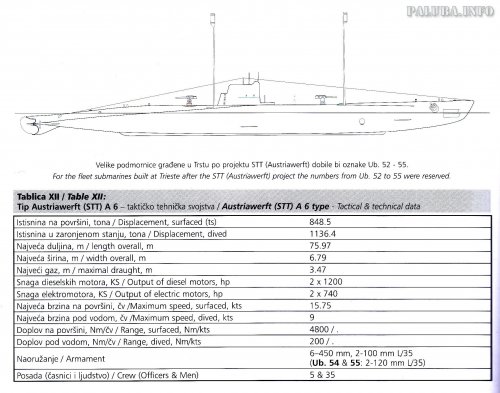

KuK Uboat

kuk podmornice (33).jpg kuk podmornice (34).jpg kuk podmornice (35).jpg kuk podmornice (36).jpg kuk podmornice (32).jpg



Austrougarske podmornice u I. svjetskom ratu = Austro-Hungarian submarines in World War I / Zvonimir Freivogel ; [prijevod na engleski Zvonimir Freivogel ; linijski crteži i crteži u boji Danijel Frka & Vojislav Jereb]; Rijeka : Adamić ; Viškovo : Digital point tiskara, 2007


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524

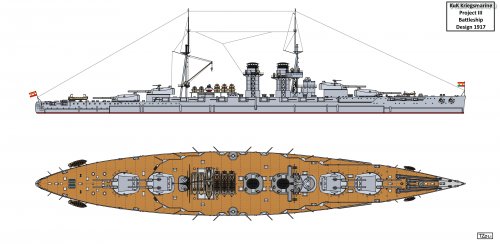

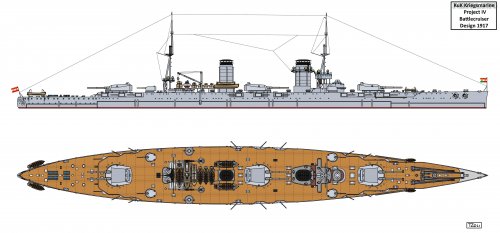

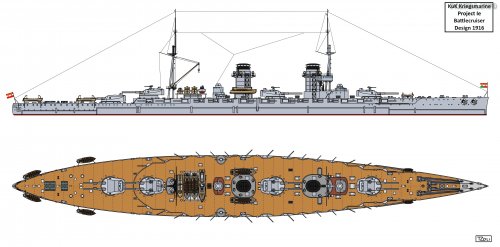

Yes, those are my drawings, I thought I've already posted them somewhere on the forums...
(I'm not sure how you linked these images but it seems they put quite a load on the bandwidth! )
But you can find them on DeviantArt as well as here:


Last edited:

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,945
Reaction score
63
Those are some interesting twin-gun casements... (if I'm interpreting the images correctly)... with both barrels mounted very close to each other?


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Those are some interesting twin-gun casements... (if I'm interpreting the images correctly)... with both barrels mounted very close to each other?
Yes, the KUK Marine played with the idea, I've even found mention for such casemates for one preliminary design of the Viribus Unitis class as well!


natewillcome4you

I really should change my personal text
Joined
Jun 25, 2017
Messages
108
Reaction score
58
first saw this on the wows forums, thanks for compiling all of this Tzoli. I don't know anyone else who has contributed to the artwork of warship designs more than you,


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
This is an older post, since I made it here on secret projects I've also finished the drawings for these designs.
I still like to make the Radetzky preliminaries, only issue is the lack of data on their dimensions (at least two preliminaries were all big gun designs)


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Here are the Radetzky Preliminaries:
The 1904 series:

Project I:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.650tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 18.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 37km/h (20knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 28cm/45 Skoda K04 Cannons
4x2,4x1 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project II:


The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.200tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 16.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 35km/h (19knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 30,5cm/40 Skoda K05 Cannons
4x2 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project III:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.650tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 18.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 37km/h (20knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
1x2,1x1 30,5cm/40 Skoda K05 Cannons
4x2,4x1 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project IV:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.650tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 18.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 37km/h (20knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x1 30,5cm/40 Skoda K05 Cannons
4x2,8x1 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project V:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.950tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 18.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 37km/h (20knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 30,5cm/40 Skoda K05 Cannons
4x2,4x1 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project VI:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: 12.950tons (standard)
Armour: 40mm Deck, 230mm Belt
Engines: 18.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 37km/h (20knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 30,5cm/40 Skoda K05 Cannons
12x1 19cm/42 Skoda K03 Guns
10x1 7cm/50 Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

The only known data table about the 1904 projects:
i.imgur.com/sHhBwgy.jpg


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
And the 1905 variants:

Project A:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: Unknown, probably 12.550tons (standard), 13.650tons (full load)
Armour: 40mm Deck, 210mm Belt
Engines: Unknown, probably 20.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 38km/h (20,5knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 28cm/45 (283mm) Skoda K04 Cannons
4x1 24cm/45 (238mm) Skoda K09 Cannons
8x1 19cm/42 Skoda K03 Guns
6x1 7cm/50 (66mm) Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project B:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: Unknown, probably 13.300tons (standard), 14.400tons (full load)
Armour: 40mm Deck, 210mm Belt
Engines: Unknown, probably 21.000shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 38km/h (20,5knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2,4x1 28cm/45 (283mm) Skoda K04 Cannons
12x1 10cm/45 Skoda K07 Guns
6x1 7cm/50 (66mm) Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project C:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: Unknown, probably 12.950tons (standard), 14.050tons (full load)
Armour: 40mm Deck, 210mm Belt
Engines: Unknown, probably 20.600shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 38km/h (20,5knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
4x2 28cm/45 (283mm) Skoda K04 Cannons
16x1 10cm/45 Skoda K07 Guns
4x1 7cm/50 (66mm) Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

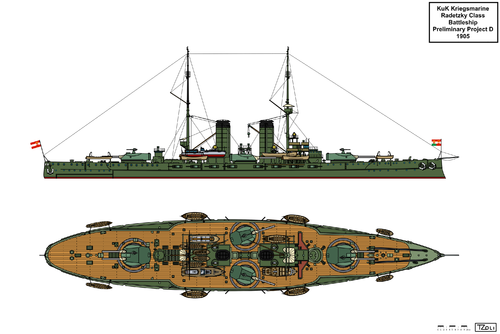

Project D:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: Unknown, probably 12.850tons (standard), 13.950tons (full load)
Armour: 40mm Deck, 210mm Belt
Engines: Unknown, probably 20.500shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 38km/h (20,5knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2,2x1 30,5cm/45 Skoda K08 Cannons
16x1 10cm/45 Skoda K07 Guns
4x1 7cm/50 (66mm) Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

Project E:

The design had the following characteristics:
Dimensions: Unknown except the width so I've used the data of the Radetzkys: 137,5m (wl) 138,8m (oa) x 24,0m x 8,1m
Displacement: Unknown, probably 13.100tons (standard), 14.200tons (full load)
Armour: 40mm Deck, 210mm Belt
Engines: Unknown, probably 20.800shp Yarrow Vertical Triple Expansion Engines, 2 Shafts
Speed: 38km/h (20,5knots)
Range: 7.400km at 18,5km/h (4.000nm at 10knots)
Armaments:
2x2 30,5cm/45 Skoda K08 Cannons
4x2 19cm/42 Skoda K03 Guns
12x1 10cm/45 Skoda K07 Guns
2x1 7cm/50 (66mm) Skoda K10 Guns
3x1 45cm Underwater Torpedo tubes

The only known sketch series about the 1905 projects:
i.imgur.com/qRaH57v.jpg


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,157
Reaction score
757
Great work, as usual, thank you !
Interesting to see, that Austria may have been the winner of the title "First All-Big-Gun Battleship" !


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Together with the smallest battleship, these designs were smaller then the Espana class!


able

CLEARANCE: Restricted
Joined
Feb 20, 2020
Messages
37
Reaction score
33
Small but powful battleships


ptdockyard

I really should change my personal text
Joined
Jan 19, 2014
Messages
23
Reaction score
13

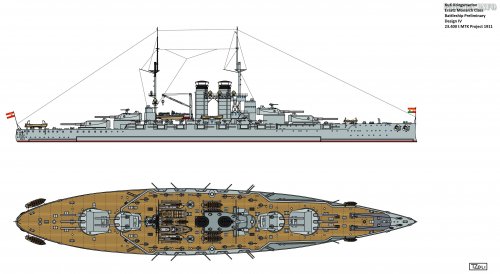

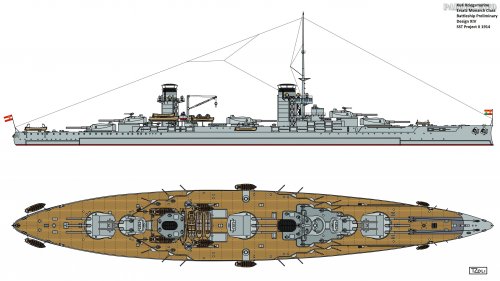

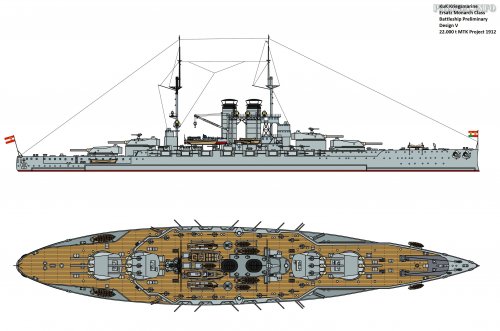

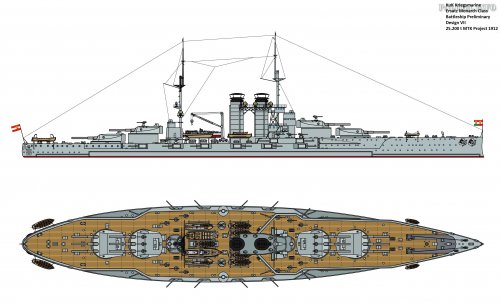

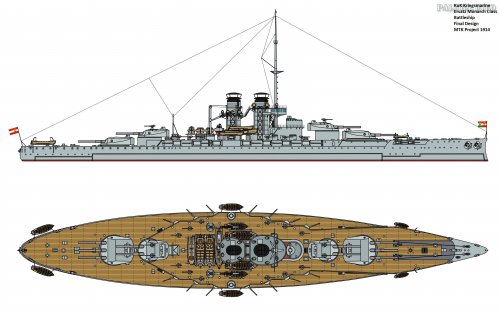

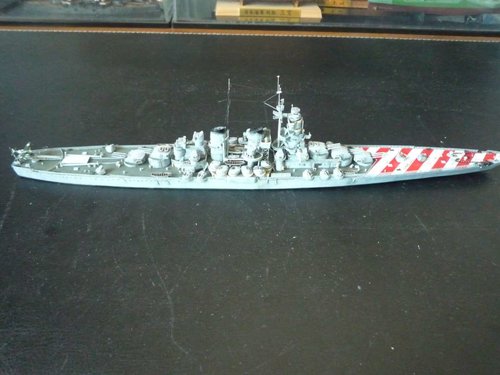

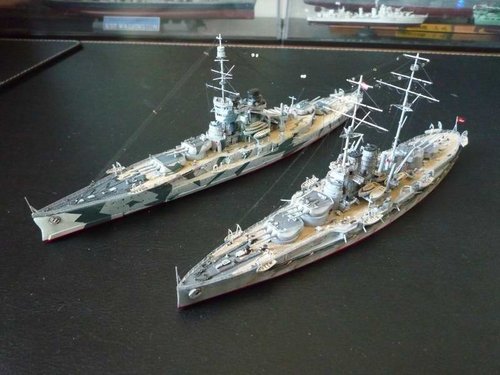

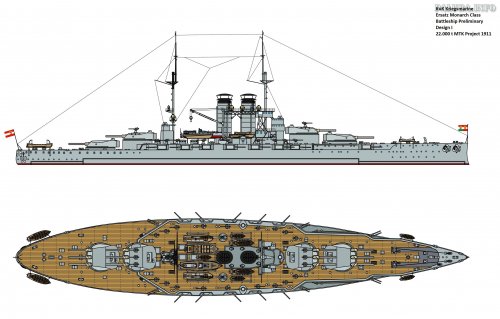

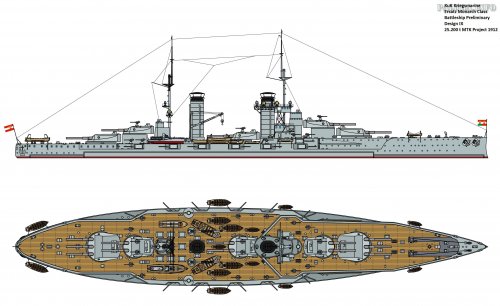

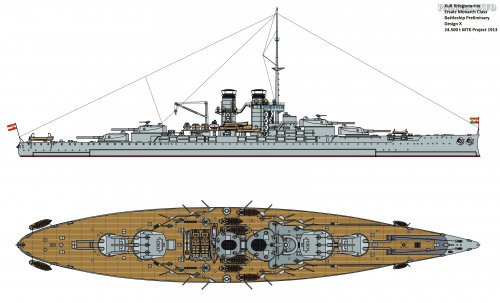

Is that the Ersatz Monarch in Italian Camouflage????

Dave G


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Something like that. No camouflage patterns ever used on KuK warships. And this makes it somewhat ugly in my eyes.


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
I've recently found two Monitor projects of KuK which I might draw essentially when I get more info on them.
In the mean time here they are:
A 800ton Riverine Siege monitor most likely designed to bombard fortifications along the rivers of the empire:


And an 2.000ton coastal one which is likely to be connected to the 1.500ton version I've posted earlier:

Last edited:

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Found them on a Russian forum, already sent them to Erwin Sieche, prominent KuK researhcer for identification, I've yet to receive his answer.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,157
Reaction score
757

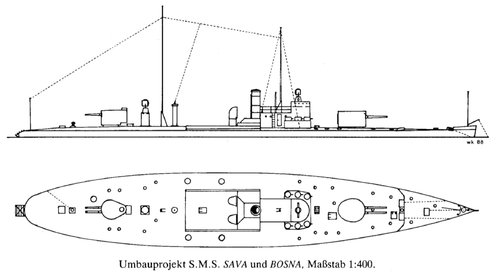

The first drawing looks quite similar to a drawing in "Die K.u.K. Donauflotille 1870-1918" by G.Pawlik, H. Christ and H.Winkler.
The main armament in your drawing above seem to be two howitzers. The caption in the mentioned book says, that fitting howitzers
had proved to be a wrong decision, so they should be replaced by 12cm twin turrets, but due to scarcity of supplies, that
modification was never realised. In the sources, I've found, for the sister ships Sava and Bosna only two howitzers on the stern, but
already one 12cm twin turret on the focsles are mentioned and the mountings in your drawing could well be a bigger calibre, than
12cm, so maybe it's an early drawing, the actual ships modified before commisioning ?
In the same book, two replacements for older monitors are mentioned, showing a very similar armament to that 2000 ts type, though
a displacement of only 1240 ts is mentioned. So I think, that this type, too, was intended to be used mainly as a riverine warship.
Fighting an the Danube and tributaries was intense and quite a number of figting ships were built, with the Russians even building a
specialised submarine for use on the Danube during WWI !


Attachments

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
I will see what Erwin Sieche will reply about these projects.

He already provided two high quality scans of the Radetzky preliminaries and the 4th Armoured Cruiser (5 variants: Project A through E with varyin armaent of only 19cm guns to even tow single 30,5cm ones! ) intended to accompny the Radetzkys but instead the Radetzkys got a strenghtened armament (Originally 4 twin 19cm turrets were chosen for the final design to be built) and a floating dock was built.


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
That is why I chose digital drawing rather then modelling, it is cheaper and gives more freedom.
I wonder how will you make the single 30,5cm turrets.

World of warships camo patterns were always ugly in my eyes and very rarely historical (for the ship and nation)


ptdockyard

I really should change my personal text
Joined
Jan 19, 2014
Messages
23
Reaction score
13

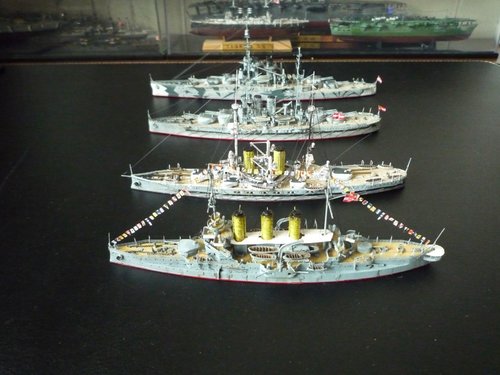

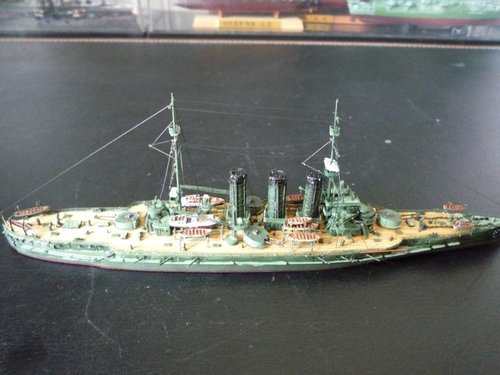

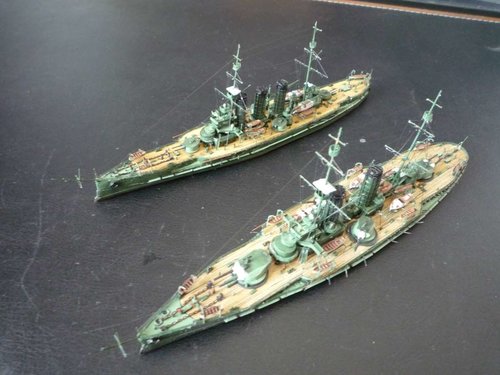

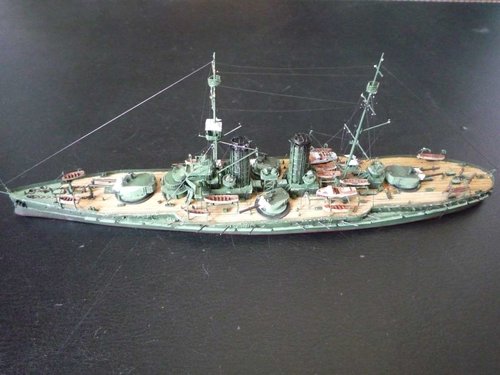

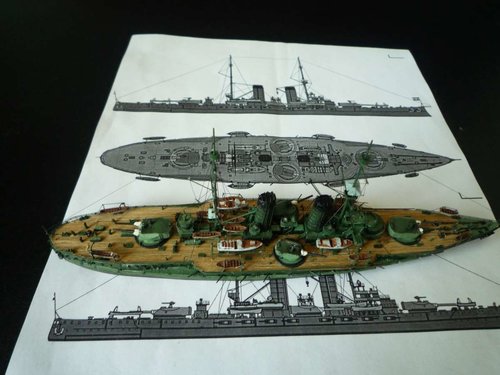

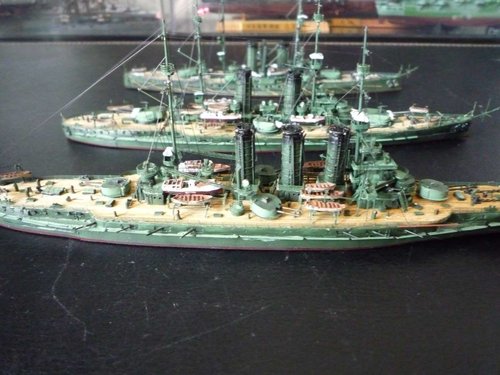

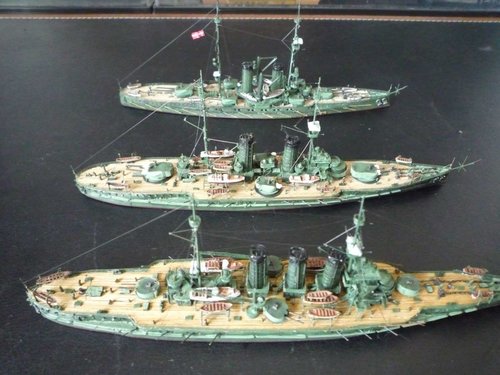

I can use my hand to shape the turret,just like Norfolk,Minotaur and Venice
Too many 1/1200 projects for me on this thread.......I assume the Venice is the WOW version?


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524

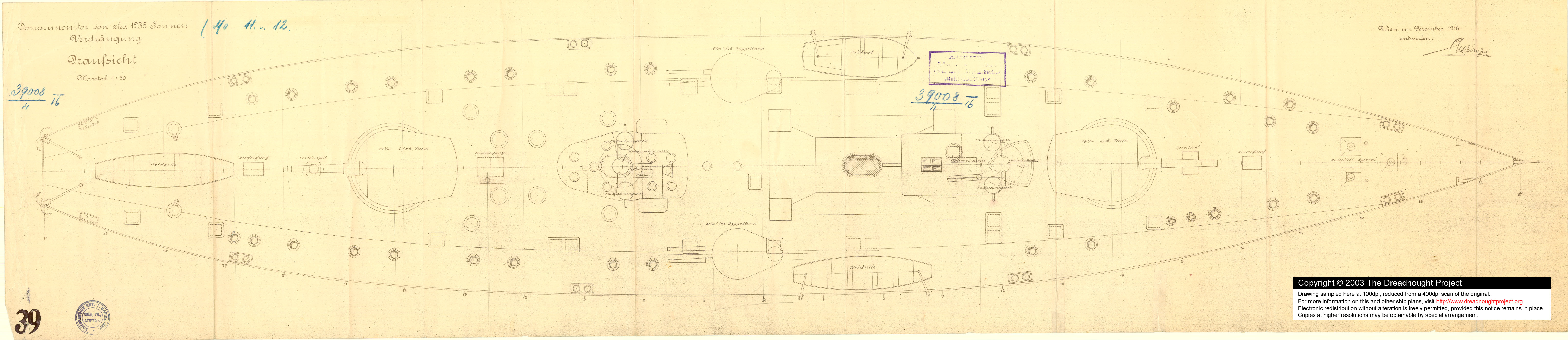

Here are the relevant page from the Hungarian book about the 4th Armoured Crusier:


And the official sketches for the 5 variants:



Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Here is my interpretation of the Project A:


The design had the following characteristics:
Dimensions: unknown I've chosen size similar to the Radetzkys: 137,5 (wl) x 21 x 7,5m
Displacement: 9.500tons (standard) (8.700tons without 10cm Guns and anti-mine protection)
Armour: 160mm Belt, unknown probably 40-45mm Deck
Engines: Unknown probably 18.000shp Vertical Triple Expansion Engines, 2-shafts
Speed: 43km/h (23knots)
Range: Unknown, probably 8.300km
Armament:
4x2 19cm/42 Skoda K03 Guns,
16x1 10cm/45 Skoda K07 Guns,
4x1 7cm/50 (66mm) Skoda K10 Guns,
2x1 45cm Underwater Torpedo Tubes


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Project B:


The design had the following characteristics:
Dimensions: unknown I've chosen size similar to the Radetzkys: 137,5 (wl) x 21 x 7,5m
Displacement: 9.500tons (standard) (8.500tons without 10cm Guns and anti-mine protection)
Armour: 150mm Belt, unknown probably 40-45mm Deck
Engines: Unknown probably 18.000shp Vertical Triple Expansion Engines, 2-shafts
Speed: 43km/h (23knots)
Range: Unknown, probably 8.300km
Armament:
2x1 24cm/45 Skoda K09 Guns
6x1 19cm/42 Skoda K03 Guns,
16x1 10cm/45 Skoda K07 Guns,
6x1 7cm/50 (66mm) Skoda K10 Guns,
2x1 45cm Underwater Torpedo Tubes

Last edited:

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
3rd is Project C:


The design had the following characteristics:
Dimensions: unknown I've chosen size similar to the Radetzkys: 137,5 (wl) x 21 x 7,5m
Displacement: 9.500tons (standard) (8.700tons without 10cm Guns and anti-mine protection)
Armour: 150mm Belt, unknown probably 40-45mm Deck
Engines: Unknown probably 18.000shp Vertical Triple Expansion Engines, 2-shafts
Speed: 43km/h (23knots)
Range: Unknown, probably 8.300km
Armament:
2x1 28cm/45 Skoda K04 Guns
4x1 19cm/42 Skoda K03 Guns,
16x1 10cm/45 Skoda K07 Guns,
6x1 7cm/50 (66mm) Skoda K10 Guns,
2x1 45cm Underwater Torpedo Tubes


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
Next is the 4th variant, Project D:


The design had the following characteristics:
Dimensions: unknown I've chosen size similar to the Radetzkys: 137,5 (wl) x 21 x 7,5m
Displacement: 10.000tons (standard) (9.000tons without 10cm Guns and anti-mine protection)
Armour: 150mm Belt, unknown probably 40-45mm Deck
Engines: Unknown probably 18.000shp Vertical Triple Expansion Engines, 2-shafts
Speed: 43km/h (23knots)
Range: Unknown, probably 8.300km
Armament:
2x1 30,5cm/45 Skoda K08 Cannons
4x1 19cm/42 Skoda K03 Guns,
16x1 10cm/45 Skoda K07 Guns,
6x1 7cm/50 (66mm) Skoda K10 Guns,
2x1 45cm Underwater Torpedo Tubes


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
The last armoured cruiser project, E the Semi-Heavy Cruiser:


The design had the following characteristics:
Dimensions: unknown I've chosen size similar to the Radetzkys: 137,5 (wl) x 21 x 7,5m
Displacement: 9.500tons (standard) (8.500tons without 10cm Guns and anti-mine protection)
Armour: 150mm Belt, unknown probably 40-45mm Deck
Engines: Unknown probably 18.000shp Vertical Triple Expansion Engines, 2-shafts
Speed: 43km/h (23knots)
Range: Unknown, probably 8.300km
Armament:
2x2 6x1 19cm/42 Skoda K03 Guns,
16x1 10cm/45 Skoda K07 Guns,
8x1 7cm/50 (66mm) Skoda K10 Guns,
2x1 45cm Underwater Torpedo Tubes


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,053
Reaction score
524
The first drawing looks quite similar to a drawing in "Die K.u.K. Donauflotille 1870-1918" by G.Pawlik, H. Christ and H.Winkler.
The main armament in your drawing above seem to be two howitzers. The caption in the mentioned book says, that fitting howitzers
had proved to be a wrong decision, so they should be replaced by 12cm twin turrets, but due to scarcity of supplies, that
modification was never realised. In the sources, I've found, for the sister ships Sava and Bosna only two howitzers on the stern, but
already one 12cm twin turret on the focsles are mentioned and the mountings in your drawing could well be a bigger calibre, than
12cm, so maybe it's an early drawing, the actual ships modified before commisioning ?
In the same book, two replacements for older monitors are mentioned, showing a very similar armament to that 2000 ts type, though
a displacement of only 1240 ts is mentioned. So I think, that this type, too, was intended to be used mainly as a riverine warship.
Fighting an the Danube and tributaries was intense and quite a number of figting ships were built, with the Russians even building a
specialised submarine for use on the Danube during WWI !
Erwin Sieche replied to my question regarding the monitors though he only commented on the larger 2.000ton version by Silvius Morin:

I know from the proposed 2.000-t-river monitor proposed by the late supreme ship-design-engineer 1st class Silvius Morin.
I have his drawings in copy.
This was Morin’s private fiction, sent to the ‘k.u.k. Donauflottillenkommando’ on December 11th 1917.
On January 1st of 1918 Korvettenkapitän Lothar Leschanowski resumed about Morin’s proposal completely negative, culminating in the final judgement:
‘Only political motives can allow this kind of luxury warship, never the lessons of war!!’

Also Korvettenkaptän Olaf Richard Wulff produced a ‘memorandum on the future development of the Danube-flotilla’ in 1918.
Lining up the experiences of war and sketching his proposals for re-arming actual monitors and design of future new monitors.
Apparently all this was done in anticipation of the ‘reunion of the mutual delegations’ to discuss the navy’s budget estimates 1918-20.

In reality all these proposals and ideas were pure fiction because o0f the industrial collapse of the double monarchy after 4 years of war.
He is an Austrian Naval enthusaisat an author and his english ain't perfect,

Top
