Project 478

From Avión July 1956

German engineers were working on delta fighters at OKB-2 in Podberezhye (Noth of Moscow). Their main project was a fighter called Project 478. OKB director would have been Siegfried Günter from Heinkel. By March 1950, the tunnel model was ready and they were working on the powerplant integration. The powerplant consisted in 4 rocket engines. In August 195, Project 478 was considered obsolete compared with contemporary Soviet achievements. It was cancelled and all German enginers were returned back home.

Any idea if this project was real or not?


McGreig

ACCESS: Restricted
Joined
Nov 28, 2006
Messages
11
Reaction score
0
Except for the project number, this sounds exactly like the Type 468 which was a single seat, delta winged interceptor powered by four rocket motors and designed by German engineers at OKB-2 at Podberez'ye in 1949. A full size model for gliding and wind tunnel tests was built in 1950 but was never flown because the OKB was suddenly closed in June 1951. Full details are in Tony Buttler's "Soviet Secret Projects - Fighters"


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246
Thanks a lot McGreig ;)

I toke a look at Soviet Secret Projects and that's it!. The Type 468 was incorrectly identified with the number 478 by occidental press in 1956.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743

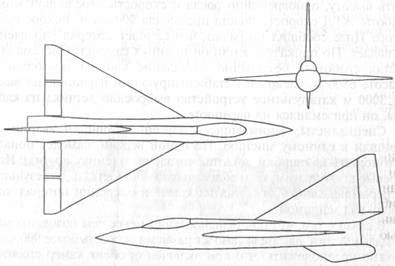

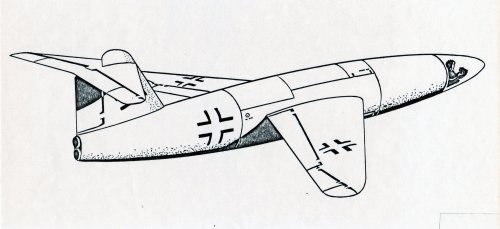

and from that site;http://www.airwar.ru/other/shawrov/htmls/glava12.html
What is this aircraft ?.


Attachments

  • 486.jpg
    12 KB · Views: 1,430

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
113
What is this aircraft ?.
Projects Type "466-468-486" Other name DFS-468-486
By now the OKB-2’s team leader Hans Rossing had working alongside him a Russian counterpart called A.Ya.Bereznjak (afterwards S.M.Alexeev), together with a well-known engineer from the former Heinkel company called Siegfried Gunter.

OKB-2’s design team therefore began looking at new ideas for an interceptor and the result was the single-seat Type 468 started in1949.
This was a delta-winged aircraft that had 60 degrees of sweep on the leading edge, a huge single
swept fin and two more fins on the underside of the wing that might possibly have doubled as skids for landing. (on 468), and one fin on the underside of fuselage (on 486)

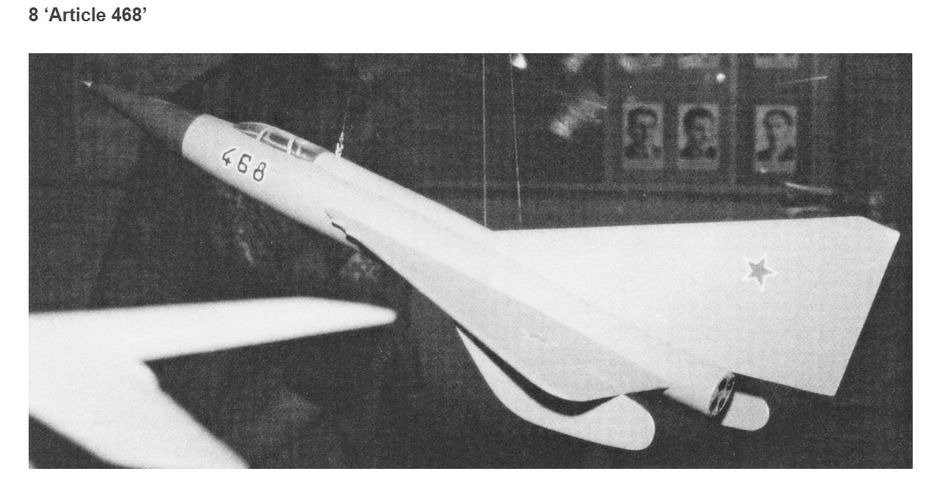

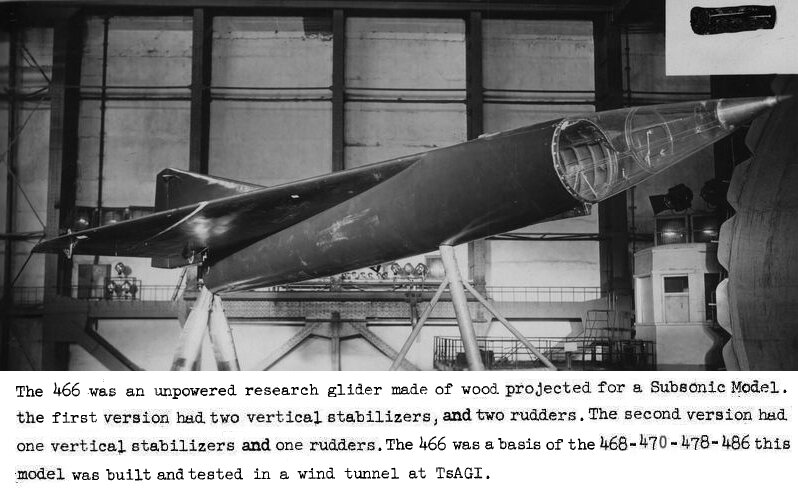

The glider, known as the Type 466, was expected to reach a maximum speed of 500km/h (311 mph) and in appearance it looked very similar to the 468. It was built in 1950 and tested in the full-size wind tunnel operated by TsAGI, but it was never flown because very suddenly, in June
1951, OKB-2 was closed and disbanded. Work on the 468; 486 was brought to an end many of the Bureau’s engineers were transferred to rocket work.
from: T.Buttler & Ye.Gordon "Soviet Secret Projects fighters since 1945" pp.112-113
Several days back MOIN -1900, already searched for information on this
the plane. Though model shown by him was distant from reality and was based (possible) on photo #1 (the swept wings instead of delta)
Bibliography:T.Buttler & Ye.Gordon "Soviet Secret Projects fighters since 1945" pp.112-113
D.Myhra "Secret Aircraft Designs of the Third Reich" p.100
D.Sobolev "The Centennial history flying wings." p.235
I.Sultanov "German OKB in USSR" "The Planes of the world."#1,1995 pp.2-13


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
Borovik, I appreciate your efforts, but remember that all graphics images from Aerofax series, Secret Project, etc. series from Midland Counties are absolute taboo here due to copyright issues.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Hi,

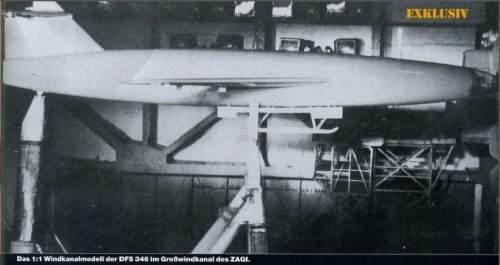

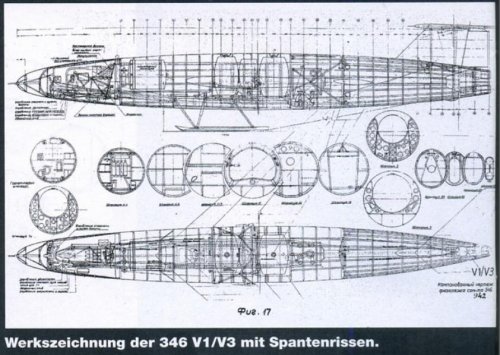

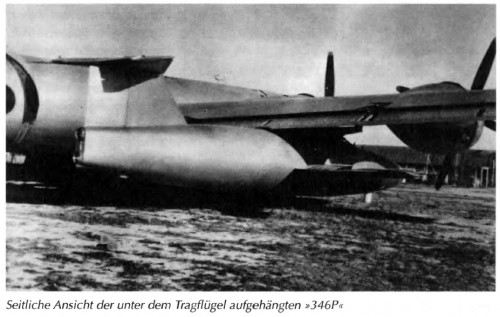

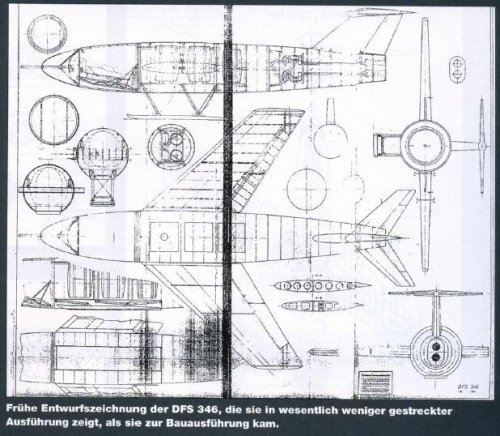

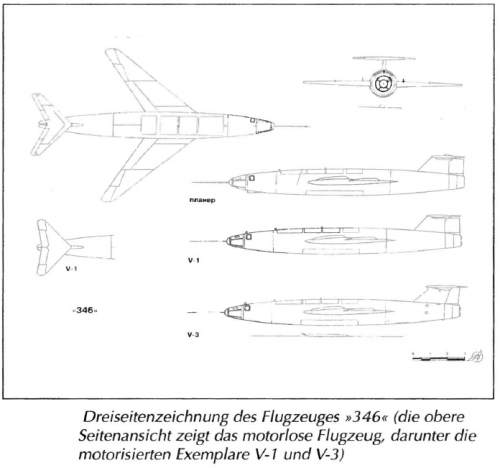

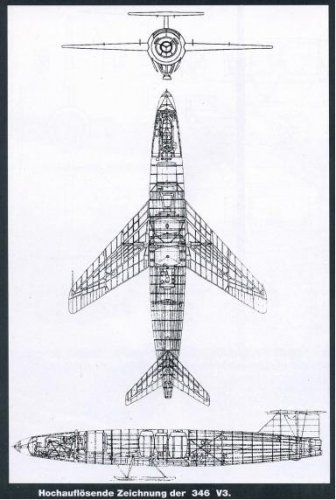

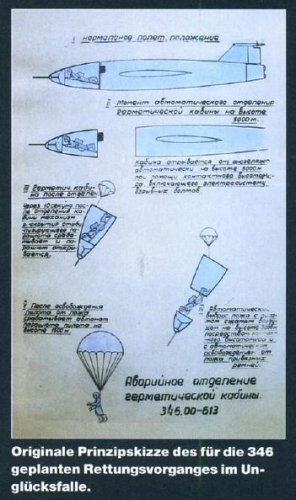

instead off open new topic,I can add the DFS-346 here,and from article about DFS-346
in Russian,here is some drawings one Model.


Flugzeug Classic 9/2003


Attachments

  • 346-1.JPG
    76.5 KB · Views: 1,106
  • 346-2.JPG
    96.7 KB · Views: 1,070
  • 346-3.JPG
    34 KB · Views: 1,027
  • 346-4.JPG
    49.6 KB · Views: 1,001
  • 346-5.JPG
    42.5 KB · Views: 145

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
13
Hi, hesham, many thanks! I like this craft and even made a model of it. Also i have book of David Myhra about it-if You need it-let me know.


Attachments

  • maxresdefault.jpg
    524.3 KB · Views: 95

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Vladimir said:
Hi, hesham, many thanks! I like this craft and even made a model of it. Also i have book of David Myhra about it-if You need it-let me know.

OK Vladimir,

of course I want that book,I will tell you my E-mail in a private message.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Also DFS-446 was developed,but no more info is known ?.


Temistocle

ACCESS: Confidential
Joined
Dec 9, 2009
Messages
107
Reaction score
137
Hi all,

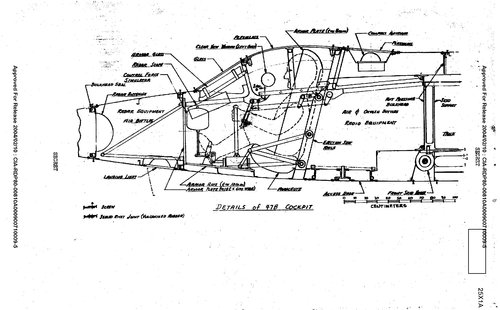

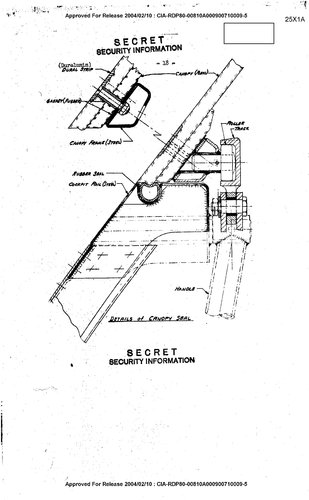

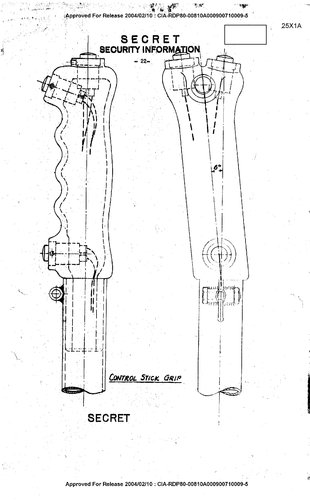

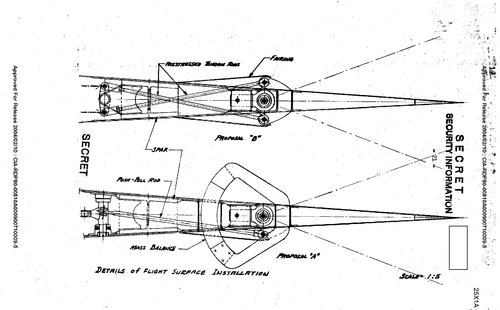

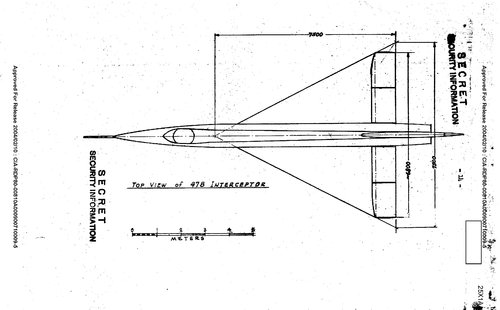

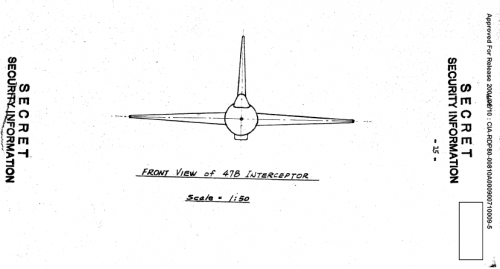

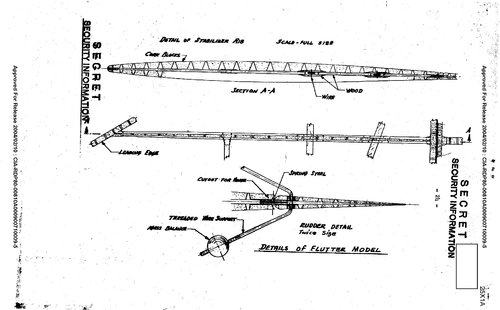

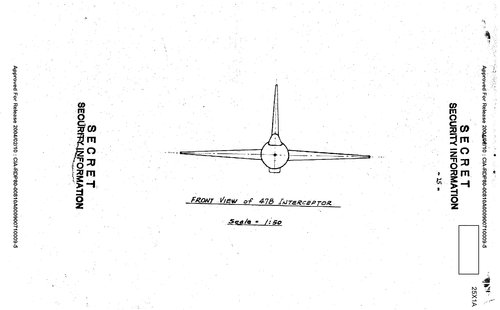

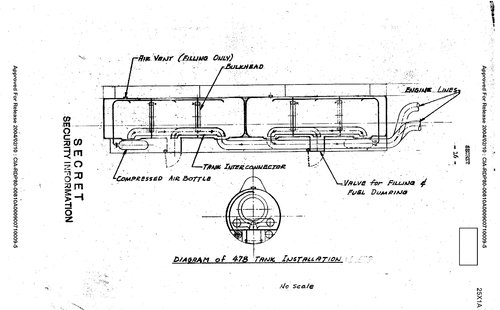

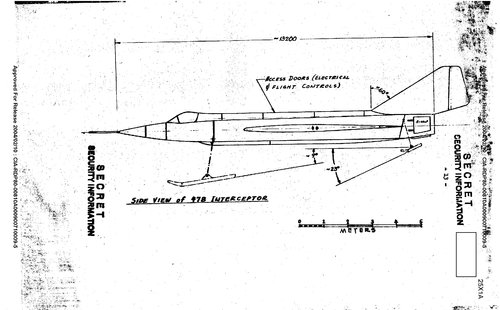

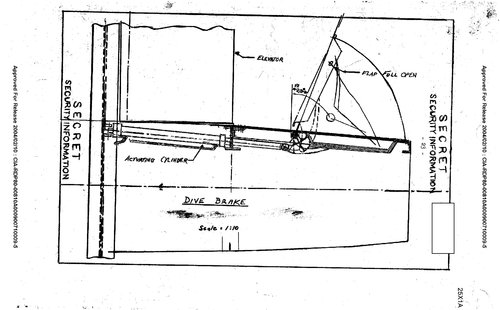

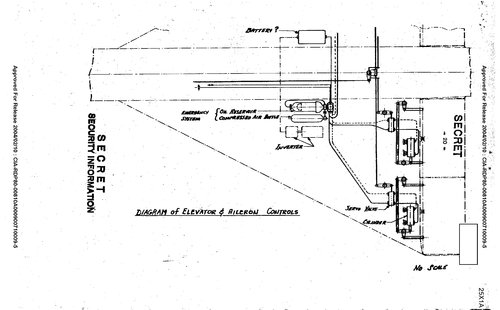

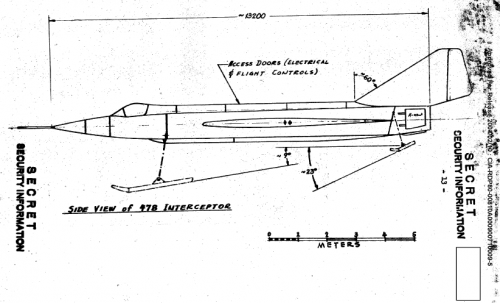

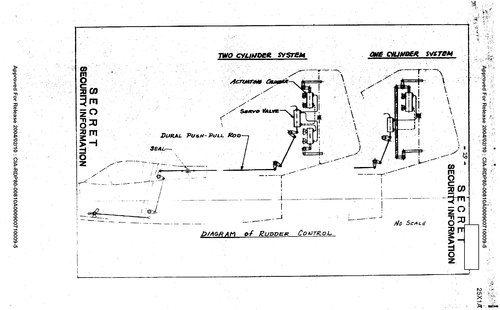

maybe some of you already know this "Project 478" developed from a German engineering group in Russia just after the end of WW2, but it is interesting how the drawings at the end of the report are so detailed.

Regards,


Attachments

  • DEVELOPMENT PROJECT AT ZAVOD NO. 1 IN PODBEREZYE - 1953.pdf
    1.7 MB · Views: 145

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Great find Temistocle,

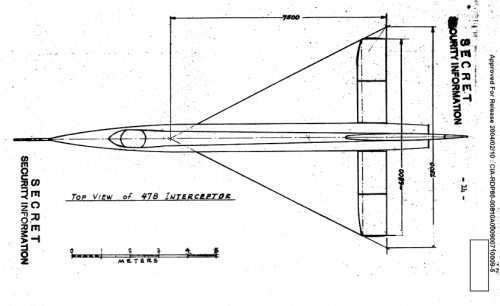

it was DFS-478,and we can put it here.


Attachments

  • 1.png
    74.4 KB · Views: 242
  • 2.png
    56.5 KB · Views: 231
  • 3.png
    35.8 KB · Views: 216

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Hi,

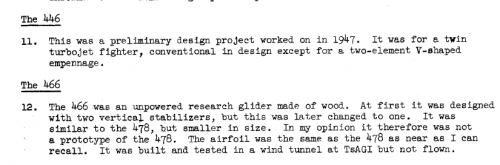

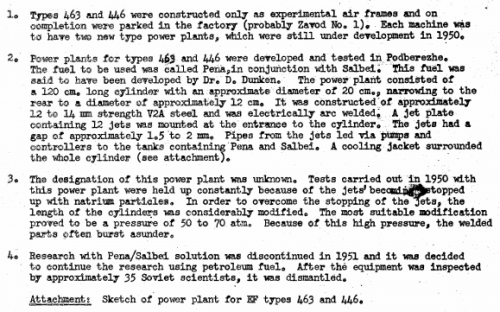

and here is a more Info about DFS-446 & DFS-466,also the new one DFS-463

https://www.cia.gov/library/readingroom/docs/CIA-RDP80-00810A000900710009-5.pdf
https://www.cia.gov/library/readingroom/docs/CIA-RDP82-00457R013000360002-0.pdf


Attachments

  • 1.png
    32.1 KB · Views: 521
  • 2.png
    119.7 KB · Views: 530

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
From; Deutsche Spuren in der Sowjetischen Luftfahrtgeschichte


Attachments

  • 11.png
    126.8 KB · Views: 346
  • 10.png
    477.1 KB · Views: 364

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
From Ali Nouve 5/1951,

they spoke about Project called DFS-378,I think it was a misprint or a kind of mistake ?.


Attachments

  • 1.png
    869.8 KB · Views: 223

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
Hi all,
maybe some of you already know this "Project 478" developed from a German engineering group in Russia just after the end of WW2, but it is interesting how the drawings at the end of the report are so detailed.

Regards,
I haven't read this document until now. It's very interesting.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865

Attachments

  • 478_Page_13_Image_0001.jpg
    655.3 KB · Views: 35
  • 478_Page_14_Image_0001.jpg
    389.7 KB · Views: 31
  • 478_Page_15_Image_0001.jpg
    265.5 KB · Views: 24
  • 478_Page_16_Image_0001.jpg
    494.8 KB · Views: 28
  • 478_Page_17_Image_0001.jpg
    597.6 KB · Views: 27
  • 478_Page_18_Image_0001.jpg
    500.9 KB · Views: 25
  • 478_Page_19_Image_0001.jpg
    477.3 KB · Views: 21
  • 478_Page_20_Image_0001.jpg
    420 KB · Views: 18
  • 478_Page_21_Image_0001.jpg
    517.2 KB · Views: 17
  • 478_Page_22_Image_0001.jpg
    462.8 KB · Views: 17
  • 478_Page_23_Image_0001.jpg
    535.4 KB · Views: 19
  • 478_Page_24_Image_0001.jpg
    502.6 KB · Views: 15
