Some Russian Glider Projects & Prototypes

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
794
Reaction score
204

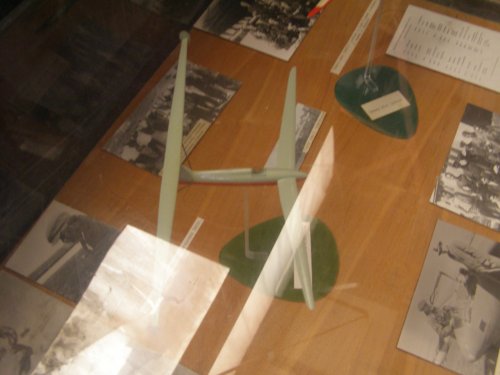

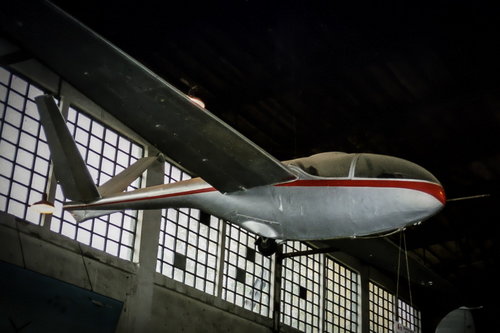

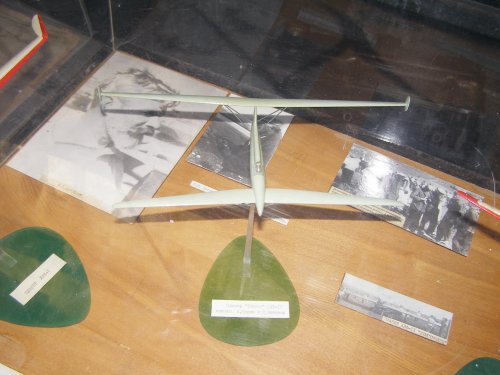

Several photos from the gliding museum (more precisely, what's left of it) in Koktebel


Attachments

  • P9190394.JPG
    3.6 MB · Views: 253
  • P9190412.JPG
    1.3 MB · Views: 196
  • P9190415.JPG
    1.1 MB · Views: 93

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,095
Reaction score
261
Thank you! This really helps!

I understand that the two halves of the rear wing changed incidence was used for roll and pitch control.

However my translation of Krasilschikov isn't reliable. Did the aircraft have yaw control? Could the pilot control the rudders on the tips of the rear wing? Thanks!

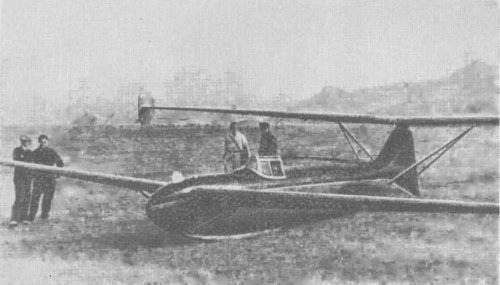

Also attached is a poor quality scan of a photo showing a slightly different angle.


Attachments

  • BA1.jpg
    244.1 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

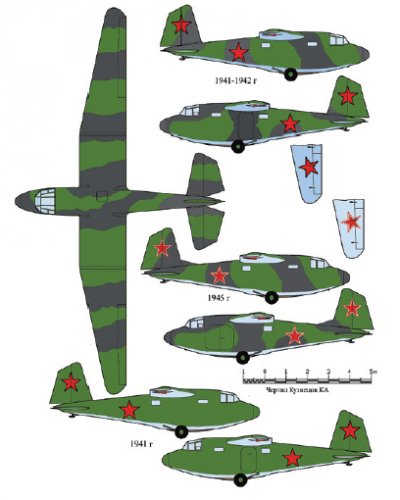

The G-11.


Attachments

  • 1.png
    163.2 KB · Views: 99

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
16

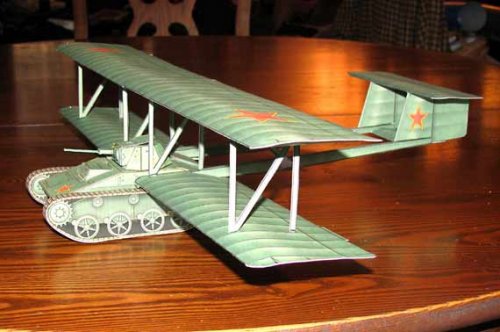

It seems You all have forgotten about my favourite Soviet glider ...
http://www.fiddlersgreen.net/models/aircraft/Flying-Tank-A40.html


Attachments

  • Flying Tank A40-cardmodel--side view.jpg
    Flying Tank A40-cardmodel--side view.jpg
    25.4 KB · Views: 92

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

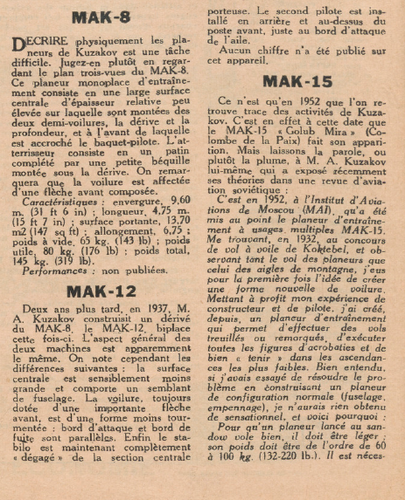

Hi,

unfortunately we just know from the designer Mikhail Aleksandrovich Kuzkan's series,the MAK-8,MAK-12
and MAK-15,does anyone know more ?.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
603
Reaction score
329
Hi,

unfortunately we just know from the designer Mikhail Aleksandrovich Kuzkan's series,the MAK-8,MAK-12
and MAK-15,does anyone know more ?.

RE: MAK-15

My notes refer to M.A.Kuzakov and not M.A. Kuzkan but this may be down to my translation way back at the turn of the century (no online translators just a scrawl in a notepad!).


DESIGNATION: MAK-15 (Glider)
WING SPAN: 10.4 m
LENGTH: 5.32 m
HEIGHT: 1.85 m
WING AREA: 12.56 sq m
WING ASPECT RATIO: 8.6
STABILISER AREA: 1.00 sq m
FIN AREA: 1.25 sq m
KEEL AREA: 0.60 sq m
RUDDER AREA: 1.00 sq m
AILERON AREA: 1.70 sq m
MAXIMUM TAKE OFF WEIGHT: 135 kgs
ACCOMODATION: 1
WING LOADING: 17.9 kgs sq m
WING SECTION: R-III
SINK RATE: 1.00 m per second
MAX AERODYNAMIC QUALITY: 17


MAK-15M (Motorised Glider)

Between 1956-57 the MAI laboratories began modifying a standard M-15 glider to be powered and have vibrating slats. Designer M.A.Kuzakov (M.A. Kuzkan?) provided the aircraft, A.I.Boidyrev devised the vibrating slat system and the drive mechanism.

The engine was from Polyakov and a development engine evolved from his earlier VP-760. The slat took up about 66% of the leading edge.

The engine was mounted adjacent to the centroplane. Experiments showed the functioning slats caused extensive fatigue in the wing structure causing failures. The programme of development ceased when this occured in 1957.

POWERPLANT NO: 1
POWERPLANT TYPE: Polyakov VP-760
POWERPLANT CAPACITY: NOT KNOWN
WING SPAN: 10.85 m
LENGTH: 5.64 m
HEIGHT: 1.5 m
WING AREA: 13.15 sq m
WING ASPECT RATIO: 9
STABILISER AREA: 1.00 sq m
FIN AREA: 1.25 sq m
KEEL AREA: 0.60 sq m
RUDDER AREA: 1.00 sq m
AILERON AREA: 1.70 sq m
ACCOMODATION: 1
FIRST FLIGHT: 1956


SOURCES:

Soviet Gliders by Resov, U.A. - Moscow Mashinostroen
History of Aircraft Design in USSR 1951-1965 (Edited by Yu V Zaspkin and K Yu Kosminkov)

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Thank you my dear Cy-27,

and for Mr. P.A. Ivensen,the I-1 was a glider Project of 1926,the I-2 was alight aircraft as in Various pre-war Soviet projects
topic,the I-3 was a single seat glider and the I-4 was a high performance sailplane,derivative from I-3 as my dear Cy-27
explained,the I-5 was a postal transport aircraft,I don't know if it was built or not,the I-6 was a single seat low-wing sailplane.



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Hi,

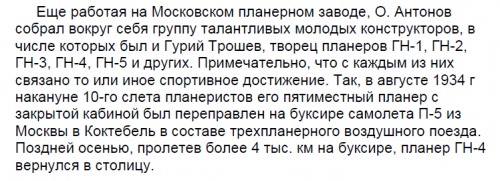

here is a text to explain the designer G.F. Groshev early series,from GN.1 to GN.5,but nore details
are known.


Attachments

  • 1.png
    36 KB · Views: 63

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

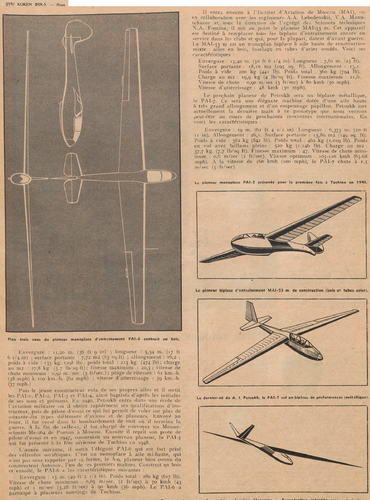

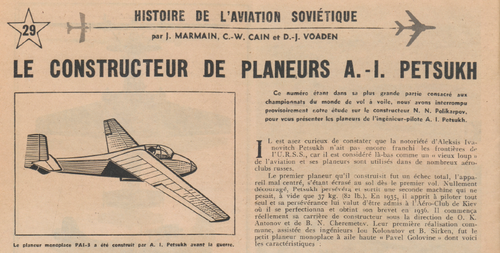

From Aviation magazine 1956,

what was this designer,Petsukh,and his series PAI-1 to PAI-7 ?,I never heard about him before ?.


Attachments

  • S-5.png
    7.9 MB · Views: 60

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
603
Reaction score
329
Re: Reply #92

Source: Notes taken in 2004 from Soviet Gliders (Resov, U.A.) Moscow Mashinostroen

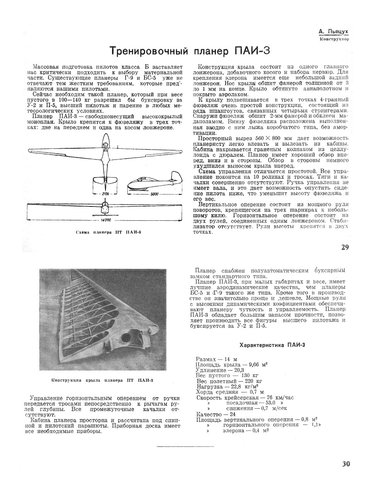

DESIGNATION: PAI-3
WING SPAN: 14.0 m
LENGTH: 5.00 m
HEIGHT: 1.15 m
WING AREA: 9.66 sq m
WING ASPECT RATIO: 20.3
HORIZONTAL TAIL AREA: 1.1 sq m
VERTICAL TAIL AREA: 0.8 sq m
AILERON AREA: 0.8 sq m
EMPTY WEIGHT: 140 kg
ACCOMMODATION: 1
WING LOADING: 22.8 kg / sq m
SINK RATE: 0.70 m per second


DESIGNATION: PAI-6
WING SPAN: 12.4 m
LENGTH: 5.41 m
HEIGHT: 1.35 m
WING AREA: 11.8 sq m
WING ASPECT RATIO: 13
STABILIZER AREA: 0.90 sq m
FIN AREA: 0.75 sq m
KEEL AREA: 0.17 sq m
RUDDER AREA: 0.85 sq m
AILERON AREA: 1.58 sq m
MAXIMUM TAKE OFF WEIGHT: 193 kg
ACCOMMODATION: 1
WING LOADING: 24.0 kg / sq m
WING SECTION: R-III
SINK RATE: 0.82 m per second

See also:
https://www.j2mcl-planeurs.net/dbj2mcl/planeurs-machines/planeur-fiche_0int.php?code=3142 for more on the PAI-6 (in French)

https://klubfedotova.ru/uk/zhiroszh...riya-planernyi-klub-buzovaya-odin-iz-vzletov/ states ....

"In the postwar period, besides the serial gliders A-9, A-10, A-11, A-13 and A-15 OK Antonov were produced, in small batches were issued MAK-15 M. Kuzakov (1952), PAI- 5 and PAI-6 L.Pietsukh (1949), Sh-16 and Sh-18 B. Sheremeteva (1951) "

so perhaps these should appear as post war types?

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Hi,

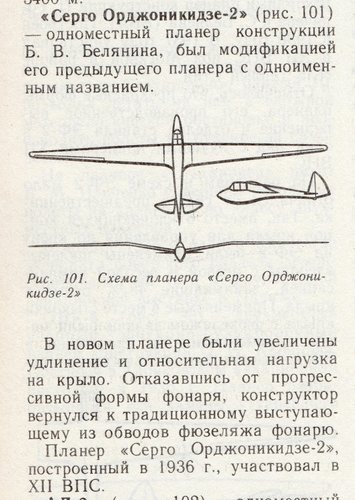

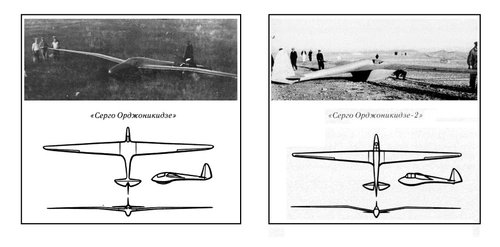

has anyone a pictures or drawings to Sergo Ordzhonikidze Type-1 and Type-2 gliders ?.


igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
237
Reaction score
82

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

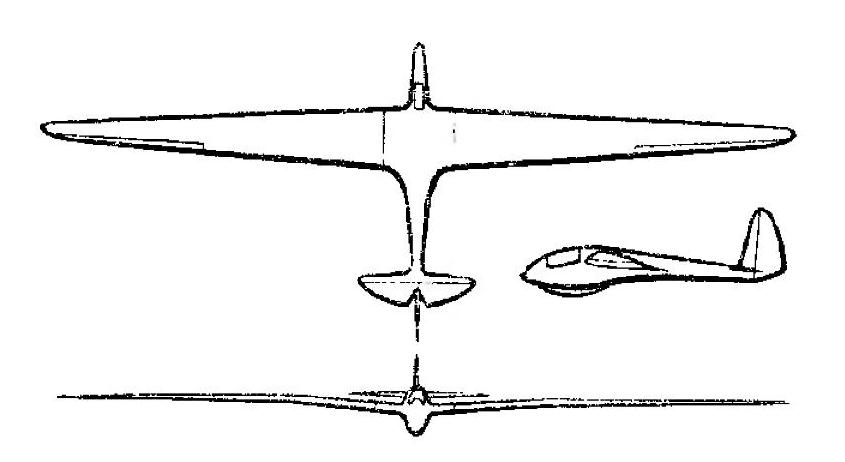

Many thanks to you my dear Igor.


Attachments

  • Planer-Sergo-Ordzhonikidze.-Shema-600x462.jpg
    67.4 KB · Views: 40

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

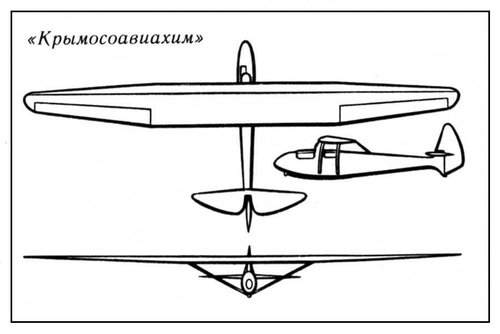

Any drawing to Dobahov Krymosoaviahim glider ?.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
603
Reaction score
329

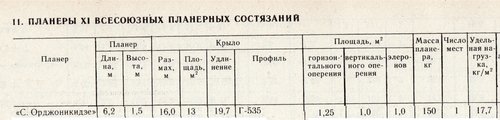

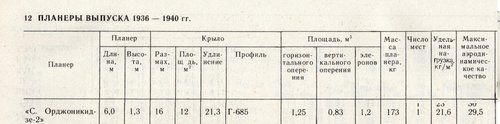

I have some details on the CO-1 and CO-2 mentioned above, from the book Gliders of the Soviet Union by A P Krasilshikov (1991) ISBN 5-217-01048-7. Unfortunately its in Russian and I don't have a translation to hand at present. I hope it helps.


Attachments

  • CO-1_Details.jpg
    1.4 MB · Views: 20
  • CO-1_Russian.jpg
    5.9 MB · Views: 15
  • CO-2_Details.jpg
    1.6 MB · Views: 19
  • CO-2_Russian.jpg
    1.7 MB · Views: 23

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Hi,

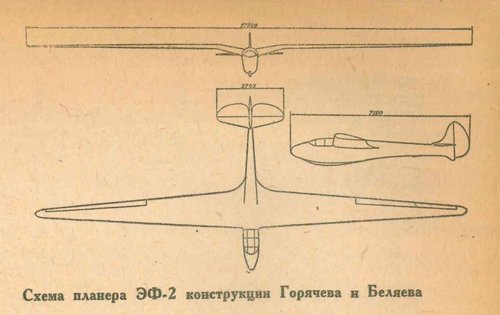

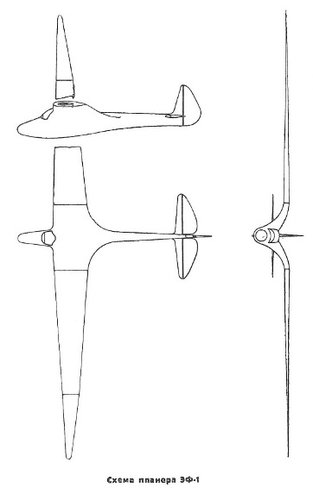

has anyone a pictures or drawings to EF-1 & EF-2,which were designed by P. Goryachev, P. & Belayayev ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Hi,

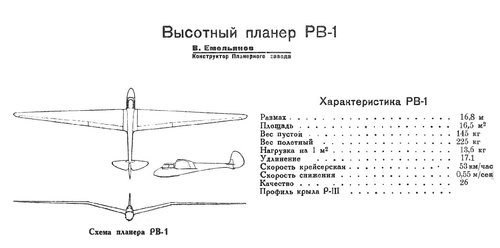

here is a picture to Emelyanov KIM-3 Stakhanovets,has anyone a drawing to Emelyanov RV-1 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Hi,

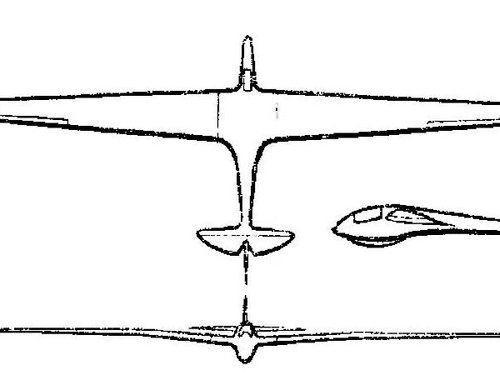

who has a drawing or picture to Groshev G No.6 ?.


igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
237
Reaction score
82
http: //xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/planery/1920-e-1930-e-gody/planer-g-6-2/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
http: //xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/planery/1920-e-1930-e-gody/planer-g-6-2/

Thank you my dear Igor,but the link is not working,

and can I ask if there was Petsuhk PAI-1 & PAI-2 ?.


igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
237
Reaction score
82

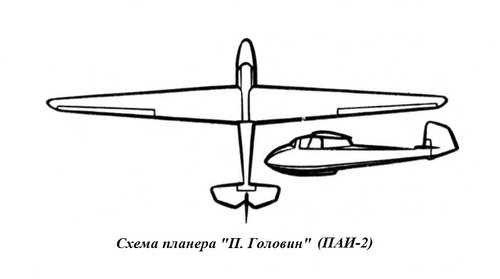

A. I. Pietsukh at the age of 16 built the world's smallest glider (PAI-1), independently learned to fly it and demonstrated it at the aviation festival in Kiev. At the Osoaviakhim glider factory, under the leadership of O. K. Antonov and B. N. Sheremetev, they created the PAI-2 glider ("Pavel Golovin") and the PAI-3 glider. At the glider school, where the author of the book worked as a teacher, he created the design of the tailless glider PAI-4.
After the great Patriotic war, working as a senior test pilot, A. I. Pietsuh designed and built the PAI-5 and PAI-6 gliders
PAI-7 project 1954 ( page 287 of the book "Wings of youth" Pietsuh 1954)


Attachments

  • Планер ..П.Головин...jpg
    Планер ..П.Головин...jpg
    41.1 KB · Views: 29

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510

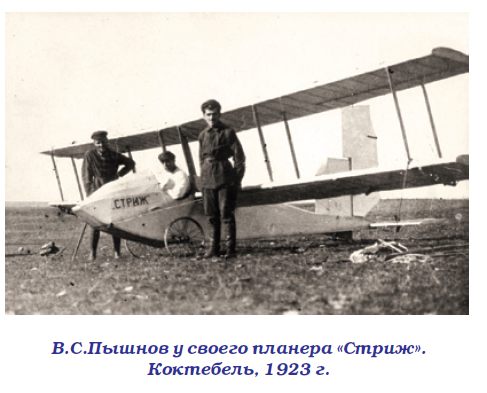

From Kryl'ya Rodine 2020-9/10,

here is a Pyshnov glider of 1923.


Attachments

  • a.png
    215.7 KB · Views: 28

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
Amazing my dear Igore,

and if someone knows the early gliders to Arzeulov ,before A-5 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,645
Reaction score
6,510
My dear Igor,

your work is very cool,please go on to know the next years.
