Some photos from TsAGI museum

flateric

ACCESS: USAP
Staff member
Top Contributor
Senior Member
Joined
1 April 2006
Messages
10,821
Reaction score
7,135
Some photos from TsAGI museum, courtesy Valery Pogodin (c) Avico-Press, via Konstantin Udalov

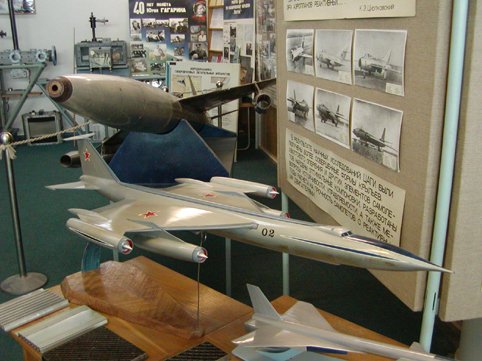

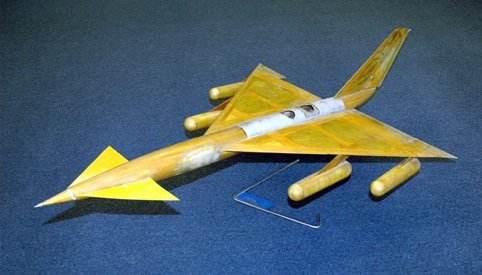

a, b). One of numberless M-50 variants

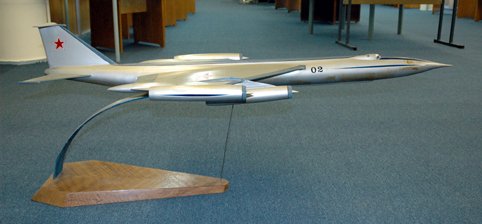

c). One of m-58 variants

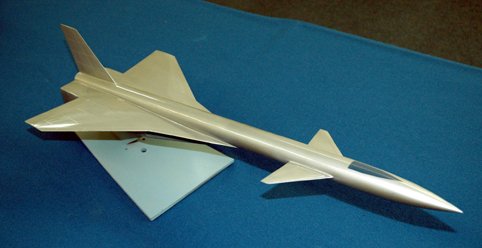

d). One of M-20 variants

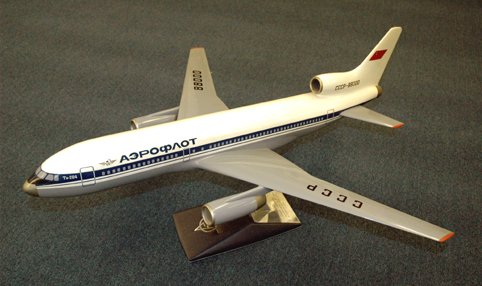

e). Early Tu-204 configuration

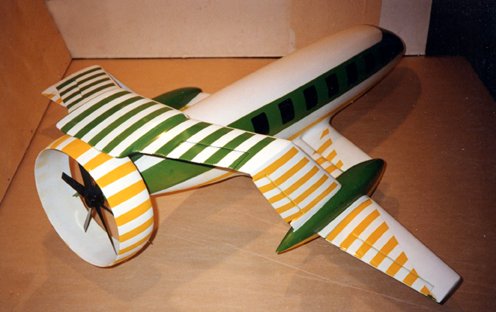

f&g). Some of EMZ civil projects


Attachments

  • ЦАГИ-3.jpg
    234.6 KB · Views: 224
  • ЦАГИ-5.jpg
    126.2 KB · Views: 189
  • ЦАГИ-8.jpg
    186 KB · Views: 161
  • ЦАГИ-7.jpg
    140.8 KB · Views: 151
  • ЦАГИ-6.jpg
    179.3 KB · Views: 160
  • ЦАГИ-1.jpg
    66 KB · Views: 590
  • ЦАГИ-2.jpg
    166.1 KB · Views: 89
:eek: Oh, the display model in f) was exhibited at MAKS '95 or '99, but unfortunately without any description. Now it's good to know the origin for this crazy design. Thank you, Flateric.

I believe a) and b) are actually M-52. Many thanks to Avico Press for all their great images.

There were some early M-52 models that looked like that.

Some M-50 model variants looked like that too...
