SNCASO (Sud-Ouest) SO.30 derivative versions

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

We know SNCASO SO.30 very well,and its variants,but I discover
two new projects,the SO.31 & SO.33 which intended to compete
Nord N-2500.
All I know about those two project is the SO.31 had estimated speed
400 km/h.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
There was a competitor to the N.2500, later Noratlas, from SNCASO.
It was the SO.30C a derivative of the SO.30P fitted with a strengthened
floor and a rear loading ramp, built in one single example. And judging the
designation system, a SO.31 or 33 would have been based on SO.30, too.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

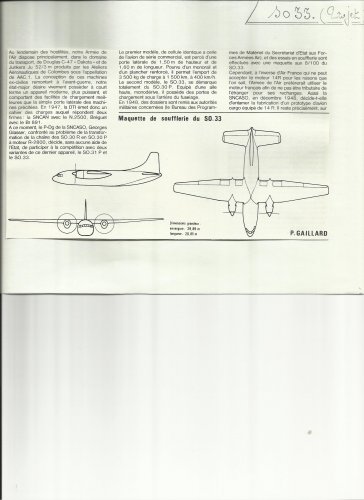

Do you know ? Have you details ?


Attachments

  • Scan.jpg
    341.6 KB · Views: 421

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,042
Reaction score
253

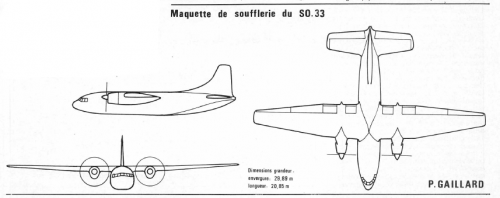

Dear Toura, this is the SNCASO Sud-Ouest SO.33 which was SNCASO's submission to the same Armée de l'Air specification that resulted in the Bréguet Br.891R Mars and the SNCAN Nord 2501 Noratlas. It was based on the SNCASO Sud-Ouest SO.30P Bretagne, but with a high wing and a new fuselage and tail-unit; it remained a "project" and never progressed beyond wind-tunnel testing......

SNCASO did build their own rear-loading version of their Bretagne; the SNCASO Sud-Ouest SO.30C which had a rear-fuselage loading ramp concealed behind clamshell panels in the lower rear fuselage (a bit like the Bréguet Deux-Ponts). It could carry 3 jeeps or 24 paratroopers, but was constrained by the narrow rear loading ramp, the massive internal frames in the fuselage-to-wing centre section and the height of the cabin floor above the ground during loading......

I think the lesson learned is that a purpose-built military airlifter is always better than a converted airliner......

Terry (Caravellarella)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Also,

the SNCASO Sud-Ouest SO.31 was submitted to this contest as I think.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
Hi Jens

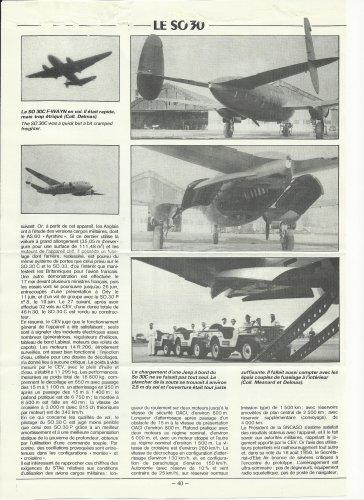

From "le fana de l'aviation"
SO 30C details


Attachments

  • Scan.jpg
    938.9 KB · Views: 268

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

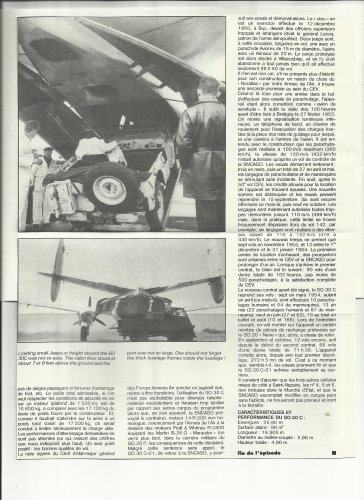

and more...
But Hesham what is the SO 31 ?


Attachments

  • Scan.jpg
    957.2 KB · Views: 216

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
My dear Toura,

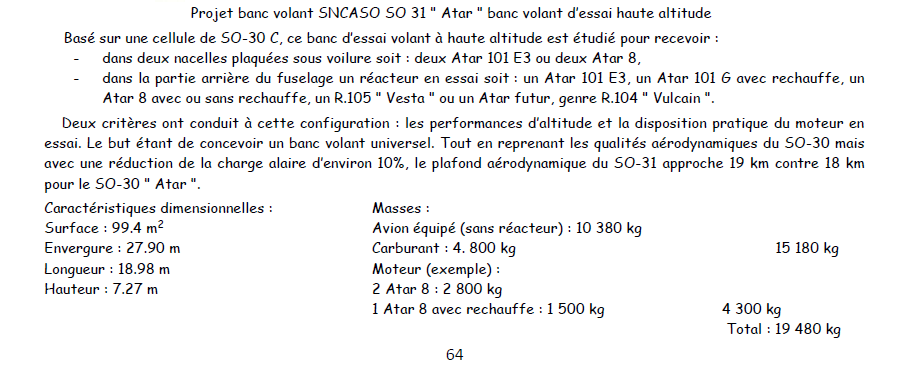

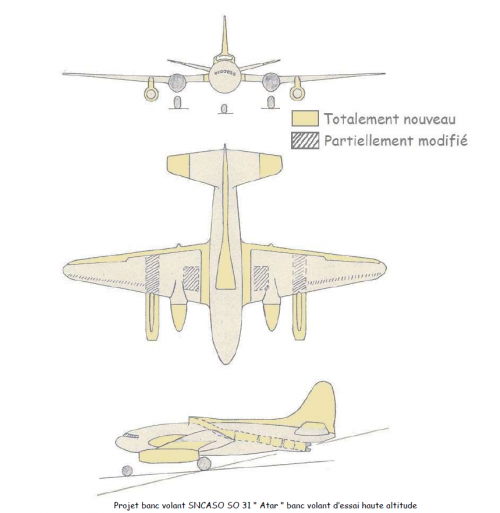

as I read in Internet,the SNCASO SO.31 was developed from SO.30 with
SO.33,and may be for the same Specification,but I tried to find that site
again,but no way.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

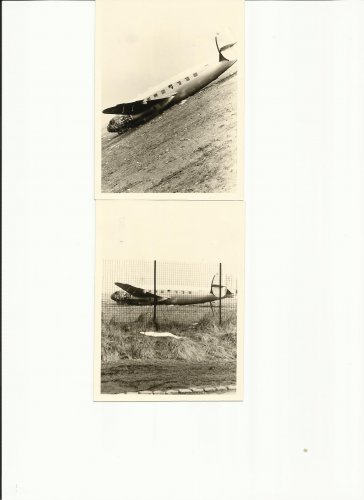

SNCASO 30 P "BRETAGNE" - Plane n° 24 "France"
after anti fire training - winter 1970
south of GLAM air base - Villacoublay


Attachments

  • Scan.jpg
    254.3 KB · Views: 194
