SNCAN (Nord) 5000 « Harpon »

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,927
Reaction score
472

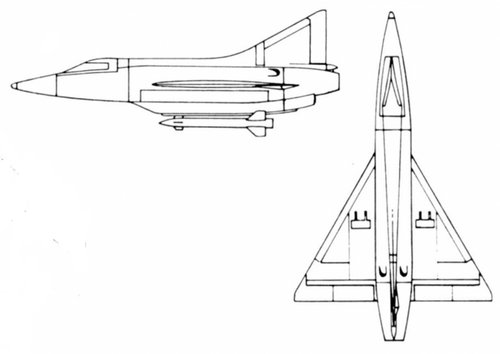

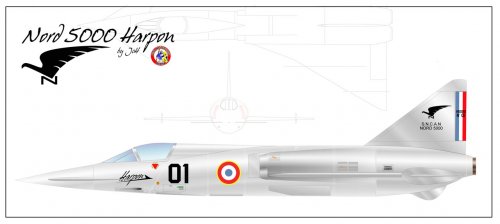

The Nord 5000


Attachments

  • Nord-5000.jpg
    52.8 KB · Views: 325

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Hi,

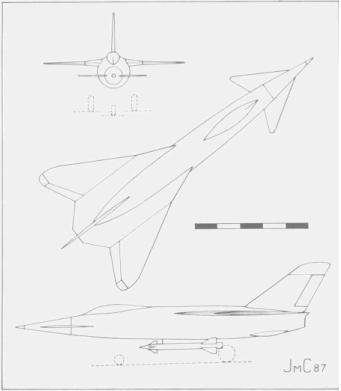

Nord NIL.1 :was single seat interceptor of canard aircraft project,
powewred by one Nene turbojet engine,Span 7.50m ,Length 11.50
it was designed in 1953.


Attachments

  • Nord NIL.1.JPG
    Nord NIL.1.JPG
    10.2 KB · Views: 481

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
I'm looking for drawings, or mock-up/model photos of the Nord N1L1/5000/5010 Harpon,
which could give details of the landing gear, and perhaps, if this landing gear would
have been supplied by Messiers (Couldn't find it in http://www.acam.asso.fr/histo/,
but a very good link, thank you Hesham !). Apart from interest in the Harpon itself,
I think, that this type could have been similar to that, for the Payen Pa.57. Looking for
example at the SE.212, N.1500 and SO.9000, I think, that a basic typ was often just
adapted for several types of aircraft. Just an assumption, of course, but I hope, at least
a plausible one ... ::)


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
199
Website
www.hitechweb.genezis.eu

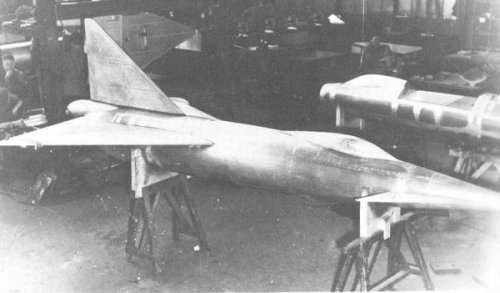

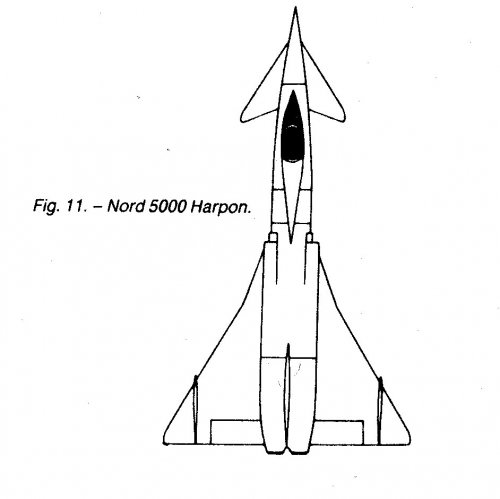

Nord 5000 Harpoon

Edit: I found the source of the first two photos: book Les Avoins de combat,part 1


Attachments

  • harpon.jpg
    16.5 KB · Views: 333
  • Image-01_cr.jpg
    35.6 KB · Views: 304
  • 090805041252519554198787.jpg
    95.6 KB · Views: 384
  • 090811045923519554234347.jpg
    67 KB · Views: 270

renax

ACCESS: Confidential
Joined
Dec 21, 2009
Messages
55
Reaction score
2
Website
www.sharkit.com
By the way

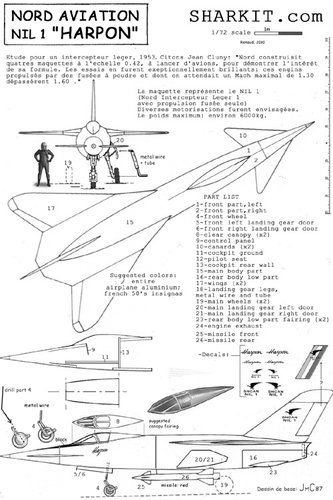

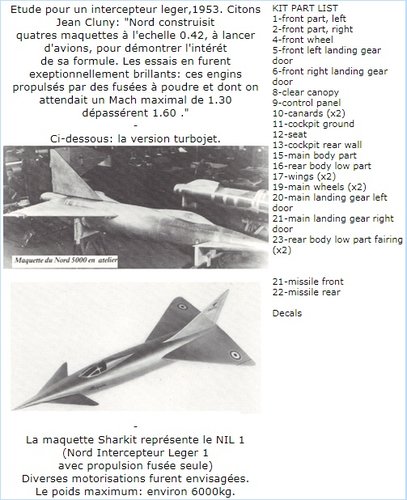

here the original boxart for the harpon kit;



fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,210
What aircraft is being destroyed on that original boxart for the harpon kit?
Edit: I presume it is the Myasishchev M-50 due to front part and engine pod on the starboard wing tip.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155
Hi!

"Historical
In 1953, the Air Force launched a light interceptor program, capable of Mach 1.3 and powered by jet engine, rocket engine or both. It must also be able to operate from poorly prepared grounds.

Dassault, Morane-Saulnier, Nord-Aviation, SNCASE and SNCASO are responding to this project with the MD 550 Mystère Delta, the MS-1100, the Nord 5000 Harpon, the Durandal and the SO-9000 Trident, respectively. Breguet would also have responded with Br.1002.

The competition will ultimately be won by a much improved version of the Mystery Delta, the Mirage III. The Durandal and the Trident were built, but only as prototypes. The Br.1002, the MS-1000 and the Nord 5000 were very soon abandoned, before the construction of a prototype.

The Nord 5000 was first known under the designation NIL-1 (Nord Intercepteur Léger 1), with a single rocket engine (or even a Nene jet engine) and a maximum takeoff weight of 6000 kg, 11.5 m long and with a wingspan of 7.50 m. It was thus declined until NIL-6.

It presented itself as a double delta wing interceptor and duck planes also in delta. The wings were far behind the fuselage while the duck shots were very far forward, under the cockpit windshield. These wings had a partition. The triangular fin recalled that of the Gerfaut. The concepts show a wing root either high or median.

Two variants were considered, one with a 1500 kgp SEPR rocket engine, the other with a twin-engine.
The air intakes were lateral and rounded, very aft of the cockpit.
During the time of its study, between 1952 and 1956,
the jet engines envisaged were a Nene (2200 kgp approximately) then an Atar 9 for the single jet engine version
,
two Gabizo (1500 kgp each, at least in theory) then 2 Orpheus 12 for the twin-engine version.

An arrow wing variant, the Nord 5010, was also planned.


The Nord 5000 was built in the form of models, intended for wind tunnel tests. 4 models were built at 0.42 scale to be dropped from an airplane, and exceeded mach 1.6 while only Mach 1.3 was expected. The Nord 5000 was slightly larger than its competitors. Nord tried to force the authorities to develop it at least as an experimental plane, intended to explore the flight at sustained Mach 2 (more than 5 minutes).

Versions
• Nord-Aviation NIL-1: for Nord Light Interceptor: 1st name for the Nord 5000 Harpon.
• Nord-Aviation Nord 5000: Basic version, not built.
• Nord-Aviation Nord 5010: Variant of the Nord 5000 with arrowed wings, not built."

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

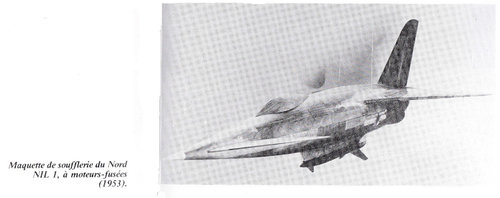

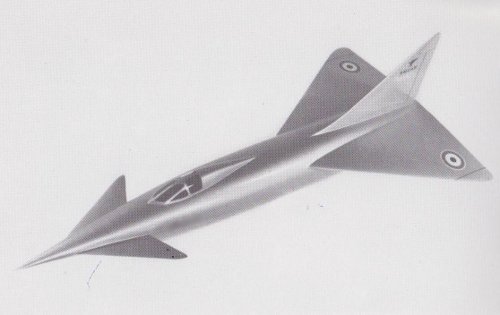

Hi! Single rocket engine interceptor NIL-1.


Attachments

  • NIL-1.jpg
    65.5 KB · Views: 77
  • NIL-1 MODEL.jpg
    NIL-1 MODEL.jpg
    162.3 KB · Views: 79

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

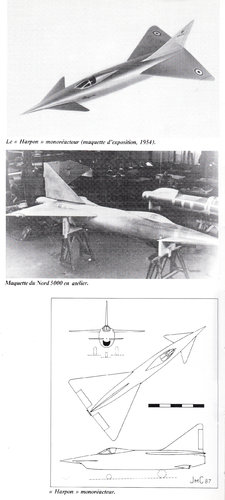

Hi! Single jet engine version. Wing plan form is different from rocket engine version.
(the jet engine envisaged were a Nene (2200 kgp approximately) then an Atar 9 for the single jet engine version,)


Attachments

  • single jet engine version.jpg
    single jet engine version.jpg
    2.9 MB · Views: 85
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

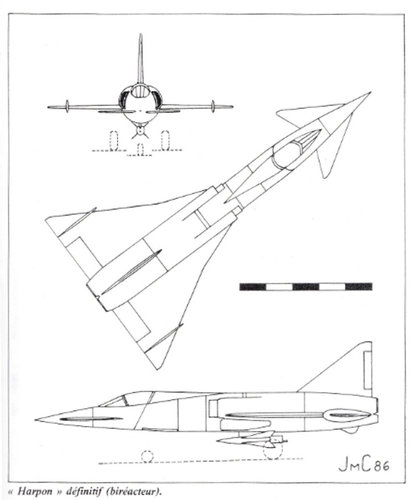

HI! Twin gneine version.(Nord 5000, NIL-6).
(two Gabizo (1500 kgp each, at least in theory) then 2 Orpheus 12 for the twin-engine version.)
So we must identify NIL-2 to NIL-5, for example....
NIL-1 : Single rocket engine
NIL-2 : Single Nene
NIL-3 ; Single ATAR 9
NIL-4 : ?
NIL-5 : Twin Gabizo
NIL-6 : Twin Orpheus
https://www.militaryfactory.com/aircraft/detail.asp?aircraft_id=2088


Attachments

  • twin_engine_version.jpg
    67.7 KB · Views: 111
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155
Hi! Competitors.


Attachments

  • ESOYWJ7X0AAN1L6.jpg
    369 KB · Views: 106
  • SNCASE SE-212C Durandal II by  Jean Cuny.jpg
    SNCASE SE-212C Durandal II by  Jean Cuny.jpg
    252.5 KB · Views: 96

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

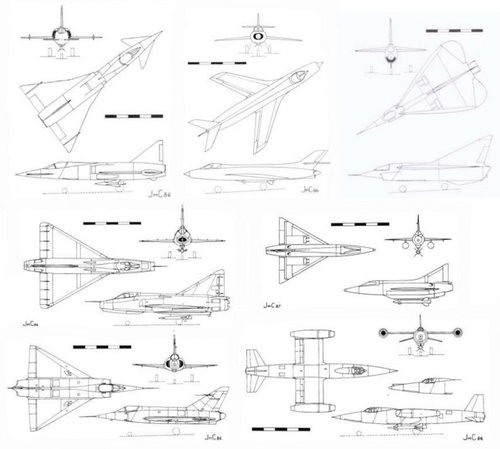

Hi!

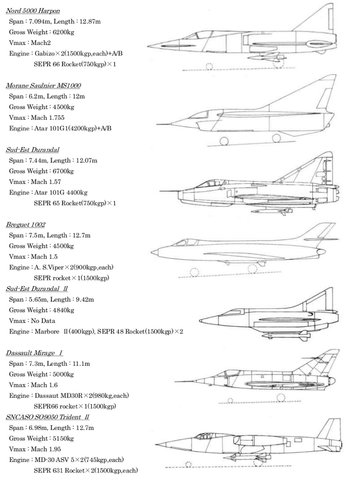

Source : LES AVIONS DE COMBAT FRANCAIS 1944-1960, Ⅰ-CHASSE-ASSAUT, Jean CUNY.


Attachments

  • competitors.jpg
    227.3 KB · Views: 105
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,069
Reaction score
4,155

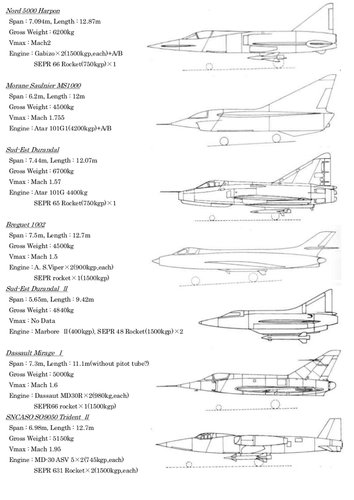

Hi! I correct side view comparison and made three side view comparison.


Attachments

  • competitors side view.jpg
    competitors side view.jpg
    232.9 KB · Views: 75
  • competitors three side view.jpg
    competitors three side view.jpg
    141.4 KB · Views: 83
