Single-engined Be-30

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190

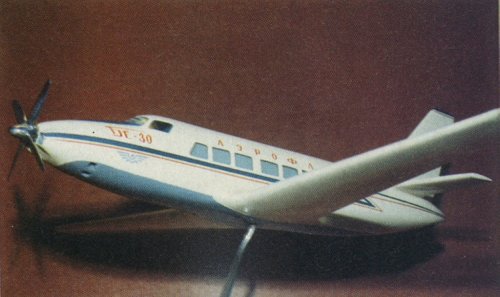

I checked the Beriev books from Russia, but I can’t find a clue for this single-engine Be-30 project (source: “Lotnictwo” magazine from Poland, No. 13/1995). Was this the original layout before the Be-30/-32 with two engines was built and flown? Any specifications, drawings, etc.?


Attachments

  • Be-30 (single-engine).JPG
    Be-30 (single-engine).JPG
    299.5 KB · Views: 206

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145
Hi Thomas and all, all.
I understand that much time has passed, but better late than never ...))

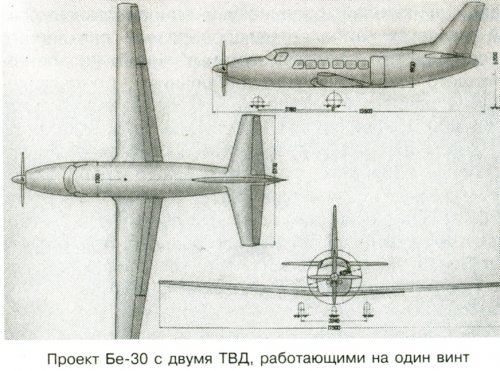

This is the first version of the layout of the Be-30, feature of the project was the "sparka" of the two TVD-10B, installed in the nose of the aircraft and working on one screw. Later it was decided to move to a more traditional scheme.
(Source A. Zablotsky, A. Salnikov "Unknown Beriev"


Attachments

  • Be-30.jpg
    461.3 KB · Views: 99

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190
borovik said:
...
(Source A. Zablotsky, A. Salnikov "Unknown Beriev"

Is this a book or an article from a magazine?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145
book - "EKSMO", "Yausa"


Attachments

  • Unknown Beriev.jpg
    Unknown Beriev.jpg
    130.7 KB · Views: 56

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145
More information please see:
http://www.secretprojects.co.uk/forum/index.php/topic,7984.0.html
