Sikorsky VSTOL/STOL Projects

Dronte

Argentinean ugly bird
Joined
Feb 19, 2006
Messages
96
Reaction score
6
overscan said:
That image corresponds one of the not built variants of the XH-59.

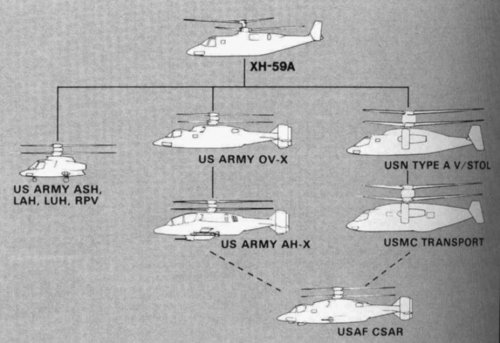

Here an outline of the possible developments of the XH-59 proposed by Sikorsky and that they would share the same group propeller.
(source: " Interavia " 9/1980)


Attachments

rousseau

CLEARANCE: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
4
Here is a picture showed CARA of US.
The VTOL aircraft fitted with retractable Roto on dalso and tail for VTOL, while needing level fly, the roto will autometically retracte and stored in airframe for reducing drag. The power mianly rely on one Jet and fan engine each side.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,994
Reaction score
150
Here the S-57 looks more then a "flying pancake", than as a delta, as it was shown
for example in FlugWelt I/60 :
Nevertheless an interesting design ! Slightly OT, was their ever a single blade rotorcraft,
that actually took to the air ?


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,994
Reaction score
150

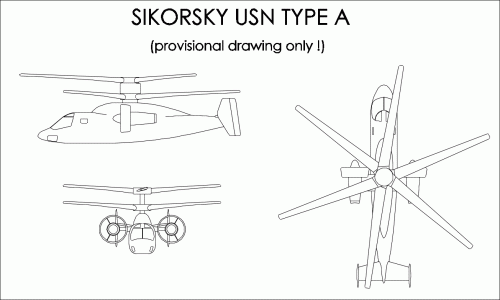

Couldn't find any other drawings of this design, so I had a quick attempt for
a simple drawing on my own. Problem, due to lack of sufficient informations
is the fuselage width and shape, I used the XH-59 and S-72 as a pattern.
So, careful please, speculative guesswork only !
I've attached the cdr-file (zipped), too, so those of you, who have CorelDraw,
or another software, that can handle such files, can make corrections on their
own ! ;)


Attachments

Remko

CLEARANCE: Restricted
Joined
Dec 21, 2008
Messages
34
Reaction score
1
Jemiba said:
Couldn't find any other drawings of this design, so I had a quick attempt for
a simple drawing on my own. Problem, due to lack of sufficient informations
is the fuselage width and shape, I used the XH-59 and S-72 as a pattern.
So, careful please, speculative guesswork only !
I've attached the cdr-file (zipped), too, so those of you, who have CorelDraw,
or another software, that can handle such files, can make corrections on their
own ! ;)
Excellent work!! Just what I needed. What size did you use? I have calculated the main rotor of the "CH-44B" from the earlier posted link as being about 17 meters (56 ft) in diamater (this based on the size of the Marine at the rear of the rotorcraft.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,994
Reaction score
150
Assuming that the drawings of the ABC concepts are at least roughly to the
same scale, the fuselage length would be nearly identical to the XH-59A,
that means 40' 9" ( 12,4m ). Rotor diameter seems to be larger, around 40' 8"
( 13,6m ), compared to 36' ( 11m) for the XH-59.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
pometablava said:
A couple of unidentified projects from RAF Flight Revue 1962 issue.
You mean "RAF Flying Review", right? ;)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,728
Reaction score
7
Pome, the lower aircraft is your posted image appears to be a modified Grumman Mohawk, or at least to use the fuselage and tail of one...


cheers,
Robin.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,


here is a two Sikorsky agility tilt-propeller and tilt-wing ground attack light aircraft V/STOL
projects,and a winged helicopter.


[font=verdana, arial, helvetica, sans-serif]http://arc.aiaa.org/doi/abs/10.2514/3.43593[/font]


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

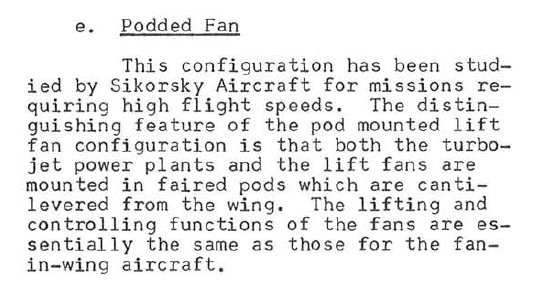

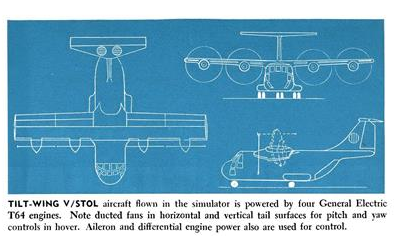

here is a Sikorsky Tri-Service tilt-wing aircraft and a fan-in-wing VTOL aircraft projects.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816

Attachments

pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
264
Reaction score
10
Great stuff,thanks a lot hesham, for sharing this.




best regards


Pedro


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
Hi,
from Sikorskyarchives,you can find a group of V/STOL and VTOL aircraft,some are
known for us and some are new
.
Please define "us". All these designs have been seen before as far as I'm concerned.

You don't have to feel obliged to include others in your posts. Saying "Some of these designs are new to me" is enough...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

http://archive.aviationweek.com/image/spread/19630701/40/2


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

http://archive.aviationweek.com/image/spread/19680624/53/2


Attachments
