Northrop VTOL/VSTOL/STOL projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,983

Attachments

  • T-38.JPG
    48.8 KB · Views: 1,411
  • VSTOL 7.JPG
    VSTOL 7.JPG
    47.8 KB · Views: 180
  • VSTOL 6.JPG
    VSTOL 6.JPG
    57 KB · Views: 161
  • VSTOL 5.JPG
    VSTOL 5.JPG
    53.8 KB · Views: 164
  • VSTOL 4.JPG
    VSTOL 4.JPG
    43.9 KB · Views: 1,051

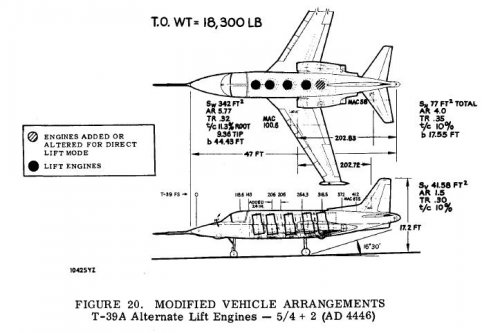

  • T-39A-2.JPG
    44.7 KB · Views: 1,056
  • T-39A.JPG
    50 KB · Views: 1,193
  • XV-4B.JPG
    39.6 KB · Views: 1,246

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
803

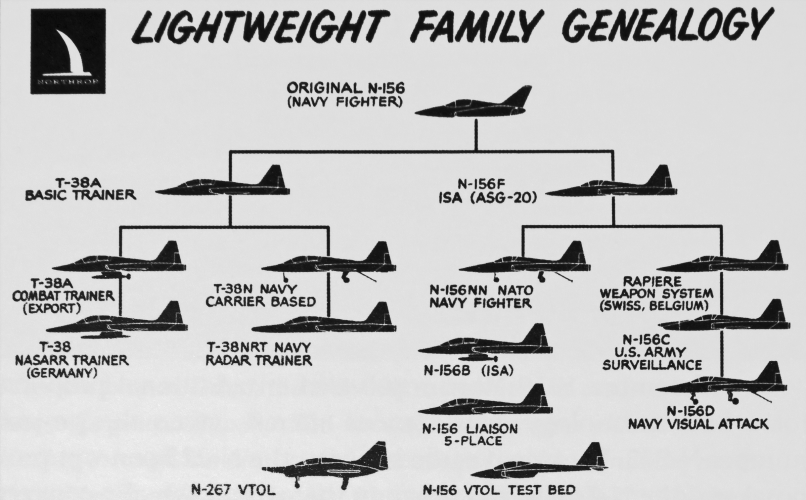

Several Northrop VSTOL projects:

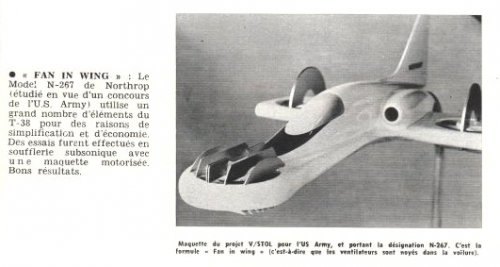

  • N-267

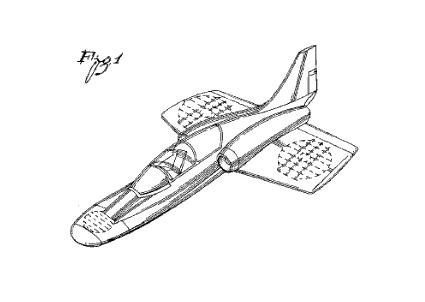

  • 1961 fan-lift VTOL patent
  • paddle-wheel rotorcraft

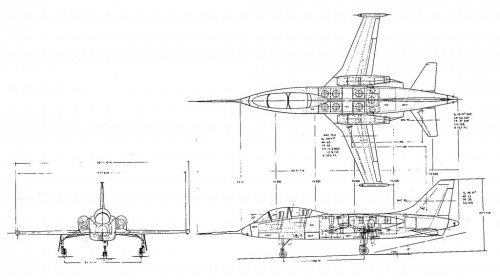

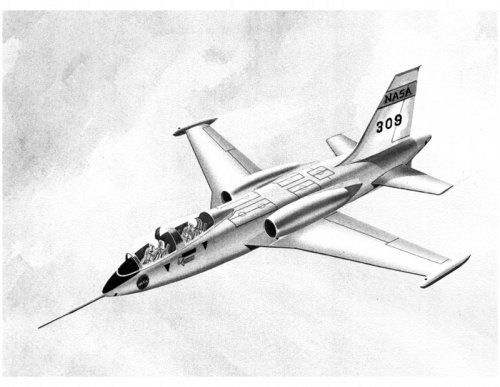

  • N-309 (2 pics)


Attachments

  • N-309-2.jpg
    70.7 KB · Views: 128
  • N-309-1.jpg
    87.7 KB · Views: 107
  • fan lift VTOL project 1961.JPG
    fan lift VTOL project 1961.JPG
    13.1 KB · Views: 105
  • N-267.jpg
    47.8 KB · Views: 120

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
803
Various Northrop Grumman V/STOL projects:
  • 1992 paddle-wheel rotorcraft

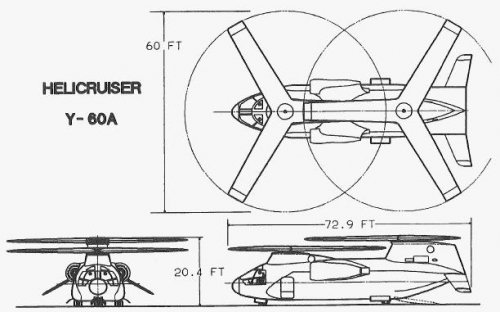

  • 1991 Y-60A Helicruiser (2 pics)

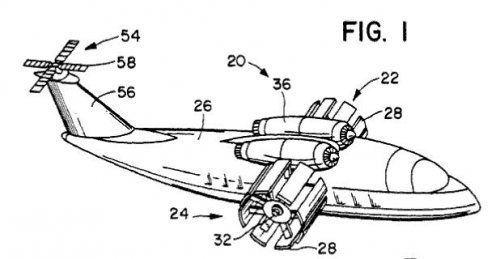

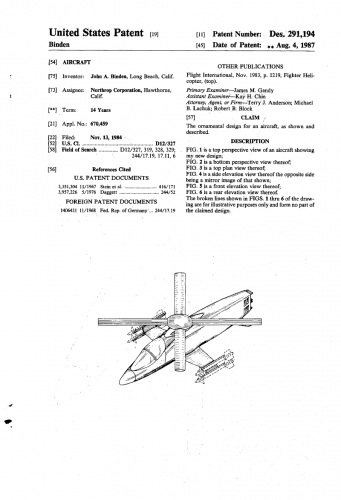

  • 1987 compound helicopter patent

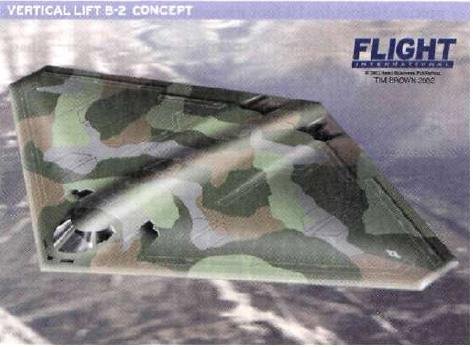

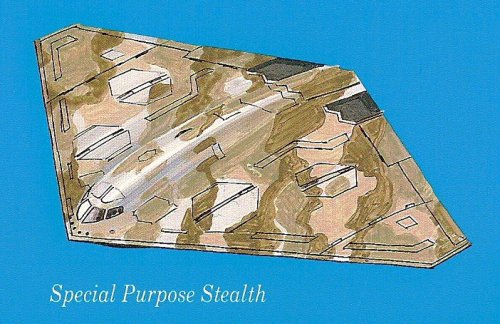

  • special purpose vertical-lift stealth transport (2 pics)


Attachments

  • vertical lift B-2 concept.JPG
    vertical lift B-2 concept.JPG
    28.6 KB · Views: 129
  • DSC000050001.JPG
    327.3 KB · Views: 129
  • patents.png
    35.6 KB · Views: 112
  • Northrop_1991_Y-60A_Helicruiser-b.jpg
    34.3 KB · Views: 101
  • Northrop_1991_Y-60A_Helicruiser.jpg
    34.9 KB · Views: 112
  • 1992 paddle wheel rotorcraft.jpg
    1992 paddle wheel rotorcraft.jpg
    27.6 KB · Views: 86

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
970
Website
deeptowild.blogspot.com

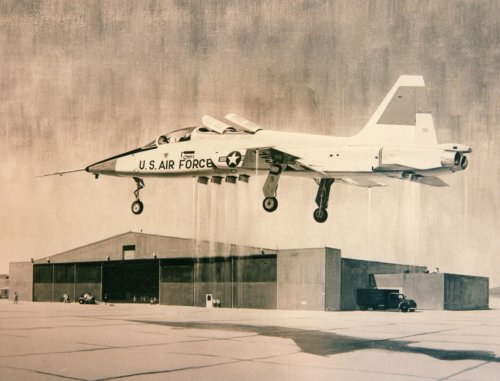

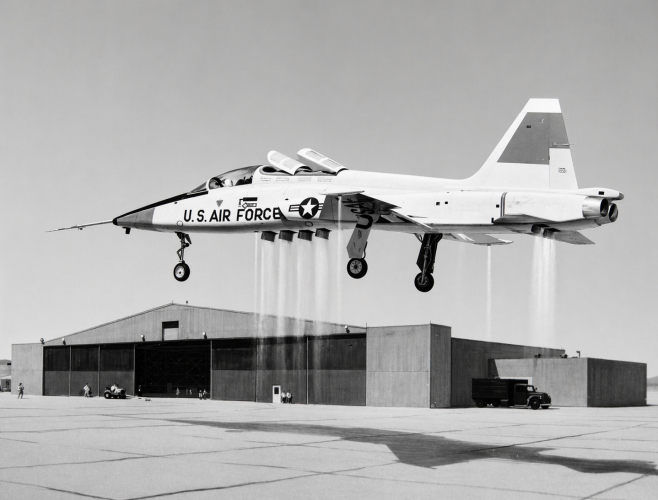

Artist's impression of Northrop T-38 VTOL variant concept.

Source:
http://ghostmodeler.blogspot.de/2012/09/talons-in-space-northrops-n-205-proposal.html


Attachments

  • T-38 VTOL.jpg
    T-38 VTOL.jpg
    218.6 KB · Views: 177

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,983
Hi,

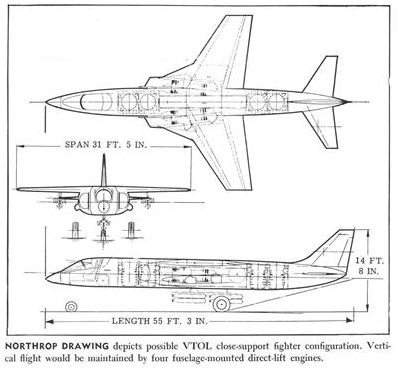

can anyone ID this Northrop VTOL Close-Support Fighter Project ?.

http://archive.aviationweek.com/image/spread/19651115/47/2


Attachments

  • b.png
    78 KB · Views: 225

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,983
hesham said:
can anyone ID this Northrop VTOL Close-Support Fighter Project ?.

http://archive.aviationweek.com/image/spread/19651115/47/2

I suggest this aircraft was N-286 ?.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
803
hesham said:
I suggest this aircraft was N-286 ?.

If you "suggest" something, you need to BACK IT UP.
What makes you think that? Do you have clues? Or is it just a random assumption?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,348
Reaction score
5,983

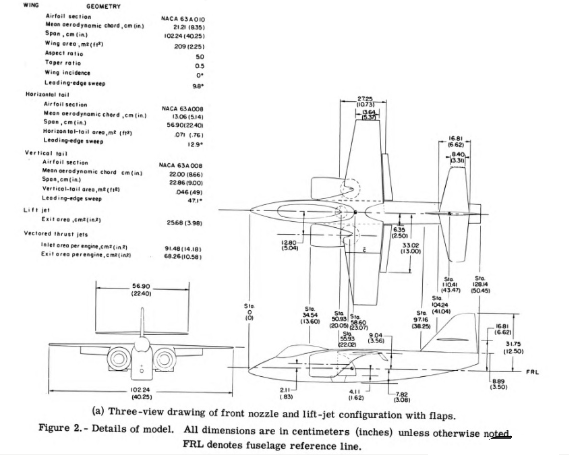

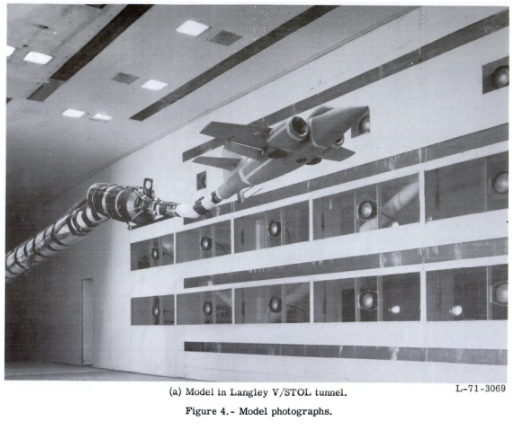

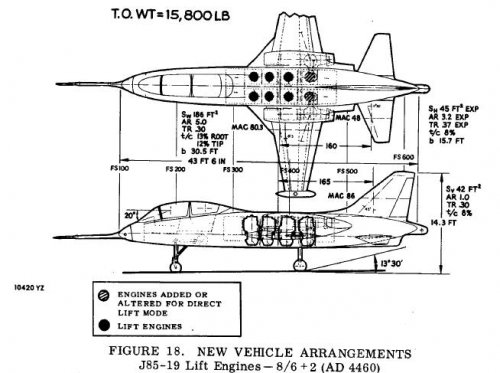

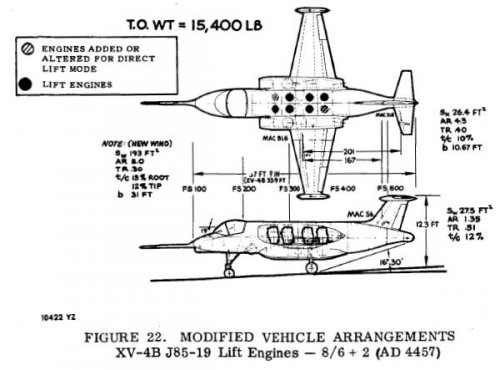

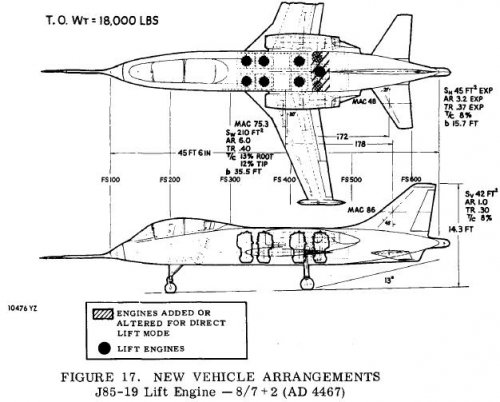

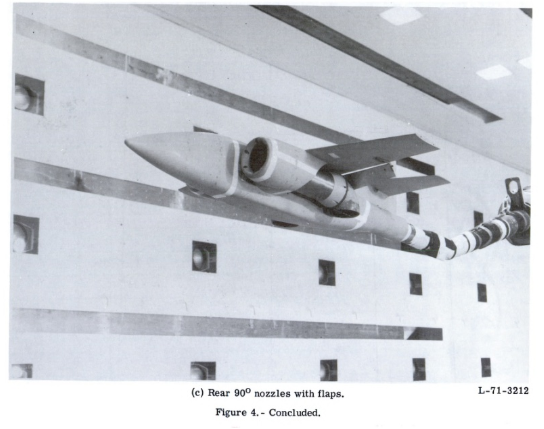

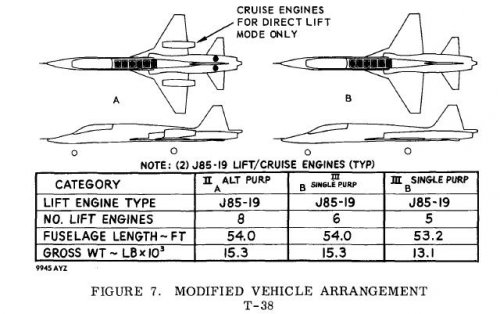

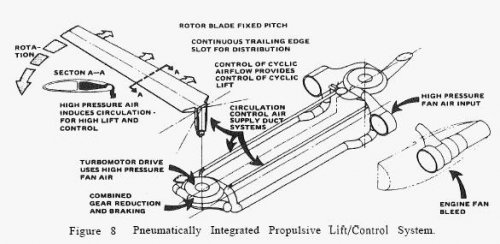

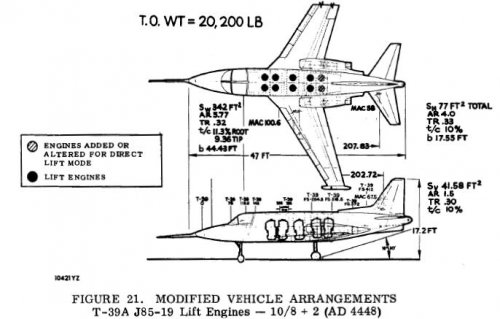

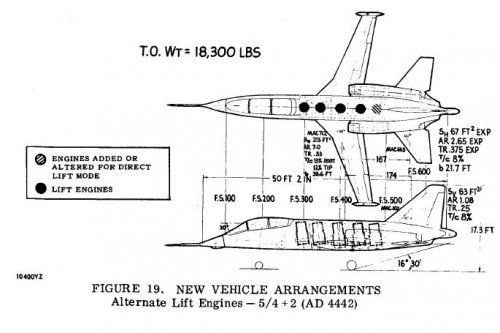

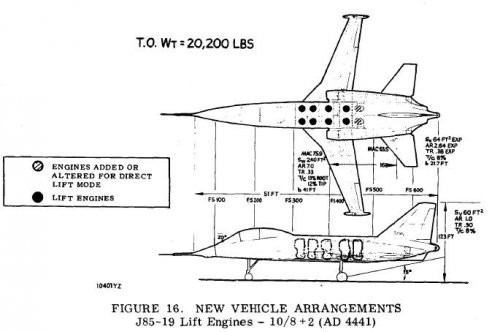

From NASA report about Northrop V/STOL fighter of 1973,

what was this ?.


Attachments

  • 41.png
    121.6 KB · Views: 57
  • 42.png
    61.4 KB · Views: 49
  • 43.png
    335.6 KB · Views: 39
  • 44.png
    298.7 KB · Views: 41
