Hello again chaps. The title of this thread is my current interest. What I'm specifically trying to find at the moment is a cockpit layout. Lots of shots through the plexiglass but all from the front or directly from the side. So basically no detail whatsoever, I cannot discern from any info/pictures the instruments fitted to this aircraft, though there is a youtube video (i think) which states that there werent any flight instruments and that the pilot just had to rely on what he could see looking out! I guess that means no attitude indications and the like. Surely there must have been engine instruments, maybe a fuel guage...


Any help on this is as always very appreciated.


Regards


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862
Not a very documented subject indeed. Here's what I have photowise:


Attachments

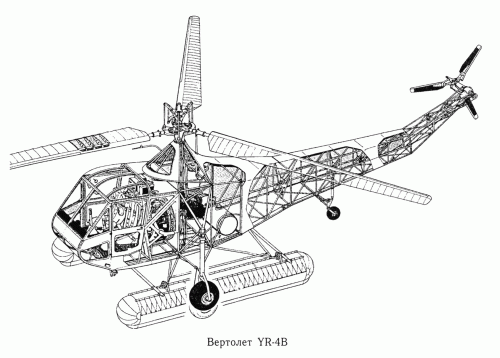

  • YR-4B cutaway.gif
    YR-4B cutaway.gif
    422.2 KB · Views: 136

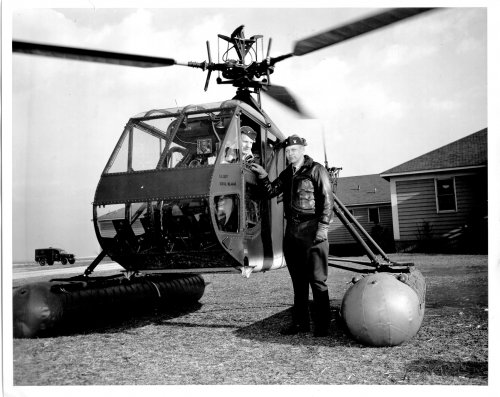

  • AC_HNS1_2_300.jpg
    395.6 KB · Views: 120

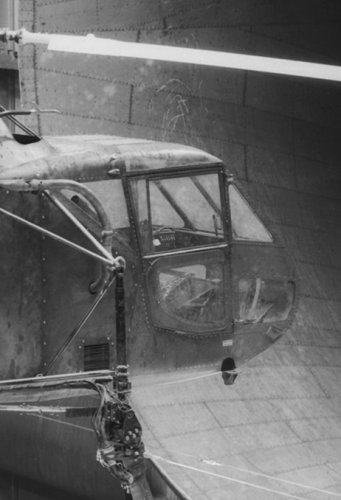

  • cockpit1.jpg
    162.7 KB · Views: 110

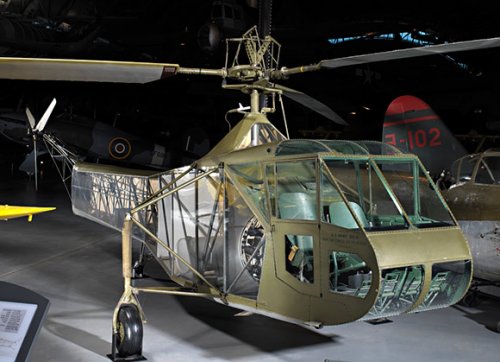

  • sik_r4b_16a.jpg
    89.1 KB · Views: 100

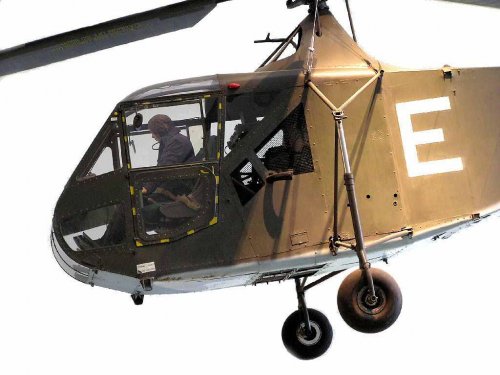

  • 24_Sikorsky_XR_4.jpg
    73.6 KB · Views: 101

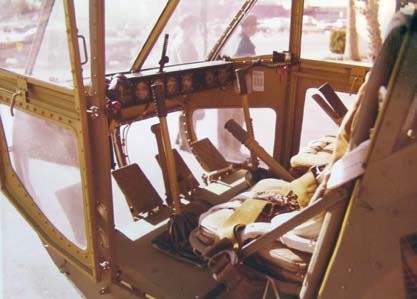

  • R-4B cockpit.jpg
    R-4B cockpit.jpg
    46.9 KB · Views: 19

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,394
Reaction score
429

hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
238
Reaction score
12
rough 6 view from airwar.ru
sikr4b.html



photos found on a forum
http://s362974870.onlinehome.us/forums/air/index.php?showtopic=207399&view=findpost&p=2040778


finescale modeling forum...
http://cs.finescale.com/fsm/modeling_subjects/f/16/t/80537.aspx?sort=ASC&pi240=1


with...
ta da!



so, instruments from left to right...
amps, fuel, OAT(?),cylinder temp, oil and fuel p's and t's?, manifold pressure, rpm, IAS, mag compass, bar alt.


I know that it is essentially a first of kind but that seems like a bit of a rubbish layout...


Ok so there are a couple of miscellaneous controls that im not sure about in this picture





the throttles are on the collective and im guessing that the controls on the floor under it are going to be mixture and H (carb heat?) can anyone take a guess at the lever in front of the "quadrant"? I think that a rotor brake lever is shown in the last of Stargazer2006's pictures... Wheel brake maybe?
