Sikorsky lesser known Aircraft,non-Aircraft and Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
Hi,

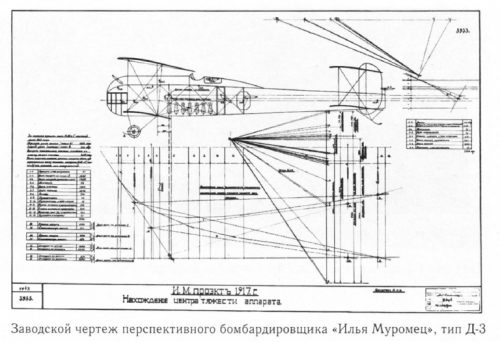

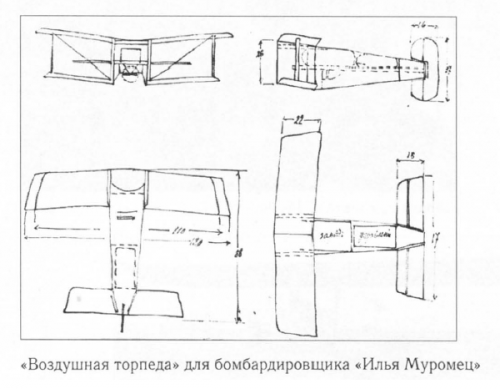

here is a Sikorsky lesser known designs,at first a flying torpedo,second the D-3 bomber

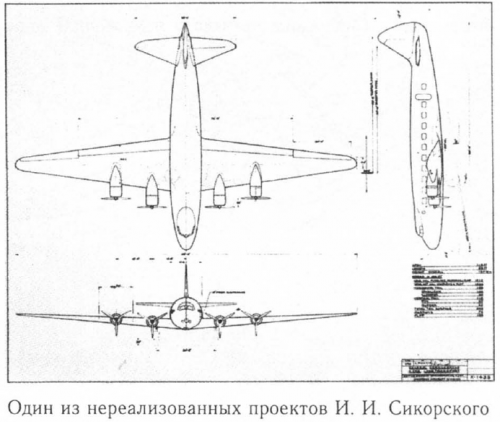

which was derivative of Ilya Muromets,third was low-wing four engined medium transport

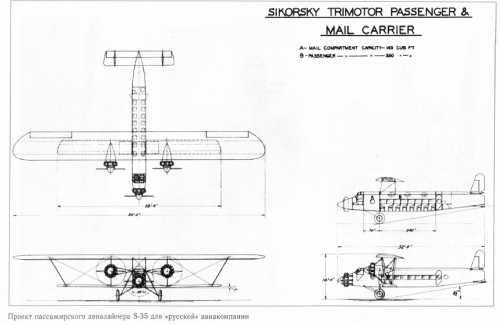

aircraft project and the fourth was a mail carrier version of S-35,also remained a project.


Сикорский_Политехника 2003


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
I believe this topic to be rather redundant I'm afraid.

The torpedo (planned to be carried under the "Ilya Muromets" class of bombers) may be a little hard to classify, but the others could have easily been added to existing threads of this forum.
  • There is no such thing as a "Sikorsky D-3". It is the "Ilya Muromets D-3" variant.

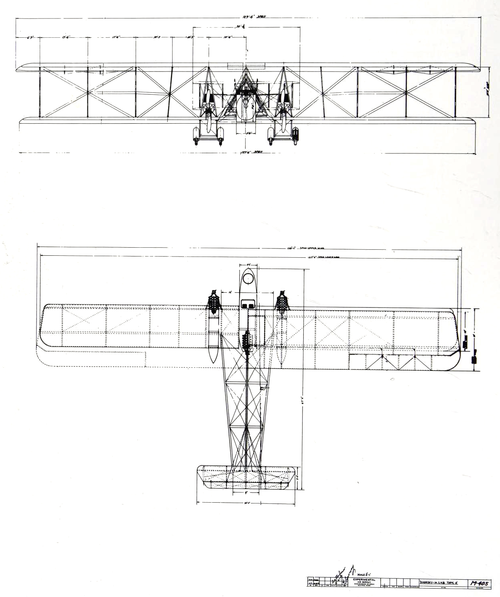

  • The airliner was the object of a specific topic a couple of years ago... and in fact I posted the same plan there way back then.
  • The single-engine S-35 was the early, unbuilt version that was replaced by the trimotor one. I can't remember for sure but I wouldn't be surprised if this one was already posted in the S-35 topic too...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
My dear Skyblazer,


of course the D-3 is not a design,but as I said a derivative or a variant of Ilya Muromets,
and for the airliner and S-35,I search about them,but I can't find them in Early Aircraft
Projects section.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
hesham said:
My dear Skyblazer,


of course the D-3 is not a design,but as I said a derivative or a variant of Ilya Mumorets,
and for the airliner and S-35,I search about them,but I can't find them in Early Aircraft
Projects section.
The Ilya Muromets (not Mumorets) series of bombers were not designated when Sikorsky was still in Russia but apparently received S- designations retrospectively.

S-22 applied to the basic Ilya Muromets version, the float version and the Ilya Muromets B series.
S-23 was the Ilya Muromets V series.
S-24 was the Ilya Muromets G series.
S-25 was the Ilya Muromets D series.
S-26 was the Ilya Muromets E series.
S-27 was the Ilya Muromets J series (J-3 was the French Avion Atlas or Atlantic bomber).

D-3 was the last in the "D" series. Thirteen Ilya Muromets D-1 were built, two of which were modified as D-2 and D-3, respectively. There would be a lot to be said about these many (and very different) versions of the I. M. series, but they really deserve a topic of their own.

The airliner can be found in the following topic, and was identified in this particular post:
http://www.secretprojects.co.uk/forum/index.php/topic,21139.msg211458.html#msg211458

The reason you couldn't find it is probably that the title for the topic was never changed (can a moderator do it? Thanks).

Also, while checking the forum for this reply, I realized that Maveric had posted the same plan elsewhere before I did!
http://www.secretprojects.co.uk/forum/index.php/topic,655.msg145596.html#msg145596


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
A topic about the S-35 and S-37 biplanes has been created. It can be found here:

http://www.secretprojects.co.uk/forum/index.php/topic,24558.0


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
102
Reaction score
5
I heard about the Sikorski S-19 (year 1916), claimed to be the first purpose built ground attack plane in Russia.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
Hi Avisvirtusvoluntas,


frankly I don't know,but that's never mentioned in the book,the Osprey Encyclopedia
of Russian Aircraft.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
visvirtusvoluntas said:
I heard about the Sikorski S-19 (year 1916), claimed to be the first purpose built ground attack plane in Russia.
hesham said:
frankly I don't know,but that's never mentioned in the book,the Osprey Encyclopedia of Russian Aircraft.

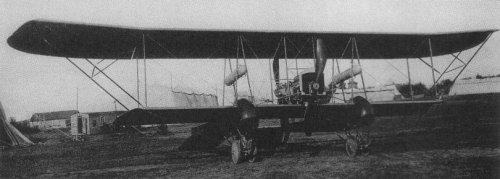

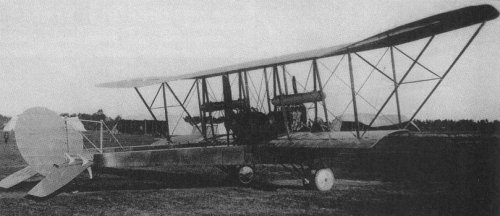

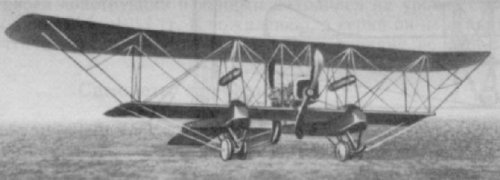

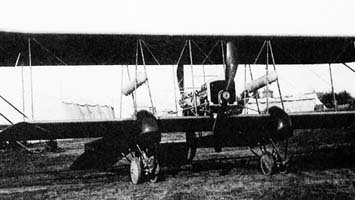

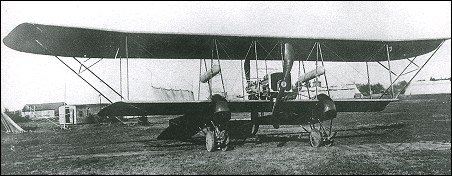

No mystery here, the S-XIX (S-19) "Dvukhvostka" ("diplura" in English, a family of insect-like creatures) is a well-identified Sikorsky type. Here are a few photos of it:


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
My dear Slyblazer,


I know the aircraft,but if it was the first ground attack aircraft in Russian,that's I can't
answer about it.


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
102
Reaction score
5
hesham said:
My dear Slyblazer,


I know the aircraft,but if it was the first ground attack aircraft in Russian,that's I can't
answer about it.
In fact this is my question. I found this information during my research about early "Samolety Polya Boya".


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,639
Reaction score
398
visvirtusvoluntas said:
I heard about the Sikorski S-19 (year 1916), claimed to be the first purpose built ground attack plane in Russia.
'The Imperial Russian Air Service' by Alan Durkota / Thomas Darcey / Victor Kulikov, Flying Machines Press, 1996, *very* briefly mentions 'several sources have hinted the S-19 was intended to be a heavy ground-attack aircraft'. Unfortunately, the authors don't mention which sources.
Two water-cooled 150hp Sunbeam engines; one driving a tractor propeller, the other a pusher propeller.


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87
visvirtusvoluntas said:
hesham said:
My dear Slyblazer,


I know the aircraft,but if it was the first ground attack aircraft in Russian,that's I can't
answer about it.
In fact this is my question. I found this information during my research about early "Samolety Polya Boya".

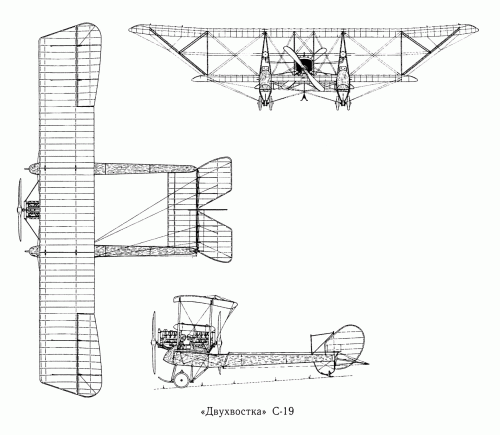

From the same source (picture S-19) V.Mikheyev, G.Katyshev "Sikorsky" str.255-257:
"... The whole layout of the S-19 was thought to increase survivability and effective application. Machine guns were mounted in front of both cabins. Designated crew were armored ...
S-19 had all the distinctive qualities Sturmovik: powerful weapons, armor and layout for maximum vitality and invincibility of the aircraft. ... There was also a three-motor version - S-19 bis. In order to improve the flight characteristics Sunbeam third engine was installed on the center of the upper wing. (Probably with a pusher propeller -A.B.) Management is now in both cabins. Armament consisted of six guns - turrets and stationary, and underwing bomb racks. Armoured has been strengthened. ...
It was the first domestic attack aircraft and one of the first in the world. "
It is fair to mention another source - publishing department TsAGI - "Aircraft in the Soviet Union 1917-1945. Volume 1" - where the idea of ​​creating a ground-attack aircraft to attack ground targets in Russia belongs to the designer A.Porohovschikov (more like a concept) in 1914 issued the to the test plane "Би-Кок"/"Bi-Cock", having armored cockpit bottom, machine gun and a device for dropping bombs.
http://www.airwar.ru/enc/other1/bikok.html
/Google translation/


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
A perfect reply, thanks a lot borovik.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017

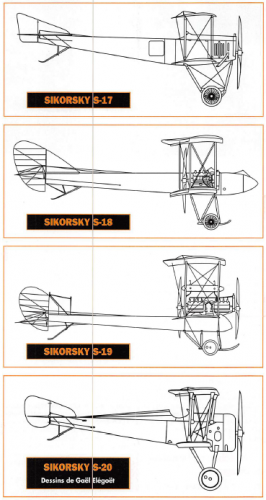

From Le Fana 382,

a Sikorsky S-17,S-18,S-19 & S-20 Profiles.


Attachments
