SHINYO Demolition Boats

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hello everybody

There were several Shinyo types built ! Are there any projects?
I have heard about a OHKA towed by a SHINYO BOAT ?

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

Thanks for Pics Justo ! A Ohka with Floats !!
It is like the Tornado
http://www.secretprojects.co.uk/forum/index.php/topic,3540.0.html
or this
http://www.luft46.com/oddities/v1boat.html

Many greetings


ryusuke

ACCESS: Restricted
Joined
Jan 18, 2009
Messages
30
Reaction score
0
Hi Justo,

It is very interesting. But I can't find any information of Ohka in Singapore yet.
If we can find that info, the project seems to be real.

Ryusuke


Justo Miranda said:
No project, real stuff!

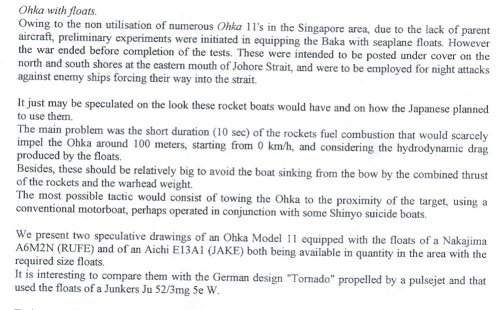

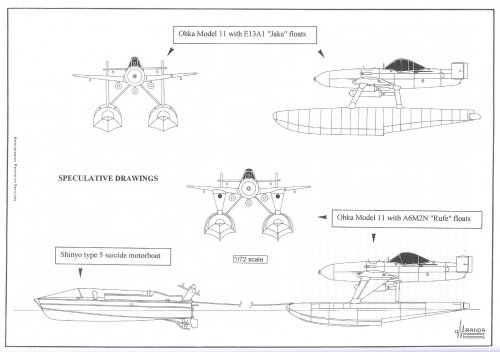

Please see attached some text and drawings by myself
SOURCE GRADING 1


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,144
Reaction score
1,803
Thanks for Pics and Info Justo

how many versions of the Ohka exist ?!


ryusuke

ACCESS: Restricted
Joined
Jan 18, 2009
Messages
30
Reaction score
0

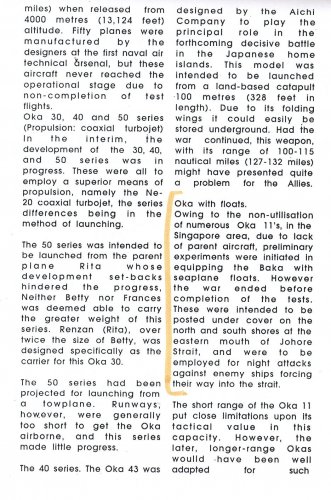

Yes, it is written as "numerous Oka 11's, in the Singapore area" in USAAF 1946 report.
But there is no information in Japanese, backing up the fact there were Oka 11 in
Singapore area (as far as I know). If someone has it, please tell me.
How Oka 11's were transported to Singapore? By which unit and to which unit?
Could USAAF team find Oka 11 in Singapore?

Ryusuke


Justo Miranda said:
From "Japanese aircraft industry in WW2"
USAF 1946 Report
ISO Publications


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Here I have read about the heat homing bomb.
http://www.secretprojects.co.uk/forum/index.php/topic,6007.15.html
There was also a heat homing boat ?
Maybe a heat homing SHINYO demolition boat ?

Many greetings


ryusuke

ACCESS: Restricted
Joined
Jan 18, 2009
Messages
30
Reaction score
0
Hi moin1900,

It was not Shinyo, but army project.
It was "Ke souchi tsuki Nikuhaku Kogekitei"(Close attack boat with Ke-device).
The development started in the middle of 1944, and the war ended before the
first prototype was completed.

HTH
Ryusuke


moin1900 said:
Hi everybody

Here I have read about the heat homing bomb.
http://www.secretprojects.co.uk/forum/index.php/topic,6007.15.html
There was also a heat homing boat ?
Maybe a heat homing SHINYO demolition boat ? ???

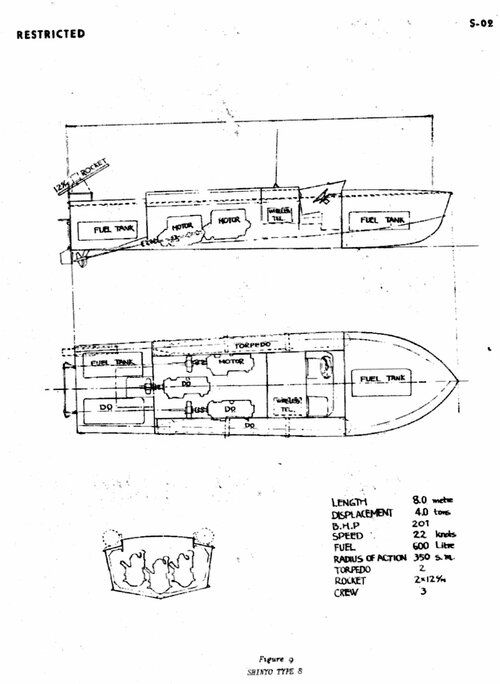

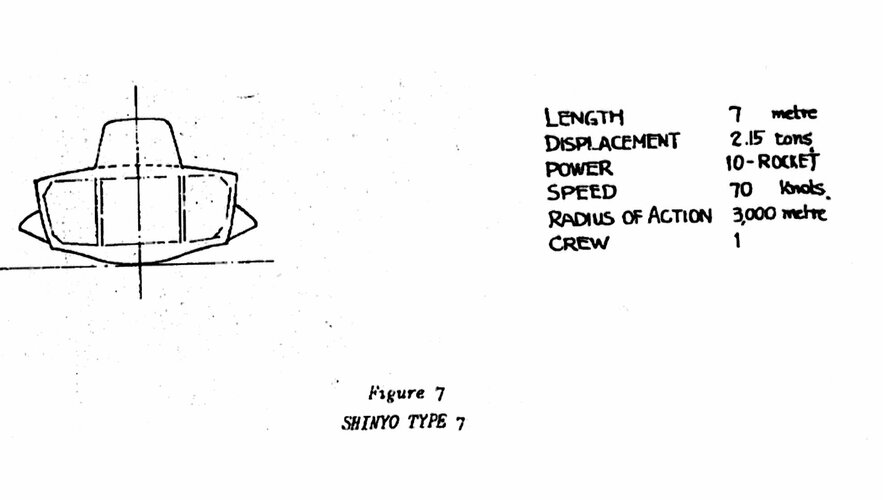

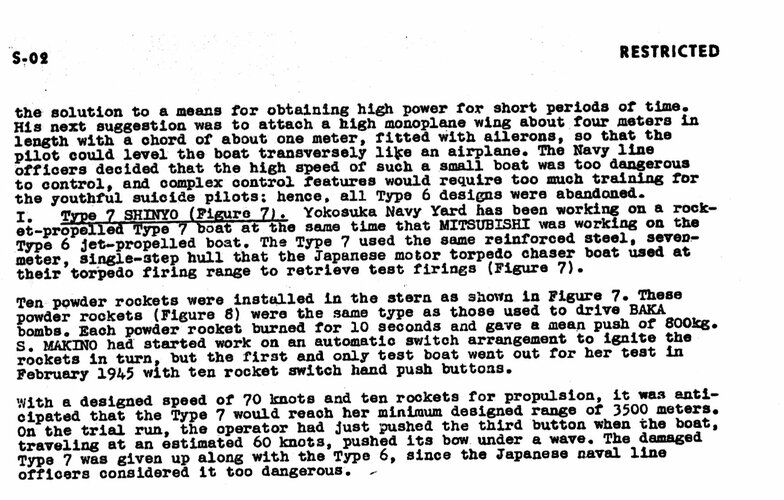

Here SHINYO 7
http://www.documentatiegroep40-45.nl/achtergronden/artikelenuitgebreid.php?pid=22

Many greetings
moin1900


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,807
Website
www.amazon.com

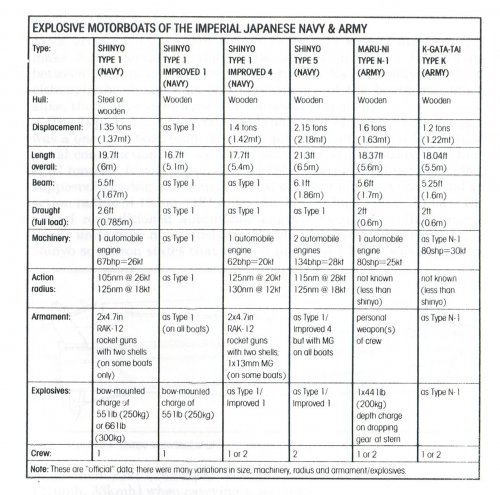

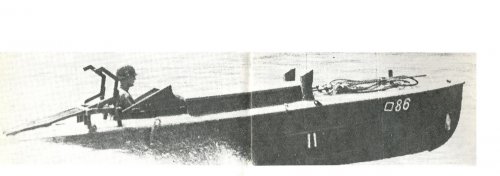

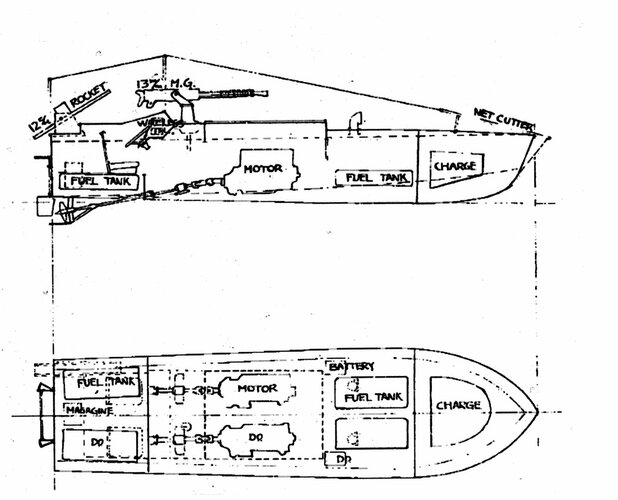

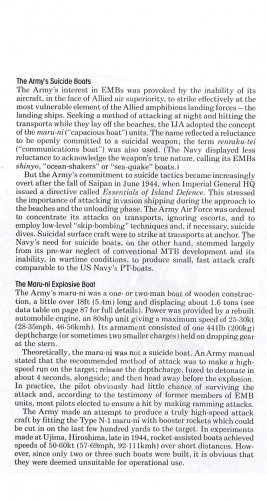

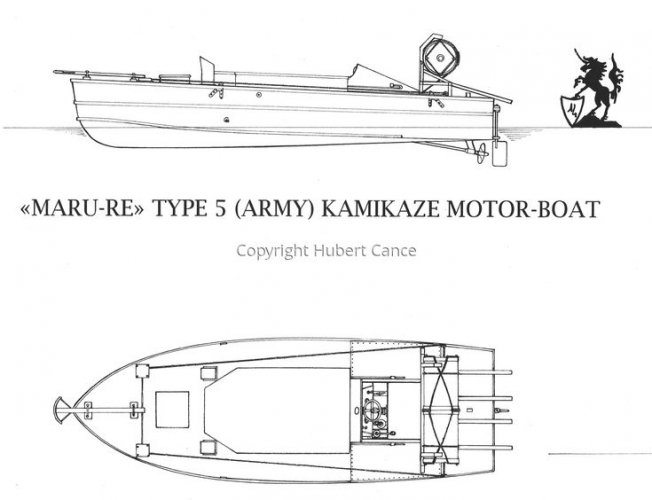

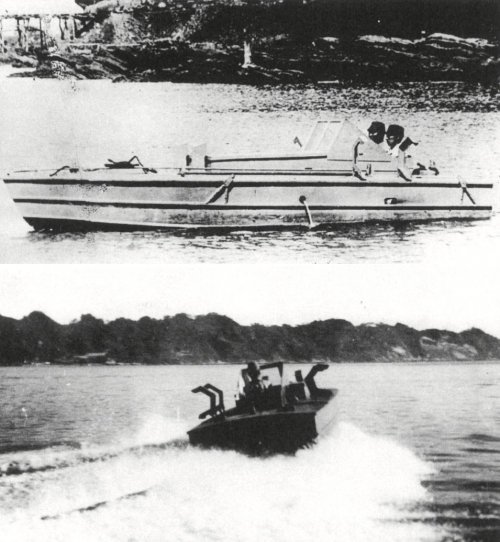

Army boats from "Suicide Squads" by Richard O´Neill
Salamander Books 1981


Attachments

  • Escanear0001.jpg
    213.8 KB · Views: 380
  • Escanear0003.jpg
    242.1 KB · Views: 350
  • Escanear0004.jpg
    215.9 KB · Views: 80

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody

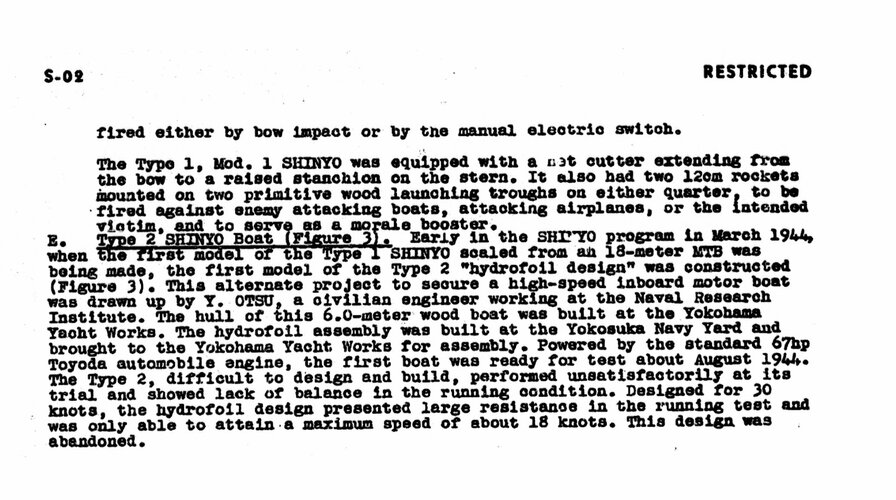

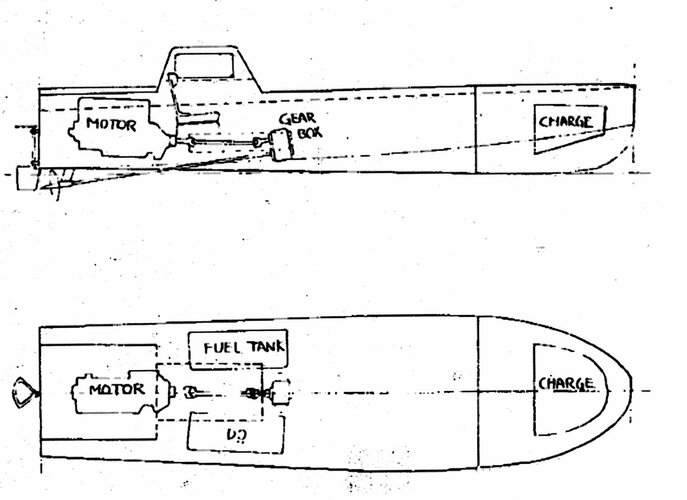

Shinyo Boats !
www.fischer-tropsch.org

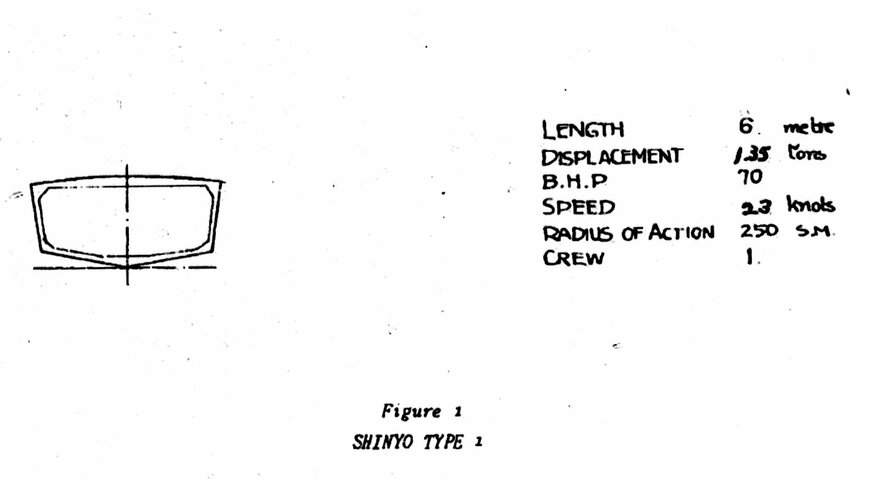

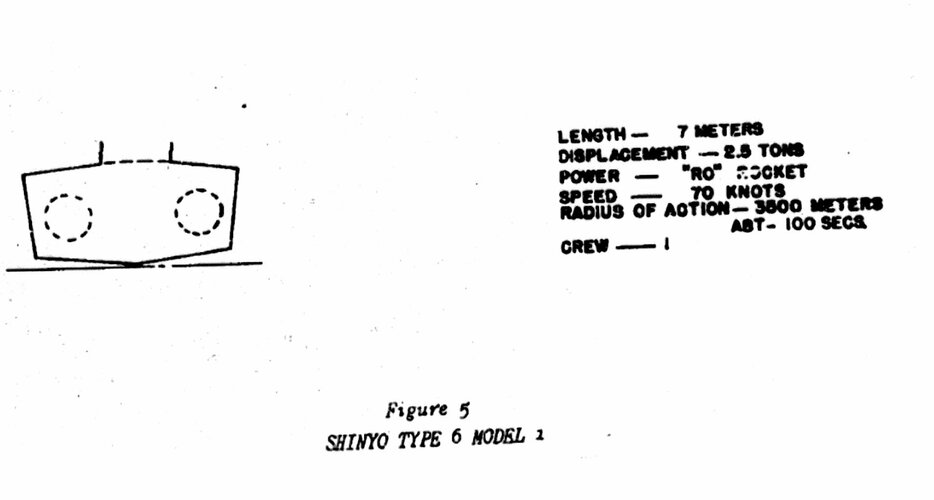

http://www.fischer-tropsch.org/primary_documents/gvt_reports/USNAVY/USNTMJ%20Reports/USNTMJ-200H-0555-0601%20Report%20S-02.pdf

Many greetings


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

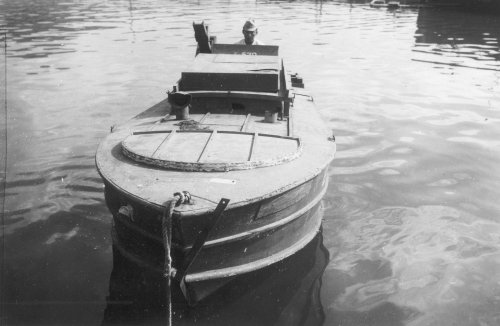

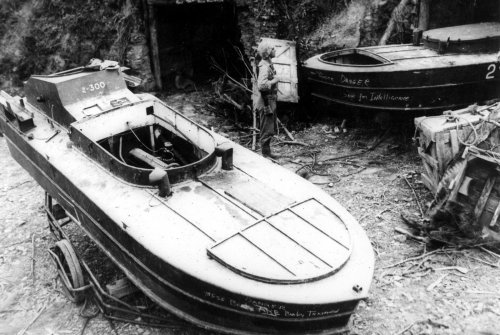

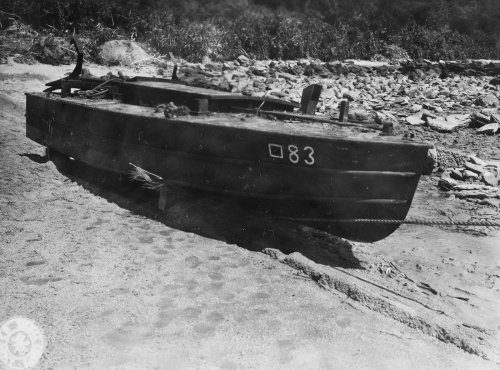

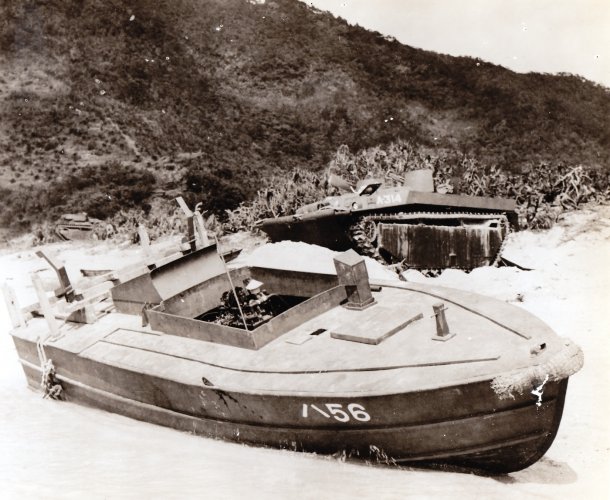

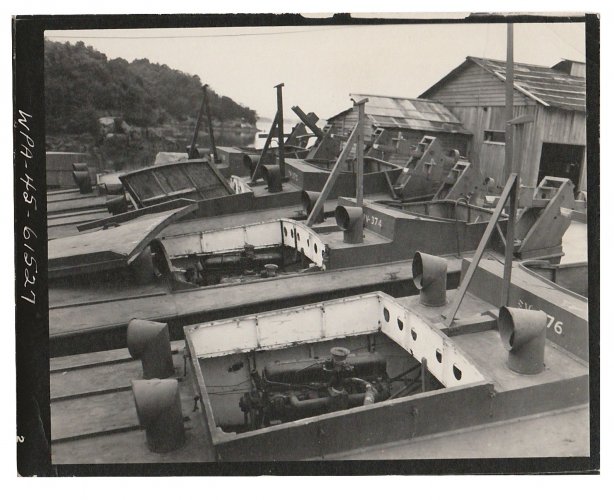

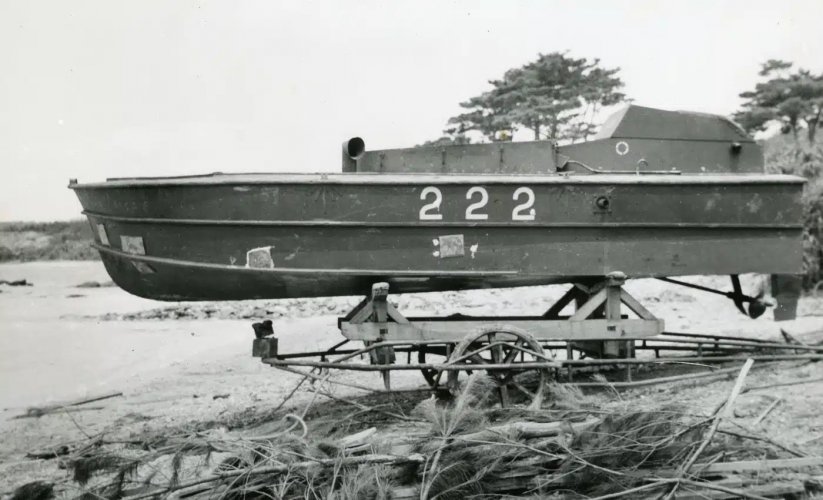

Good quality pic of captured boat


Attachments

  • suicboat.jpg
    494 KB · Views: 72

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

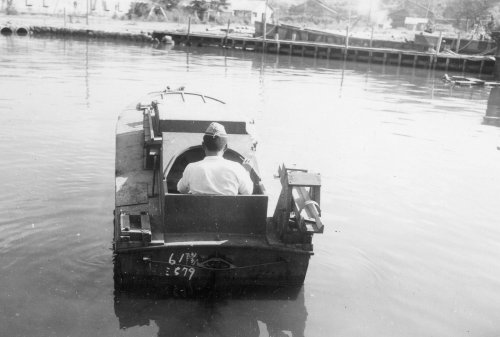

Additional photos


Attachments

  • suicboat04.jpg
    275.1 KB · Views: 45
  • suicboat03.jpg
    302.5 KB · Views: 48
  • suicboat02.jpg
    389.5 KB · Views: 51

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,807
Website
www.amazon.com

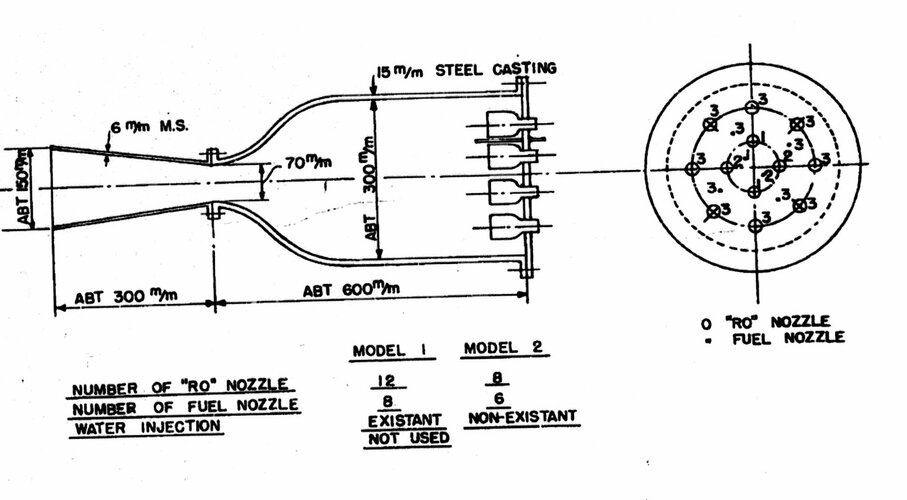

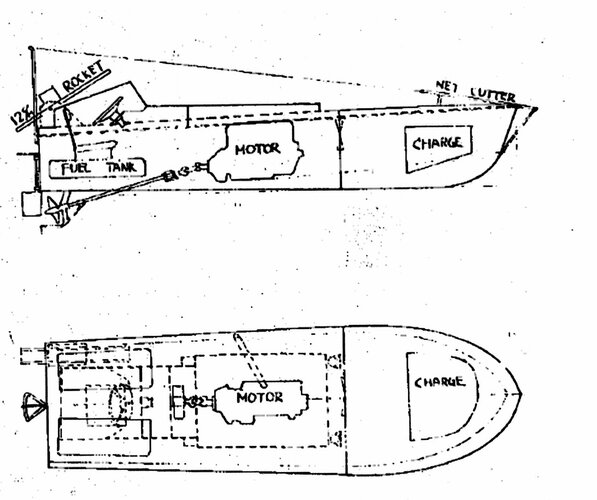

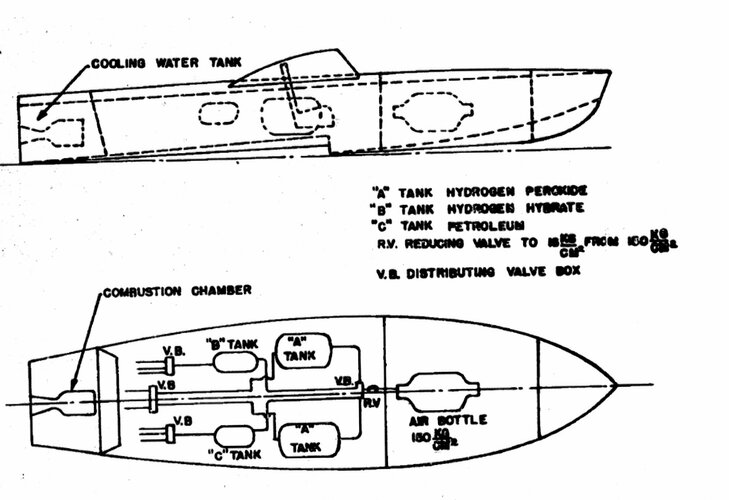

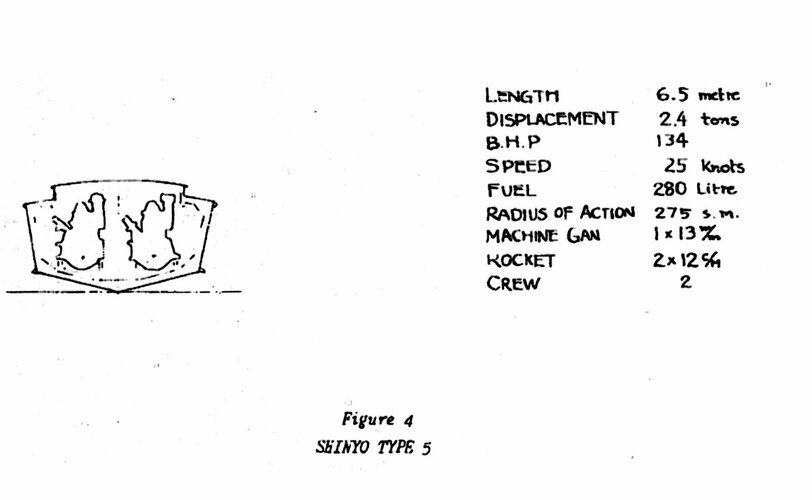

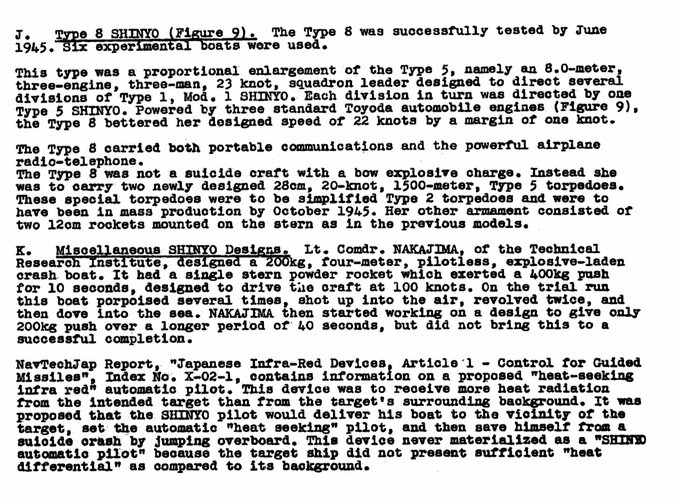

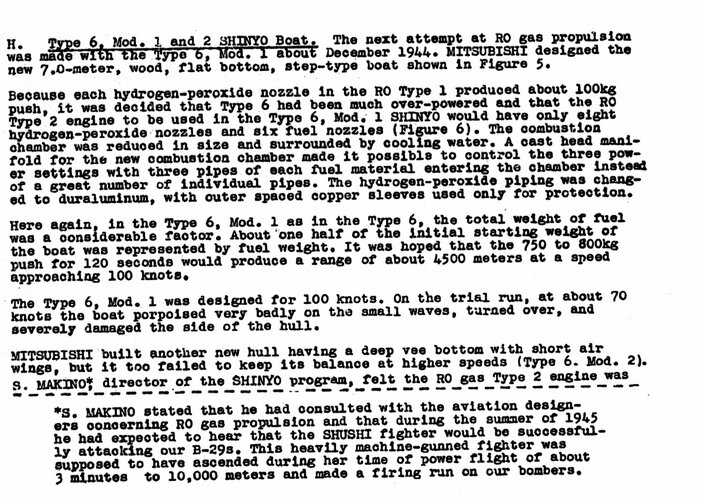

Additional info
Unknown source


Attachments

  • 427.jpg
    151.7 KB · Views: 20
  • 428.jpg
    169.1 KB · Views: 18
  • 429.jpg
    71 KB · Views: 18
  • 430.jpg
    191.6 KB · Views: 17
  • 431.jpg
    96.9 KB · Views: 16
  • 432.jpg
    381.9 KB · Views: 17
  • 433.jpg
    134.6 KB · Views: 18
  • 434.jpg
    70.8 KB · Views: 19
  • 435.jpg
    203.3 KB · Views: 21
  • 436.jpg
    94.7 KB · Views: 18

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,807
Website
www.amazon.com
Post-2


Attachments

  • 437.jpg
    220 KB · Views: 19
  • 438.jpg
    71.3 KB · Views: 16
  • 439.jpg
    520 KB · Views: 14
  • 440.jpg
    573.7 KB · Views: 17
  • 441.jpg
    179.8 KB · Views: 17
  • 442.jpg
    497.7 KB · Views: 16
  • 443.jpg
    595.8 KB · Views: 15
  • 444.jpg
    194.4 KB · Views: 17
  • 445.jpg
    88.6 KB · Views: 18

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,266
Reaction score
129
Website
zeef.com
i am very surprised that japanese Navy don't adopted same tattics of italians with the MTM ( "Barchino Esplosivo ").
