WW1 Torpedo and Demolition Boats

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
24
Hi everbody

I have found some ! Austro-Hungarian "(Hovercraft)" from 1915
It should be a torpedo boat or demolition boat with 1200kg warhead!
Here are a few good Websites that describe the system.

http://homepages.fh-giessen.de/~hg6339/data/ah/minor-crafts/1915_ah-gleitboot/tec_versuchsgleitboot-1.htm
http://homepages.fh-giessen.de/~hg6339/data/ah/minor-crafts/1915_ah-gleitboot/1916_cex_versuchsgleitboot.htm
http://www.doppeladler.com/kuk/gleitboot.htm

www.fhs-austria.com/images/pix/oem2.pdf
(Versuchsgleitboot and Schnellboot Szombathy and others)

I have heard of a "LM-Funklenkboot"
Controlled from airships! And from Seaplanes! It should be a demolition boat!
Are there more informations? What about some Pictures ?

Many greetings


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

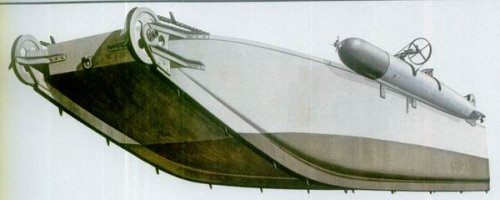

Your post reminded me of a series of paperbacks ublished in the '70sby Heyne
publishing. in one of them ("Kriegsschiffe 1914 - 18)") an italian motor torpedo boat
was shown, which was in fact a hybrid between a boat and a track-laying vehicle and
should have been able to climb over torpedo nets. It was intended to attack the austrian
fleet at their main base at Pola.


Attachments

  • Grillo.JPG
    21.9 KB · Views: 125

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
24
LM-Boats, austrian copy of the GRILLO and many others !
http://www.hicon.pl/~pothkan/hhwn/AH-Min.html

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
24
Hi everbody

Fernlenkboote in Action
http://www.seeflieger.de/frame/Vortrag06.08.2007/Die%20Geschichte%20der%20deutschen%20Seeflieger%20--%20Vortragstext%20v%20%2006%2008%202007.pdf
Page 7

Many greetings


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
24
Another Page about the "Vesuchsgleitboot"
http://www.hrvatski-vojnik.hr/hrvatski-vojnik/722001/gliser.asp


ptdockyard

I really should change my personal text
Joined
Jan 19, 2014
Messages
42
Reaction score
34
If you like these, you'll love this site! This covers ALL the projected Austro Hungarian boat projects.

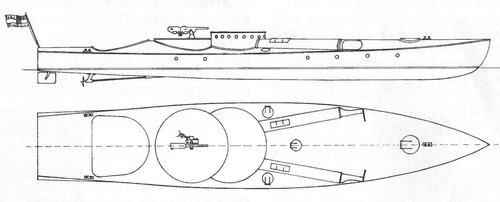

Dave G AH Panzerbootea.jpg


Iron Felix

ACCESS: Secret
Joined
Jun 30, 2019
Messages
288
Reaction score
620

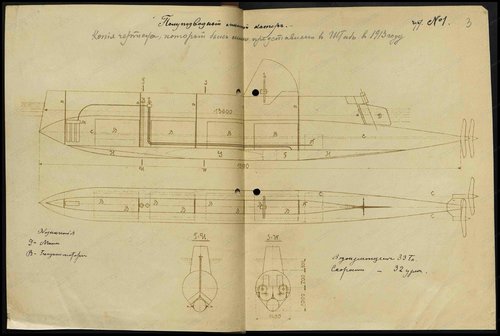

Projects of "semi-underwater torpedo boats":
33 t, 32 knots
00000010 Boat.jpg

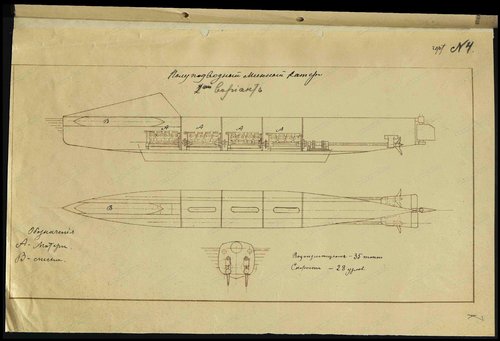

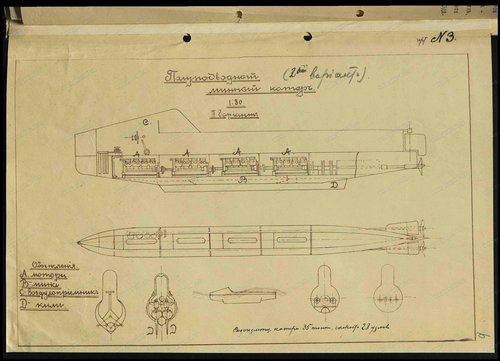

Two variants in 35 t, 28 knots:
00000014 Boat.jpg
00000015 Boat.jpg
...

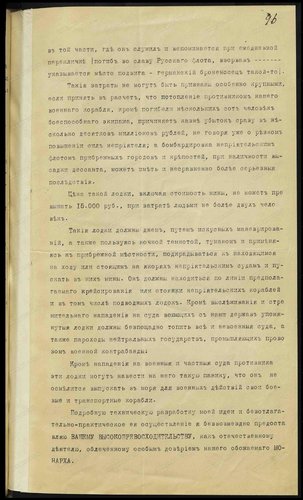

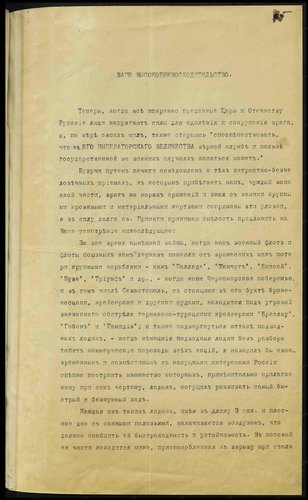

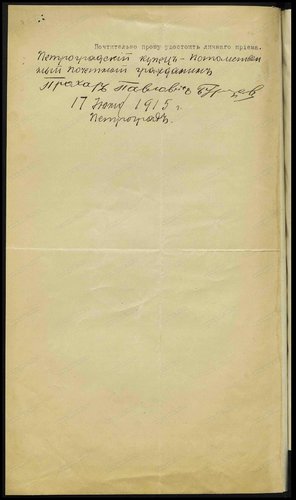

And, data about other project, engineer Gusev, 17 december 1914
Speed - 78 versta per hour with 50 HP automobile type engine, possible, upgrade to 110 versta per hour. One versta per hour = 1.066,8 kmph, 78 versta per hour = 78.52 kmph or 42.4 knots, 110 versta per hour = 110.7 kmph or 59.8 knots. Empty weight, without crews, weapons, fuel and oil - 20 pood, or 327.6 kg. Full diceplacement 94 pood, or 1539.72 kg. Biggest draft in river - 2.5 foot, or 0.762 m. Silhoutte height - 6-7 foot, or 1,83-2.134 m. Sound suppression, water exhaust outlet. Boat covered with scales, bullet proof protection. "My boat more effective and reliable, than seaplane. Range - a hundred times bigger". Suggest use for raids to Istanbul and other Turkish towns, raids to Budapest, etc.
...
Bonus - projects of canals:

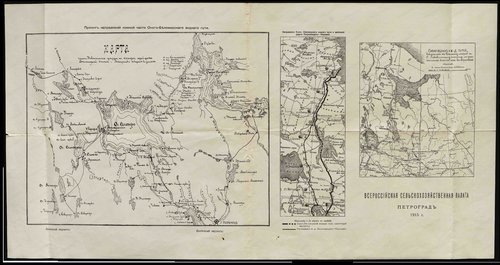

From Onega Lake to White Sea (for light ships, "Novik" type destroyers, etc.):
00000011 OWS.jpg

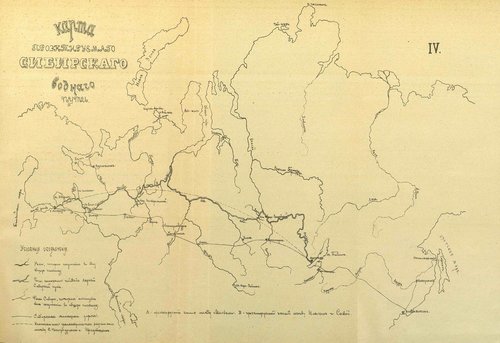

"Siberian waterway" (from Baltic Sea to Pacific Ocean, for big ships)
Also, worked at projects of canals:
- From Black Sea to Baltic Sea
- From Black Sea or Azov Sea to Caspian Sea
After victory in WW was planned to obtain territories in the Mediterranean Sea and in Persian gulf, and, than was an idea about the canal from Persian Gulf and Caspian Sea
And, for Russian empire, idea of long-range small-size special boats was very revelant.

Last edited:

Iron Felix

ACCESS: Secret
Joined
Jun 30, 2019
Messages
288
Reaction score
620

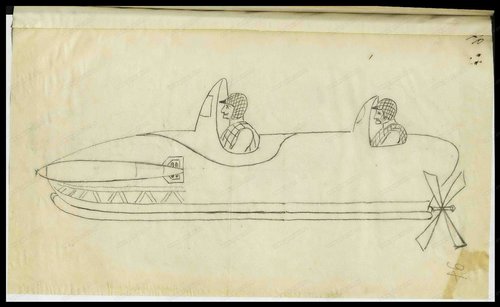

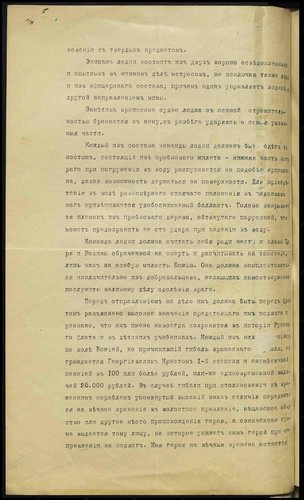

"Hydriada", Gusev, 1915
48-51.5 knots or 85-90 versta per hour (90.7-96 kmph) with 50 HP engine, or, with 80 HP - over 100 versta per hour (106.7 kmph or 57.6 knots), fuel on 30 hour with 50 HP engine - over 2000 versta (2134 km) (maximum range, in my calculations, 2880 km). Light bulletproof armour. Use of sail is possible Weapons - "according to tasks", if built a increased variant - standart naval torpedo. Full weight ~ 30 pood (491.4 kg).
And, idea about "Naval cavalry"...


Attachments

  • 00000283.jpg
    2.3 MB · Views: 30
