Shin Meiwa “GS”

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
920
Website
deeptowild.blogspot.com

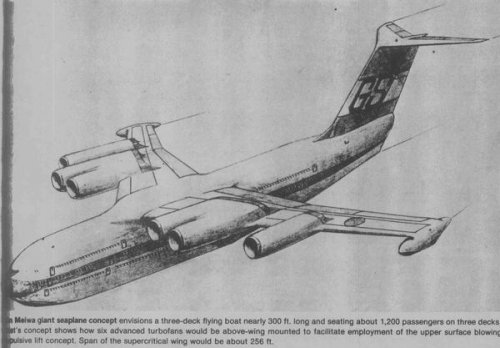

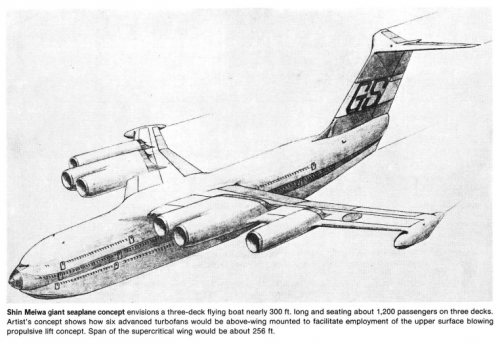

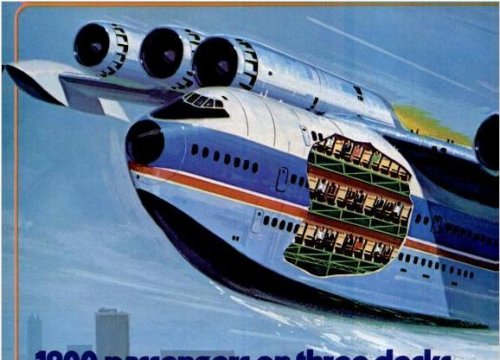

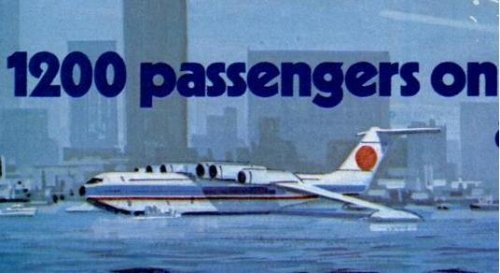

Shin Meiwa, now ShinMaywa, “GS” (for Giant Seaplane) from 1977. The GS was an amphibian airliner designed to carry 1,200-passengers on three decks. 344 passengers on its upper deck, 626 on the main deck, and 230 on the lower deck. Payload was estimated at 120 tons.

Designed for transoceanic service, the GS had a range of 3,500 nm. Cruising speed would be 486 knots at an altitude of 37,000 feet. The plane would take off in 3,800 feet at 92 knots and land in 1903 feet at 102 knots. The aircraft was designed to operate in Sea State 3 (maximum wave height at 5 feet).

Six advanced, high-bypass ratio turbofans of about 77,000 pounds of thrust would be needed to power this mammoth flying boat. For enhanced STOL capability, the engines would exhaust air over the wing's upper surface in a propulsive lift concept similar to the Boeing YF-15. To that end, engines would be mounted above and forward of the supercritical wing. An advantage of this arrangement is that the engines are out of spray range and thus safe from flameout due to excessive water ingestion.

Advanced turbofans, improved hull and supercritical wing designs, composite materials for weight savings and salt-water corrosion resistance, and water evacuation systems required by the GS were expected to take about six years to achieve.

Purchase price was expected to be $60 million in 1977 dollars.

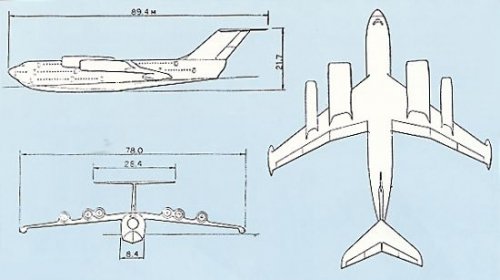

General Characteristics

Length: 293.9 feet
Wingspan: 255.9 feet
Height: 71.3 feet
Width: 27.6 feet
Weight: 1.04 million pounds


http://www.flug-revue.rotor.com/frheft7x/FRHeft77/FRH7710/FR7710d.htm
http://books.google.co.uk/books?id=suIDAAAAMBAJ&pg=PA84&dq=popular+mechanics+shin+meiwa&lr=&as_brr=3#v=onepage&q=&f=false


Attachments

  • FR7710d1.JPG
    23.8 KB · Views: 1,479
  • tumblr_kpo5jgC6iP1qzsgg9o1_500.jpg
    112.4 KB · Views: 1,268

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,319
Reaction score
1,403

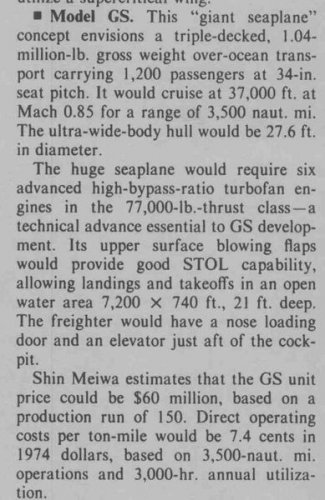

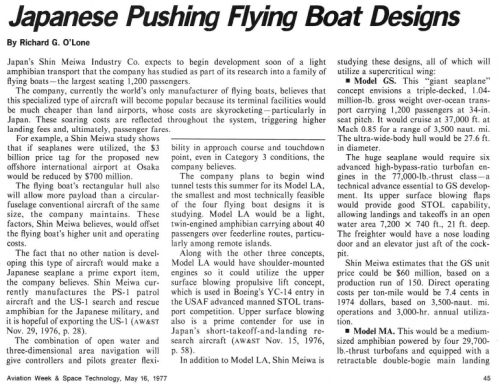

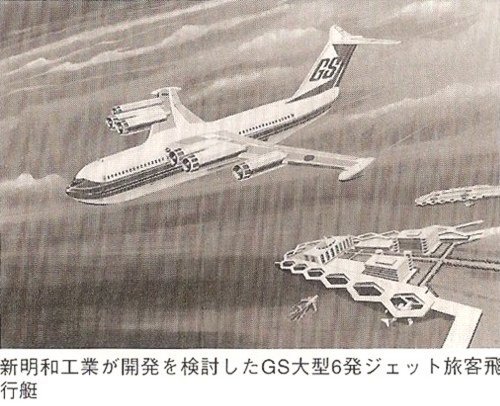

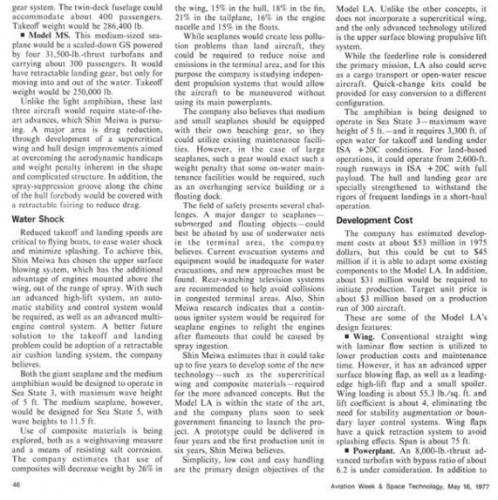

Mentioned in AviationWeek May, 1977, too :


Attachments

  • Shin_Meiwa_GS_01.jpg
    38.9 KB · Views: 1,167
  • Shin_Meiwa_GS_02.jpg
    53.3 KB · Views: 1,107

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,156
Reaction score
5,690
Hi,

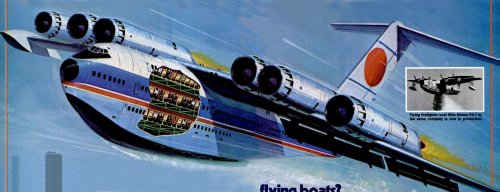

http://books.google.com/books?id=suIDAAAAMBAJ&pg=PA84&dq=JET+SEAPLANE&hl=ar&ei=_k8fTKeEPcKH4gbz-7GiDg&sa=X&oi=book_result&ct=result&resnum=24&ved=0CKABEOgBMBc#v=onepage&q=JET%20SEAPLANE&f=true


Attachments

  • 1.JPG
    45.2 KB · Views: 1,101
  • 2.JPG
    54.2 KB · Views: 223
  • 3.JPG
    25.9 KB · Views: 231

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,060
Reaction score
5,671
There's been a revival of interest in the concept of giant jet powered seaplanes (for the most part, for the carriage of cargo) in the last 12yrs or so.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767

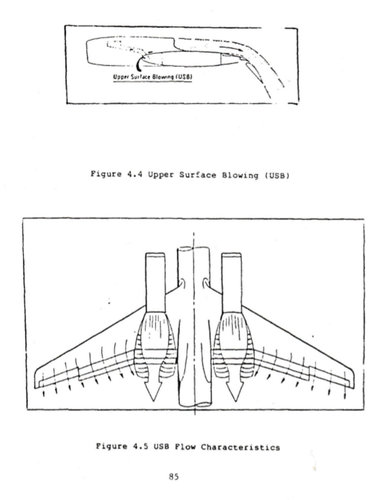

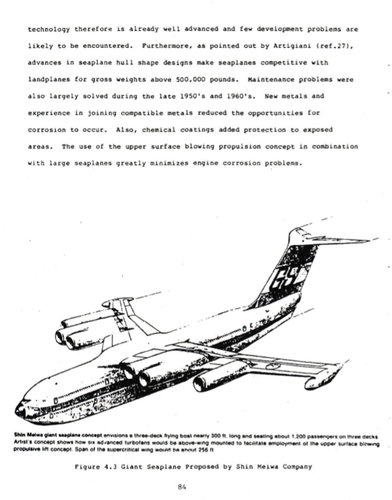

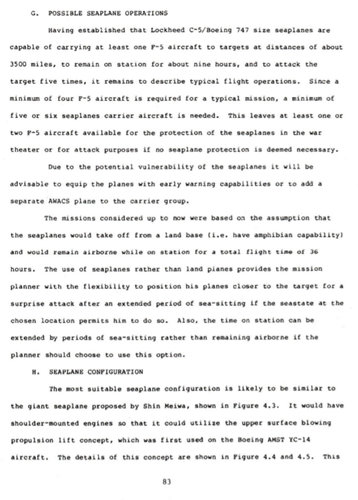

The Shin Meiwa GS as seen in a thesis called THE USE OF SEAPLANES AS AN ADVANCED WEAPON SYSTEM, by Algeu Kreniski, September 1988:

http://www.dtic.mil/dtic/tr/fulltext/u2/a206243.pdf


Attachments

  • GS.gif
    56.6 KB · Views: 164

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
I can't find any information about this surprising giant flying boat project in Japanese sources. :-[


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971

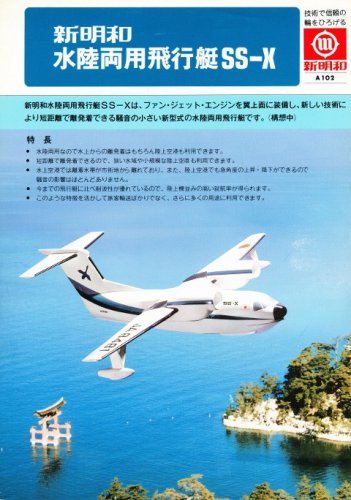

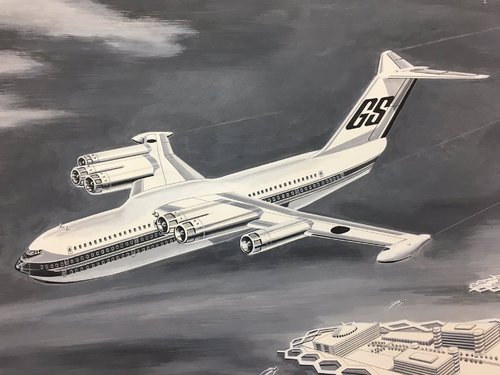

Hi! Shinmaywa GS and SS-X.


Attachments

  • SHINMAYWA GS FLYING BOAT.jpg
    SHINMAYWA GS FLYING BOAT.jpg
    536.1 KB · Views: 170

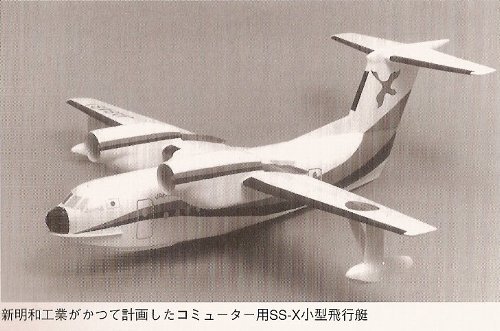

  • SS-X.jpg
    41.9 KB · Views: 186
  • SS-X (2).jpg
    SS-X (2).jpg
    129.3 KB · Views: 163
  • shinmeiwaprojectLAcoandaseaplane.jpg
    53.6 KB · Views: 159
  • Miyajima near Hiroshima.jpg
    Miyajima near Hiroshima.jpg
    120 KB · Views: 135

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
Hi my dear hesham! Please visit Hiroshima(広島) and Miyajima(宮島)(Itsukushima(厳島 : another name of Miyajima)).


Attachments

  • area-preview_1-2.jpg
    164.9 KB · Views: 107
  • Miyajima.jpg
    274 KB · Views: 107

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,156
Reaction score
5,690
Hi,


is there any drawing to Shin Meiwa " MS" ?.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,012
Reaction score
419

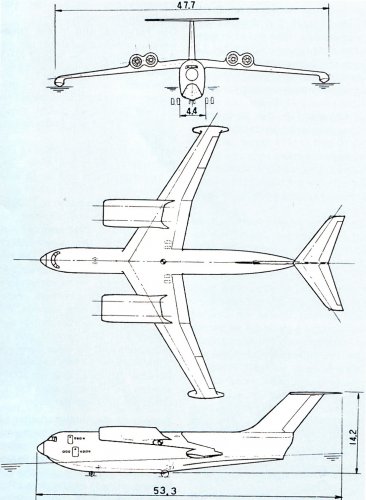

Sin Meiwa MS (Source: FlugRevue)


Attachments

  • Shin Meiwa MS-.jpg
    Shin Meiwa MS-.jpg
    475.2 KB · Views: 463

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971

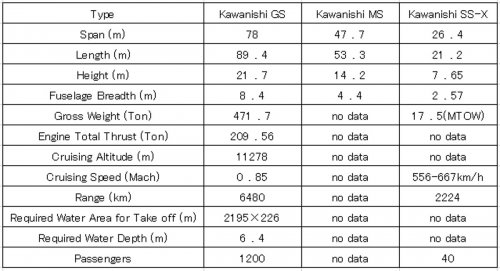

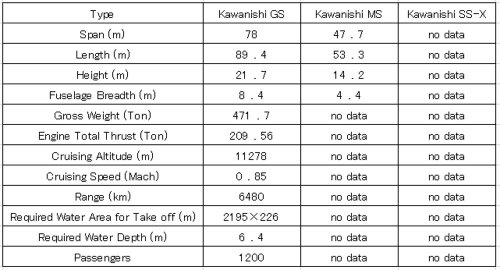

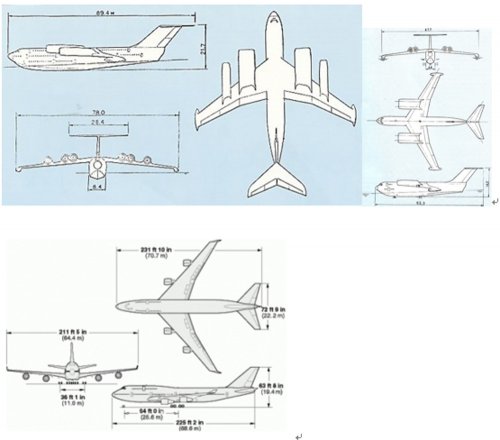

Wow! Thanks. GS, MS and SS-X. We had to find MS specification, SS-X specification and SS-X three side view drawing.


Attachments

  • Kawanishi_passenger_flying_boat_data.jpg
    99 KB · Views: 438

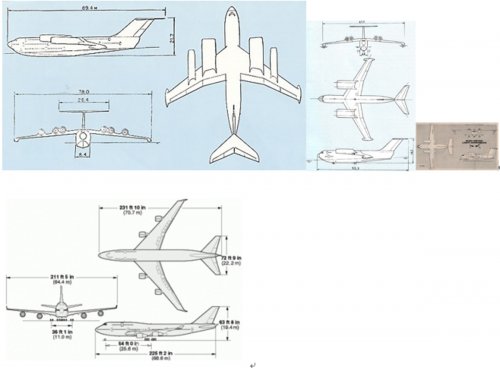

  • Almost same scale.jpg
    Almost same scale.jpg
    100.6 KB · Views: 433

weirc

ACCESS: Confidential
Senior Member
Joined
Jan 15, 2008
Messages
61
Reaction score
8
Please see attached for SS-X specifications.


Colin


Attachments

  • SS-X.png
    1.2 MB · Views: 400

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
Wow! Thanks a lot.
http://wpedia.goo.ne.jp/enwiki/ShinMaywa

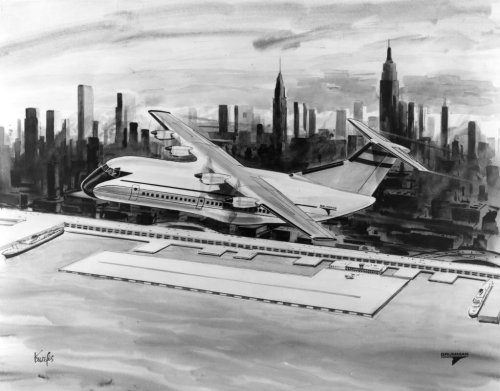

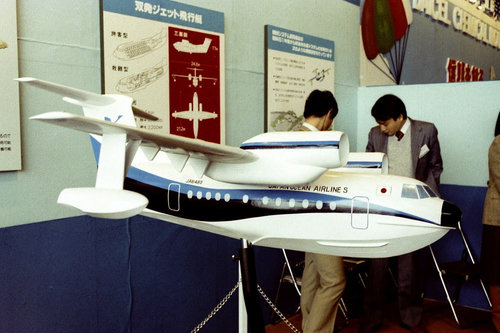

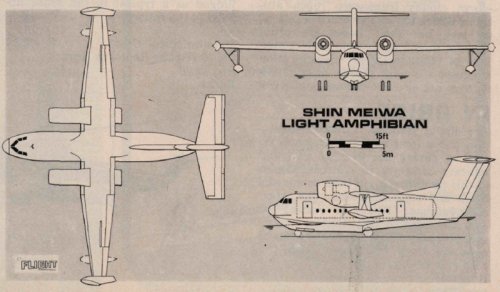

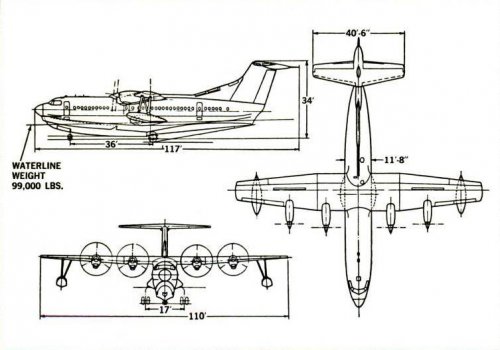

In 1977 Shin Meiwa had several ideas for it's STOL flying boat concept on the drawing board but none were ever built. They were the Shin Meiwa LA (Light Amphibian), a 40 passenger light amphibian for inter-island feeder service; the 400 passenger Shin Meiwa MA (Medium Amphibian); the Shin Meiwa MS (Medium Seaplane) a 300 passenger long range flying boat with its own beaching gear; and the gargantuan Shin Meiwa GS (Giant Seaplane) that has a passenger capacity of an astonishing twelve-hundred (1200) passangers seated on three decks! Unlike the Shin Meiwa LA and MA which were like the US-1 in design the Shin Meiwa MS and GS had it engines located in front of and above the wing like the USAF Boeing YC-14 to give STOL effect. In the end, none of the four designs got beyond the drawing boards.[1] Recently however, there has been a revival of interest in the GS concept.

Also during the late '70s, Shin Meiwa were working on a successor for the PS-1 ASW seaplane, however the program, along with further orders for the PS-1, was cancelled in September 1980. This was because land based aircraft (i.e. P-3C) seemed to had alleviated the need for more seaplanes for Anti-Submarine Warfare.

There were at least two PS-1 spin-offs. These (landplane) designs were Design #487 and Design #487C, part of a joint program of the 1970s with Grumman. Design #487 was aimed at a US Military STOL transport requirement, while Design #487C was a 90 seat commercial STOL airliner version aimed in particular at American Airlines.


LA wing tip shape looks like H7Y1's one?

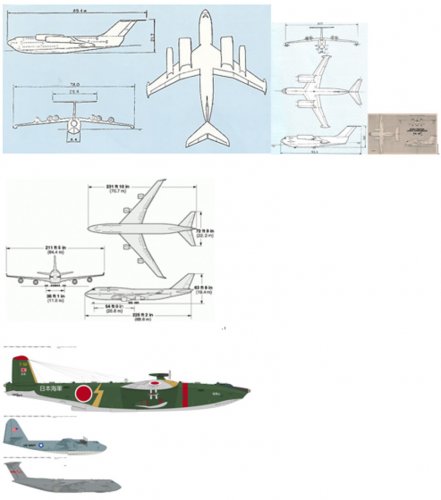

According to MS 3-side view drawing, it's very hard to acommodate 300 passengers.


Attachments

  • grum2261STOL100passengeramphibian19.jpg
    103.2 KB · Views: 130
  • Kawanishi passenger flying boat data.jpg
    Kawanishi passenger flying boat data.jpg
    121.9 KB · Views: 128
  • SS-X FLYING BOAT.jpg
    SS-X FLYING BOAT.jpg
    94.3 KB · Views: 172
  • Almost same scale mod 1.jpg
    Almost same scale mod 1.jpg
    110.9 KB · Views: 338

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
Hi GS!
Any one please combine these drawings.

Edit: Done by Silencer1, parts removed here therefore


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
So our next question is "what is MA?"

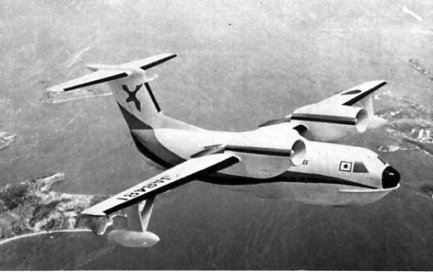

This one? Too small? 400 passengers is mistake?

http://www.secretprojects.co.uk/forum/index.php/topic,8242.msg72910.html#msg72910


Attachments

  • ShinMeweiPS1Airliner.JPG
    47.8 KB · Views: 148

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
658
Reaction score
183
Hi blackkite!

blackkite said:
Any one please combine these drawings.


Enjoy! ;)


Attachments

  • GS Shin Meiwa.jpg
    GS Shin Meiwa.jpg
    570.5 KB · Views: 179

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
Oh!!! Thanks. Perfect. :D


Attachments

  • Almost same scale mod 2.jpg
    Almost same scale mod 2.jpg
    76 KB · Views: 221

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
658
Reaction score
183
blackkite said:
Oh!!! Thanks. Perfect. :D


You are welcome!


Studying the comparison chart of Shin Meiwa projects, that you prepared, I wonder - what is the green giant hydroplane in the middle?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971

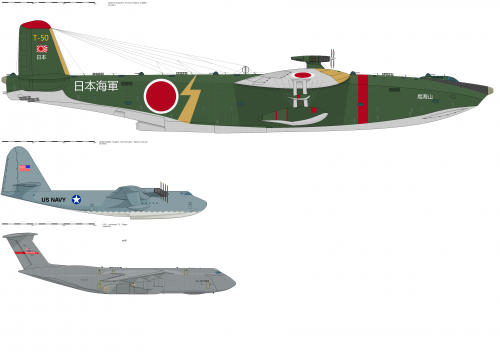

Hi!


Attachments

  • scale comparsion.png
    scale comparsion.png
    50.2 KB · Views: 165

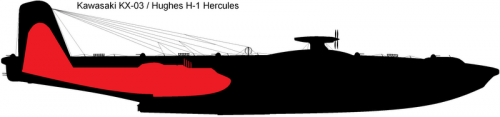

  • kawanishi_kx_03_hughes_hercules_comparison_by_scooternjng-d86d0ky.png
    257.2 KB · Views: 171

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971
royabulgaf said:
I did a bit of cypherin' based on the B-36 wingspan vs the KX-3. The wingspan is about 2.5 times the B-36s. Cubing this, I get a KX-3 volume of 16.625 times that of the B-36. Assuming similar construction methods and a B-36 gross weight of 130 tons, I get a weight of over 2000 tons. This is somewhat generous, as due to the square-cube law, construction would have to be sturdier. With a wing area of 443 sq meters, you get about .3 tons per square meter of wing loading. The KX-3 wing loading would be about six times as much. Am I missing something?

There is a sharp opinion about this 500ton flying boat like this.
Kawanishi GS's gross weight is 472ton.
Sorry for off topic.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,597
Reaction score
439
Is this topic appropriate for some advertisements of Shin Meiwa company?
I could post some stuff here, which could be subject of interest to forum members.

I'd love to see it


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
658
Reaction score
183
Here they are:

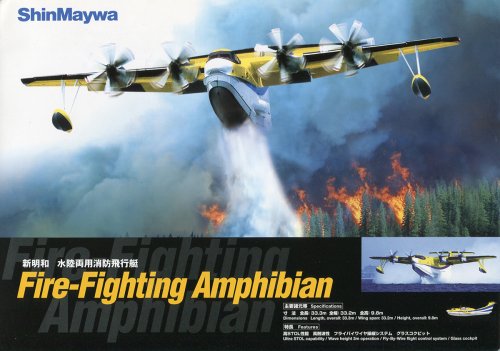

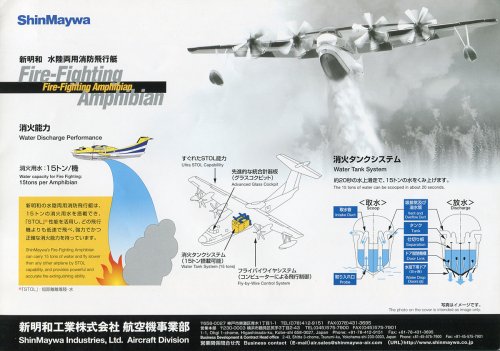

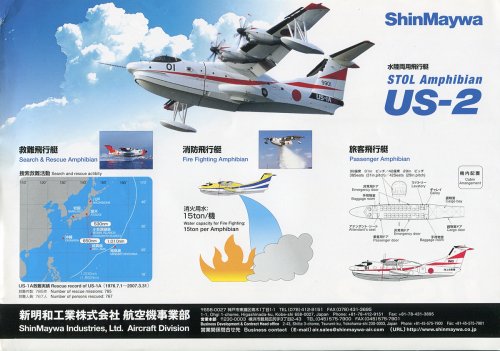

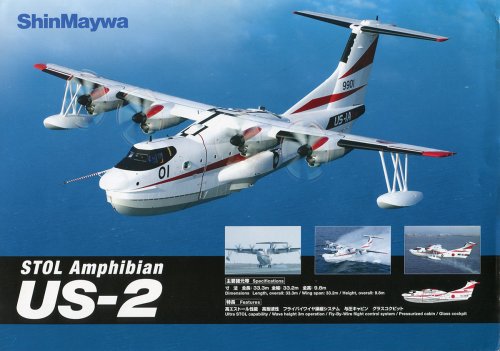

Two leaflets - on US-2 search-resque amphibian and it's planned (on the moment of publication) fire-fighting version.
I didn't find any date on this booklet thought


I'm very impressed with the fact, that in our time large flying boats have been extensively used for life saving, sea rescue and fire fighting operations, then for military purposes.
Canadair, Shin Meiwa and Beriev boats have been a good example of this.


Attachments

  • ShinMaywa US-2 1.jpg
    ShinMaywa US-2 1.jpg
    652.1 KB · Views: 243
  • ShinMaywa US-2 2.jpg
    ShinMaywa US-2 2.jpg
    651.4 KB · Views: 216
  • ShinMaywa Fire-fighting 1.jpg
    ShinMaywa Fire-fighting 1.jpg
    652.6 KB · Views: 190
  • ShinMaywa Fire-fighting 2.jpg
    ShinMaywa Fire-fighting 2.jpg
    637.1 KB · Views: 186

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,982
Reaction score
3,971

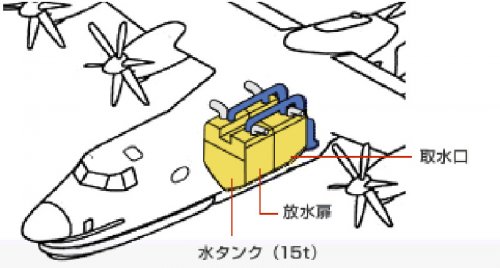

Yes US-2 already saved many people under very bad weather. I also believe that US-2 water bomber and passenger transport type are very useful,too.

水タンク : water tank

https://www.youtube.com/watch?v=jUHQ31JPcss

https://www.youtube.com/watch?v=CWYaCDhlNyk


Attachments

  • water bomber.jpg
    water bomber.jpg
    70.2 KB · Views: 194

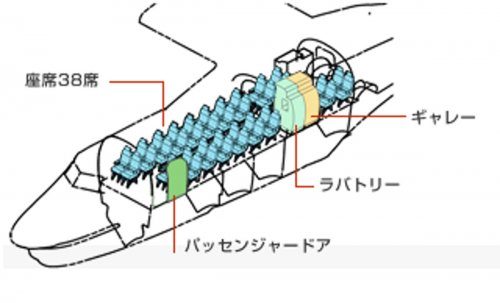

  • 38 seats passenger transport type.jpg
    38 seats passenger transport type.jpg
    83 KB · Views: 261

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
658
Reaction score
183

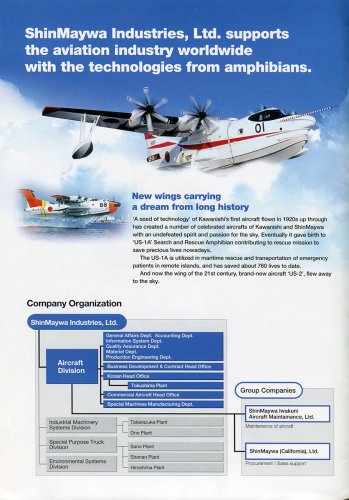

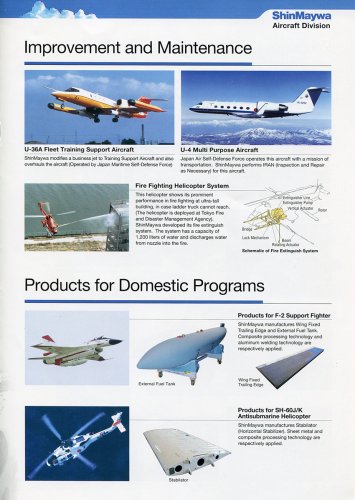

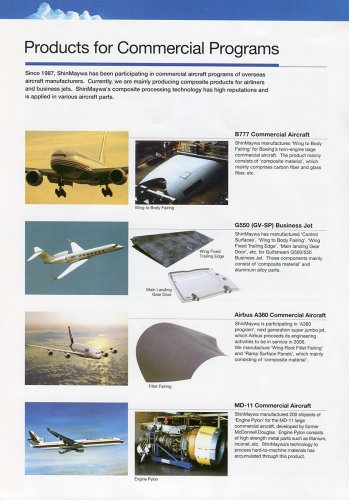

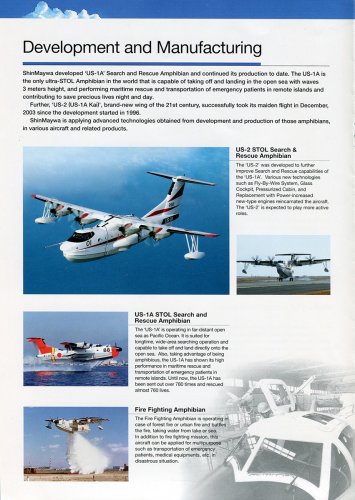

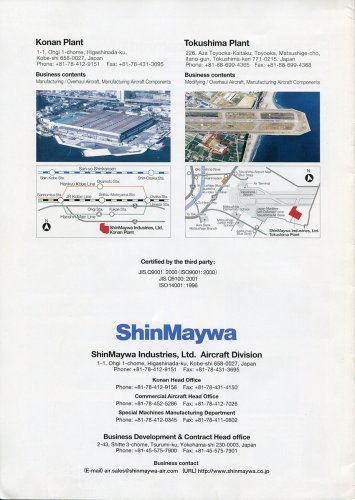

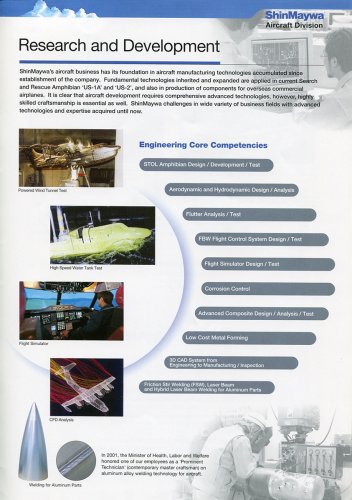

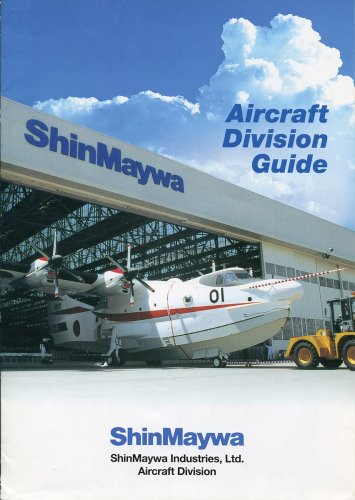

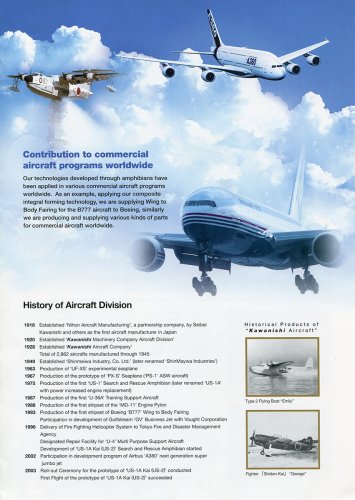

ShinMaywa Industries Ltd. Aircraft Division


'Aircraft Division Guide"
8 page booklet, date of publication about 2000-2010


Actually, these information, in the current state, could be found on the company's web-site:
http://www.shinmaywa.co.jp/aircraft/english/


There were a lot of videos, photos - and a story of company predecessor, Kawanishi.


Attachments

  • ShinMaywa company 8.jpg
    ShinMaywa company 8.jpg
    565.1 KB · Views: 73
  • ShinMaywa company 7.jpg
    ShinMaywa company 7.jpg
    648 KB · Views: 68
  • ShinMaywa company 6.jpg
    ShinMaywa company 6.jpg
    611.3 KB · Views: 70
  • ShinMaywa company 5.jpg
    ShinMaywa company 5.jpg
    629.7 KB · Views: 77
  • ShinMaywa company 4.jpg
    ShinMaywa company 4.jpg
    679.5 KB · Views: 70
  • ShinMaywa company 3.jpg
    ShinMaywa company 3.jpg
    655.4 KB · Views: 167
  • ShinMaywa company 2.jpg
    ShinMaywa company 2.jpg
    662.5 KB · Views: 182
  • ShinMaywa company 1.jpg
    ShinMaywa company 1.jpg
    685.3 KB · Views: 198

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,156
Reaction score
5,690
Hi,

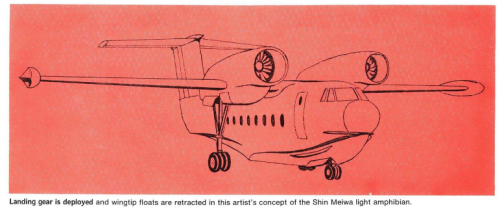

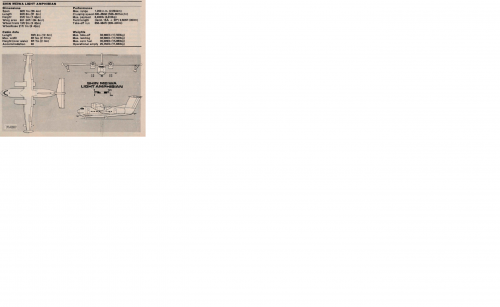

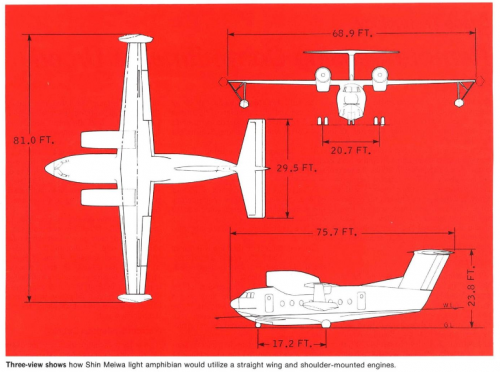

here is a more Info about LA,MA & MS.

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=japanese+stol&start=40&rows=20&DocType=Article&Sort=&SortOrder=&startdate=1916-08-01&enddate=2018-11-12&LastViewIssueKey=&LastViewPage=


Attachments

  • 4.png
    347.2 KB · Views: 128
  • 3.png
    547.9 KB · Views: 118
  • 2.png
    509.9 KB · Views: 101
  • 1-1.png
    311.1 KB · Views: 81
  • 1.png
    341.1 KB · Views: 80

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
381
Reaction score
692
Unfortunately I am unable to currently scan an article regarding the Shin Meiwa LA which was published in the Airdata File section of Air International. This was in the November 1977 issue and mentions that a possible collaboration with Dornier could have been on the cards. This was to counter any clash with Dornier's own projects at that time, such as the DO 24/72A. It also mentions within the article that Shin Meiwa were looking at the possibility of utilising the fuselage of a Fokker F.27, presumable to speed up the development process and adding the necessary hull for waterborne operations. Power was to come from two turbofan engines producing around 8,000 lbs (3632 kg) of thrust with possible candidates being either the GE CF34 or the Hamilton Standard/NASA QFT55 which was a derivative of the Lycoming T55 turboshaft (which itself did spawn a turbofan engine in the shape of the ALF 502) , as fitted to the CH-47 et al. The QFT55 was to be a quiet fan demonstrator.

Last edited:

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,486
Reaction score
933
Mainland China would love to have Shin - M. GS to service “their” islands in the South China Sea.
