Hi all,

at Air Enthusiast I read a article about Fokker paper projects. In this article are the Koolhoven project 1164 and 1167, both heavy fighter aircraft. Of the former, only one three-view drawing remains and from the second only a fuselage drawing and technical data remains. Anybody of you have this informations ???
There was also the de Schelde S.19, a heavy fighter project based on the Pander Postjager. Photos are known to exist of a model!
Can anybody help ???

THANKS for your post ::) :eek:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Dear Maveric,

I spoke before about the Koolhoven 1164 and 1167 and
they were twin engined four seat bombers,and they
based on FK.59.
For the S-19,I just heard that it was twin boom fighter,
nothing more.


Attachments

  • FK.59.jpg
    50.7 KB · Views: 1,678

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
a bit of correction...

The Koolhoven 1164 and 1167 were projects for
a so-called 'Jachtkruiser ' (pursuit cruiser or fighter cruiser).

The basics of for these two jachtkruiser designs of 1938-39 can be found
in the Koolhoven FK 50B , military variant of the FK 50.

The FK 59 was a two engined torpedobomber floatplane.

sources :" Koolhoven ,Nederlands vliegtuigbouwer in de schaduw van Fokker"
( " Dutch aircraft builder in Fokker's shadow)
Theo Wesselinck-Thijs Postma .Uniboek . Bussum 1981

" Avia " - July 1980 page 307


The military variant of the Pander 'Postjager' was the Pander S.4 'Militair'
a planned medium bomber or long range reconnaissence aircraft.

source :pander S.4 'Postjager' , Hugo Hooftman.Cockpit uitgeverij.Bennekom 1977.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499

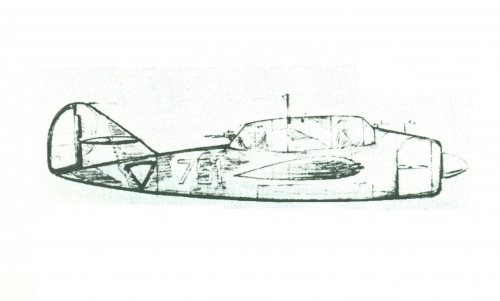

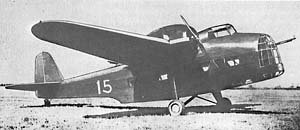

An impression of the Koolhoven FK50B. The original (a retouched FK50?) can be seen here: http://www.alexdenouden.nl/artikelen/koolhoven06.htm (about half way down page)

The same site says that the "FK-59 was designed for the Portugese Naval Air Service. It was to be a torpedo bomber. The design was finished in 1937. A mock-up was made, but in the end, the Portugese preferred a Heinkel design".

News to me. I'd always assumed that the FK59 was a rival for the Fokker T.VIII.


Attachments

  • fk-50b.jpg
    15.3 KB · Views: 1,606

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499
Maveric,

See Hesham's De Schelde bomber aircraft post for what is probably your S.19 luchtkruiser.

http://www.secretprojects.co.uk/forum/index.php/topic,5276.0.html


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
Correct, this pictures of the F.K.50B was original a F.K.50
The F.K.50B project was designed for Spain and not for Portugal.
The F.K.50B had a retractable landing gear.
As you maybe know or not know, Koolhoven has delivered two versions of the F.K.51 to Spain.
Spain ordered also the F.K.52 (two-seat fighter), but they were to late becaus the war was ended.
This was alos the raison that the F.K.50B project was stopt.
Jan


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
F.K.59
That Portugal was interrested in the F.K.59 is a story and not correct.
It was Norway because they found the Fokker VII-W fuselage to small and they had already free for licence.
Buth the F.K.59 was not yet build and the Heinkel had flown so Norway bought the Heinkel floatplane.
If Norway had bought the F.K.59 there was a chnage that Sweden bought it also
Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,


F.K.59 (second use) was single engine two seat recce and fighter biplane
developed from F.K.52 for LVA,project only.


Hawker Nut

ACCESS: Restricted
Joined
Nov 14, 2008
Messages
37
Reaction score
4
Hi,
Jan is right. The Portuguese Naval Air Arm has indeed shown some interest in a Dutch aircraft, but it was the Fokker T.VIII, but eventually internal strife between services and more generous funding accorded to the an ambitious Army procurement program ended it.

HN


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
284
Reaction score
47
Concerning flying boats.
Koolhoven was always interrested in flyingboats, he says that for longrange transport the aeroplanes would be to big to start and land on land, he was not the only one at that time. (he should have seen the new airbus).
The first known flyingboat project is from his BAT period, but there are no details left.
As you maybe know was the factory (at airfield Waalhaven) hit during the first attack on May 10, 1940, and it was complete burned down. So the archive was also destroyed.
But strange he never build one.
Jan


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

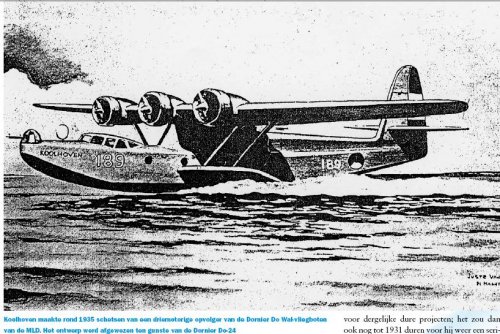

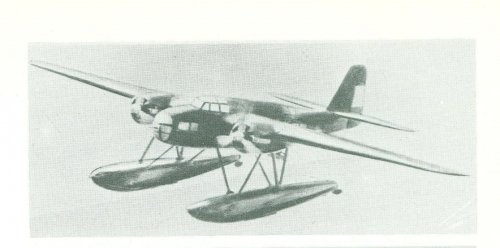

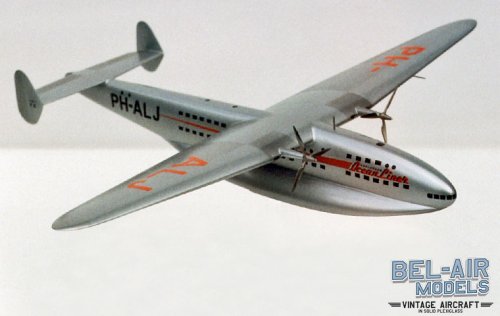

also Koolhoven Project 1151,MLD and PH-AVB projects;


http://www.secretprojects.co.uk/forum/index.php/topic,8890.msg80188.html#msg80188


We must merge those topics.


And that is the translation for Project 1151 from the site;
http://www.verenigdevleugels.nl/pdf/VV-9e-No-5.pdf

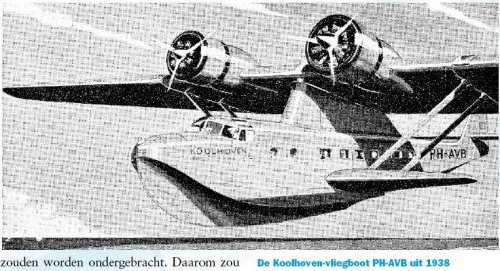

Appeared around 1937 under design number 1151 a small flying boat for six people (four passengers and two crew)with an aluminum hull and a- Possibly folding - wooden wing.The device had two short "sea wings" under to the hull with a retractable undercarriage into Sat The wing had two six-cylinder Menasco inline engines of 290 hp. The span would be 16 meters, length 12.5m and the wing area 35m ². the weight was 2950 kg, the maximum speed 265 km / h, the maximum 5300 meters altitude and the flight range 1000 km.This too was only a draft. There is also nothing is known.



Attachments

  • MLD.JPG
    149.5 KB · Views: 1,045
  • PH-AVB.JPG
    137.2 KB · Views: 1,017

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
hesham said:
Hi,


F.K.59 (second use) was single engine two seat recce and fighter biplane
developed from F.K.52 for LVA,project only.


Has anyone a drawing to this re-allocated F.K.59 ?.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Answer to Justo's questions:

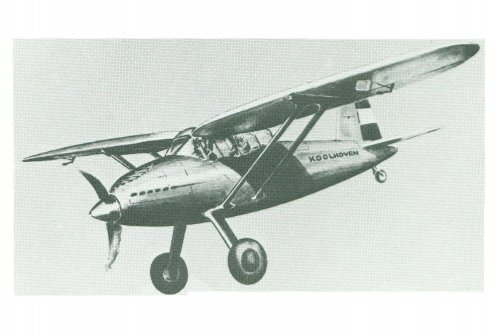

first two : above - modernised version of the FK 52 by ir. Van der Eyk-1938
below - Koolhoven ontwerp 1171

second : above - Carley design type unknown
below - Koolhoven ontwerp 1117

source : Koolhoven - Nederlandse vliegtuigbouwer in de schaduw van Fokker
( Dutch aircraft builder in Fokker's shade)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
lark said:
Answer to Justo's questions:

first two : above - modernised version of the FK 52 by ir. Van der Eyk-1938
below - Koolhoven ontwerp 1171

second : above - Carley design type unknown
below - Koolhoven ontwerp 1117

source : Koolhoven - Nederlandse vliegtuigbouwer in de schaduw van Fokker
( Dutch aircraft builder in Fokker's shade)


We know Carley reached C-12,what was this ?!.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
49
Website
cmeunier.chez-alice.fr
Dear Lark directed me to an interesting twin-boom project of the 1920s (or early 1930s): Koolhoven Design (Ontwerp) 1029, unbuilt fighter offered to Sweden without success:
http://www.nederlandseluchtvaart.nl/forums/f14-koolhoven/koolhoven-ontwerp-1029-a-19103/
translated: http://translate.google.fr/translate?sl=nl&tl=en&js=n&prev=_t&hl=fr&ie=UTF-8&layout=2&eotf=1&u=http%3A%2F%2Fwww.nederlandseluchtvaart.nl%2Fforums%2Ff14-koolhoven%2Fkoolhoven-ontwerp-1029-a-19103%2F


Attachments

  • r_Ontwerp1029C.jpg
    70.2 KB · Views: 649

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139

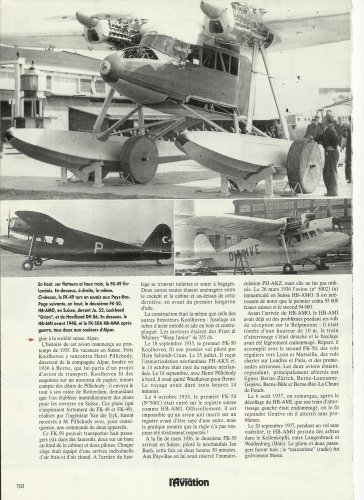

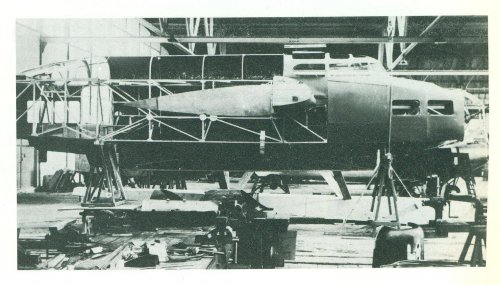

some more photos from
"le fana de l'aviation"


Attachments

  • Sans titre3333333333.jpg
    Sans titre3333333333.jpg
    518.1 KB · Views: 604

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139

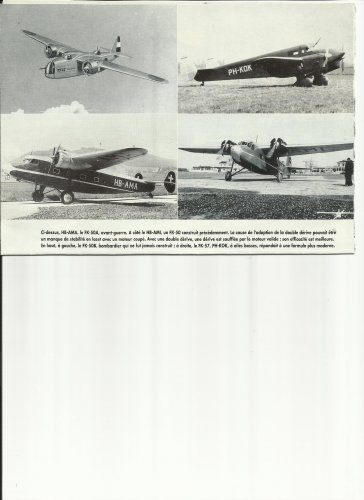

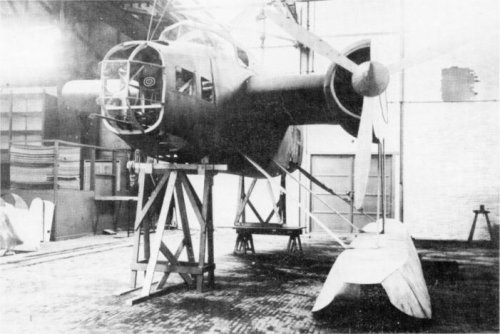

and other


Attachments

  • Sans titre1111111.jpg
    Sans titre1111111.jpg
    565.8 KB · Views: 514
  • Sans titre55555555.jpg
    Sans titre55555555.jpg
    1,012.9 KB · Views: 171

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
37
Slick design :). But why only two engines ? Or is it four engines in the wings and two propellers?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info

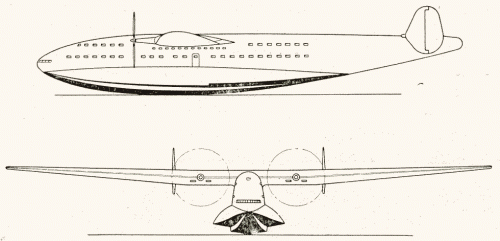

This post in an earlier thread mentions ten engines coupled to drive two large props for this 100-ton flying boat project.

http://www.secretprojects.co.uk/forum/index.php/topic,8890.msg80188.html#msg80188


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
Indeed, as I understand the article from "Verenigde Vleugels", September 2007, they would have been hydraulically
coupled, so probably engines could be connected or disconnected from the system quite easily.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

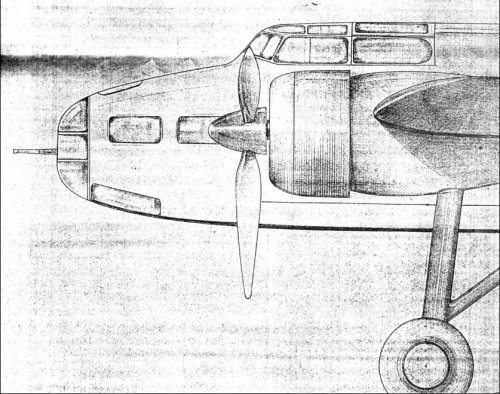

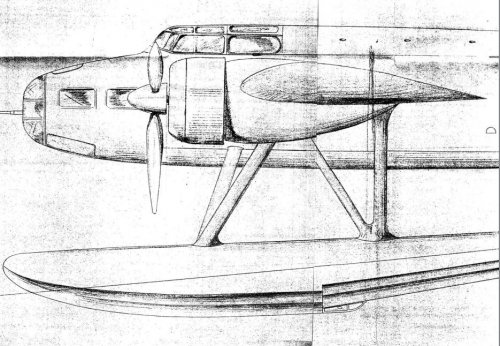

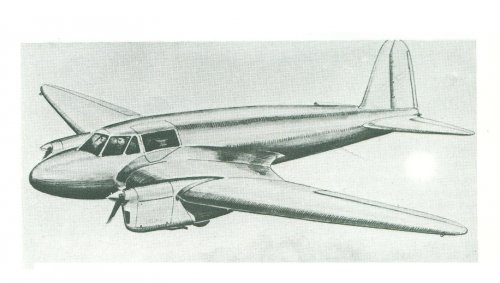

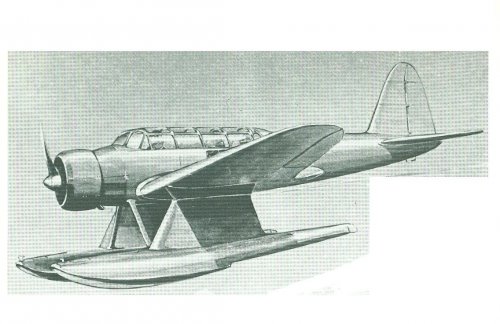

and here is the Koolhoven Ontwerp 1142A and 1142B bomber and a seaplane
bomber projects.


Attachments

  • Ontwerp 1142 A.jpg
    Ontwerp 1142 A.jpg
    152.4 KB · Views: 74
  • Ontwerp 1142 B.jpg
    Ontwerp 1142 B.jpg
    153.6 KB · Views: 82

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,


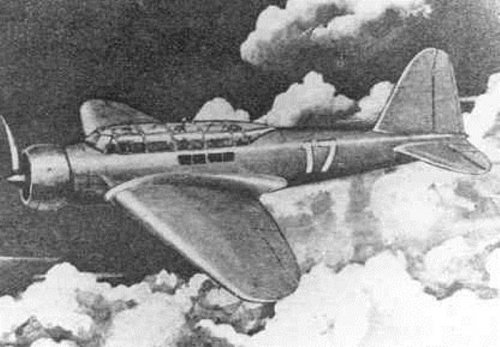

the Ontwerp 1105 was three seat low-wing scout and light bomber
project of 1936,powered by one 720 hp Wright Cyclone F-52 engine.


Attachments

  • 1105.jpg
    65.8 KB · Views: 116

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Interesting drawings Hesham,
As usual ,do you have a source ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
lark said:
Interesting drawings Hesham,
As usual ,do you have a source ?


Ok my dear Lark,


and here is the source;
http://www.maritiemdigitaal.nl/index.cfm?event=search.getsimplesearch&database=ChoiceMardig&needimages=YES&searchterm=koolhoven&allfields=&title=&keyword=&creator=&collection=&shipname=&invno=&museum=&startrow=201


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499

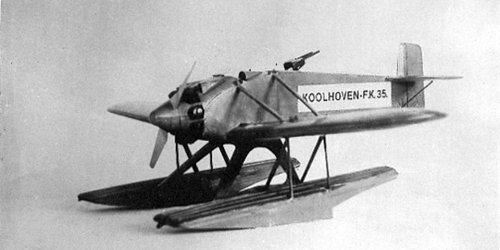

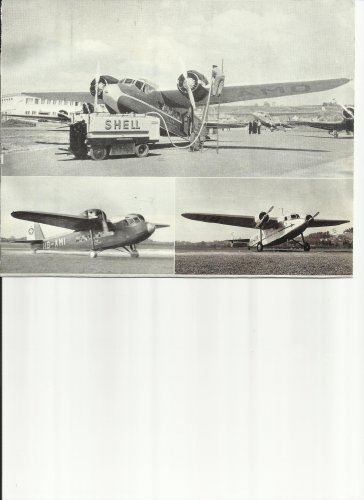

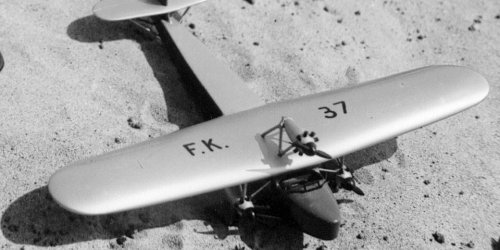

Thanks Hesham. Interesting link (including, on page 6, shots of the FK 35 model not shown on the Alex den Ouden site). Where did you find the Ontwerp 1142 images?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
My dear Apophenia,


in that site;
http://translate.google.fr/translate?sl=nl&tl=en&js=n&prev=_t&hl=fr&ie=UTF-8&layout=2&eotf=1&u=http%3A%2F%2Fwww.nederlandseluchtvaart.nl%2Fforums%2Ff14-koolhoven%2Fkoolhoven-ontwerp-1029-a-19103%2F


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

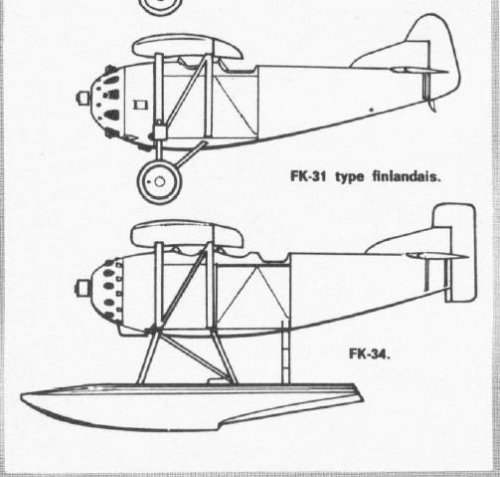

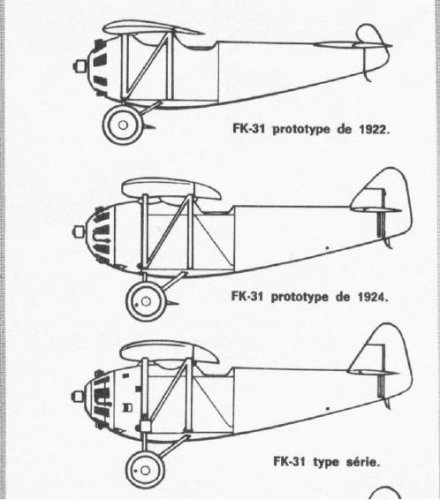

here is the Koolhoven FK.31 early design and prototype and final,also the
FK.34 floatplane.


Attachments

  • 1.JPG
    32.5 KB · Views: 692
  • 2.JPG
    28.5 KB · Views: 78

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
hesham said:
Hi,


F.K.59 (second use) was single engine two seat recce and fighter biplane
developed from F.K.52 for LVA,project only.


The source;


http://web.archive.org/web/20030112164056/http://www.samoloty.ow.pl/str003an.htm


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Hesham ,

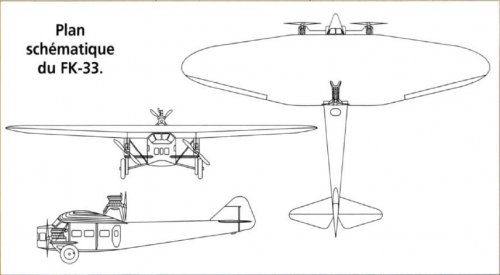

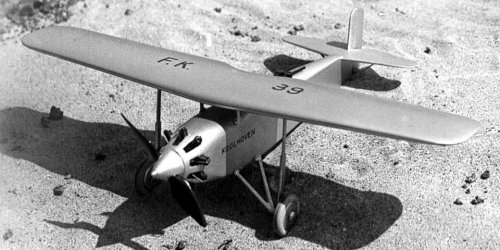

The 3-view in your post # 36 is the FK.33 I think.

This was not a project as far as I know...
