Here is an attempt at listing all known Schweizer designations.

SGU indicates Schweizer Gliders - Unpowered
SGM indicates Schweizer Gliders - Motor
SA indicates Schweizer Aircraft
SHU indicates Schweizer Helicopters - Unmanned (to be confirmed)
SHM indicates Schweizer Helicopters - Manned (to be confirmed)


1- indicates a single-seater
2- indicates a two-seater
etc.


SGU-1-1 PRIMARY (also designated SGP-1-1)
SGU-1-2
SGU-1-3


SGU-1-6
SGU 1-7
SGS 2-8
SGS 2-8 U.S. Army Air Force TG-2 training glider (1941)
SGS 2-8 U.S. Army Air Force TG-2A
SGS 2-8 U.S. Navy LNS-1

SGC-8-10
SGC 15-11
SGS 2-12 (1943)
SGS 2-12 U.S. Army Air Force (XTG-3)
2-12A U.S. Army Air Force TG-3
2-12A U.S. Army Air Force TG-3A

SGC 6-14
SGC 1-15
SGU 1-16
SGS 1-17
SGS 2-18

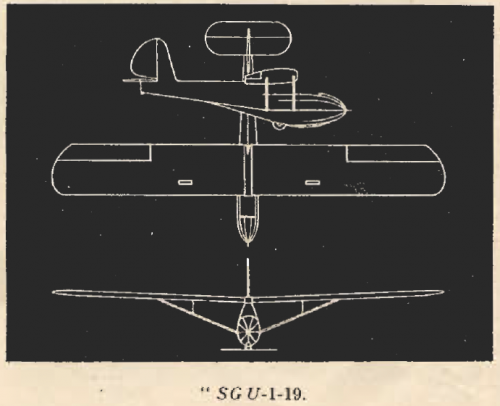

SGU-1-19
SGM-1-19 powered version of SGU 1-19
SGU 1-20 also designated SGS 1-20
SGS 1-21

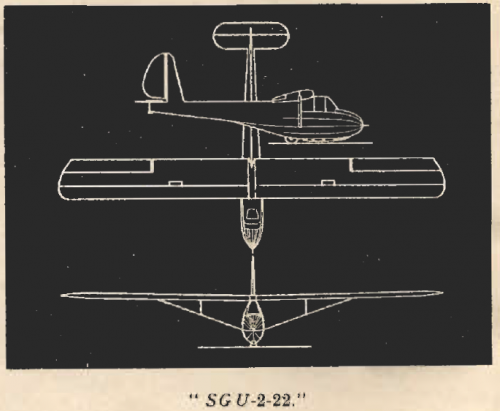

SGU 2-22/C
SGU 2-22E U.S. Air Force TG-2A training glider
SGS 1-23/D
SGS 1-23H
SGS 1-23H-15
SGS 1-23HM (1954)
SGS 1-24 BRIGADOON, built by Schweizer-Burr (1953)
SGS 2-25
SGS 2-25 U.S. Air Force TG-1A sailplane used by the Air Force Academy
SGS 1-26 U.S. Air Force TG-3A sailplane used by the Air Force Academy (1954)
SGS 1-26A
SGS 1-26B U.S. Air Force TG-3A 'THUNDER' sailplane used by the Air Force Academy
SGS 1-26C
SGS 1-26D
SGS 1-26E USAF TG-3B sailplane used by the Air Force Academy (1971)
2-27
7-28
SGS 1-29 (1948)
1-30 motorized glider
2-31
SGS 2-32 U.S. Air Force X-26A (1964)
SGS 2-32S U.S. Air Force TG-5A sailplane used by the Air Force Academy
SGS 2-33
SGS 2-33/A U.S. Air Force TG-4A sailplane used by the Air Force Academy
SGS 2-33AK
SGS 1-34 U.S. Air Force TG-6A sailplane used by the Air Force Academy
SGS 1-34B
SGS 1-35 T-TAIL (1972); same as the CLUB-35 ?
SGS 1-36 SPRITE
SGM 2-37 U.S. Air Force TG-7A
SGM 2-37A U.S. Air Force RG-8A
SA 2-37B U.S. Air Force RG-8A CONDOR
SA 2-38A USCG RU-38A TWIN CONDOR
SA 3-38A

SHU-40B FIRE SCOUT demonstrator
SHM-41A SIKORSKY X2 demonstrator

TSC-1A1 TEAL amphibian
TSC-1A2 TEAL amphibian (1972)
(no details) X-27A tow target aircraft (probably a Navy designation)


FORMER HUGHES > McDONNELL DOUGLAS HELICOPTER TYPES
(all marketed now under the name Sikorsky)

269C (300C) / SKY KNIGHT
269C-1 (300CB)
269C-1 (300CBi) new model
269D (330)
269D (330SP)
269D (333) > USAF MQ-8A new model

TH-300C

S-333 redesignation of Model 333
S-434 new model


AM

ACCESS: Secret
Joined
Mar 24, 2008
Messages
208
Reaction score
6
Hi all

SGP = Schweizer Glider Primary trainer

SGU-1-1 SGP 1-1 (1930, 1989) 2 built
SGU 1-2 (1931) 1 built
SGU 1-3 (1933) 1 built
...4 (project)
...5 (project)
SGU 1-6 (1937) 1 built
SGU 1-7 (1937-38) 2 built
SGS 2-8 (1938-42) 57 built
...9 (project)
SGC 8-10


AM

ACCESS: Secret
Joined
Mar 24, 2008
Messages
208
Reaction score
6
SGC 15-11
SGS 2-12 (1942-43) 114 built
...13 (project)
SGC 6-14 (project)
SGC 1-15 (project)
SGU 1-16 (project)
SGS 1-17 (project)
SGS 2-18 (project)
SGU 1-19 (1944-46) 50 built
SGU 1-20 (1949) 1 built


AM

ACCESS: Secret
Joined
Mar 24, 2008
Messages
208
Reaction score
6
SGS 1-21 (1947-48) 2 built
SGS 2-22 Std (1946) 51 built (2-22 all models - 258)
SGS 2-22A (19??) 3 built
SGS 2-22C (19??) 75 built
SGS 2-22CK (19??) 29 built
SGS 2-22E (1967) 88 built
SGS 2-22EK (19??) 12 built
SGS 1-23 Std (1949) 21 built (2-23 all models - 74)
SGS 1-23B (1952) 1 built
SGS 1-23C (1952) 1 built
SGS 1-23D (1954) 12 built
SGS 1-23E (1954) 1 built
SGS 1-23F (19??) 1 built
SGS 1-23G (19??) 8 built
SGS 1-23H (19??) 10 built
SGS 1-23H-15 (1969) 19 built
SGS 1-24 (1950) 1 built
SGS 2-25 (1954) 1 built
SGS 1-26 (1954) 22 built (1-26all models -689)
SGS 1-26AK (19??) 117 built
SGS 1-26B (19??) 184 built
SGS 1-26CK (19??) 87 built
SGS 1-26D (19??) 79 built
SGS 1-26E (1980) 200 built
...2-27 (project)
...7-28 (project)
SGS 1-29 (1960) 1 built
...1-30 ?


AM

ACCESS: Secret
Joined
Mar 24, 2008
Messages
208
Reaction score
6
...2-31 ?
SGS 2-32 (1967-76) 87 built
SGS 2-33 (1967) 85 built (2-33 all models - 579)
SGS 2-33A (1984) 484 built
SGS 2-33AK (19??) 10 built
SGS 1-34 (1969) 84 built
SGS 1-34R (1979) 9 built
SGS 1-35 (1973) 58 built
SGS 1-35A (19??) 2 built
SGS 1-35C (1982) 41 built
SGS 1-36 (1980-82) 43 built
SGM 2-37 (1981-87) 12 built

From "Sailplanes By Schweizer. A History" Paul A. Schweizer, Martin Simons, 1998


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
In 1960 the US Air Force purchased 30 Schweizer 2-22 as TS-1A with serials 60-6631/6660 and 30 Schweizer 1-26 as S-2A with serials 60-6661/6690.
Does anybody have further details of this puirchase and/or photos of the aircraft concerned?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,566
Reaction score
4,295
With regards as to the SGP 1-1, was 1989 the date of a rebuild of an existing SGP 1-1, or did they find the parts for, and complete a, 'new' SGP 1-1? Was it to mark a particular historical event?

Just curious.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Jos Heyman said:
In 1960 the US Air Force purchased 30 Schweizer 2-22 as TS-1A with serials 60-6631/6660 and 30 Schweizer 1-26 as S-2A with serials 60-6661/6690.
Does anybody have further details of this puirchase and/or photos of the aircraft concerned?

So what this indicates is that an "S- for sailplane" existed in the pre-1962 system?! Wow. Never heard of that one before.

Grey Havoc said:
With regards as to the SGP 1-1, was 1989 the date of a rebuild of an existing SGP 1-1, or did they find the parts for, and complete a, 'new' SGP 1-1?

I asked myself exactly the same thing and was also at a loss for an answer... Either a rebuild or the renewal of a registration, perhaps indicating that the glider had been abroad in the meantime?


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
Yes, the 'S' for Sailplanes did exist, obviously from 1960 to 1962. The S-1 and S-2 were the only designations issued.
You no doubt know about S=Sonic Test (from 1946 to 1948 - 1 to 5 were used which became X=Experimental) whilst there was also S=Search and Rescue (1948-12955). The latter was never used.

Jos


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
With regards as to the SGP 1-1, was 1989 the date of a rebuild of an existing SGP 1-1, or did they find the parts for, and complete a, 'new' SGP 1-1? Was it to mark a particular historical event?

From 'Sailplanes by Schweizer', page 15 :-

"That it not quite the end of the SGP 1-1. In 1989 SchweizerAircraft Corporation
celebrated fifty years since incorporation, and fifty nine years after the first few
hops of the Schweizer's primary glider, a full-scale flying replica was built.
The original plans had been lost, but Ernie [Schweizer] redrew them from memory
and the second SGP 1-1 was constructed by a group of fifty volunteers from the
Schweizer plant...."


cheers,
Robin.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
More from 'Sailplanes by Schweizer' :-

SGP1-1 1st built 1930, 2nd 1989, see above.
#1 wrecked Thanksgiving Day 1930 and rebuilt as SGU1-1A,
with faired fuselage. Damaged summer 1931 and stored.
destroyed 1945.

SGU 1-2 'yellow peril'.Heavy and complicated structure,
with poor handling. Little used as 1-3 superior.
Painted in surplus USN yellow dope hence nickname...

SGU 1-3 'brick'. So named because of unusual handling
qualities due to selected aerofoil section chosen,(Durand 24).
Superior to 1-2.

SGU 1-6 'boom tail'. First Schweizer all-metal design.

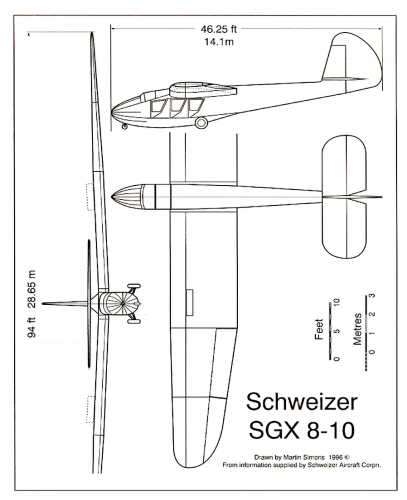

SGX 8-10 and SGX 15-11. 8 and 15 seat troop
carrying gliders to USAAC specifications. Not pursued as
specifications felt to be impractical. 8-10 span 94',
wing area 1,00sqft, 15-11 "wingspan bigger than a four engined bomber."


cheers,
Robin.


Attachments

  • schweizer SGX 8-10.png
    schweizer SGX 8-10.png
    293.7 KB · Views: 136

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
some more...

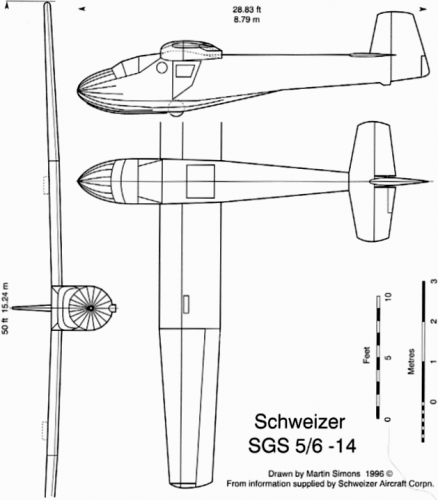

SGS 5/6-14. five/six seater troop glider utilising
TG-3 [SGS 2-12] components. Proposed to USAAF in 1943?
not built.

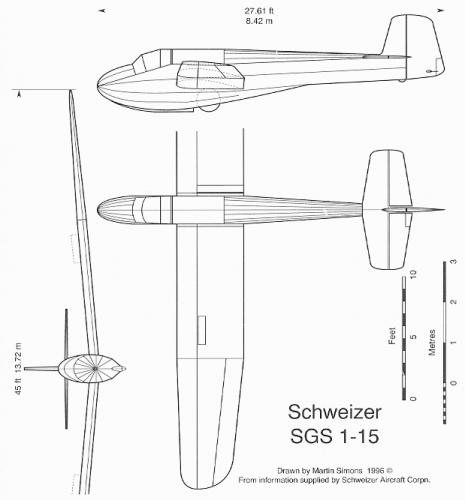

SGS 1-15. Single seat small cargo glider, designed to use the
'snatch' pick-up system. not built.

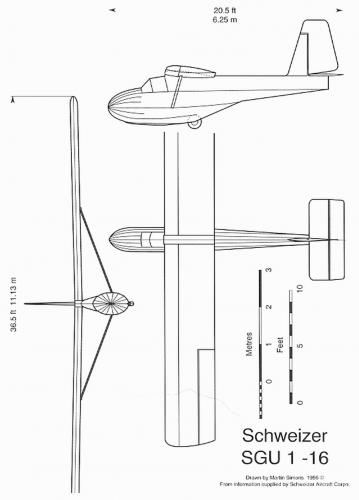

SGU 1-16. Improved 1-7 designed for postwar production.
not built.

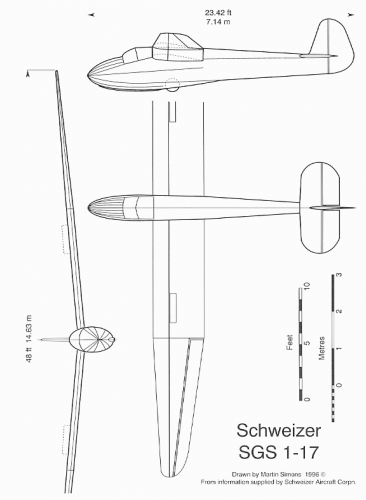

SGS 1-17. High performance single seat sailplane.
Prototype fuselage constructed, but development discontinued.

SGS 2-18. Improved SGS2-8, abandoned following the
realisation that surplus TG-2s and TG-3s would flood the market
following the war's end.


cheers,
Robin.


Attachments

  • schweizer SGS 1-15 3-view.png
    schweizer SGS 1-15 3-view.png
    100.5 KB · Views: 121
  • schweizer SGU 1-16 3-view.png
    schweizer SGU 1-16 3-view.png
    239 KB · Views: 116
  • schweizer SGS 1-17 3-view.png
    schweizer SGS 1-17 3-view.png
    93.4 KB · Views: 114
  • schweizer SGS 5-14 3-view.png
    schweizer SGS 5-14 3-view.png
    139.4 KB · Views: 114

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
and more...

SGA 2-27.two seat light aeroplane, designed 1955.
Not built, no other data.

??? 7-28. Commercial transport.
Not built, no other data.

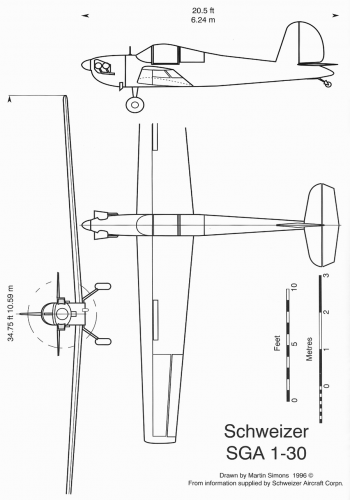

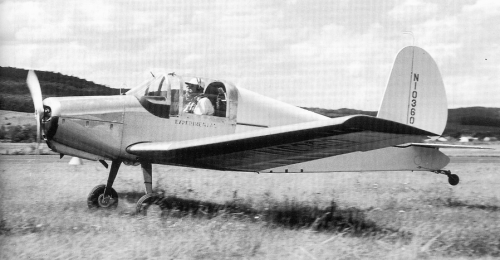

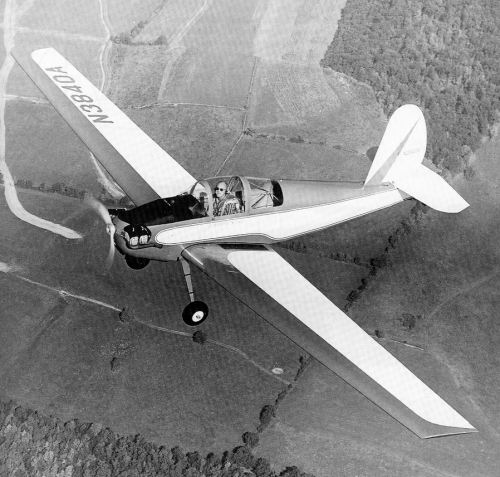

SA 1-30. Single seat light aircraft, utilising 1-26 type
wings and tail surfaces. Continental 65hp engine.
First flight July 1958. Span later reduced to 36', and engine
replaced with 90hp version.

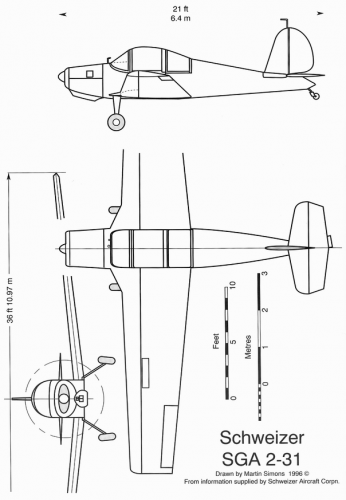

SA 2-31. Two seat side by side version of 1-30.
First flown July 1960.


cheers,
Robin.


Attachments

  • schweizer SGA 2-31 3-view.png
    schweizer SGA 2-31 3-view.png
    149.9 KB · Views: 30
  • schweizer SGA 2-31.png
    schweizer SGA 2-31.png
    426.2 KB · Views: 26
  • schweizer SGA1-30 3-view.png
    schweizer SGA1-30 3-view.png
    257 KB · Views: 29
  • schweizer SGA 1-30.png
    schweizer SGA 1-30.png
    925.1 KB · Views: 29

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Robunos, you ROCK! I don't know if all this scanning is legit, but thanks for the time it lasts!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Just found out about what seems to be a THREE-seat variant of the Schweizer Condor powered glider, designated the (SA-)3-38B. This is mentioned in the same resume that also produced the explanation for the SHU-40B designation.

Unless it was a typo, I'm curious what this looks like!


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
The SA 3-38B is a turboprop powered version of the
SA 3-38A [RU-38A] Twin Condor.
see :-

http://en.wikipedia.org/wiki/RU-38_Twin_Condor

http://www.sacusa.com/products/38Bmain2.asp


cheers,
Robin


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Thanks Robunos. I knew about the SA 2-38A and -38B, but I wasn't aware that there also existed a three-seat version.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
I am finally able to produce a complete list of Schweizer designations, due in large part to the reading of the most excellent Sailplanes by Schweizer - A History (Airlife, 1998):

SGP 1-1 primary trainer, originally designated HG-1; second airframe was a 1989 replica1930
2​
none; N50SZ
SGU 1-2 larger primary trainer, calle "YELLOW PERIL"1932
1​
unknown
SGU 1-3 small, light and practical glider, called "THE BRICK"1933
1​
15317?
SGU 1-4 low-priced utility glider, not built, no datand
0​
SGU 1-5 low-priced utility glider, not built, no datand
0​
SGU 1-6 all-metal utility sailplane, called the "BOOM-TAIL"1937
1​
R17897
SGU 1-7 all-metal utility sailplane of simpler construction, called "CRULLER" and "PTERODACTYL"1937-38
2​
R19154, NR23028
SGS 2-8 prototype all-metal, tandem 2-seat shoulder-wing fabric-covered aluminum trainer sailplane1938
1​
NX20642
prototypesUSAAFXTG-2-SW1941
3​
production versionUSAAFTG-2-SW
45​
impressed examplesUSAAFTG-2A-SW1942
7​
Navy evaluationUS NavyLNS-1 2?(57 built in all)
9 sailplane project to be built mainly in wood
0​
SGX 8-10 preliminary design for an eight-man troop-carrying gliderUSAAC
0​
SGC 15-11 preliminary design for a fifteen-seat troop-carrying gliderUSAAC
0​
SGS 2-12 two-seat training glider using as much wood as possible1942
1​
NX41865
prototypesUSAAFXTG-3-SW1942
3​
SGS 2-12A production versionUSAAFTG-3A-SW1942-43
110​
sole example built by Air Gliders from OhioUSAAFTG-3A-AG1943
1​
SGS 5/6-14 TG-3-based high-wing 5-6 seat troop glider proposalUSAAF1943
0​
SGS 1-15 project with TG-3A components, shortened wings, large cargo compartment behind the cockpit
0​
SGU 1-16 project based on the 1-7 but was to be slightly larger
0​
SGS 1-17 high-performance, single-seat sailplane
0​
SGS 2-18 improved SGS 2-8, not built
0​
SGU 1-19 single-seat glider suitable for solo training, capable of being built from a kit by students1944-46
57​
SGM 1-19 powered version of SGU 1-19; designation probably apocryphal [1]NX33513
SGU 1-20 extended-span version of the 1-19 (also some 1-19 conversions) (also SGS variant?)1946
2​
N(X)91840, unknown
SGS 1-21 high-performance all-metal single-seat sailplane1947-48
2​
NX91856, NX91861
SGS 2-22 new, light and cheap trainer, basically a scaled-up 1-7, a.k.a. "Standard 2-22"1946
51​
SGS 2-22A sailplane used by the Air Force Academy; longer nose, increase in permitted all-up weightUSAFTG-2A1957
3​
SGS 2-22B civil version of the 2-22A, all updated to 2-22C status
SGS 2-22C version with narrower-chord ailerons
45​
to Indonesia during 1961-62, as part of an aid package to help with youth pilot-training programUSAF
30​
SGS 2-22CK kit version
29​
SGS 2-22E new moulded canopy and larger cockpit, transparent panel in wing roots1963
88​
SGS 2-22EK kit version1963
12​
SGS 1-23 lower-priced all-metal single-seat sailplane, a.k.a. "Standard 1-23"1948-49
21​
N91873, N91874, N91883, etc.
SGS 1-23B variant with increased span to improve its performance1952
1​
SGS 1-23C same as 1-23B but stronger and stiffer spars and thicker skins for smoother and quieter wing1952
1​
N91885
SGS 1-23D production model, a compromise between the B and C models1953-54
12​
N91891, etc.
SGS 1-23E special variant for Paul MacCready1954
1​
N91893
SGS 1-23F same as 1-23E but heavier skins and butt jointing everywhere to eliminate all laps1956
1​
SGS 1-23G production model of 1-23F with larger vertical tail surface for improved handling
8​
SGS 1-23H like 1-23G but aerodynamically balanced dive brakes (1-23HM mention dubious)
19​
SGS 1-23H-15 International Standard Class version, with span limited to 15 m, air brakes added1958
10​
SGS 1-24 "BRIGADOON" personal project of Howard E. Burr built as a Schweizer-Burr inside the company plant1953
1​
N91888
SGS 2-25 high performance two-seat sailplane, a 120% scaled-up 1-23D with a span of 60 ft.1954
1​
N91892
same airframe offered to the Air Force Academy; damaged severely by a rotorUSAFTG-1A [1]
SGS 1-26 One-Design Class sailplane, called the "Standard 1-26"1954
22​
N91889
SGS 1-26AK kit version1955
117​
SGS 1-26B new version with wing completely metal skinned except for the ailerons1956
184​
sailplane used by the Air Force Academy, called "THUNDER"USAFTG-3A [ ]
SGS 1-26CK kit version
87​
SGS 1-26D new version with small improvements; includes 30 for Indonesia1968
79​
SGS 1-26E fabric-covered rear fuselage replaced with an all-aluminium alloy monocoque1970-80
200​
sailplane used by the Air Force AcademyUSAFTG-3B1971 [ ]
SA 2-27 two-seat light aeroplane projectnd
0​
SA 7-28 much larger aeroplane project, intended as a commercial transportnd
0​
SGS 1-29 experimental glider with new rectangular wing design1958-60
1​
N3898A
SA 1-30 motorized glider, a single-seat aeroplane using as many glider parts as possible1958
1​
N3840A
SA 2-31 fuselage similar to that of the 1-30, but mated to strengthened 1-26B wings1960
1​
N10360
SGS 2-32 high-performance two-seat sailplane to introduce inexperienced pilots to advanced flying1964-76
87​
N8600R, etc.
FRIGATE experimental derivativeUSAFX-26A [1]
SGS 2-32S sailplane used by the Air Force AcademyUSAFTG-5A
SGS 2-33 economical glider with all-metal wings, evolved from the 2-221965-67
85​
SGS 2-33A variant with balanced rudder and some other minor improvements; sometimes found as the SUPER CLUB1968-84
470​
sailplane used by the Air Force AcademyUSAFTG-4A
14​
SGS 2-33AK kit version1973
10​
X-391 two sets of different wings tested on a 1-26 fuselage for preparation of 1-341968
2​
SGS 1-34 all-metal Standard Class sailplane1969
93​
N7700S, N7675, N76JP, etc.
sailplane used by the Air Force AcademyUSAFTG-6A [ ]
SGS 1-34R no details (a Model SGS 1-34B also existed?)1979 9
SGS 1-35 T-tail, first Schweizer sailplane to use flaps instead of spoilers or airbrakes; sometimes found as the CLUB-351972-73
58​
N17900, N34187, etc.
SGS 1-35A
2​
SGS 1-35C 1982
41​
SGS 1-36 SPRITE. One-Design Class glider to replace the 1-261979 43
SGS 1-36C SPRITE. version with forward-mounted landing wheel and no nose skid
SGM 2-37 all-metal motor glider with side-by-side seating (single company example later sold to USAF)USAFTG-7A1983-87
9​
SA 2-37A quiet surveillance aeroplane with additional span by the addition of winglets; possibly more built RG-8A1985-90 5+N3623C, N701AN, N12139, N4122L, N87260
SA 2-37B CONDOR.USCGRG-8A 5+N2061L, N2067F, N30745, N10673, N40623
SA 2-38A TWIN CONDOR, twin-engine version of the 2-37USCGRU-38A1995
SA 3-38A
SA 2-38B N2101J, N2082C, N2083N
SA 3-38B
SA 2-39 planned production of Saab-Scania AB MFI-15-200A Safari trainer for Enhanced Flight Screener competitionUSAF1991
SHU 40B FIRE SCOUT drone helicopter; became a Teledyne Ryan, then Northrop Grumman productdemonstratorMQ-8A2005 N4646W (P5)
SHM 41A same as the Sikorsky X2demonstrator N41AX > N525SA


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Key to above chart:

SA: Schweizer Aircraft
SGM: Schweizer Glider, Motorized
SGP: Schweizer Glider, Primary Trainer
SGS: Schweizer Gider, Sport
SGU: Schweizer Glider, Utility
SGX: Schweizer Glider, Experimental
SHM: Schweizer Helicopter, Manned
SHU: Schweizer Helicopter, Unmanned

First figure corresponds to the number of seats.


airplane176

I really should change my personal text
Joined
Jan 24, 2014
Messages
11
Reaction score
0
The TS-1A were SGS 1-26D for Indonesia. Most of the S-2A were SGU 2-22C also for Indonesia. 3 more were for the USAF Academy. See the USAF Statistical Digest for 1957 and 1958. This might show two of the Indonesian S-2A: http://jetphotos.net/viewphoto.php?id=445610&nseq=2

Roger


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
Thanks airplane176.
A lot of time passed since my original post in May 2011 and since then I have found similar information.
Indeed they were supplied to Indonesia as TS-1A and S-2A whilst the USAF Academy operated some without designations but with serials 57-2769, 57-2770 and 57-2771 for the 2-22 (equivalent to the TS-1A) and 57-2768 for the 1-26 (equivalent to S-2A). A photo of the latter is enclosed.


Attachments

  • S-2 (2).jpg
    S-2 (2).jpg
    187.1 KB · Views: 157

airplane176

I really should change my personal text
Joined
Jan 24, 2014
Messages
11
Reaction score
0
Jos,

I was browsing through and thought that I might be able to add something new. Thank you for the picture and verification. As I mentioned in my Curtiss/Record Card posting, I have a website: http://aircraft.list-of-domains.org/. I also troll around the Aerodrome Forum looking for early information.

Thank you again,

Roger


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

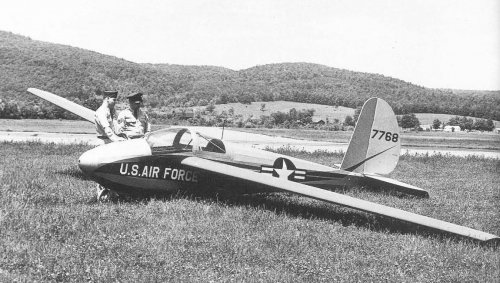

Jos Heyman said:
the USAF Academy operated some without designations but with serials 57-2769, 57-2770 and 57-2771 for the 2-22 (equivalent to the TS-1A) and 57-2768 for the 1-26 (equivalent to S-2A).

Uh?? I have the SGS 1-26B as the TG-3A and the SGS 1-26E as the TG-3B... (not the old TG- series, of course, the new G- series with a T-for-trainer prefix). However, I only have three of both versions combined, but obviously you're listing four serials This being said, the photo of the TG-3A I'm attaching below shows a different glider since it has a squared-off rudder... So I'm really puzzled here...


Attachments

  • 26 (TG-3A).jpg
    26 (TG-3A).jpg
    10.4 KB · Views: 126

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
When Schweitzer introduced the 1-26D version, they switched to a more modern looking swept, squared -off fin and rudder,

"...other small improvements were introduced to produce the 1-26D...and a swept tail was designed, purely for styling."

so the image you posted is a 1-26, but it is a 1-26D or E, so the image is incorrect for the 'TG-3A' designation.

Source :- 'Sailplanes by Schweitzer', Schweitzer/Simons, ISBN 1 84037 022 X

cheers,
Robin.


Attachments

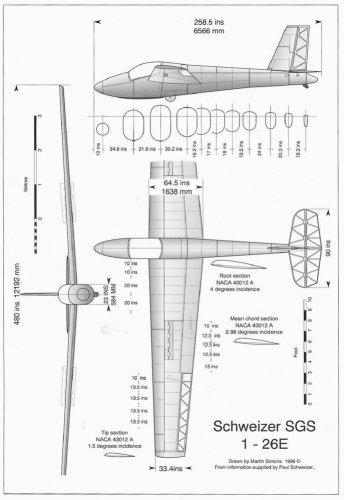

  • 1-26E 3-view.jpg
    1-26E 3-view.jpg
    93.9 KB · Views: 28

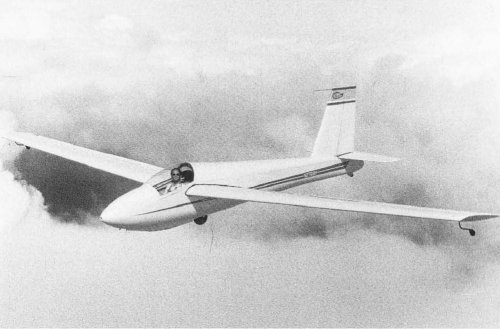

  • 1-26E.jpg
    114.4 KB · Views: 105

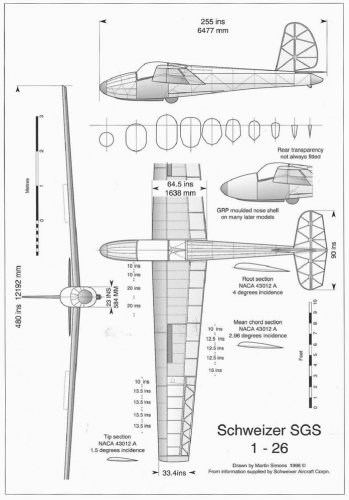

  • 1-26 3-view.jpg
    1-26 3-view.jpg
    98.6 KB · Views: 111

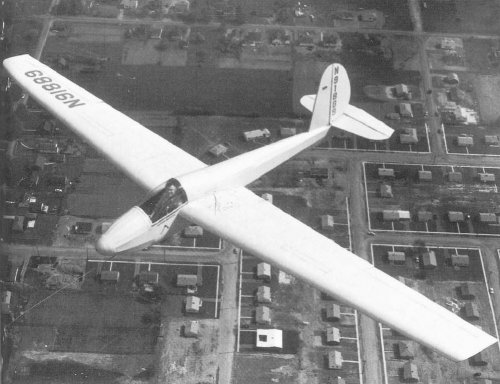

  • 1-26.jpg
    130.6 KB · Views: 118

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Thanks a lot Robin. So perhaps there were three TG-3A types (Model 1-26B with rounded tail) and one TG-3B (Model 1-26E with squared tail)? Seems like the most likely conclusion of all this.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
I can't help any further with this, as there's no list of individual aircraft identities in the Schweitzer book...

cheers,
Robin.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
Yes, the Schweizer SGS 1-26B was also the TG-3A, a single-seat glider used at the US Air Force Academy. Aircraft included serials and registrations 66-900354 (N2426W), 66-900358 (N2426W), 77-900265 (N5830V), 77-900484 (N1155S), 91-0515 (used by the US Army) and 92-624 (N33894).
A TG-3B version (type 1-26E) was in use with serials and registrations 78-900681 (N296LH), 78-900682 (N2952H), 79-900696 (N2983H), 89-461 (N17953), 89-462 (N17920) and 89-463. Other known registrations are N1137S (c/n 517), N17920 (c/n 530), N17953 (c/n 553), N33894 (c/n 624), N33926 (c/n 641).
Of course the S=Sailplanes series was in the old USAF serials system whilst the G=Glider series is a DoD designation. Different time frames.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Jos Heyman said:
Yes, the Schweizer SGS 1-26B was also the TG-3A, a single-seat glider used at the US Air Force Academy. Aircraft included serials and registrations 66-900354 (N2426W), 66-900358 (N2426W), 77-900265 (N5830V), 77-900484 (N1155S), 91-0515 (used by the US Army) and 92-624 (N33894).
A TG-3B version (type 1-26E) was in use with serials and registrations 78-900681 (N296LH), 78-900682 (N2952H), 79-900696 (N2983H), 89-461 (N17953), 89-462 (N17920) and 89-463. Other known registrations are N1137S (c/n 517), N17920 (c/n 530), N17953 (c/n 553), N33894 (c/n 624), N33926 (c/n 641).
Of course the S=Sailplanes series was in the old USAF serials system whilst the G=Glider series is a DoD designation. Different time frames.

Thanks a lot Jos. So apparently the four 57-... examples you refered to predate the new G-series and were not redesignated after 1962.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
Skyblazer said:
Thanks a lot Jos. So apparently the four 57-... examples you refered to predate the new G-series and were not redesignated after 1962.
You're right. In fact 57-2768 (c/n 62), 57-2769 (c/n 52) and 57-2771 (c/n 54) were written off in 1958 at Colorado Springs. 57-2770 (c/n 53) became N5638V in December 1959.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,802
Reaction score
4,962
And from Sailplane and Glider magazine,


here is a 1-19 and 2-22 three views.


Attachments

  • 1-19.png
    106.8 KB · Views: 16
  • 2-22.png
    113.7 KB · Views: 16

Similar threads

Top
