Savoia-Marchetti pre war aircraft search

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
346
Hi guys,

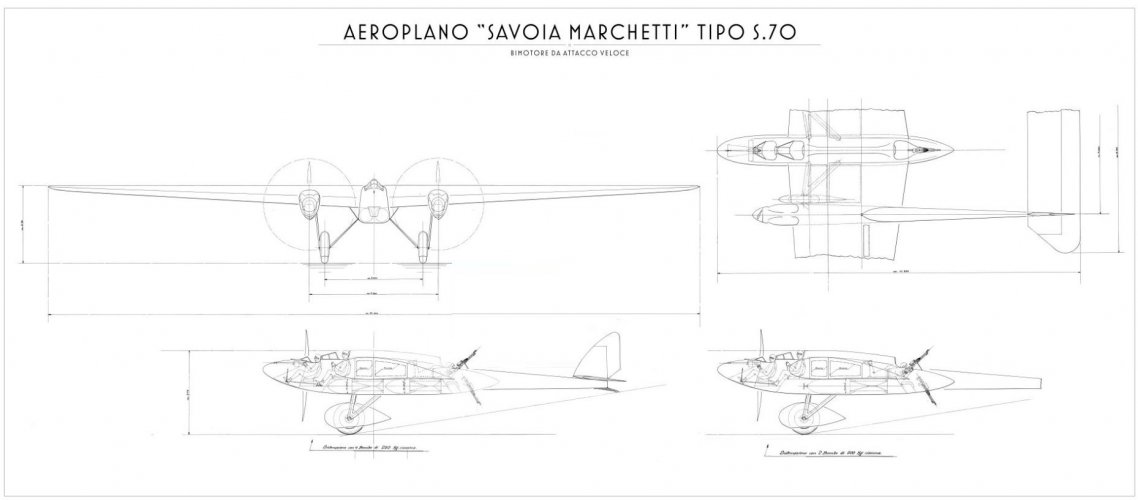

I need your help. I search for Savoia-Marchetti aircrafts and projects at the pre WWII time. Following aircraft wanted: S.53 & S.54 / S.61 / S.63 / S.68 to S.70 / SM. 76 & S.M. 77 and the S.M.90. I have nothing about this birds. If you can, please answer with pics, drawings and/or technical data.
I hope some of you can help... :p


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
SM.76 was a SM.75 with Pratt & Whitney Twin Wasp engines. The SM.90 was a SM.75 with Alfa-Romeo 135 engines.

There is some information here.

I'll have a look into the others.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
SM-77 was a further evolution of the S-55 and S-66 line. Only one built in 1937.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,769
I spoke about many of those aircraft before;
http://www.secretprojects.co.uk/forum/index.php/topic,836.msg8908/highlight,savoia+s+53.html#msg8908

and;
http://66.196.80.202/babelfish/translate_url_content?.intl=us&lp=it_en&trurl=http%3A%2F%2Fit.wikipedia.org%2Fwiki%2FSIAI-Marchetti


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
Skybolt said:
SM-77 was a further evolution of the S-55 and S-66 line. Only one built in 1937.

Any idea what engines it had and whether there are any pictures available?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
346
...thanks for your work, but this infos are not new...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Yes, I have a large 3-view somewhere. Let me dig.


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0

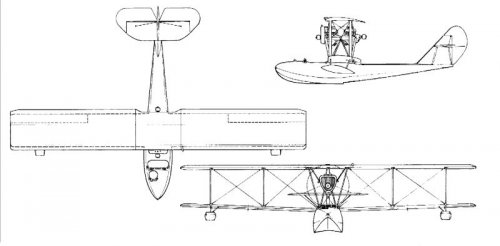

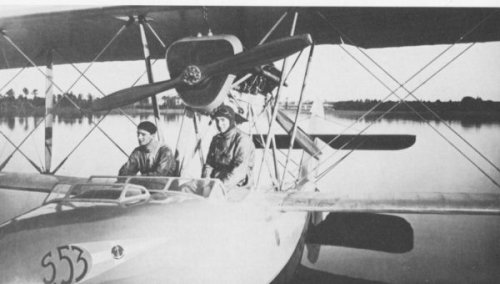

S.53
In 1922 Alessandro Marchetti designed S.53, a transport flying-boat for five passengers and one pilot.
The S.53 was presented at the 8° Aeronautics Salon of Paris in 1923. ist engine was one FIAT A.12bis of 300 hp.
During 1923 was modified with two engines Hispano-Suiza 34 of 180 hp.

Wingspan 15,50 m.
Lenght 9,97 m.
Height 3,67 m.
Wing surface 65 mq.
Engine 1 FIAT A12.bis of 300 hp
Empty weight 1.750 kg.
Useful load 800 kg.
Loaded weight 2.250 kg.
Maximun speed 160 km/h.
Ceiling 4.500 m
Crew 1
Passengers 5

Text, photo e drawing of "AEROPLANI S.I.A.I. 1915-1935" - Edizioni Aeronautiche Italiane S.r.l. - of Giorgio Bignozzi e Roberto Gentilli


Attachments

  • S-53_2.jpg
    31.9 KB · Views: 559
  • S-53.jpg
    32.2 KB · Views: 457

Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0
S.63

The italian air force had such misgivings about the S.55 twin hulls arrangement that the Regia Aeronautica asked SIAI to design a bomber Flying-boat that, keeping the S.55 monoplane wing, would use the more traditional central hull with side stabilising floats.
The prototype firs flew on 8 september 1927. The S.63 was tested by Regia Aeronautica at the end of 1927 but the success of the S.55 made its adoption superfluos.
During 1928 SIAI modified the S.63 building a new fuselage for ten passengers and a crew of four members.
One prototype only.

Wingspan 27,32 m.
Lenght 15,5 m.
Height 5 m.
Wing surface 105 mq.
Engines two Isotta Fraschini Asso 500 of 510 hp.
Empty weight 5.200 kg.
Useful load 3.000 kg.
Loaded weight 8.200 kg.
Maximum speed 205 km/h.
Stalling speed 110 km/h.
Ceiling 3.500 m.
Crew 4
Passengers 10

Text, photo e drawing of "AEROPLANI S.I.A.I. 1915-1935" - Edizioni Aeronautiche Italiane S.r.l. - of Giorgio Bignozzi e Roberto Gentilli

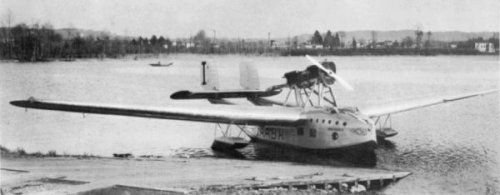

1. Photo Military Version

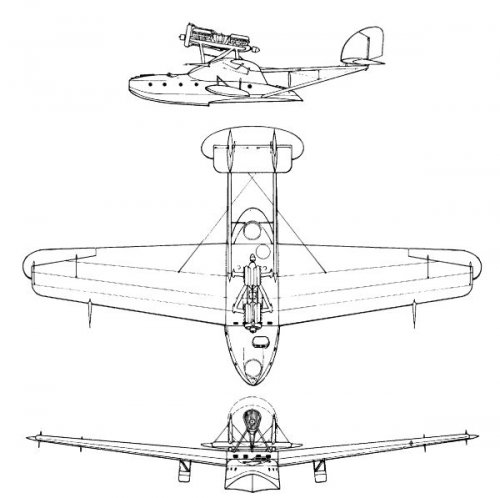

2. Tree wiew Military version

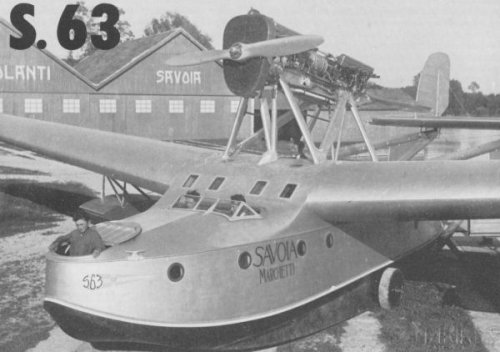

3. Photo Civil version


Attachments

  • S-63 militare.jpg
    S-63 militare.jpg
    38.9 KB · Views: 488
  • S-63_civile_tr.jpg
    37.2 KB · Views: 518
  • S-63.jpg
    22.4 KB · Views: 484

Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0
SIAI
On 12 August 1915 the Società Idrovolanti Alta Italia was founded in Milan for the building the Schreck F.B.A. Seaplane, 100 hp. military type two seater.
The F.B.A. Was one of the earliest efficient flying boat, know for the second place it conquered at the 1913 Schneider Trophy race.
SIAI built over 500 F.B.A.; first of the Model C, using a rotary Gnome 100 hp. engine end later Model H powered by in-line Hispano Suiza 150 hp. or Isotta Fraschini V.4b 150 hp. engines; as trainer was powered by Gnome 80 hp. or Colombo D.110 100 hp. engines.
It was in front line service with naval and air force units fron the beginning to the end of the great war 1915-1918 in patrol, reconnaissances and bombings flights.

FBA Model C

Engine: 1 Isotta Fraschini V-4b 150 hp.
Wingspan: 14,55 m.
Lenght: 10,20 m.
Height: 3,38 m.
Wing surface: 42,00 mq.
Empty weight. 925 kg.
Loaded weight: 1.400 kg.
Maximum speed: 140 km/h.
Cruising spped: 110 km/h.
Climb to 1.000 m. 8'
Ceiling 4.900 m.
Range 700 km.
Crew: 2

Text, photo e drawing of:
-"AEROPLANI S.I.A.I. 1915-1935" - Edizioni Aeronautiche Italiane S.r.l. - of Giorgio Bignozzi e Roberto Gentilli
- "Storia degli aerei d'Italia dal 1911 al 1961" - Edizioni CIELO - of Bignozzi e Catalanotto


Attachments

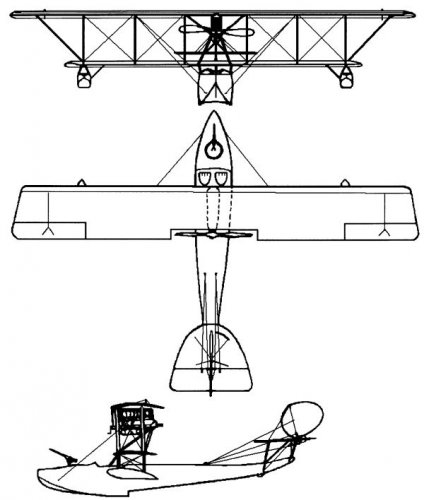

  • Tipo H_trittico.jpg
    Tipo H_trittico.jpg
    48.1 KB · Views: 64
  • Tipo H.jpg
    Tipo H.jpg
    34.7 KB · Views: 62

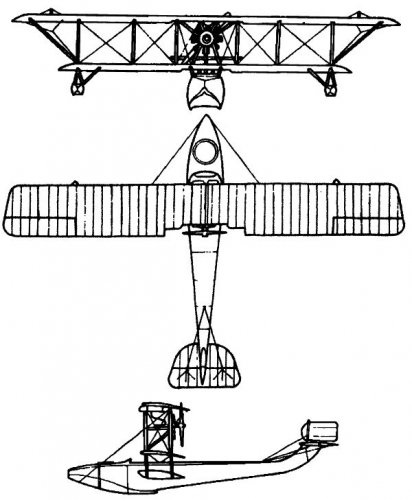

  • Tipo C_trittico.jpg
    Tipo C_trittico.jpg
    68.3 KB · Views: 73
  • Tipo C.jpg
    Tipo C.jpg
    27.4 KB · Views: 64
J

joncarrfarrelly

Guest
That S.63 is very interesting, thanks very much for the posting.

I'd say it deserves the name 'Flying Clog' even more than the Bv 138. :)

Jon


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0

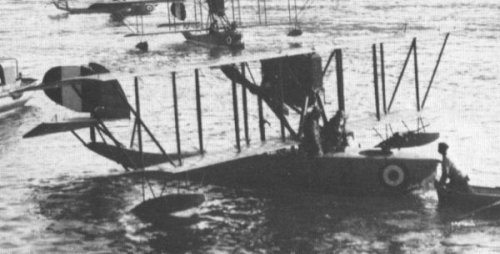

SIAI S.8

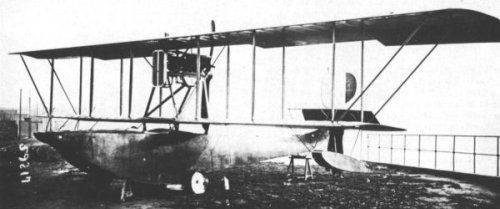

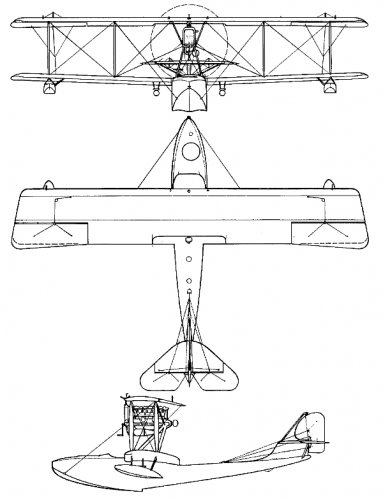

The S.8 was the first original SIAI project realized by Raffaele Conflenti.
It was produced as a successor to the F.B.A. appearing in 1917 and being test flown by the swiss pilot Emilio Taddeoli.
Crew included pilot and observer, seated side by syde. The S.8 operated mostly in patrol mission anti-submarine in areas where no enemy fighters were to be met.
Wartime production was of at least 172 units; production was entrusted to CIVES of Varazze and Società Anonima Ducrot of Palermo.
The engine, mounted between the wings, was usually an 180 hp. Isotta Fraschini V-4B, but some machines had a 120 hp. Colombo F.150 and at least one S.8 had a 220 hp. Hispano-Suiza 44 Canon.
Postwar some S.8 was modified as double control.

Wingspan m. 12,77
Lenght m. 9,84
Height m. 3,30
Wing surface mq. 46
Engine 1 Isotta Fraschini V-4b hp. 180
Empty weight kg. 900
Useful load kg. 475
Loaded weight kg. 1375
Maximum speed km/h. 144
Ceiling m. 6000
Range km. 700
Crew n. 2
Armament 1 mt. Fiat seldom mounted + light bomb load

Text, photo e drawing of:
-"AEROPLANI S.I.A.I. 1915-1935" - Edizioni Aeronautiche Italiane S.r.l. - of Giorgio Bignozzi e Roberto Gentilli
- "Storia degli aerei d'Italia dal 1911 al 1961" - Edizioni CIELO - of Bignozzi e Catalanotto


Attachments

  • S-8.jpg
    30.2 KB · Views: 70
  • S8-1.jpg
    118.7 KB · Views: 92

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
24
red admiral said:
Skybolt said:
SM-77 was a further evolution of the S-55 and S-66 line. Only one built in 1937.

Any idea what engines it had and whether there are any pictures available?

Looking for pictures of the S.55 project derivatives, I failed to find any illustration of the S.77, described as a re-engined version of the S.66.
According to 'SIAI Marchetti S 55' (Mografie Aeronautiche Italiane, by Giorgio Bignozzi, Fabrizio Iannetti, Achille Vigna, Igino Coggi, Sergio Mecchia, 1983) S.77 had a reduced area wing (with larger flaps), the projected engines were three FIAT A.24R, with pusher props, soon replaced with three Alfa Romeo 126, with tractive props.
According to 'Catalogo delle Matricole Militari della Regia Aeronautica' (Andrea Curami & Gianni Gambarini, 1992), the single prototype MM.259 was ordered with three Isotta-Fraschini Asso 500Ri -but there was a difference between 500R and 500Ri ? - but later on receive three P & W Twin Wasp and, at least, three Alfa Romeo Alfa 126 RC.10.
Any chance to see a photograph of the prototype, better than the very small one appearing on IARB (Italian Aviation Research Branch of Air Britain) N. 6/1973, page 131?
Nico


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,769
For the S.60,please see;

http://www.secretprojects.co.uk/forum/index.php/topic,11392.0/highlight,savoia+60.html


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
For the S.77, there is a folder in the SIAI archive including a general description and 3-views (large, a folded drawing). There is also a photo, the same published in IARB back then. All in all, a failure. Actually Savoia (still Savoia at the time) answered the 1938 RFP for a transoceanic seaplane but AFAIK never really submitted a proposal. All in all, I think Marcheti was thinking on the line of the later SM-155.


pb4

I really should change my personal text
Joined
Mar 26, 2012
Messages
1
Reaction score
0
I would love to get my hands on this 3 view you are referring to.
Sorry I am new here but where is this "SIAI archive" ? Is it somewhere on the net ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,769
Aviostoria said:
S.63

The italian air force had such misgivings about the S.55 twin hulls arrangement that the Regia Aeronautica asked SIAI to design a bomber Flying-boat that, keeping the S.55 monoplane wing, would use the more traditional central hull with side stabilising floats.
The prototype firs flew on 8 september 1927. The S.63 was tested by Regia Aeronautica at the end of 1927 but the success of the S.55 made its adoption superfluos.
During 1928 SIAI modified the S.63 building a new fuselage for ten passengers and a crew of four members.
One prototype only.

Wingspan 27,32 m.
Lenght 15,5 m.
Height 5 m.
Wing surface 105 mq.
Engines two Isotta Fraschini Asso 500 of 510 hp.
Empty weight 5.200 kg.
Useful load 3.000 kg.
Loaded weight 8.200 kg.
Maximum speed 205 km/h.
Stalling speed 110 km/h.
Ceiling 3.500 m.
Crew 4
Passengers 10

Text, photo e drawing of "AEROPLANI S.I.A.I. 1915-1935" - Edizioni Aeronautiche Italiane S.r.l. - of Giorgio Bignozzi e Roberto Gentilli

1. Photo Military Version
2. Tree wiew Military version
3. Photo Civil version


Hi Aviostoria,

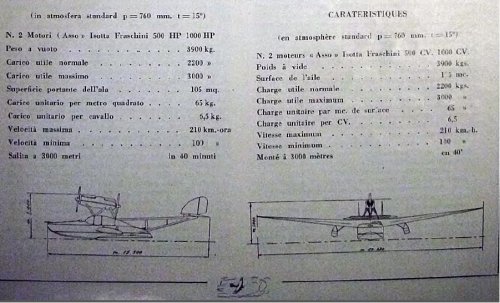

very weird,that's in a file about Itlaian Aeronautic,here is a drawing to Savoia-Marchetti S.63,
it is different a little from your pictures.


Attachments

  • S.63.JPG
    95.7 KB · Views: 267

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,769
Hi,

in the magazine; Scale Aviation Modeller International 1997,but I don't remember exactly
which issue number,I found this; Savoia-Marchetti S.41,and maybe it was a misprint and
they meant S.51 or ....?.
