Apart from the Saturn Ib w/SRBs, not much in the way of "unbuilt projects" here, but I thought some might be interested:
http://www.up-ship.com/drawndoc/saturnvprints.htm

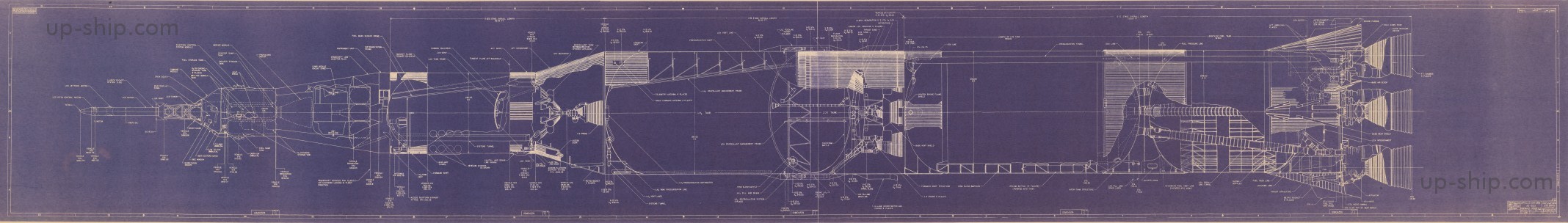

1/72 Saturn V Blueprint
Full color, high quality print of NASA-MSFC drawing 10M04574, the Apollo 8 AS-503 Saturn V. At 1/72 scale, these prints are about 71 inches/180 cm long.
These were printed from a new single full-color scan... not stitched together from separate scans. As a consequence there are no discontinuities or sudden slight color changes... it looks just like the original.
----------------

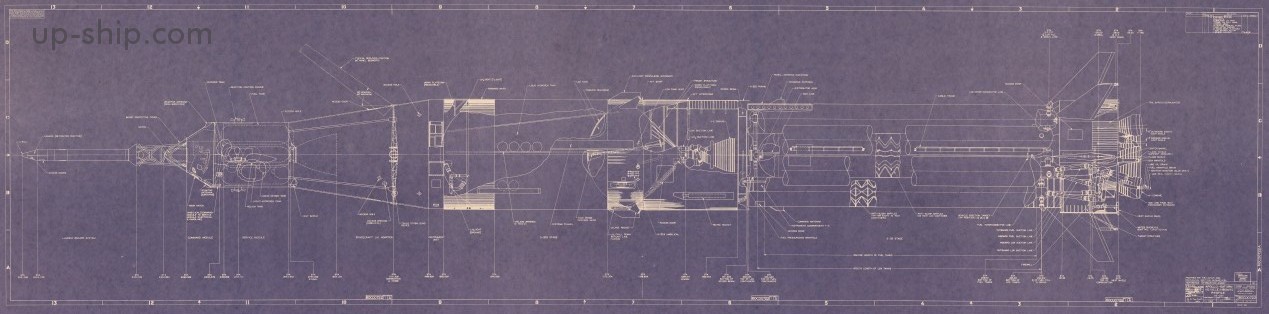

1/72 Saturn Ib Blueprint
Full color, high quality print of NASA-MSFC drawing 60C00722, the AS-207 Saturn Ib. At 1/72 scale, these prints are about 42 inches/106 cm long. The original was in B&W, and was digitally converted into a blueprint using the scame color cues as the Saturn V.
---------------------

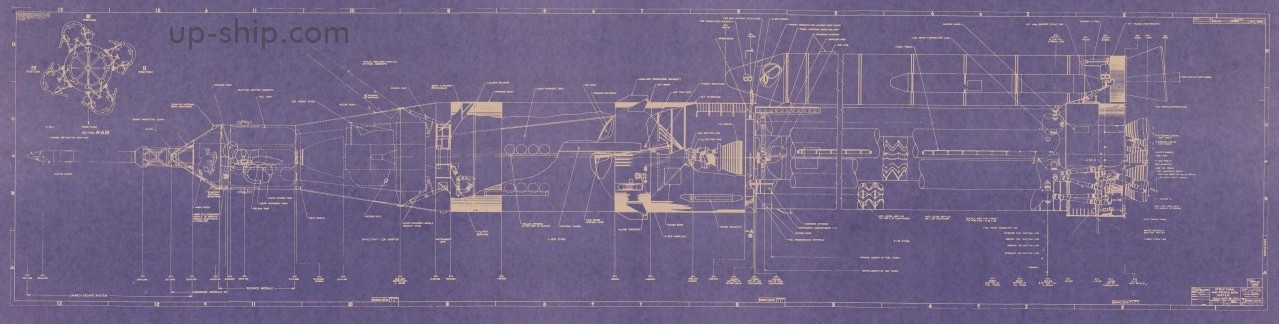

Saturn Ib with SRBs Blueprint
Full color, high quality print of NASA-MSFC drawing 60C, the Saturn Ib MLV-Sat-IB-11.7A. At 1/72 scale, these prints are about 42 inches/106 cm long. The original was in B&W, and was digitally converted into a blueprint using the scame color cues as the Saturn V.
-------------

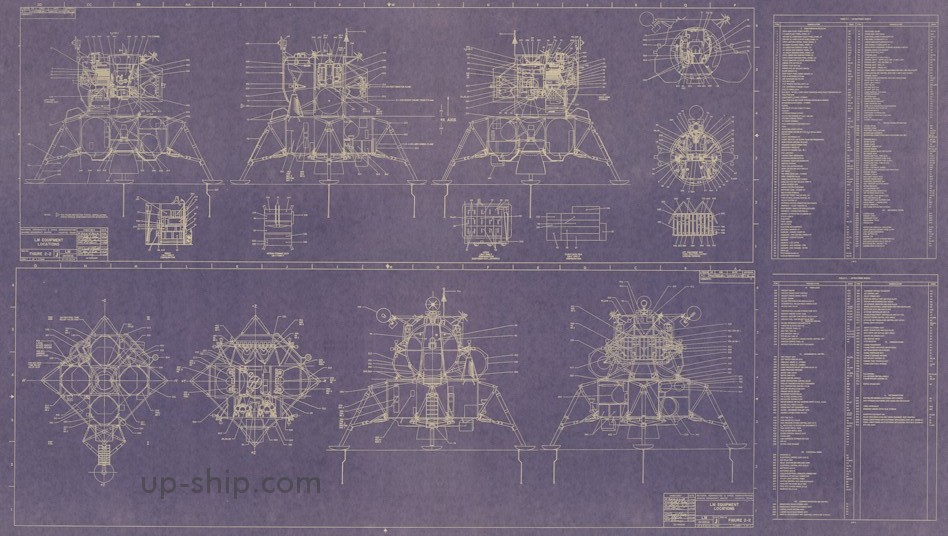

Lunar Module Equipment Locations diagrams
Full color, high quality print of NASA-MSC drawing dated January 1969 showing the Lunar Module and many pf the important bits of equipment that went into it. These prints are about 32 inches/81 cm wide by 18 inches/46 cm tall. The original was B&W; it has been converted to a full-color "blueprint" using the Saturn V as a color reference.
------------------

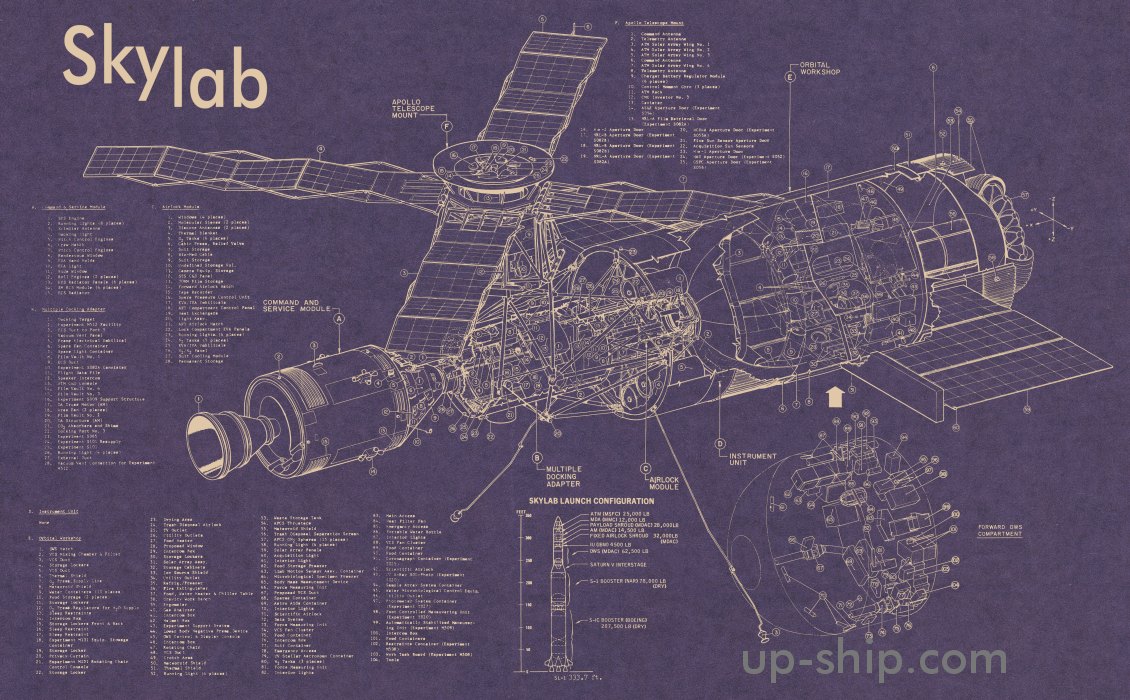

Full color, high quality print of NASA cutaway illustration of Skylab, with callouts. These prints are about 40 inches by 24 (101 by 61 cm)

http://www.up-ship.com/drawndoc/saturnvprints.htm

----------------
I also have several proposed prints (V-2 cutaway, V-2 engine, Apollo trajectory, Apollo CSM/LM, X-15A-3, B-29). So if any sound like they might interest you, take a look here and let your voice be heard: http://up-ship.com/blog/?p=18459


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,968
Reaction score
365
OBB, Off Topic, but while you're here...
I've been trying to access the Unwanted Blog via up-ship.com/blog/

I get a HostCentric webpage saying 'This Site has been Suspended'

I can access the blog via the links here, or via the APR blog, which works normally, but not directly........???


cheers,
Robin.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
robunos said:
OBB, Off Topic, but while you're here...
I've been trying to access the Unwanted Blog via up-ship.com/blog/

I get a HostCentric webpage saying 'This Site has been Suspended'


Grrr. Go to the blog. Hold down the "Ctrl" button and hit "F5." The entirety of Up-ship.com got suspended a week or so ago for half a day due to a denial of service attack, but has been up ever since; but your computer tried to access it during the suspension, and has got it into its head that there's no point in trying to actually access it again. Ctrl+F5 refreshes the page while simultaneously dumping the existing stored cahce of it, starting from scratch.
