Sagita Sherpa very light helicopter

UpForce

ACCESS: Confidential
Joined
Feb 5, 2011
Messages
153
Reaction score
28

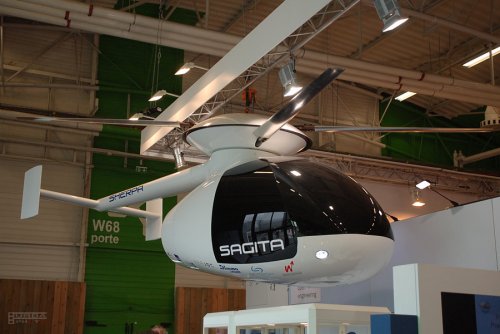

Sagita is a Belgian consortium of some sort, founded in 2008. They're showing a full scale mockup of their Sherpa very light helicopter at Paris this year. The powertrain is pretty unconventional, starting from the compressor inlet being pointed towards the rear. The rest of it seems to have something to do with hybrid boundary layer driven turbines, but that's more or less a guess on my part. Contra rotating lifting props, so no need for a tail rotor. Not too much to be found online about the Sherpa, but a cursory search did return a link to a Flightglobal story from 2009, so at least there's that. Might be worth a little buzz.

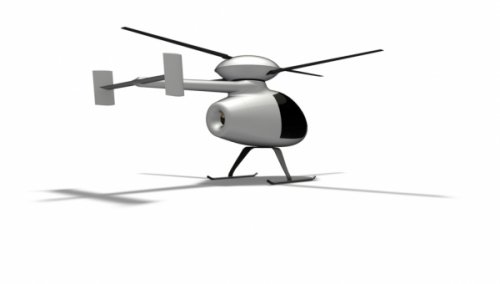

Two images from Sagita's website, and one of a "Ljungström turbine" CC attribution share alike by "Lidingo" from Wikimedia Commons.

Quote from "How does it work?" Tech section:
  • The engine drives a compressor that takes in air at the rear of the fuselage.
  • Part of the compressed air feeds the engine, the balance bypasses the engine, collects the heat of the cooling system and is eventually mixed with the engine's exhaust gases in order to raise the temperature to 100°C (212 °F).

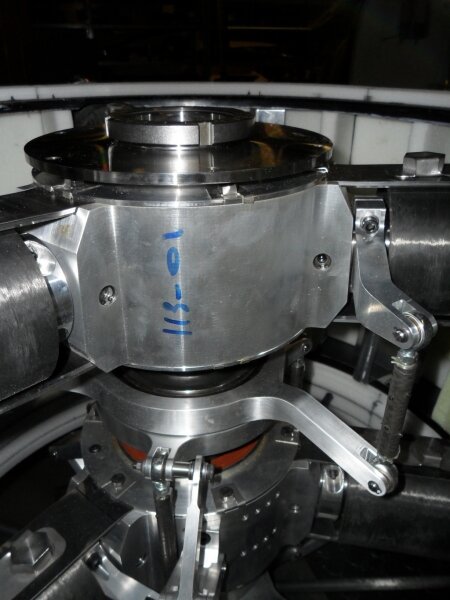

  • The hot compressed air is then sent to the rotor and expanded in two contra-rotating Ljungström type turbines.
  • Each of these turbines drives directly one of the two contra-rotating coaxial rotors. The air exits the turbine through a circumferential gap between the two rotors.
  • The transmission system requires no lubrification (sic), no cooling and no tail rotor drive. Its efficiency is about 85%.


Attachments

  • sagita_sherpa_01.jpg
    178.1 KB · Views: 477
  • sagita_sherpa_02.jpg
    62.6 KB · Views: 448
  • 419px-Ljungström_turbine_principle.png
    152.9 KB · Views: 415

ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
8
Basically a warm cycle helicopter without the hollow rotor tip jets then, or would this be more accurately described as a direct drive turbine rotor?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,303
Reaction score
4,070
Welcome your return my dear Matej,


and a nice helicopter design UpForce.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,303
Reaction score
4,070
And;


Attachments

  • 2.jpg
    31.1 KB · Views: 165

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,305
Reaction score
371
Sagita is a Belgian consortium of some sort, founded in 2008. They're showing a full scale mockup of their Sherpa very light helicopter at Paris this year. The powertrain is pretty unconventional, starting from the compressor inlet being pointed towards the rear. The rest of it seems to have something to do with hybrid boundary layer driven turbines, but that's more or less a guess on my part. Contra rotating lifting props, so no need for a tail rotor. Not too much to be found online about the Sherpa, but a cursory search did return a link to a Flightglobal story from 2009, so at least there's that. Might be worth a little buzz.

Two images from Sagita's website, and one of a "Ljungström turbine" CC attribution share alike by "Lidingo" from Wikimedia Commons.

Quote from "How does it work?" Tech section:
  • The engine drives a compressor that takes in air at the rear of the fuselage.
  • Part of the compressed air feeds the engine, the balance bypasses the engine, collects the heat of the cooling system and is eventually mixed with the engine's exhaust gases in order to raise the temperature to 100°C (212 °F).
  • The hot compressed air is then sent to the rotor and expanded in two contra-rotating Ljungström type turbines.
  • Each of these turbines drives directly one of the two contra-rotating coaxial rotors. The air exits the turbine through a circumferential gap between the two rotors.
  • The transmission system requires no lubrification (sic), no cooling and no tail rotor drive. Its efficiency is about 85%.
Whatever happened this superior means to engineer a helicopter along with a disk rotor system.


FXXII

I really should change my personal text
Joined
Sep 3, 2018
Messages
46
Reaction score
14

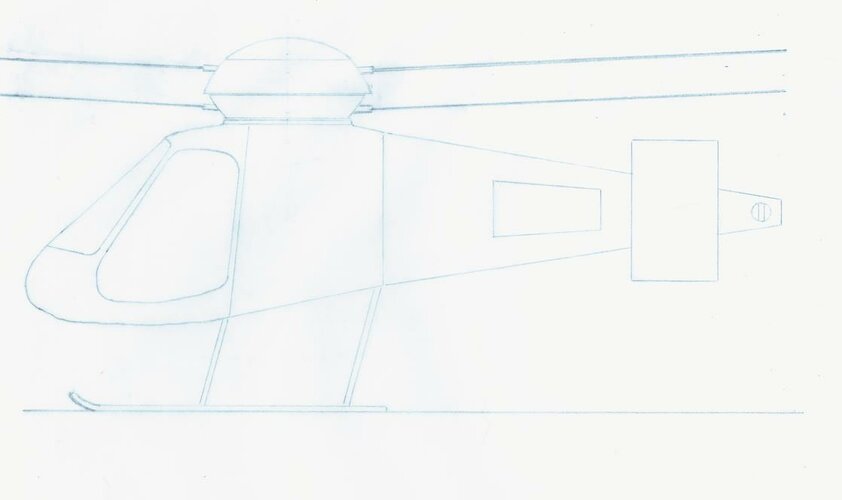

The green and grey circular cilinders in the drawing do not seem to have any aerodynamic shape, so how does the air get transported to the circumference and why would it be compressed? Or is there more to the principle drawing than is depicted? Anybody an idea?


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,287
Reaction score
680
Dear FXXII,
The only way that turbine makes sense - to me - is if the two Ljungstrom turbine discs have a series of axial turbine blades installed parallel to the main shaft. That way radial escaping steam turns turbine blades. Each ring of turbine blades/buckets serve as inlet guide vanes for the next outer row of blades/buckets.
This counter-rotating turbine was invented in 1906 by Swedish brothers Fredrick and Birger Ljungstrom to generate electricity. Ljungstrom turbines also powered a huge oil tanker. The Ljungstrom brothers were eventuauly bought out by Brown Boveri who built the first electric-generating turbine in Switzerland.

Last edited:

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,305
Reaction score
371
Paper


Attachments

  • ERF2015_0013_paperTDRotor.pdf
    6.2 MB · Views: 16

UpForce

ACCESS: Confidential
Joined
Feb 5, 2011
Messages
153
Reaction score
28
Ha, didn't remember starting this topic ... guess this externalized memory makes me (us?) a kind of a cyborg entity, individual recollection depending on community demand. Alas, the Sagita website seems to have vanished.


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,305
Reaction score
371
Ha, didn't remember starting this topic ... guess this externalized memory makes me (us?) a kind of a cyborg entity, individual recollection depending on community demand. Alas, the Sagita website seems to have vanished.

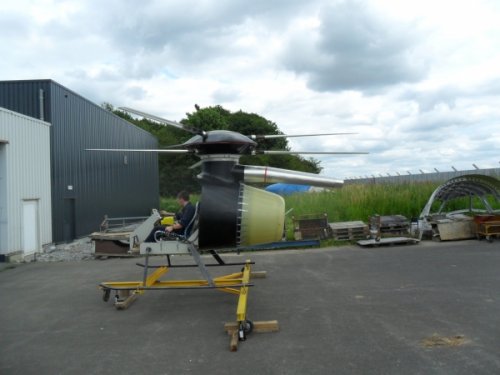

The helicopters are for sale on another website.
