Hi,

the Boeing Model-466 P3B was a patrol aircraft project,and
powered by two 5200 hp XT40-A engines,driving contra-
rotating airscrew;
has anyone a drawing to this Model ? please.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,124
Reaction score
5,632
Hi,

if you have not a drawing,can you tell it was a flying boat
or normal aircraft ?.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
The Boeing Model 466 was a land-based long range patrol aircraft
powered by two 5.200hp Allison XT-40 engines driven contraprops.
Span: 110ft. Lenght 90ft6in.Gross weght :92.000lb.
Tanden type undercarriage with outrigger wheels in engine gondola's.

service designation : XP3B-1 - type not built.
Boeing Aircraft since 1916 - Peter M.Bowers. Putnam .London1989.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
Given the engines, it would've been unsuccessful, anyway. The Allison XT40 was the ruin of a number of otherwise good aircraft (Convair Tradewinds, NAA TurboSavage. Douglas Shyshark, etc.) and was two gas generators of the similarly unsuccessful XT38 driving a common gearbox. The XT38 went through a complete re-design to become the T56 and a corresponding development of the XT40 was proposed as the T54 but never built.

The overall description sounds roughly like a XB-55 derivative with only one engine pod on each side.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Very close Evan but the wings and tailplane were not swept..


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,171
Reaction score
6,278

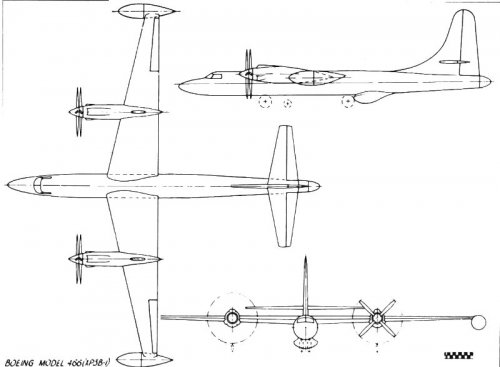

From Boeing Aircraft Since 1916 by Peter M. Bowers:


Attachments

  • XP3B-1.jpg
    44.1 KB · Views: 224
