Folland Fo.116 torpedo bomber monoplane (Specification E.28/40)

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Hi,

Folland E28/40 was torpedo bomber monoplane with a variable-
incidence wing,not completed and Folland F19/43 was a fighter
with a 2,500 hp Bristol Centaurus XII and contra-rotating airscrews,
project only, do you know those aircraft?and any drawings to them
please.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
670
Reaction score
149
There are 2 pictures of the Fo.117 on Flitzer's site.

LINK REMOVED - site no longer active.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Thank you dear red admiral,

but what about the anther aircraft for E28/40 Specification,it had a variable-
incidence wing look like Gourdou G-90, any informations about it please.


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2

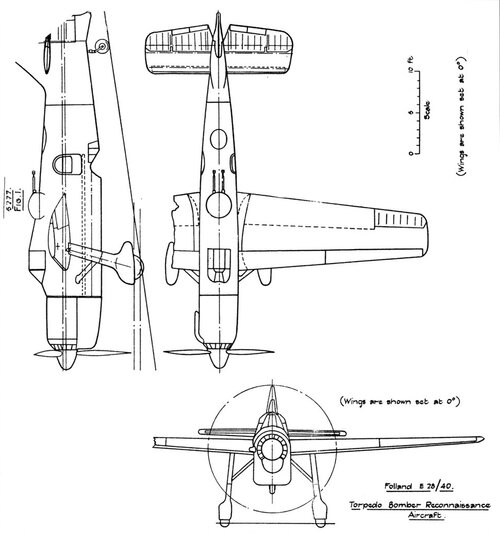

Folland E28/40... I have a drawing of that aircraft (unfortunately, not right now :mad: ). There's a book I bought entitled 'British Prototype Aircraft' and is the only aircraft they included in the section for Naval aircraft was this machine, complete with three view. As soon as I can dig it out, I'll scan it. But if you can find that book, that's where it is. ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Hi Akaikaze,

I have not that book,but do you know the number of Folland design Fo---?.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
Fo.116 to E.28/40. The book says 2400 Centaurus III engine from Aug 1941, but original spec called for Sabre and that is what the 3-view appears to me to show. span 52'6 length 44' top speed est 236 mph
range 800mi @ 230mph all up wt 18250lb Cancelled 1943.
Shall I scan 3-view, Akaikaze?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
see also
http://stinet.dtic.mil/oai/oai?&verb=getRecord&metadataPrefix=html&identifier=ADA951968
for a report on the aerodynamics model tests, dated 1950!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Thank you dear smurf,

and do you know the other contenders in this specification E28/40 ?.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
E28/40 was an 'experimental aircraft' spec, issued to Folland, not put out to competitive tender as volume production was not expected.

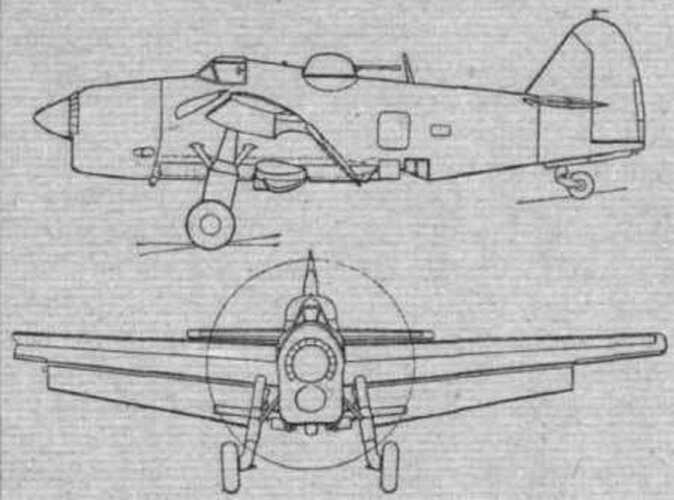

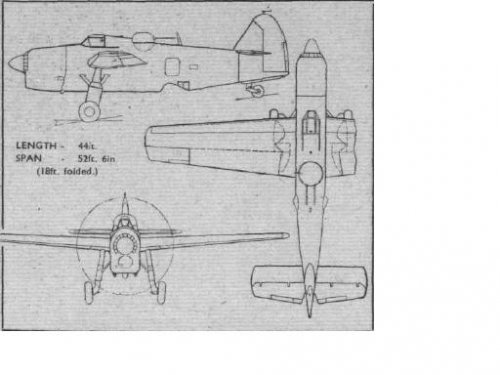

'Spirit of Hamble Folland Aircraft' by D.N. James has a list of Folland project numbers, listing three for this aircraft: Fo 115 1940 with Sabre; Fo 116 with variable incidence wing and 2400hp Centaurus; Fo 116A as Fo116 with Centaurus III, March 1942.


Attachments

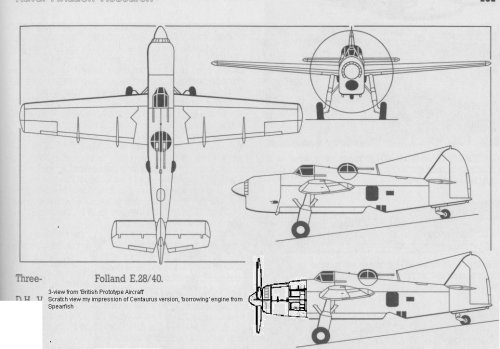

  • Fo 116.JPG
    Fo 116.JPG
    87.6 KB · Views: 1,010
  • Fo 116 spec.jpg
    Fo 116 spec.jpg
    174.4 KB · Views: 714

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
559
Reaction score
190
Thanks Smurf - are the two books mentioned 'Spirit of Hamble Folland Aircraft' by D.N. James and 'British Prototype aircraft' any good?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
are the two books mentioned 'Spirit of Hamble Folland Aircraft' by D.N. James and 'British Prototype aircraft' any good?
Oh, dear. One man's meat is another's poison.
Folland. 128pp A5ish. It's a history of the company rather than of its aircraft. Lots of photos many of production lines etc, but not on art paper. Heavy emphasis on Gnat and unflown derivatives, of which about 8 3-views. Only about 3pp before you get to the Midge. No index, but so far as I can see no mention (apart from the list) of either Fo116 or Fo117. You get 1 to 2 lines on each project, as I posted.

British Prototype Aircraft by Ray Sturtivant
200pp, A4 again not art paper so photos not quite at their best, but generally good clear and an unusual selection. First 50pp pre WWII, so covers the ground, but coverage patchy. So the chapter on Naval Aviation research has Fo116 with 3-view I've not seen elsewhere, then goes straight on to rubber decks and Vampires but no mention of Supermarine 508 there, nor anything at all re progress to Scimitar. With one or two odd exceptions, it's stuff that did fly. There are things in it that are rarely seen, but it's not at all a complete survey.
I'm a bit of a bookoholic, or I probably would have relied on the library for these two. I didn't buy them new.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
Hood on another thread has reminded me of the Project Summary in Tony Buttler's book British Secret Projects Fighters and Bombers 1935-1950. There you will find a lttle further information and a photograph of a model of what it says is the Fo 116, but again is clearly the Fo 115 with Sabre engine.


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
11

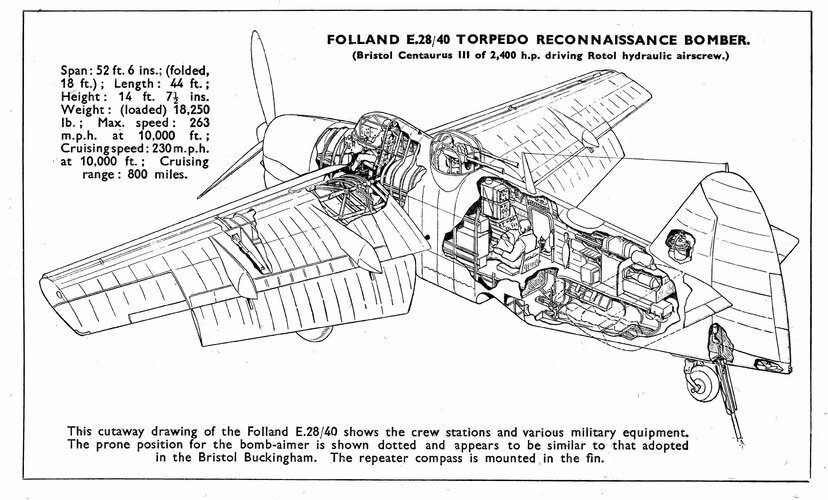

Found this one FlightGlobal

Single-engined torpedo reconnaissance bomber, three man crew (pilot, observer/bomb aimer and air gunner/wireless operator), torpedo, bombs, power-operated gun turret, full navigation and night-flying equipment, the usual pyrotechnics, arrester gear for deck landing, and have a range of 800 miles. A single Bristol Centaurus III engine

The E.28/40 was a High-wing monoplane of all-metal construction, with fixed and "spatted" undercarriage. Its most unusual feature was that the wing was carried in trunnions so that its angle of incidence could be varied from 4 deg. to 79 deg. The latter angle was, of course, only to be used when the wing was folded. Variation of incidence in the flying range was from 4 deg. to 15 deg.

Maximum all-up weight would be 18,250 lb. At that weight the top speed was estimated at 263 m.p.h. at 10,000ft., and cruising speed 230 m.p.h. The cruising range was to be 800 miles for which a tankage of 360 gallons was provided.


Attachments

  • Folland E.28-40.JPG
    Folland E.28-40.JPG
    26.3 KB · Views: 536

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
39
red admiral said:
There are 2 pictures of the Fo.117 on Flitzer's site.

LINK REMOVED - site no longer active.


I think these two are what you were referring to.
P


Attachments

  • 7.jpg
    99.8 KB · Views: 295
  • 8.jpg
    119.3 KB · Views: 290

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,763
Reaction score
3,396
Hi!
https://p-d-m.livejournal.com/66554.html
"Folland Fo.116
E.28/40 specification.
The specification provided for the creation of an experimental aircraft, the purpose of the experiment was to confirm the possibility of take-off and landing of a heavy aircraft from the deck. It was implied that at its base in the future it is possible to create a full-fledged combat aircraft: torpedo carrier, bomber and reconnaissance.
The main feature for which the specification was created was a wing with advanced mechanization and a variable angle of attack. By the way, according to the specification released earlier (S.24/37) supermarine Type 322 Dumbo was also created with a wing with a variable angle of installation.
The Folland wing could change the installation angle from 4 to 79 degrees, it is natural in the parking lot, for subsequent storage in the hangar.
In flight - from 4 to 15 (Supermarine 322 from 2 to 15).
The wing structure was "spun" on a spherical bearing with the help of an electric drive.
Like the Dumbo, the Folland aircraft was a three-seat high-wing aircraft with a fixed landing gear.
The engine is a radial air-cooled Bristol Centaurus III of 2400 hp. And you can't tell from the picture - this generally pretty healthy engine was installed in a very intricate way, as much as 1400 mm in diameter.
If the Supermarine Type 322 Dumbo was built in two copies and one of them flew until the end of the 40's, the project Fo.116 was abandoned in 1943, the first prototype aircraft remained unfinished.
Length - 13.4m
Wingspan - 15.9m.
Maximum take-off weight - 8280kg
Top speed - 423km/h
At altitude - 3000m
Cruise speed - 370km/h
Range - 1290km
with a fuel supply of 1637L"


Attachments

  • h-866.jpg
    78.7 KB · Views: 61
  • b-879.jpg
    237.6 KB · Views: 62
Last edited:

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,521
Reaction score
695

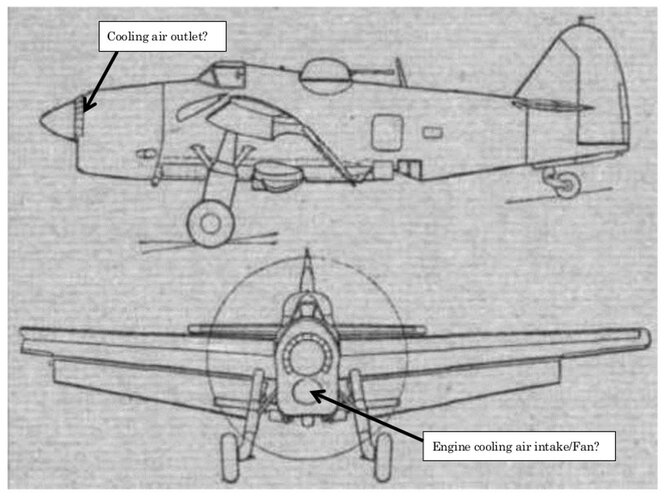

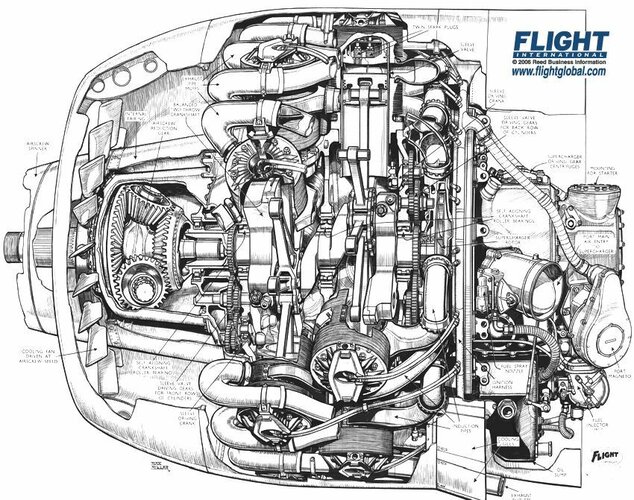

The Centaurus in the Fo116 used some form of fan-assisted reverse-flow cooling system, but I can find no details on how this functioned. The installation is tightly cowled, hence why some have mistaken it for Sabre in the Fo115 (for example in the model of the Fo116) Fo116.jpg
