S-MAGJET

ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
9
Crosslink
http://www.secretprojects.co.uk/forum/index.php/topic,12976.0.html
to the original thread discussing the SonicStar, a SSBJ using superconducting rim gas turbine engines.

Continuing onward from recent NASA studies regarding a superconducting rim driven fan, the S-MAGJET is claiming to be a new all electric hybrid engine. It appears the dual counterrotating fans, the compressor stages, and the turbine stages feature superconducting rims and a hollow core "shaftless" architecture. Because extracted power from the turbine stages is electric rather than mechanical, it becomes possible to electrically regulate the power split between fan and compressor in the engine, as well as operate fan/compressor RPM's substantially different from the turbine stage, as well as tweaking the RPM of individual stages. This may provide a means of providing variable cycle control. Substantial auxiliary electric power is also available for extraction (there is the implication that SonicStar may use plasma drag reduction techniques which would require substantial electrical power)


ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
9

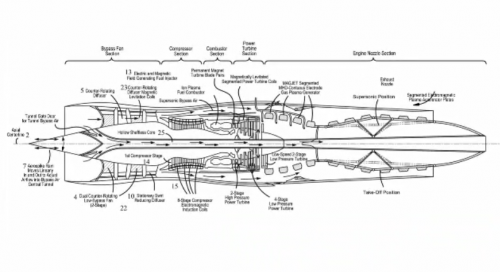

It appears the plasma drag reduction scheme was not intended for the airframe or wings, but internal to the engine. As shown below, there is a MHD accelerator located in the nozzle. Based on the patent application, it appears the combustor ionizes the combustion products, and the power turbine blades are charged to attract the exhaust in an attempt at laminar flow drag reduction. After the power turbine there is a high voltage discharge to reseed the exhaust with ions, to provide conductivity for the MHD accelerator.

The patent application for the whole engine

http://www.faqs.org/patents/app/20110138765

The patent application for the ionizing plasma combustor

http://www.faqs.org/patents/app/20100186414


Attachments

  • sonicblueengine.png
    171.4 KB · Views: 173
