RZ2 Rocket Engine in Detail

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,980
Reaction score
1,353
you don't know, Wat you can find in Belgium ;D

Like A Europa 2 Rocket !
(not quite, is build from left over parts after Program was Shut down...)

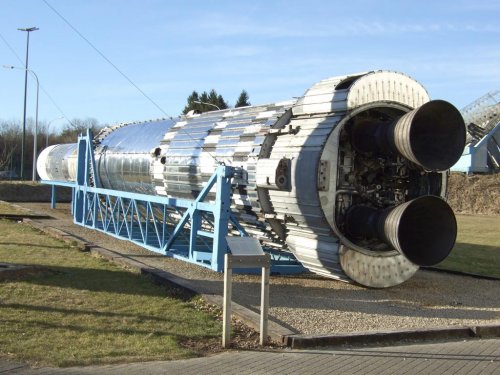

First Picture the Europa 2 on Display

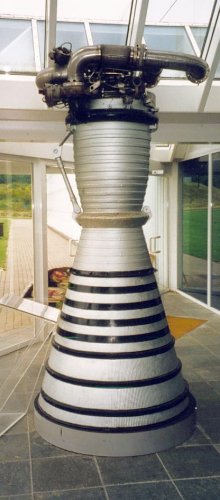

Second Pic: a Left over RZ-2 Engine (No Turbopumps)

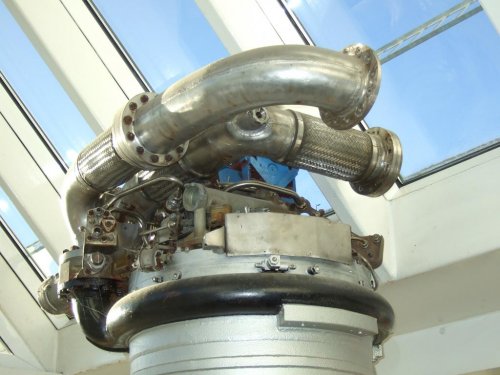

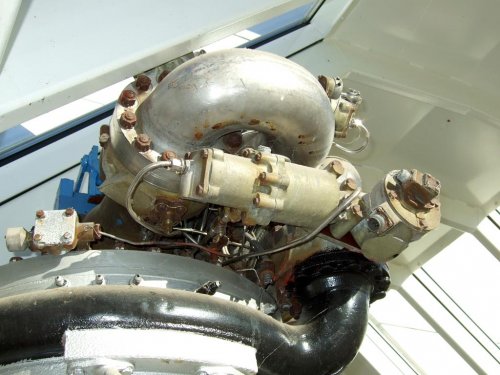

third and four pic: RP-1 and LOX Line with injector.

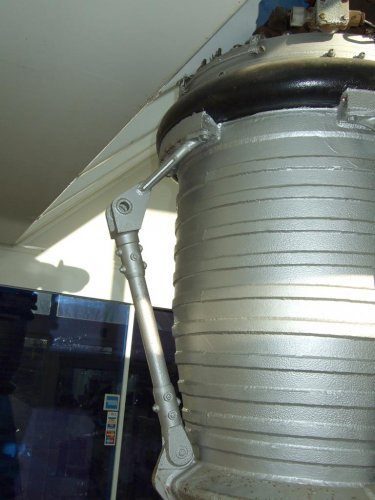

fifth Pic: Connector for Hydraulic motor

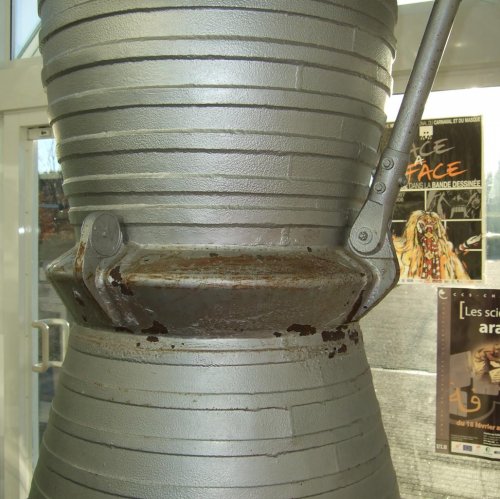

six Pic: Connector detail on RZ2 Nozzel

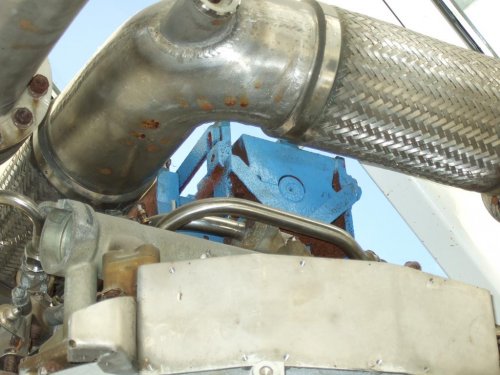

seven pic: this Blue Box is a direct connection to truststructure of Blue Streak


Attachments

  • Europa2.jpg
    155.9 KB · Views: 81
  • RZ2-engine.jpg
    69.8 KB · Views: 69
  • RZ2_Detail5.jpg
    106.3 KB · Views: 62
  • RZ2_Detail3.jpg
    122.2 KB · Views: 63
  • RZ2_Detail6.jpg
    105.4 KB · Views: 57
  • RZ2_Detail7.jpg
    187.9 KB · Views: 8
  • RZ2_Detail8.jpg
    112.4 KB · Views: 12

Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
43
Michel Van said:
you don't know, Wat you can find in Belgium ;D

Like A Europa 2 Rocket !
(not quite, is build from left over parts after Program was Shut down...)

First Picture the Europa 2 on Display
Second Pic: a Left over RZ-2 Engine (No Turbopumps)
third and four pic: RP-1 and LOX Line with injector.
fifth Pic: Connector for Hydraulic motor
six Pic: Connector detail on RZ2 Nozzel
seven pic: this Blue Box is a direct connection to truststructure of Blue Streak

A plug version was drawn up. Help make it recoverable?
