RSRA (Rotor Systems Research Aircraft) projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720025370_1972025370.pdf


Attachments

  • untitled.JPG
    35.7 KB · Views: 695

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
Looks like to me it's more of a high-speed testbed rather than an attack helo, along the lines ofthe Sikorsky S-72.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
the caption on the picture 'a.jpg' says it all;

it's Bell's submission to the RSRA requirement, which was fulfilled by the Sikorsky S-72. see here:-

http://www.aviastar.org/helicopters_eng/sik_x-wing.php

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468
OK my friends,

and the helicopter was Bell Model-646,and not D-646,that is because the
D-600 was appeared in 1996;
http://www.secretprojects.co.uk/forum/index.php/topic,1222.msg24790/highlight,d-600.html#msg24790


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
696
Reaction score
77
Website
www.tommythomason.com
Ah, the Bell RSRA. I was in charge of that proposal while waiting for NASA and Bell to agree on the XV-15 contract. My unwritten orders were to provide a credible stalking horse for NASA Langley to use with Sikorsky so that they got a good price. The proposal had to be technically competent even though it was done on a shoestring budget so we didn't besmirch our reputation. The only good part of the deal was that I was expected, nay required, to lose. Bell management didn't want any part of that particular program. Losing wasn't hard, except for the engineers who poured their hearts into the effort - if I remember correctly, Sikorsky bid $24 million and Bell, $42 million. The latter was a little hard to explain since we had bid only $28 million to beat Boeing for the TRRA (Tilt Rotor Research Aircraft) program. Our glib explanation was that we had already developed the transmission and rotor for the Bell tiltrotor.

Personally, I thought the RSRA was a huge waste of time and money. One of my fantasies was that NASA would put the X-wing variant in the NASA 40x80 tunnel and it would come apart and destroy three dumb ideas, the RSRA, the X-Wing, and the 40x80. Actually the 40x80 was not really as dumb as the first two, but NASA forced the XV-15 to undergo an expensive and dangerous (and again, in my opinion not only unnecessary but useless) test program in the 40x80 before flight test. We managed to convince them to allow us to make a first flight and fly out to 40 knots (whoopee) in helicopter mode before the 40x80 entry. In addition to the risk (there's no inertia relief in a wind tunnel test, so it's relatively easy to overload the aircraft, particularly a helicopter, inadvertently), by the time we were done in the 40x80, we were out of money (the $28 million was really, really optimistic as it turned out; we knew it was optimistic but not really, really optimistic). What's worse, the tunnel could only put 200 knots or so on the aircraft and the real worry was at much faster speeds. Fortunately, the Navy came to the rescue with more funding (I was and always will be grateful to the late Hal Andrews) so we were able to get aircraft number 2 into the air, get to 300 knots (rounded up a tinsy bit, another story), and take it to the Paris Air Show, thereby demonstrating that the tiltrotor concept was worthy of even more money, some of which Bell management provided. However, the 40x80 effort delayed the program by at least a year, maybe two, and could well have resulted in its cancellation.

Bell Design vs. Model numbers can be confusing. The former were issued by engineering and fairly easy to get. The latter were recommended by marketing and authorized by executive management; getting one was a significant milestone for a program internally. Design numbers, if I remember correctly, were sequential. Thought was put into a model number, e.g. 209 Cobra (well, maybe not that one), 309 King Cobra, and 409 for the AH-63 program. As a result, a design and model number could be the same but refer to two completely different projects. In this case it was in fact the Model 646, since model numbers were almost assigned to formal proposals.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Interesting story Tommy - thanks for that insight. What did Boeing's TRRA look like - any idea or info?

Enjoy the Day! Mark


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
696
Reaction score
77
Website
www.tommythomason.com
Mark Nankivil said:
Interesting story Tommy - thanks for that insight. What did Boeing's TRRA look like - any idea or info?

Enjoy the Day! Mark

Unfortunately, some of my files have disappeared along the way. This is the best I could come up with on short notice. Boeing Helicopter differentiated their proposal from Bell's in several ways. The rotor turned the other way ("down and out" versus "up and in"), the rotor was soft-in-plane vs. stiff-in-plane, the engines were fixed instead of tilting, and they had leading edge devices to reduce rotor download on the wing in helicopter mode. If the fuselage looks familiar, it's because it was an MU-2 airframe.


Attachments

  • Boeing TRRA Low res.jpg
    Boeing TRRA Low res.jpg
    731.8 KB · Views: 310

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

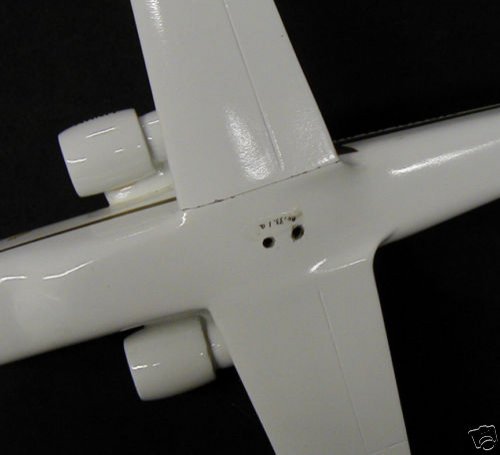

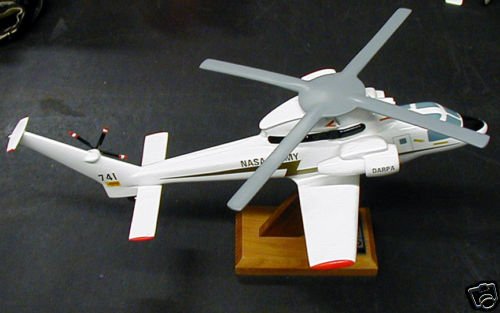

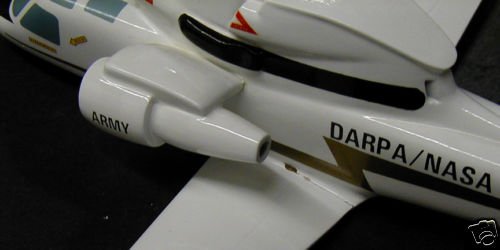

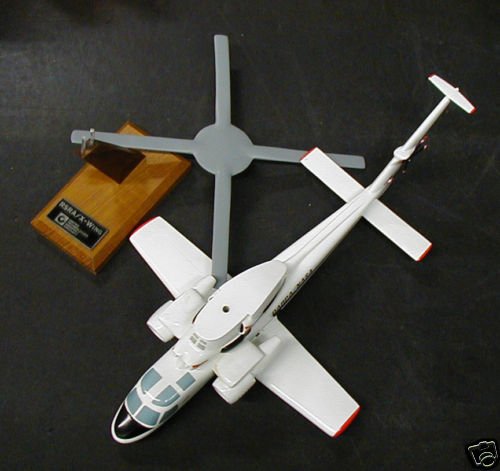

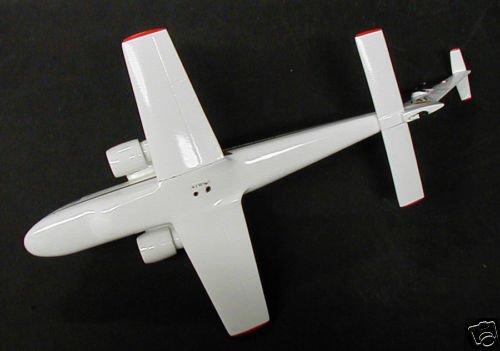

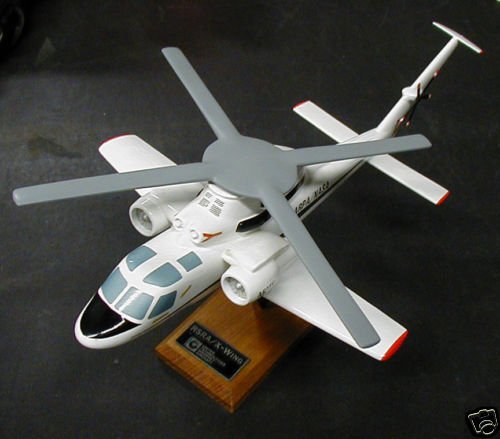

Interesting model of the S-72:

[eBay item no longer on sale]

Enjoy the Day! Mark


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

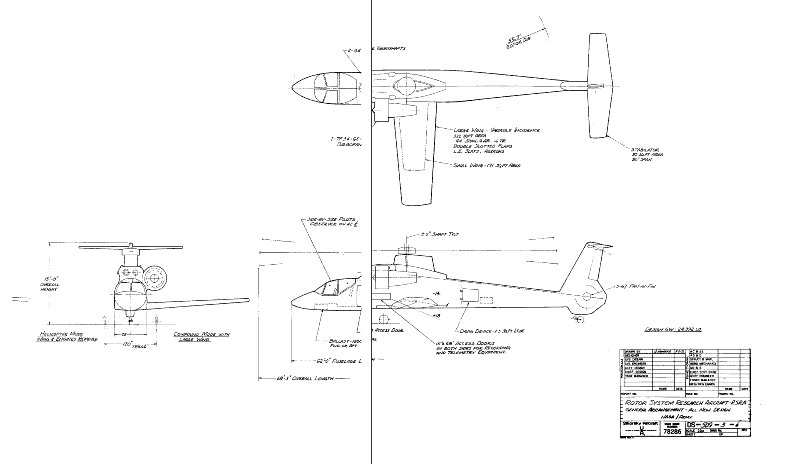

Some pics:


Attachments

  • RSRA06.jpg
    18.3 KB · Views: 13
  • RSRA05.jpg
    20.3 KB · Views: 26
  • RSRA04.jpg
    20.5 KB · Views: 33
  • RSRA03.jpg
    39.2 KB · Views: 38
  • RSRA02.jpg
    28.7 KB · Views: 42
  • RSRA01.jpg
    36.4 KB · Views: 135

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468

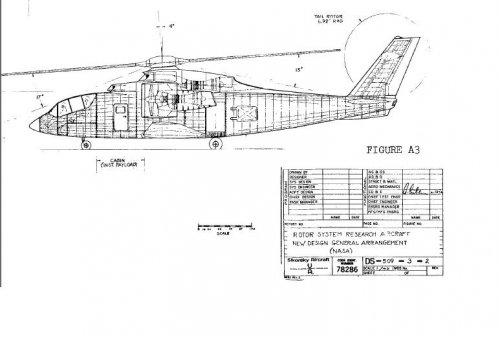

Because no one noticed that design,Sikorsky DS-509.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
hesham said:
Because no one noticed that design,Sikorsky DS-509.

In that case, just put a link directly to the one post:
http://www.secretprojects.co.uk/forum/index.php/topic,6151.msg50730.html#msg50730

OR link the existing photo (instead of attaching it once again), like this:



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468
hesham said:
Hi,

anther drawings to this helicopter,type A and B,and they called it 646,
may be the Bell Model.


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720025371_1972025371.pdf

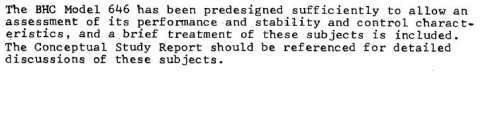

The proof for that report 646-099-001 & 003 was the Bell Model-646;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720025370_1972025370.pdf


This document is submitted in accordance with the requirements of
NASA Contract NASL-1L251, Predesign Study for a Rotor Systems
Research Aircraft (RSRA). The RSRA is a compound helicopter with
a speed ability of 300 KTAS. It incorporates data systems which
make possible the in-flight measurement of values normally obtained
in wind tunnels.
Bell Helicopter Company (BHC) has conducted a 30-week conceptual
predesign of the RSRA. The analysis which led to the definition
of the RSRA configuration is described in BHC Report 646-099-001
(A Conceptual Study of the Rotor Systems Research Aircraft). The
proposed Development Plan for the RSRA is presented in BHC Report
646-099-003 (A Development Plan for the Rotor Systems Research
Aircraft).
This Predesign Report describes the RSRA, including the major
subsystems. Detail Specifications and drawings are included.


Attachments

  • 1.JPG
    26.2 KB · Views: 483

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

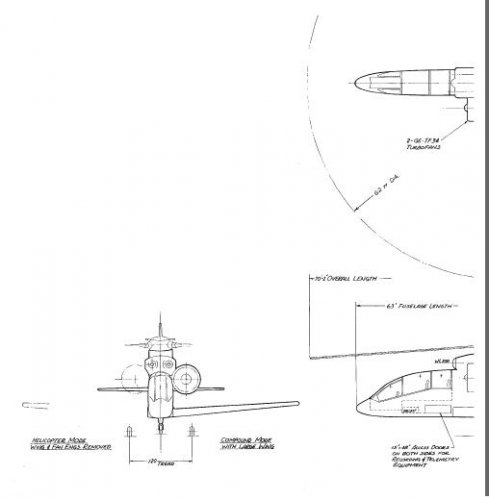

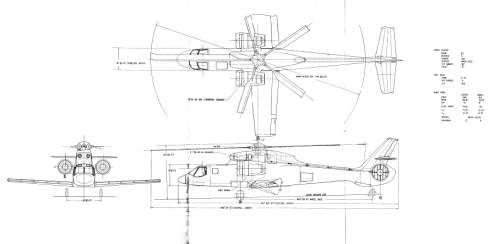

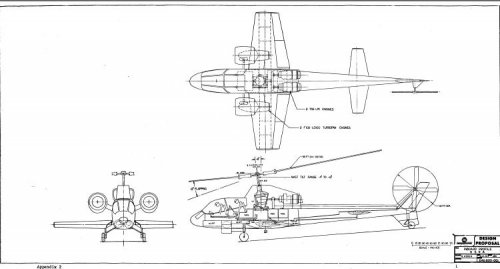

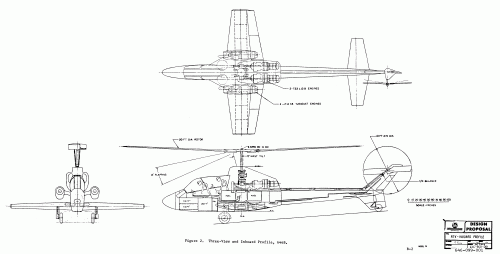

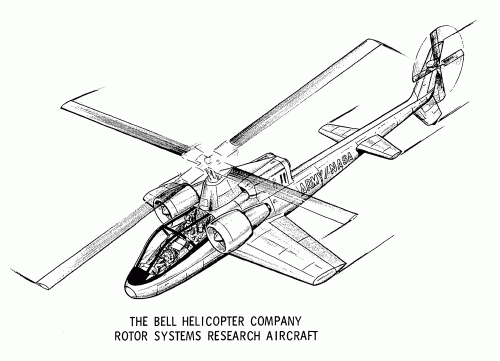

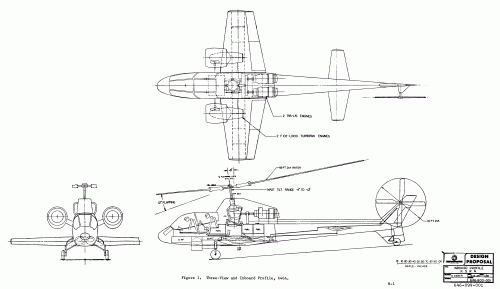

Large versions of the images of the Bell Model 646A (larger variant) and Model 646B (smaller variant) proposals for the RSRA program, still from the same report:
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720025371_1972025371.pdf


Attachments

  • Bell 646B.gif
    Bell 646B.gif
    138 KB · Views: 341
  • Bell 646A.gif
    Bell 646A.gif
    149 KB · Views: 402
  • Bell RSRA.gif
    Bell RSRA.gif
    153.1 KB · Views: 417

500 Fan

ACCESS: Confidential
Joined
Jul 16, 2010
Messages
90
Reaction score
15
This query might be taking things a little off-topic, but other than the OH-6A "Quiet One" programme, the Higher Harmonic Control programme and the Wallops Island quiet helicopter testing in 1986, did NASA carry out any other significant test programme utilizing the OH-6A/H500 helicopter, be they for rotor research or or otherwise? Thanks.


500 Fan.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468

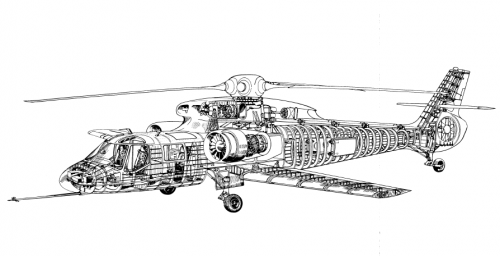

Of course it was early concept,


please note it had a S-67 rotor and differs from the helicopter actually built.


Attachments

  • 1.png
    62.9 KB · Views: 76
  • 2.png
    89.4 KB · Views: 74

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468
From Sikorskyarchives,


here is the RSRA.


Attachments

  • RSRA.png
    625.3 KB · Views: 45
