Rotary bomb bay

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,258
Reaction score
158
The Martin XB-51 pioneered a curious weapons bay right after WWII. The weapons were mounted on the inside of this rectangular "slab" that would also form the door of the bay. The whole assembly would rotate 180 degrees around the longitudinal axis to expose the weapons to the airstream. This was done because of acoustic/structures problems associated with opening large cavities while flying fast on the deck (the XB-51 mission).

The same design was subsequently applied to the P6M Seamaster, and the Martin-built B-57 Canberra. The Buccaneer also has a rotary bomb bay, i wonder if it's the same design.

Does anyone have good pictures/diagrams of these systems? I have been looking like crazy but don't have much to show for... :(


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,372
Reaction score
1,409
The F-101 VooDoo had something similar but with missiles on BOTH sides of the door.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863

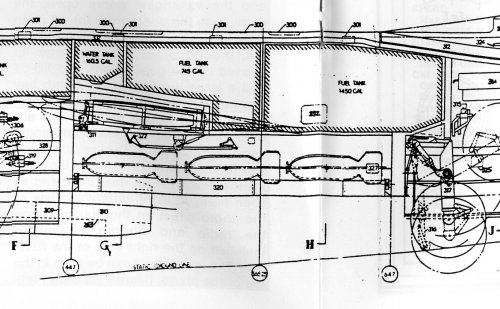

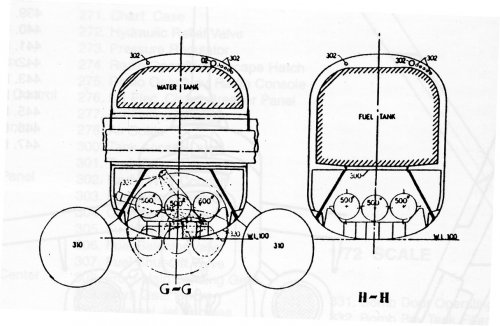

These are from the best XB-51 reference ever, Scott Libis' Air Force Legends #201 Martin XB-51 by Ginter Books. I highly recommend obtaining a copy and looking their other titles, I've collected almost all of them - that's how these books must be made by standard.


Attachments

  • xb-51wb_1.jpg
    398.2 KB · Views: 730
  • xb-51wb_2.jpg
    228.3 KB · Views: 658

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,221
Reaction score
926
From Tim Laming "Buccaneer" a drawing of the bomb door :


Attachments

  • bomb-door.JPG
    43.9 KB · Views: 753

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863

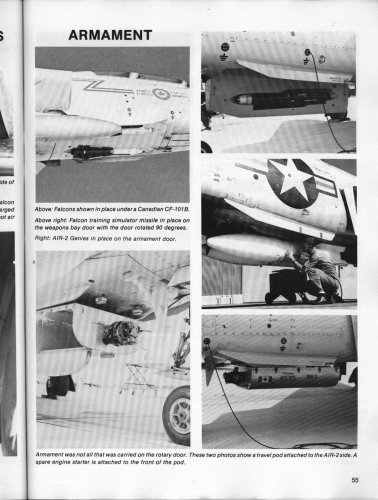

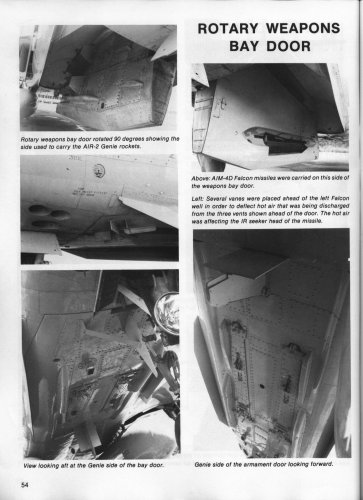

F-101B Weapons bay door (from Detail&Scale #21)


Attachments

  • f101b-1.jpg
    339.6 KB · Views: 722
  • f101b-2.jpg
    385.3 KB · Views: 723

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
Interesting, I wonder why it fell out of favor. Of course rotary bomb bays are in vogue for large bombers, but they're still tucked very much away inside.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
The Blackburn Buccaneer had such a weapons bay. I wonder, did any other aircraft apart from the Buc, the US Canberra and the aforementioned XB-51?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863
F-101B, P6M Seamaster as well - if you are reading carefully :)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,258
Reaction score
158
Just call me Ray said:
Interesting, I wonder why it fell out of favor. Of course rotary bomb bays are in vogue for large bombers, but they're still tucked very much away inside.

I think the rotary door arrangement tends to occupy more volume for a given weapons load than a conventional arrangement. Structures-wise, the door leaves a gaping hole in the bottom of the vehicle, which requires overall strengthening. I guess with a conventional bay, you can still run a keel/stringer through the middle and split it in two. I am not sure on the last point since I failed most of my structures classes in college :)

By the way, thanks for the awesome pics. I spent a couple of hours on the flight archive and came up empty handed. Now I have plenty to work with :)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
863
...and again CodeOne Magazine rocks

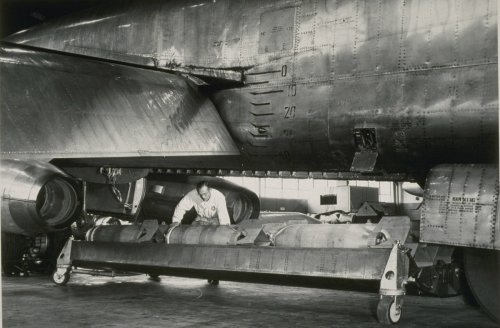

A Martin technician inspects the six 750-pound bombs loaded on the innovative rotary launcher used on the XB-51 medium bomber prototype, circa 1949. The bombs, rockets, or other weapons would be loaded on to the door itself. Once hoisted up into the aircraft, the wheels would be removed and the weapon/door combination would be attached to a spindle at each end of the bomb bay. Near the target, the door and weapons would be rotated 180 degrees. The weapons would be released or fired and the now-empty door would rotate back into place. The system allowed for accurate bombing at relatively high speeds. Two XB-51s were built, but the Air Force's medium bomber competition went to the English Electra Canberra design, which Martin later built under license.


Attachments

  • 2010_10_24_Spotlight_XB51_Weapons_1267828237_1145.jpg
    239.7 KB · Views: 190

SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30
The F-108 used (well, it would've used) a bay with a rotary pallet. One side was the bay door, the other side had a T-shaped assembly mounting the three GAR-9 AAMs.

The F-101B initially used a rotary pallet with six Falcon AAMs. Three on the "outer" side had retractable launch rails for low-drag carriage, three on the "inner" side had launch rails that did not retract. Anyone know when they stopped using that one?


Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
19
AeroFranz said:
The Martin XB-51 pioneered a curious weapons bay right after WWII. The weapons were mounted on the inside of this rectangular "slab" that would also form the door of the bay. The whole assembly would rotate 180 degrees around the longitudinal axis to expose the weapons to the airstream. This was done because of acoustic/structures problems associated with opening large cavities while flying fast on the deck (the XB-51 mission).

The same design was subsequently applied to the P6M Seamaster, and the Martin-built B-57 Canberra. The Buccaneer also has a rotary bomb bay, i wonder if it's the same design.

Does anyone have good pictures/diagrams of these systems? I have been looking like crazy but don't have much to show for... :(

Hi'
There was a British proposal circa 1937 for a British bomber with such a system, Possibly Airspeed? Looked a bit like an early Boeing but with a rotary bomb bay. Will try to find the original article but it was published many years ago.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,258
Reaction score
158
Sounds new to me. By all means share if you can find it! ;)


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30
No, they had true weapons bays.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,372
Reaction score
1,409
flateric said:
...and again CodeOne Magazine rocks

A Martin technician inspects the six 750-pound bombs loaded on the innovative rotary launcher used on the XB-51 medium bomber prototype, circa 1949. The bombs, rockets, or other weapons would be loaded on to the door itself. Once hoisted up into the aircraft, the wheels would be removed and the weapon/door combination would be attached to a spindle at each end of the bomb bay. Near the target, the door and weapons would be rotated 180 degrees. The weapons would be released or fired and the now-empty door would rotate back into place. The system allowed for accurate bombing at relatively high speeds. Two XB-51s were built, but the Air Force's medium bomber competition went to the English Electra Canberra design, which Martin later built under license.

Airtime Publishing's Classic Wings issue on the XB-51 has a shot of the rotary bay door used with the 4000lb bomb. Bulges out quite a bit.

J

joncarrfarrelly

Guest
Spark said:
Hi'
There was a British proposal circa 1937 for a British bomber with such a system, Possibly Airspeed? Looked a bit like an early Boeing but with a rotary bomb bay. Will try to find the original article but it was published many years ago.

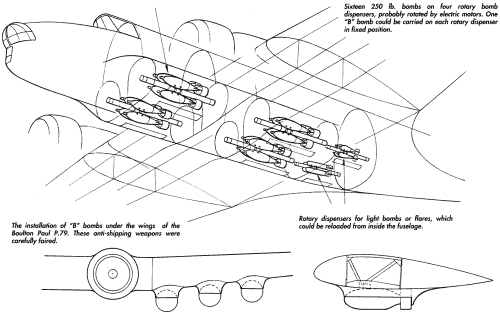

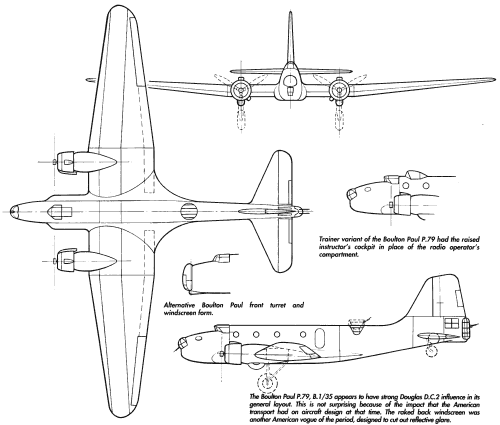

I believe you may be thinking of the Boulton-Paul P.79 to B.1/35 featured in 21st Profile Vol.2, No. 16.

The design featured rotary bomb dispensers, similar to the B-1B, rather than a rotary bomb bay.

Attached are the GA and bomb dispenser drawings from the article.

Jon


Attachments

  • BP_P79_02.png
    31.9 KB · Views: 887
  • BP_P79_01.png
    30.4 KB · Views: 946

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,258
Reaction score
158
wow, not what i was expecting but just as interesting. I wonder if the wing racks can be considered an early example of 'semi-conformal' carriage. I was also happy to find an explanation for the raked back windshield, which had always baffled me.
Thanks for posting that! :)


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
verner said:
Didn't the F-111 and B-1B have these also?

Verner my friend I think they had conventional bomb bays (with the B-1B and the proposed 'FB-111H' utilizing a rotary launcher system within them.

Regards
Pioneer


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
135

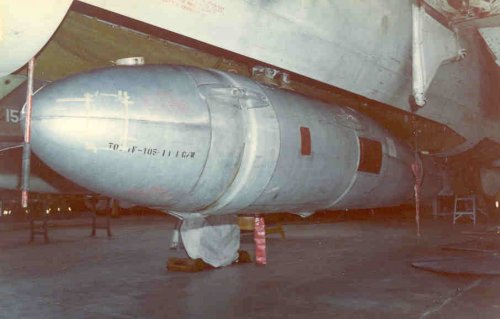

One plane that we seem to be overlooking is the Thud, the F-105. I believe (I know someone will correct me if I'm wrong) it had a rotary bomb bay mostly intended for nukes, but theoretically conventional gravity bombs could be loaded. In practice, though, the bay was not used for ordnance but to carry a large internal fuel tank, as illustrated here.


Attachments

  • F-105inttank.jpg
    28 KB · Views: 588

InvisibleDefender

ACCESS: Confidential
Senior Member
Joined
Oct 27, 2010
Messages
152
Reaction score
3

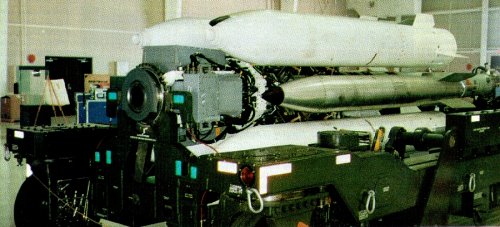

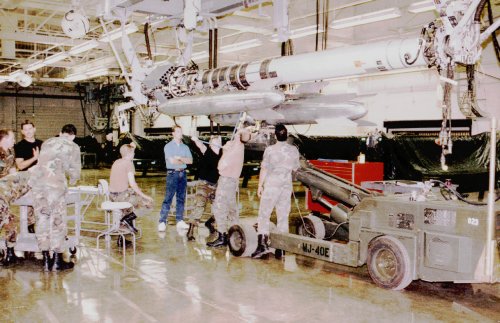

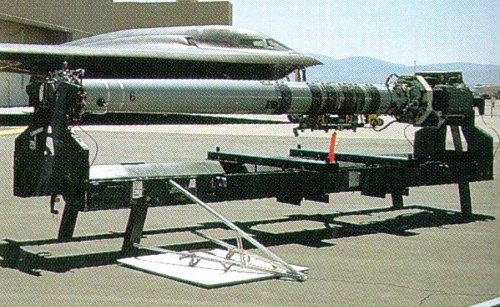

Now THAT'S a rotary launcher!!! ;D


Attachments

  • B2 ARL.jpg
    B2 ARL.jpg
    171.4 KB · Views: 507
  • RLA.jpg
    552.6 KB · Views: 497
  • ARL.jpg
    442.9 KB · Views: 130

Madurai

ACCESS: Confidential
Joined
Aug 17, 2009
Messages
97
Reaction score
7
F-14D said:
One plane that we seem to be overlooking is the Thud, the F-105. I believe (I know someone will correct me if I'm wrong) it had a rotary bomb bay mostly intended for nukes, but theoretically conventional gravity bombs could be loaded. In practice, though, the bay was not used for ordnance but to carry a large internal fuel tank, as illustrated here.

The Thud's bay door didn't carry the load, but it did slide out of the way rather than being hinged.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
135
Madurai said:
F-14D said:
One plane that we seem to be overlooking is the Thud, the F-105. I believe (I know someone will correct me if I'm wrong) it had a rotary bomb bay mostly intended for nukes, but theoretically conventional gravity bombs could be loaded. In practice, though, the bay was not used for ordnance but to carry a large internal fuel tank, as illustrated here.

The Thud's bay door didn't carry the load, but it did slide out of the way rather than being hinged.

Thanks for the correction. They were pretty strong doors, as they mounted full bombed-up pylons on them during the Vietnam War.


andy_d

ACCESS: Restricted
Joined
Aug 17, 2008
Messages
18
Reaction score
1
This is a naïve question, but when the Buccaneer had the bomb bay door fuel tank fitted, did the rotary bomb bay still work? Or did the tank fill the bay? I ask because the tank always appears 'bulged,' and it's hard to imagine how the door could rotate and release ordnance.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,282
Reaction score
1,238
Yes, the internal bay still worked even with the bomb door tank installed. The tank rotated into the space normally occupied by the bombs.
