RN AAcruiser

[ILikeTanks]

So you mean you have the real, actual L.90 preliminary drawings?



[ptdockyard]

I believe so. My copy of that edition is MIA at present. I remember seeing it and it was a basic layout as part of an article on RN small cruisers.



[ILikeTanks]

Then can you copy the original drawing in Warship 2017?

I believe so. My copy of that edition is MIA at present. I remember seeing it and it was a basic layout as part of an article on RN small cruisers.



[EwenS]

Then can you copy the original drawing in Warship 2017?

Not in Warship 2017 I'm afraid.



[ptdockyard]

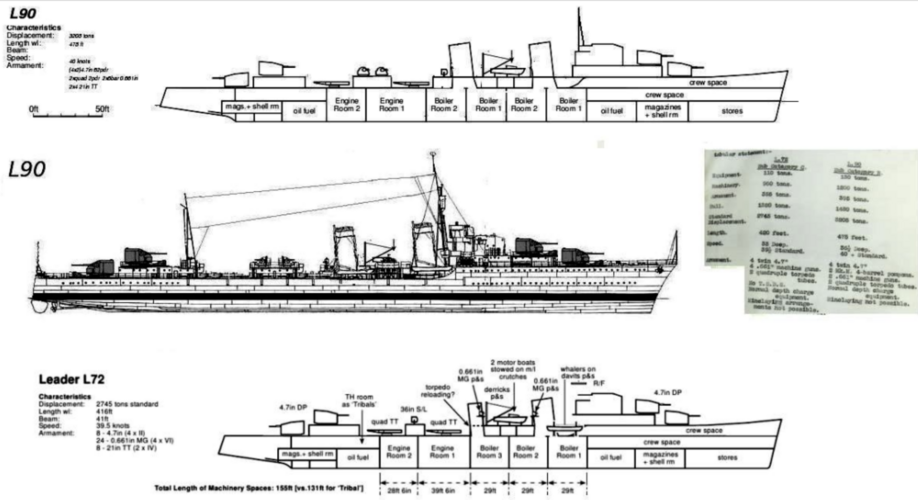

My mistake. It was the slightly smaller L72 and it was in Warship 2011.



[Tzoli]

Here is a data table about the L class designs:
All were designed in 1937, the final L class design was accepted in 1938 and you can see it's design designation should be L.48 based on her engine power. L class had 2x Admiralty type boilers so I except the other designs would had 3 boilers except L.44 which was to have 2 and L.90 which was to have 4.

	L.44	L.56	L.60	L.70	L.72	L.90	L as finished
Dimensions	Unknown	Unknown	Unknown	124,97x12,19m	128,01m	144,78m	105,3/107,9/110,5x11,2x4,39m
Displacement	Unknown	Unknown	Unknown	2.500tons	2.745tons	3.205tons	1.920/2.660tons
Engine Power	44.000shp	56.000shp	60.000shp	70.000shp	72.000shp	90.000shp	48.000shp
Speed	67km/h	Unknown	Unknown	74km/h	73km/h	74km/h	67km/h
Main Guns	3x2 120mm QF Mk IX	3x2 120mm QF Mk IX	3x2 120mm QF Mk IX	3x2 120mm QF Mk IX	4x2 120mm QF Mk IX	4x2 120mm QF Mk IX	3x2 120mm QF Mk IX
AA 1	1x4 40mm/39 QF Mk VIII	1x4 40mm/39 QF Mk VIII	1x4 40mm/39 QF Mk VIII	1x4 40mm/39 QF Mk VIII	1x6 0,661"/90 QF Mk I	2x4 40mm/39 QF Mk VIII	1x4 40mm/39 QF Mk VIII
AA 2	2x4 12,7mm/62 MG Mk III	2x4 12,7mm/62 MG Mk III	2x4 12,7mm/62 MG Mk III	2x4 12,7mm/62 MG Mk III	2x4 12,7mm/62 MG Mk III	1x6 0,661"/90 QF Mk I	2x1 20mm/70 Oerlikon Mk I, 2x4 12,7mm/62 MG Mk III
Torpedoes	1x4 533mm	1x4 533mm	1x4 533mm	1x4 533mm	2x4 533mm	2x4 533mm	2x4 533mm
Other Armament							Depth Charge (110)
