Republic XP-47F-RE

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,072
Reaction score
4,185
Website
www.amazon.com

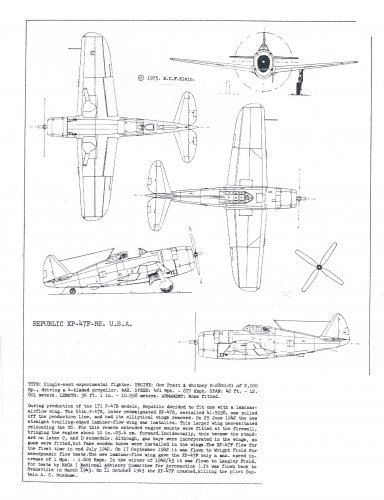

Laminar flow wing
From
Airplane Five View Album
by B.C.F.Klein 1975


Attachments

  • Escanear.jpg
    353.6 KB · Views: 444
  • Escanear.jpg
    343.5 KB · Views: 405

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
307

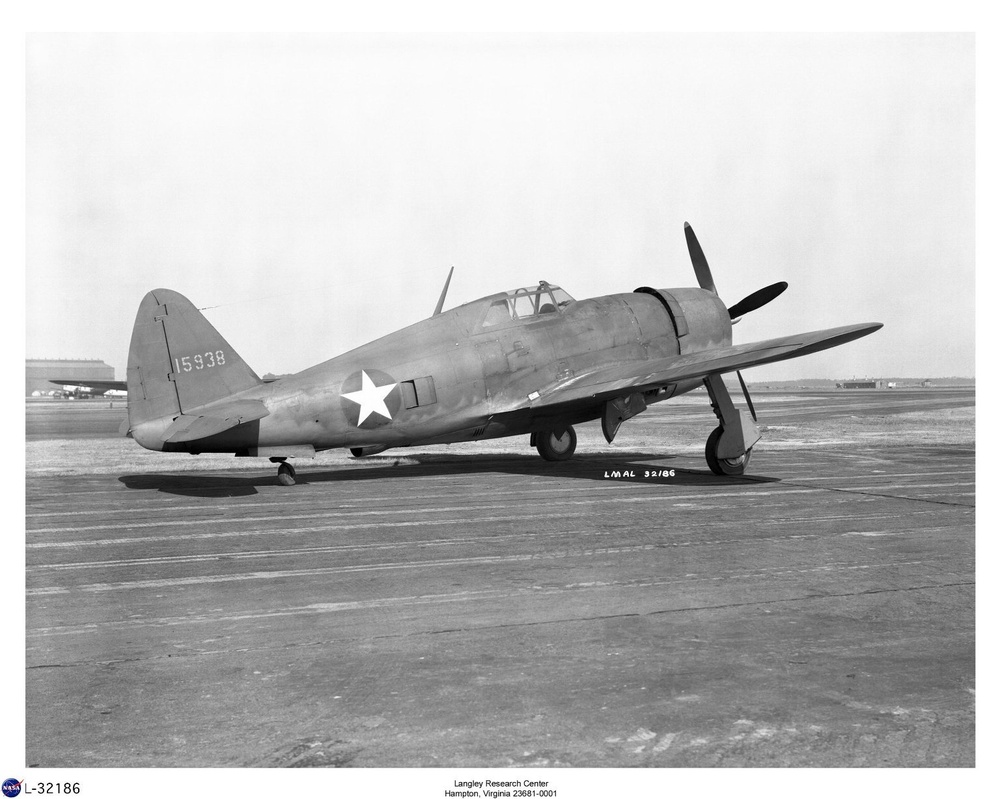

A photo of the XP-47F is available at the following link:



windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
381
Reaction score
154
The production P-47 wing, sometimes called the Seversky wing, does not get the credit it deserves. The basic semi elliptical wing was used from the Seversky P-35, P-41, P-43 and through all production models of the P-47. The straight leading edge with curved tips and semi-elliptical trailing edge, gave an elliptical area distribution without the manufacturing difficulties of a curved leading edge. It performed well in the high altitude air to air combat of the European theater. It was strong enough to carry heavy bomb loads and rockets for low level interdiction missions. In its final form in the P-47N it provided enough fuel for the P-47, like the P-51, to escort B-29s on missions to Japan.
