Nakajima Ki.87-I & Ki.87-II

T-50

CLEARANCE: Secret
Joined
Nov 20, 2008
Messages
324
Reaction score
0
Very interesting stuff Justo,I knew the Ki-87 model 1 but the Ki-87II is new to me,I must say the simplified engine nose looks better than the old nose! If this plane was put into service the Us B-29 were getting a very hard time above Japan!


Hoo-2b-2day

CLEARANCE: Confidential
Joined
Feb 27, 2008
Messages
66
Reaction score
1
The existence and superior planes such as the Ki-87-II and other such as the A7M Reppu would have made very little difference to the state of the airwar above Japan even if the war had continued into 1946/1947. This is due to Japans resources - it did not have anywhere near enough trained pilots to make use of these aircraft though a few individual pilots could make good use of better aircraft the fast majority of Japanese pilots in the latter stage if the Pacific war were barely able to fly let alone effectively fight airbattles.

The lack of good pilots came from 2 main reasons:
1. Due to extreme pilot losses in combat the Japanese were having to rush trainee's through the flight programs to get them to combat units as quickly as possible, and
2. The Japanese from late 1944 did not have the fuel to allow much flight training of pilots, and this included lack of air-time for even experienced pilots to master any new aircraft they were issued with.

To be an effective combat pilot takes heaps of training, including continued practice after qualifying as a pilot. Japan was not able to provide the time and fuel for this to take place therefor other than a few individual combats by very experienced pilots these improved faircraft would have made little if any impact on the airwar over Japan.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212
A very good point, I think, that is true for the german airforce as well. The real allied
"wonderweapon" was the Commonwealth Air Training Plan and similar programs.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Many Japanese pilots suffered engine trouble, especially 3-shiki fighter Hien(飛燕) and Suisei(彗星)'s Atauta(熱田) engine(DB601) and Ki-84,Shiden-kai(紫電改)'s Homare(誉) engine. Japan could not develop high power liquid cooling engine and turbo supercharger until the end of the war. Also the fuel was very poor. But when Homare engine worked well with high octane fuel, Ki-84(Frank) marked 687km/h(6,096m) and shiden-kai marked 664km/h~680km/h(5,800-6,000m) in post war American test, faster than P-51D, P-47D and F-4U. Of course Ki-84 and Shiden-kai were strong in dog fight.


JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99
What is the story behind the Mitsubishi Ha.217 engine of the Ki-87 II? Did it have any relation to the Ha.50 of the Fugaku or was it just a development of the the Ha.215 (Ha.44)???


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
HA217(HA47) was Nakajima designed 18 cylinder air cooling engine.(2,800hp in take off,150×180, 57.2L)
HA219(HA44) was Nakajima designed 18 cylinder air cooling engine.(2,450hp in take off,146×160, 48.2L) It was the first stage Fugaku's engine. (Mother engine of HA54 for Z-plane and alternative Fugaku second stage engine)
HA50 was Mitsubishi designed 22 cylinder air cooling engine.(3,500hp in take off,150×170, 66.1L)
It was the second stage Fugaku's engine.
http://www.ne.jp/asahi/airplane/museum/cl-pln10/2002cl/Ki87.html
http://www.ne.jp/asahi/airplane/museum/nakajima/Ki87Spec.html
http://www.hi-ho.ne.jp/a1takeda/ki-87.html
http://military.sakura.ne.jp/ac/ki87.htm
http://www.candymountain.jp/Home/planes/aviation.html


JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99
Apparently the production Ki-87-I would have had the turbo-supercharger in the rear fuselage so probably would have looked more like the Ki-87-II shown in this thread.


Taranov

CLEARANCE: Confidential
Joined
Jan 23, 2011
Messages
117
Reaction score
3
Good day

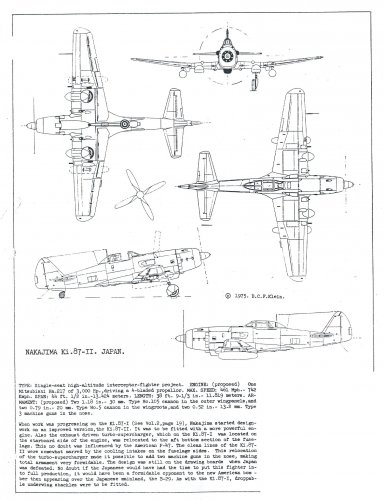

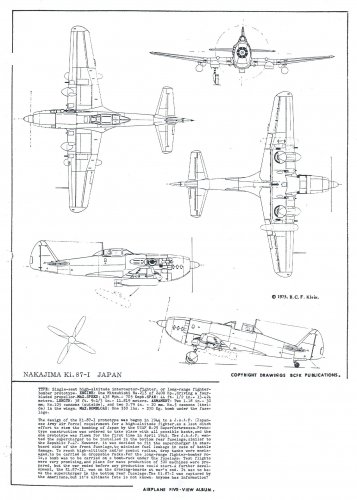

Good drawings of Ki-87 been published in Matsuba Minoru experimental aircraft book. If you need, i can scan.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
Yes please do post some scans. I hadn't known about this version of the Ki-87 until this thread. I would like to see more.


T-50

CLEARANCE: Secret
Joined
Nov 20, 2008
Messages
324
Reaction score
0
Does someone know if other company's except Tachikawa were also developing a similar fighter as the Ki-87?


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
Taranov,

Thanks for the scans. they take a long time to load but they are worth it!


JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99
Can anyone clarify what engine the Ki-87 was actually using? Some sources say it was a Mitsubishi engine called the Ha-215 whilst others say it was the same Ha-219RU that was used in the Tachikawa Ki-94-II..?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
JFC Fuller said:
Can anyone clarify what engine the Ki-87 was actually using? Some sources say it was a Mitsubishi engine called the Ha-215 whilst others say it was the same Ha-219RU that was used in the Tachikawa Ki-94-II..?

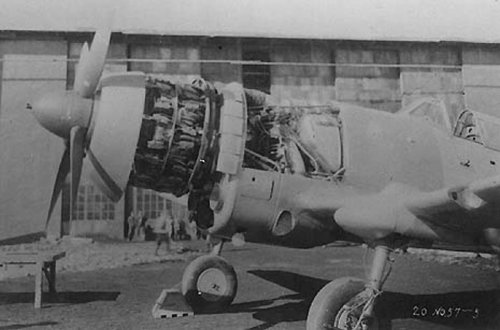

Nakajima Ki-87-Ⅰ's engine was a Nakajima HA219RU(HA44-12 RU) 18 cylinder air cooling turbo charged engine.(2,450hp in take off/2800rpm, 2040hp/11000m/2700rpm, bore146mm×stroke160mm, displacement 48.2L, length 2110mm, diameter 1280mm, dry weight 1150kg, compression ratio 7.5) same as Tachikawa Ki-94-Ⅱ's engine.
In addition, Nakajima Ki-87-Ⅱ's engine was a Nakajima HA217(HA46) turbo charged engine, take off power 3000hp.

In March 1944, the IJA ordered Tachikawa to develop Nakajima Ki-87's design with pressurized cabin. BTW Tachikawa judged that Ki-87's high altitude performance was not enough, and Nakajima had their own Ki-87 develop plan which had pressurized cabin.There were possibility of Ki-94 cancellation, Tachikawa offered to terminate Ki-94 project to the IJA. The IJA angried with this offer very much and forced Tachikawa to develop Nakajima Ki-87's design with pressurized cabin. At the time, Nakajima asked Tachikawa to offer pressurized cabin technology. Then Tachikawa decided to develop normal shape Ki-94-Ⅱ and the IJA agreed with this.Then Ki-87 with pressurized cabin plan was terminated. The IJA picked Ki-94-Ⅱ as the high altitude fighter and had mass production plan.(Also the original Ki-87 had 300 aircrafts mass production plan. BWT it's test result is bad(turbo charger), the IJA almost gave up to develop original Ki-87)


Attachments

JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99
Thanks blackkite, thats what I thought; the HA-215 reference appears in a number of places but does not make any sense.

So I guess that the HA-44-14 proposed for the Ki-117 did not have a turbocharger, what about a supercharger?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Ki-117's engine was a Nakajima HA-44-13 engine. It had a single stage 2 speed or 3 speed mechanical supercharger. I'm not sure 2 speed or 3 speed. I guess 2 speed because Ki-117 was a medium altitude fighter.


gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0

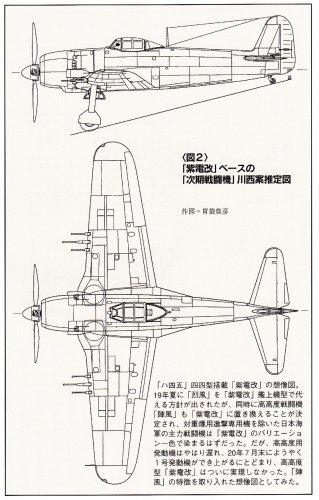

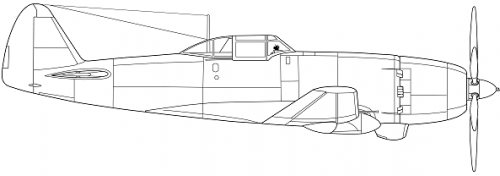

RS Models has another version of the Ki-87-1. This one seems to have long span but no [font=]turbo-supercharger. Where does this one fit in?[/font]


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

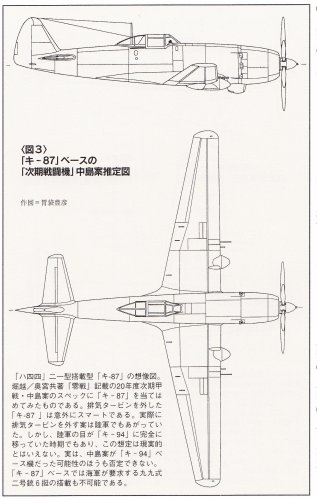

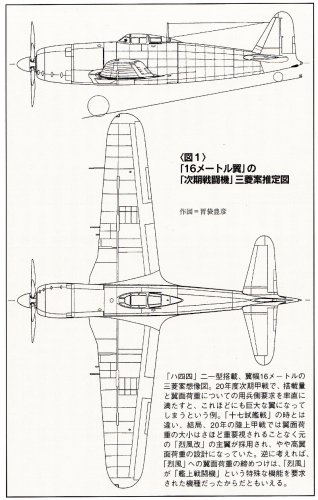

Oh it's the artistic impression for Nakajima 20-shi KO fighter proposal.
The engine was a Nakajima HA44-21 non turocharged engine. This engine had 2stage 3 speed mechanical supercharger.
There is a opinion that Nakajima 20-shi KO fighter was a Tachikawa Ki-94-Ⅱ base design.
Source : Reppu and Reppu-kai(烈風と烈風改), Gakken ISBN4-05-602990-3,1/2/2003(excellent book)
The IJN gave up to use turbo charged engine or vulkan coupling applied engine for 20-shi KO fighter.
It's hard to use these technologies for Japan at the day. (Lack of heat resistant materials, not educated and not experienced workers such as ladies and girls)


Attachments

JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
99
Blakkite, thank you again!!!

Did the 20-Shi fighter keep the pressurised cockpit of the Ki-87 and Ki-94 or did it have a standard non-pressurised cockpit? If it did not have a pressurised cockpit it seems to be very similar to the Ki-117.

Was a final design ever chosen by the IJN for the 20-Shi specification?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
JFC Fuller said:
Blakkite, thank you again!!!

Did the 20-Shi fighter keep the pressurised cockpit of the Ki-87 and Ki-94 or did it have a standard non-pressurised cockpit? If it did not have a pressurised cockpit it seems to be very similar to the Ki-117.

Was a final design ever chosen by the IJN for the 20-Shi specification?
In September 1945, Kugisho(of the IJN) reported to the U.S. that KO fighter which under development were Shiden-kai with Nakajima Homare HA45-44 engine, Reppu with Mitsubishi HA43-51 engine and Reppu with Nakajima HA44-21 engine.

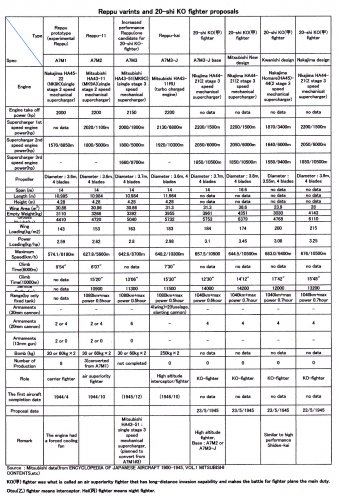

These fighters had air combat flap, but did not have pressurized cabin. You can find these fighters easily in my table.
In addition, the IJN ternimated to use Shi naming system for experimantal aircraft in 1943, so 20-shi KO fighter was not a official name.
Source : Reppu and Reppu-kai, Gakken
While the IJA's high altitude interceptor Tachikawa Ki-94-2 which under development had Turbo charged HA-44 engine, ressurized cabin and laminar flow wing.


gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0
Thanx, Blackkite. Great mystery solved.
Looks like all the manufacturers chose to further develop existing airframes for this specification.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
blackkite said:
In addition, the IJN ternimated to use Shi naming system for experimantal aircraft in 1943, so 20-shi KO fighter was not a official name.
Exactly. No 20-Shi for 1945 and no 19-Shi either for 1944...


gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0
Hi Guys.
[font=]Would the Kawanishi 20-shi Ko fighter be called: Kawanishi N1K6-J Shiden-Kai?[/font]


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
gerhard said:
Hi Guys.
[font=]Would the Kawanishi 20-shi Ko fighter be called: Kawanishi N1K6-J Shiden-Kai?[/font]
Hmmmm......I can't find the name N1K6-J in Japanese sources.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
gerhard said:
Hi Guys.
[font=]Would the Kawanishi 20-shi Ko fighter be called: Kawanishi N1K6-J Shiden-Kai?[/font]
My guess is that the design proposal never went forward enough to be given an official designation - But I think that N1K6-J would have been logical.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
windswords said:
gerhard said:
Hi Guys.
[font=]Would the Kawanishi 20-shi Ko fighter be called: Kawanishi N1K6-J Shiden-Kai?[/font]
My guess is that the design proposal never went forward enough to be given an official designation - But I think that N1K6-J would have been logical.
Yes I think so,too. Good guess.
