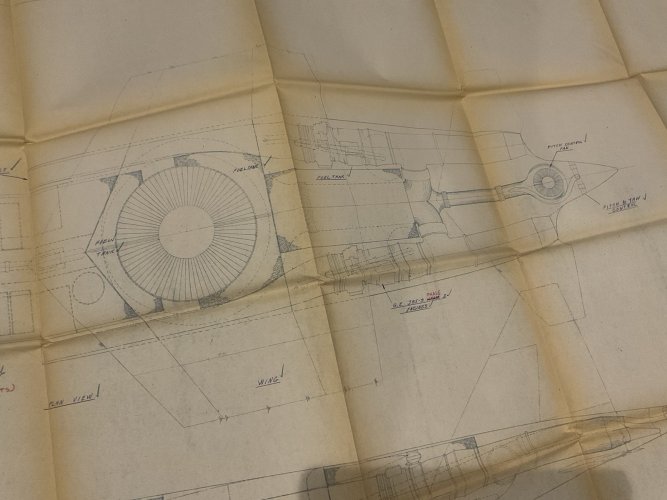

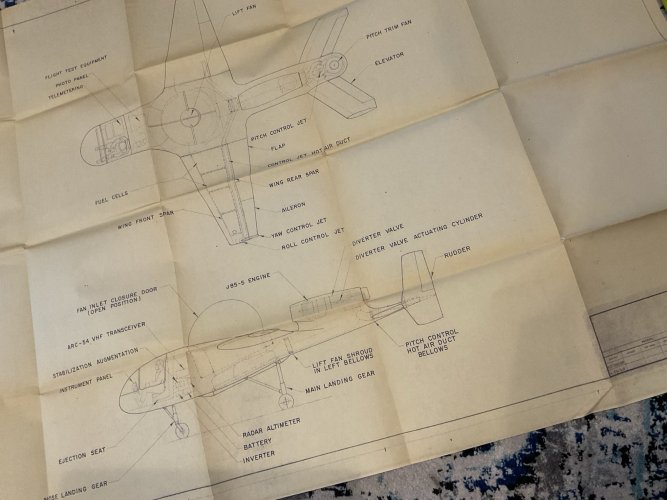

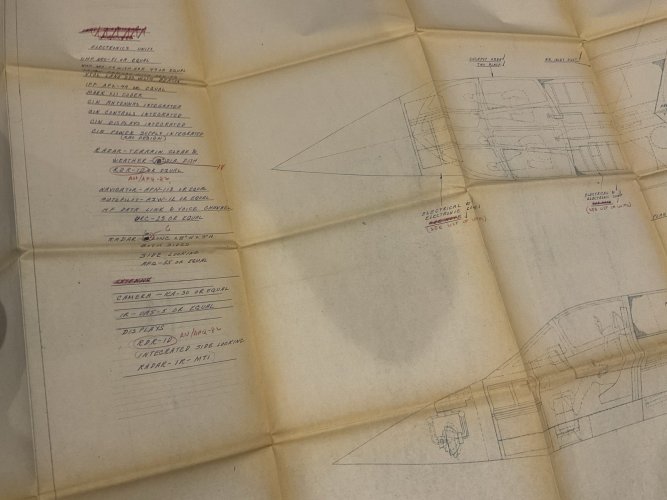

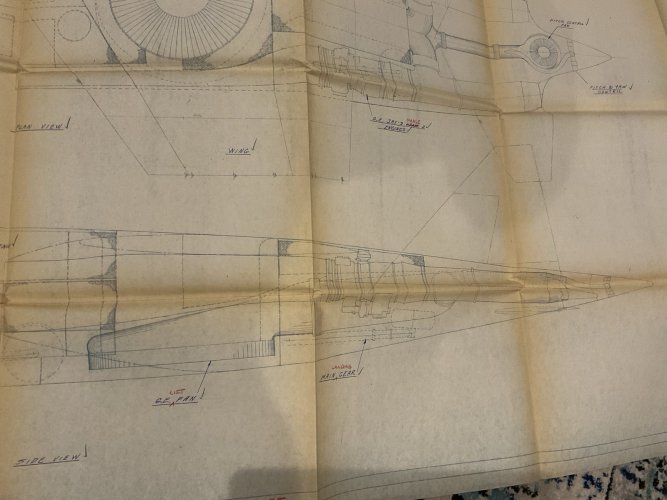

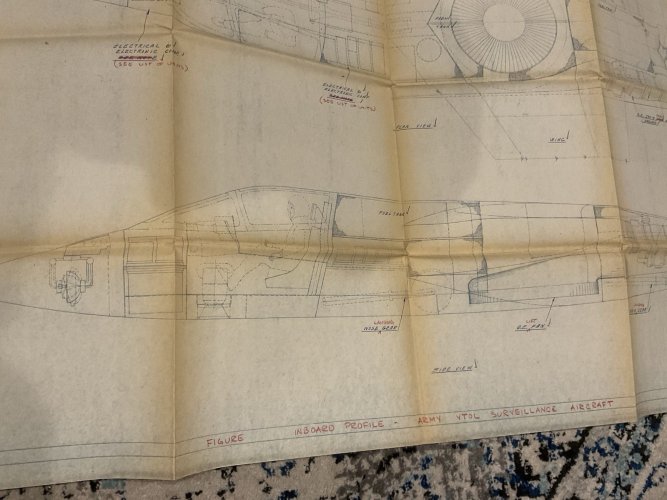

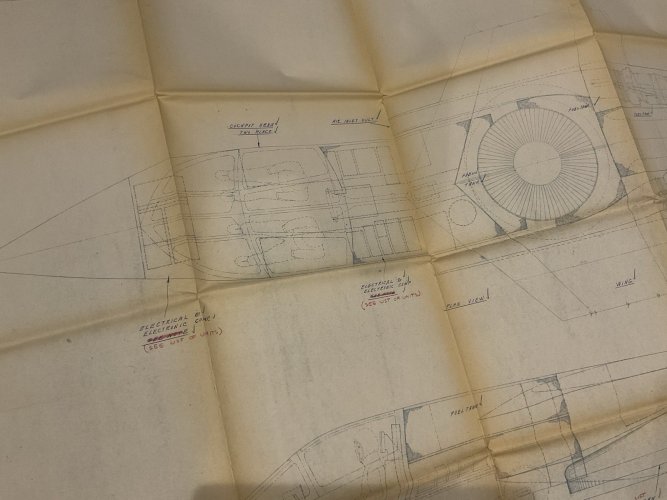

Republic VTOL/VSTOL/STOL projects

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
500
fighter from Republic
scan courtesy of Lark

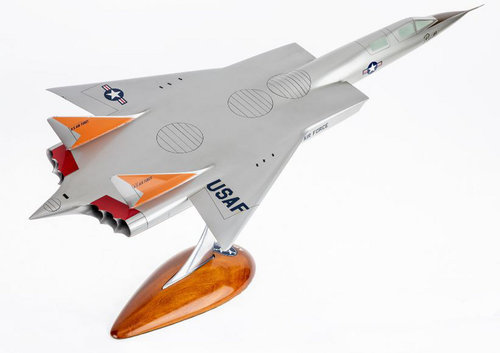

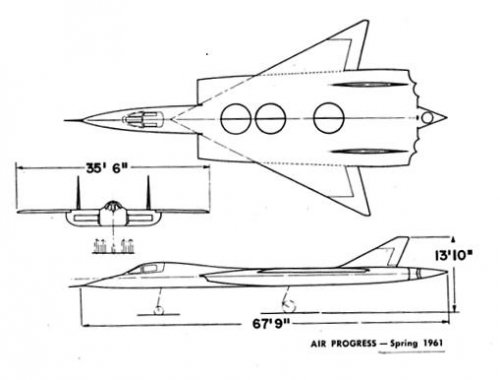

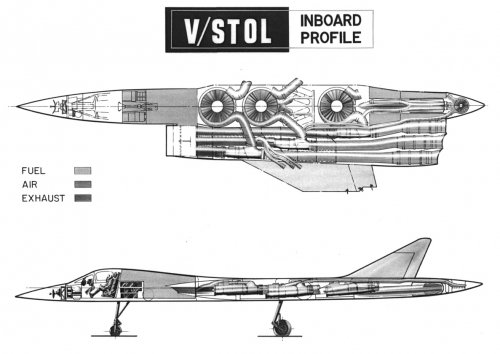

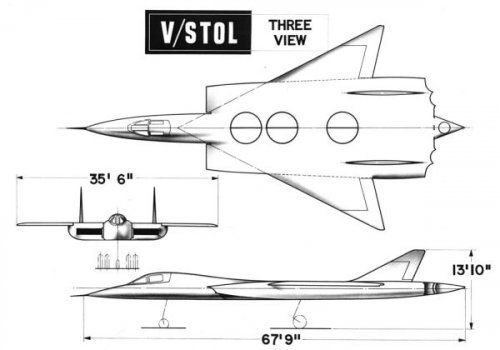

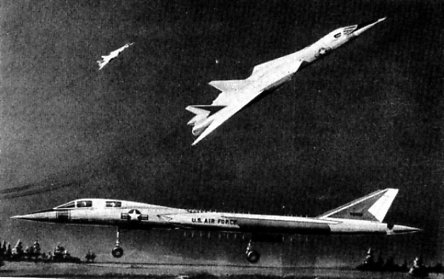

AP-100
Republic's entry to USAF competion for an all weather nuclear supersonic strike fighter
Powerplant: 6 improved GE J-85 plus 3 lift-fan systems
Gros Weight: 38000 pounds

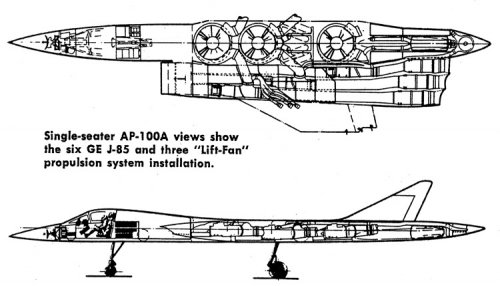

AP-100A single seater
AP-100B two seater


Attachments

  • Republic AP-100B.jpg
    Republic AP-100B.jpg
    79 KB · Views: 1,158

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
500

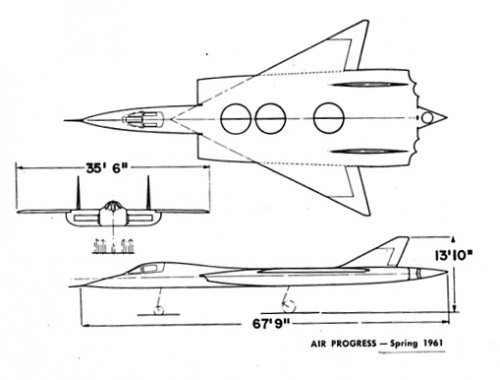

The AP-100A from the same source as AP-100B, this is Air Progress Spring 1961.

Any idea about the RFP this design was submited?. It is contemporary to TFX (SOR-183) but it is not Republic's TFX because I have drawings from this design and it has nothing in common.


Attachments

  • Republic AP-100A.jpg
    Republic AP-100A.jpg
    59 KB · Views: 1,005

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Hi,

may be it was Republic AP-106 VTOL aircraft,it is only my opinion.

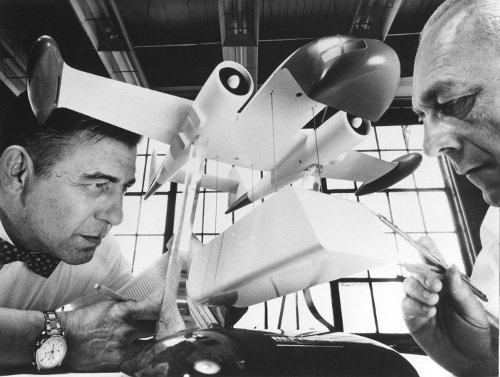

Flying convertible - This is scale model of vertical-rising convertible transport that Republic Aviation engineers (of Farmington, N.Y.) claim is capable of carrying up to 20 tons of cargo or 50 passengers in its 29-foot cargo pod. The "Flying Crane" achieves its VTOL (vertical take-off and landing) capability by a 90-degree rotation of the nozzles of its two main (vectored thrust) engines. This power is augmented by lift engines in each wing tip. The transport can travel 500 miles and has a speed of approximately 400 mph (Source: Republic Aviation Corporation press kit, 25eme Salon International de l'Aeronautique et de l'Espace, 1963).


Attachments

  • republic_flying_convertible_1963.jpg
    40.9 KB · Views: 591

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,375
Reaction score
393
It looks like the engines have separate "cold" and "hot" nozzles a la Harrier. I'd be curious to know how pitch control is achieved though, as there is nothing along the longitudinal axis to provide effective pitch moment generation. Engine out during hover would also be quite exciting! :)

Very cool concept nonetheless. I am not sure what the relationship to the F-105 is, though. Maybe we should discuss this separately.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,501
I've separated the AP-106 to its own topic.

With regards to pitch control: To my opinion it would be effected in the same
way as in the Harrier, via puffer jets. One of the advantages claimed for vectored
thrust engines à la Pegasus is the natural stability due to its "four post thrust", so
small puffer jets fed by bleed air probably would be sufficient.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
How do you come to the AP-106 designation Hesham ?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Hesham, you can't simply say "it's just my opinion" when you flaunt a designation like AP-106. A researcher needs to back up his assumptions with circumstanciated evidence, and I can see none here. What makes you think that's the designation?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Thanks XB-70 Guy..at last a trail. Can you give the source please ?
Thanks in advance..


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,501

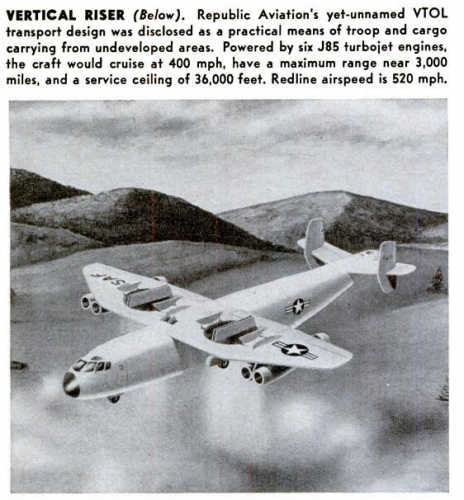

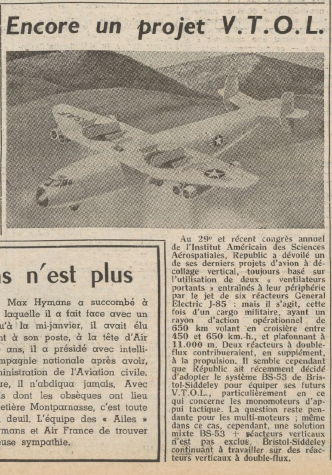

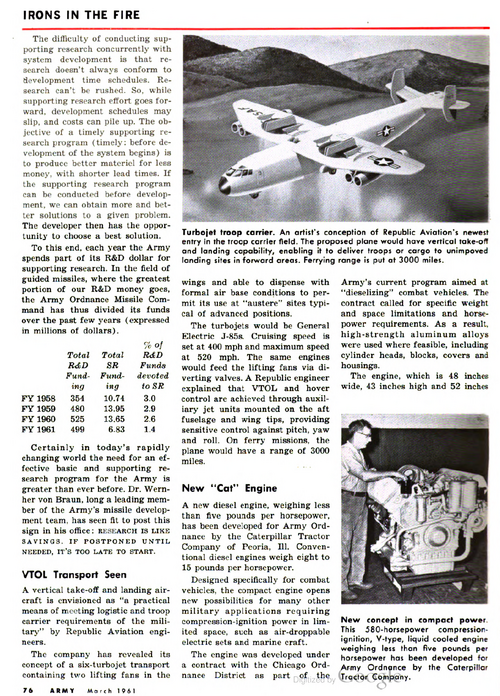

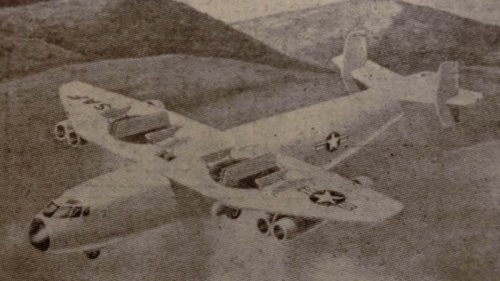

As the topiv is just "Republic VSTOL transport aircraft", I think, I can add another find from last
Fridays raid to the States Library. Obviously a fan-in-wing design, although no other information
is given, than the name of the design company.
(from Les Ailes february 1961)


Attachments

  • Republic_fan-in-wing.jpg
    74.5 KB · Views: 513

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
168

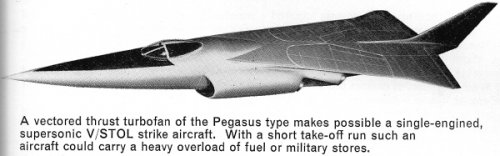

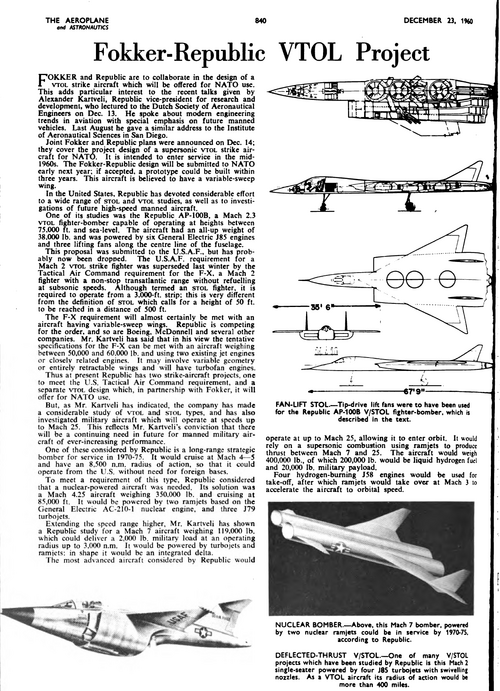

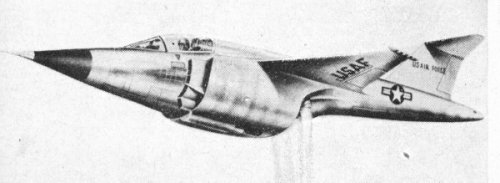

From "The Aeroplane" 23 December 1960.

Regards,
Barry


Attachments

  • Misc.jpg
    32.8 KB · Views: 868
  • Misca.jpg
    41.9 KB · Views: 1,194

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245

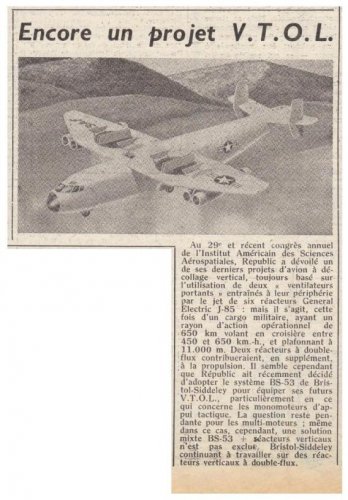

Dear Boys and Girls, here is a small article article in French showing a Republic VTOL fan-in-wing transport aircraft project". The article states that Republic intended to concentrate on using the Bristol-Siddleley BS53 vectored-thrust turbofan (Pegasus) in future VTOL designs......

The article comes from the 10th March 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Republic Aviation VTOL transport project - Les Ailes - No. 1,816 - 10 Mars 1961.......jpg
    Republic Aviation VTOL transport project - Les Ailes - No. 1,816 - 10 Mars 1961.......jpg
    99.8 KB · Views: 193

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

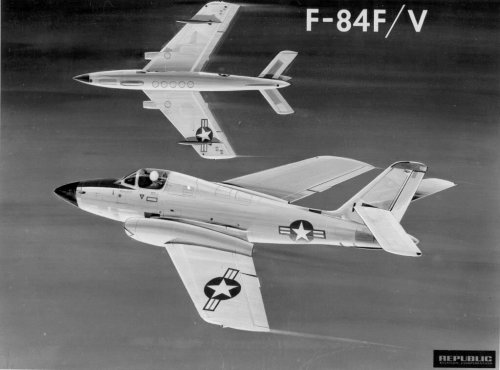

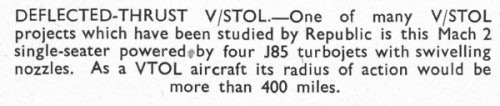

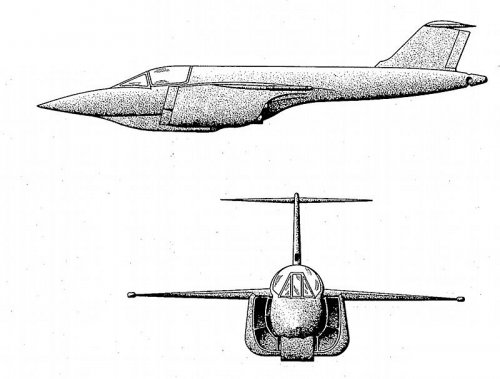

Some Republic VSTOL projects:

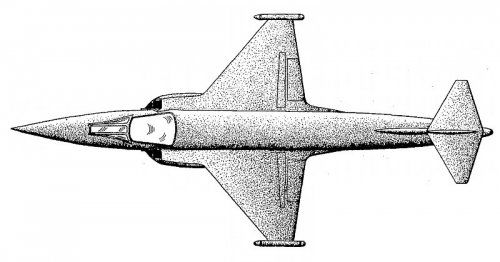

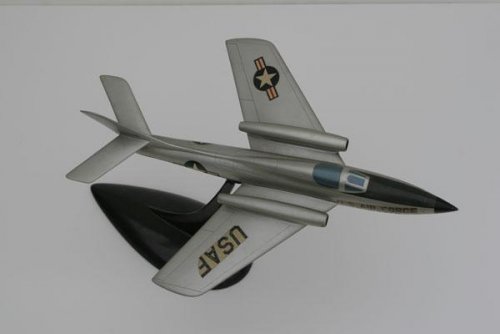

  • XF-84F/V
  • deflected-thrust V/STOL
  • 1956 fighter patent
  • fan-in-wing transport
  • 1963 flying convertible


Attachments

  • republic_flying_convertible_1963.jpg
    40.9 KB · Views: 129
  • Republic_fan-in-wing.jpg
    74.5 KB · Views: 145
  • Republic1956Fighter2.jpg
    90.1 KB · Views: 159
  • Republic1956Fighter1.jpg
    62.4 KB · Views: 524
  • Misc1.jpg
    41.9 KB · Views: 512
  • Misc.jpg
    32.8 KB · Views: 548
  • Republic XF-84F-V.jpg
    Republic XF-84F-V.jpg
    14.7 KB · Views: 570
  • republic251F-84FslashV2enginepropos.jpg
    81.2 KB · Views: 608

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

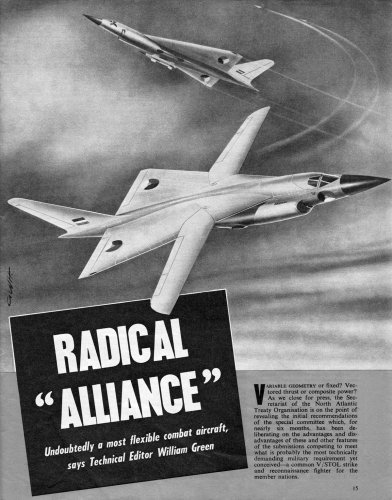

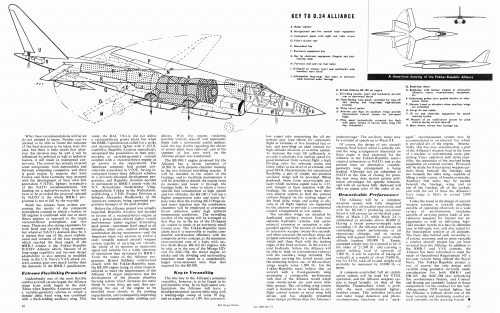

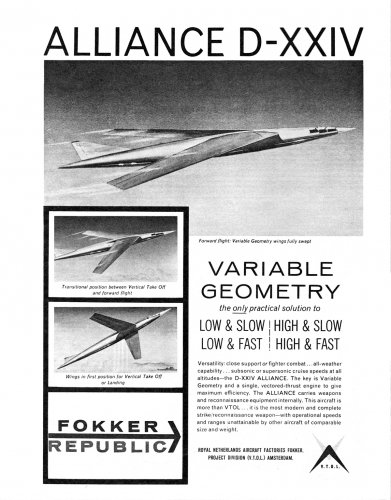

Republic-Fokker D-24 (D-XXIV) Alliance:


Attachments

  • Alliance article 2-3 small.gif
    Alliance article 2-3 small.gif
    795.4 KB · Views: 217
  • Alliance article 1 small.jpg
    Alliance article 1 small.jpg
    892.8 KB · Views: 180
  • Alliance ad small.jpg
    Alliance ad small.jpg
    570.4 KB · Views: 163
  • scan0021a.jpg
    85.7 KB · Views: 164
  • scan0007a.jpg
    61 KB · Views: 177
  • Fokker D24 tekening.jpg
    Fokker D24 tekening.jpg
    105.8 KB · Views: 177
  • 1961_Variable_Sweep.jpg
    370.5 KB · Views: 163

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

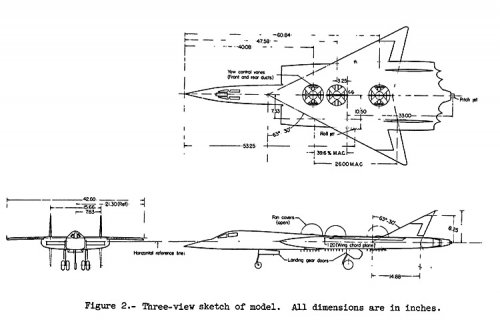

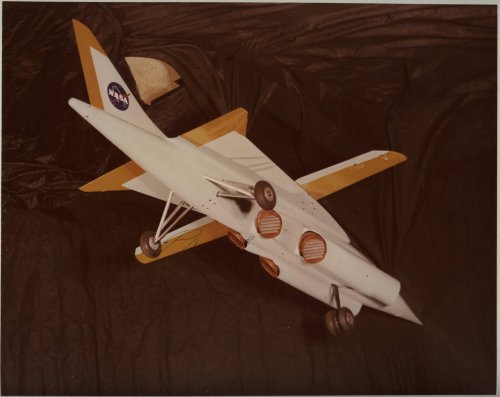

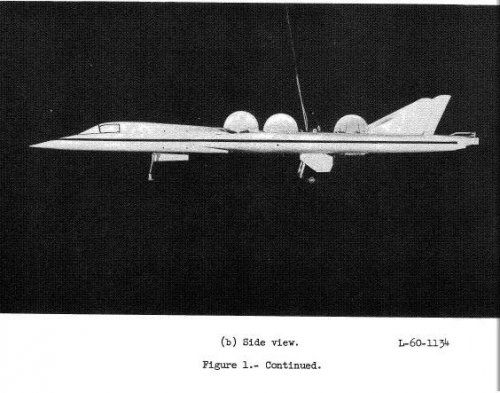

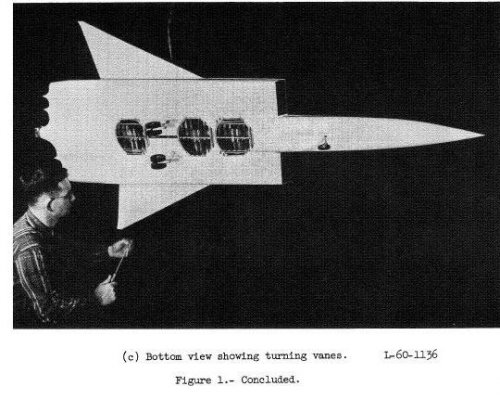

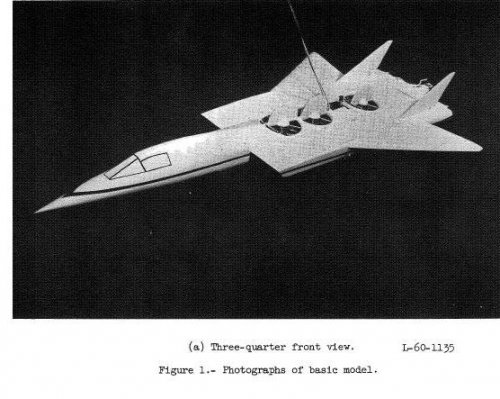

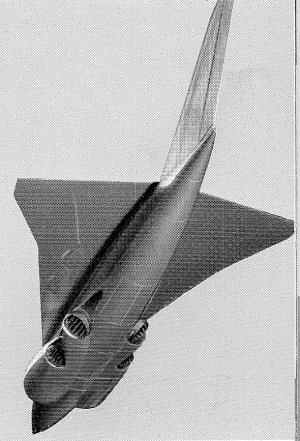

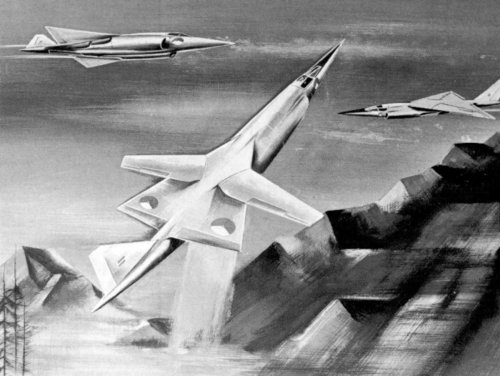

Republic AP-100:


Attachments

  • VTOL 3.JPG
    VTOL 3.JPG
    50 KB · Views: 145
  • VTOL 2.JPG
    VTOL 2.JPG
    50.4 KB · Views: 142
  • VTOL 1.JPG
    VTOL 1.JPG
    50.6 KB · Views: 157
  • republic ap100 c.jpg
    republic ap100 c.jpg
    26.2 KB · Views: 183
  • republic-ap100-b.jpg
    271.9 KB · Views: 179
  • Republic AP-100A.jpg
    Republic AP-100A.jpg
    20.6 KB · Views: 159
  • AP100-4.jpg
    58.4 KB · Views: 157
  • AP100.jpg
    83.3 KB · Views: 160

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006

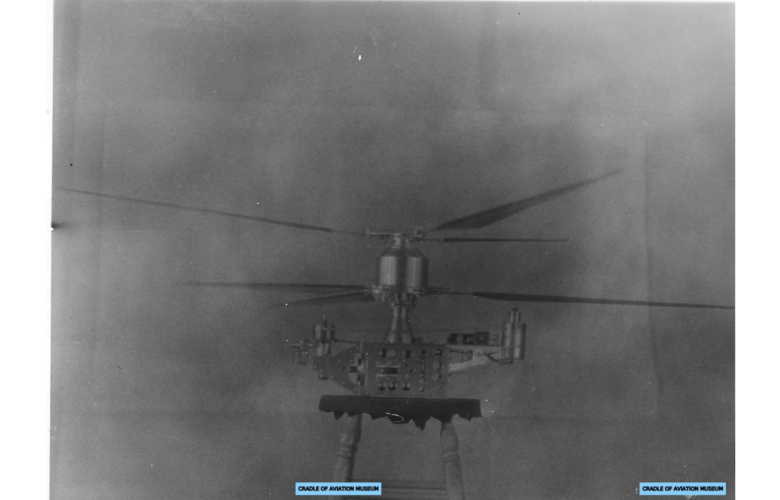

Attachments

  • Republic VSTOL.png
    Republic VSTOL.png
    553.5 KB · Views: 194

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
hesham said:
Hi,

may be it was Republic AP-106 VTOL aircraft,it is only my opinion.

http://members.chello.nl/m.waterloo/f-105.html
Flying convertible - This is scale model of vertical-rising convertible transport that Republic Aviation engineers (of Farmington, N.Y.) claim is capable of carrying up to 20 tons of cargo or 50 passengers in its 29-foot cargo pod. The "Flying Crane" achieves its VTOL (vertical take-off and landing) capability by a 90-degree rotation of the nozzles of its two main (vectored thrust) engines. This power is augmented by lift engines in each wing tip. The transport can travel 500 miles and has a speed of approximately 400 mph (Source: Republic Aviation Corporation press kit, 25eme Salon International de l'Aeronautique et de l'Espace, 1963).

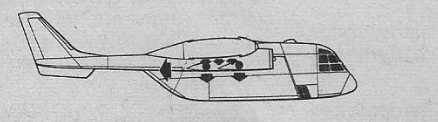

Via my dear Tophe,and from Air et Cosmos Mai 1964,

here is a profile to this Republic twin-boom VTOL cargo and transport airplane Project.


Attachments

  • 1.png
    51.2 KB · Views: 182

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
hesham said:
Via my dear Tophe,and from Air et Cosmos Mai 1964,

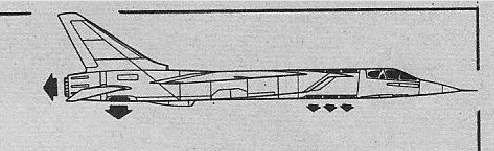

Also from the same source,here is a Republic V/STOL Fighter.


Attachments

  • 2.png
    77.7 KB · Views: 209

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
As the topiv is just "Republic VSTOL transport aircraft", I think, I can add another find from last
Fridays raid to the States Library. Obviously a fan-in-wing design, although no other information
is given, than the name of the design company.
(from Les Ailes february 1961)

With the article.


Attachments

  • 1.png
    310.6 KB · Views: 204

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Hi,

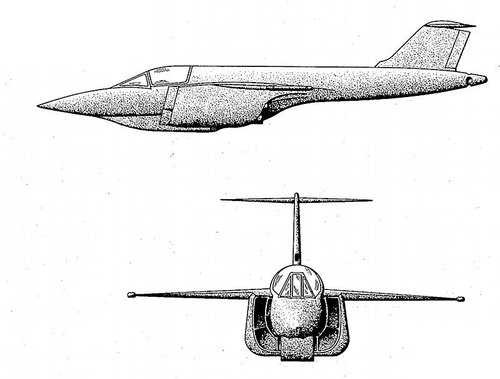

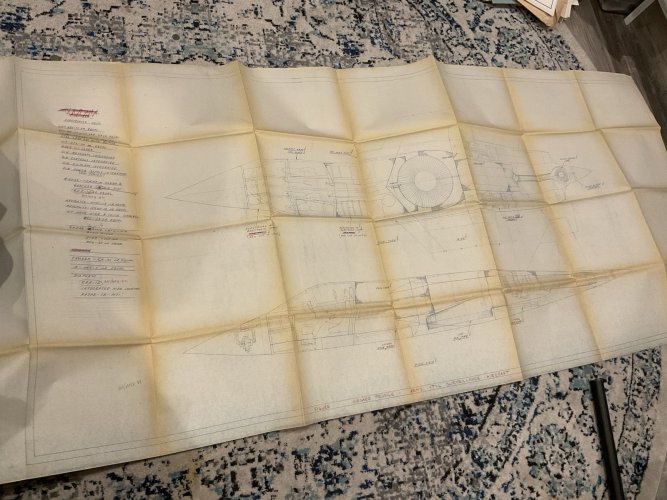

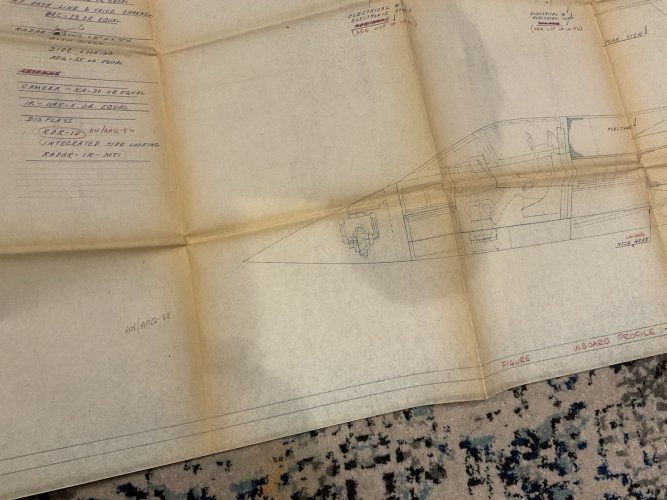

during 1950s,Republic designed a delta wing single seat VTOL fighter Project,fitted with unique pop-up
lift jets located in the center of each wing and a tail-dragger,very similar to this one,but with some of
little differences,its designation is not unknown ?.


Attachments

  • 1.jpg
    90.1 KB · Views: 85
  • 2.jpg
    62.4 KB · Views: 94

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006

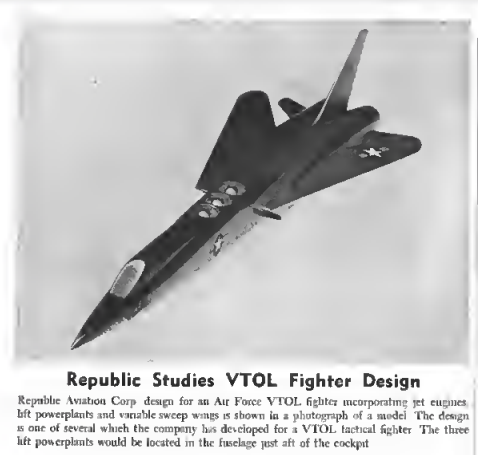

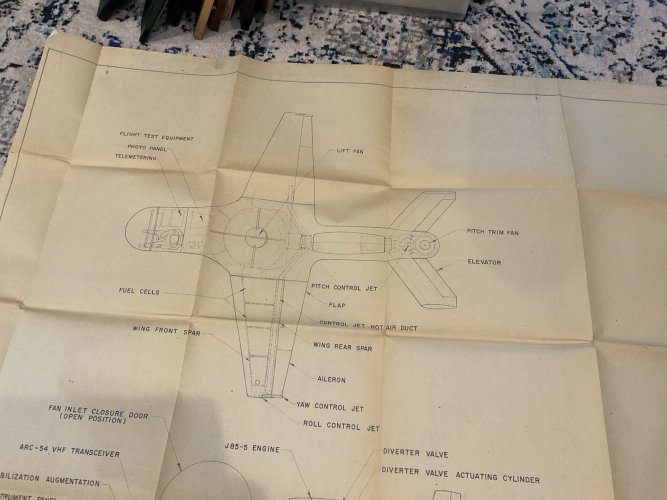

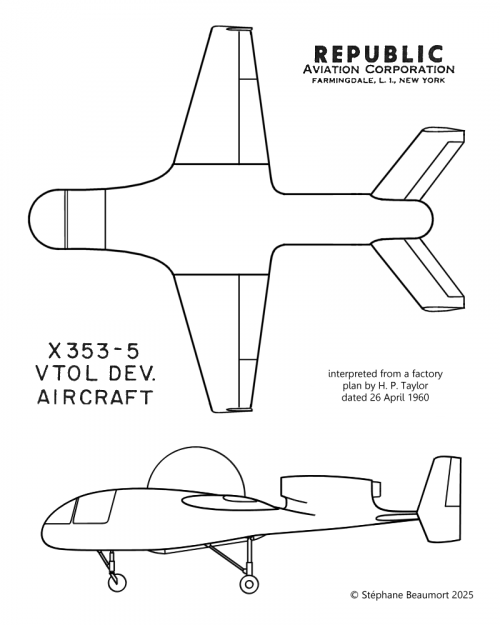

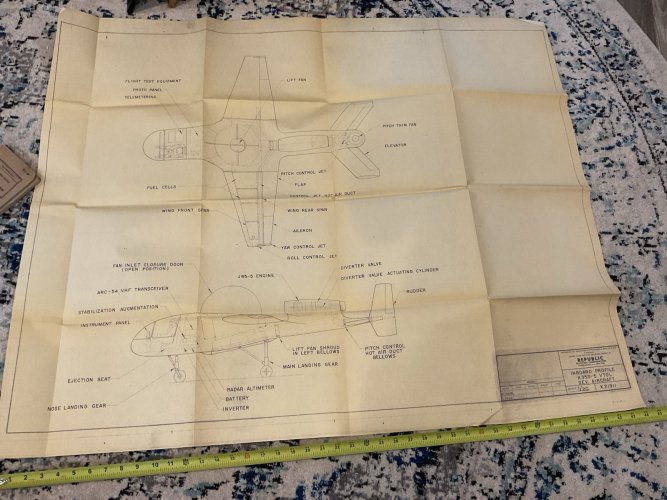

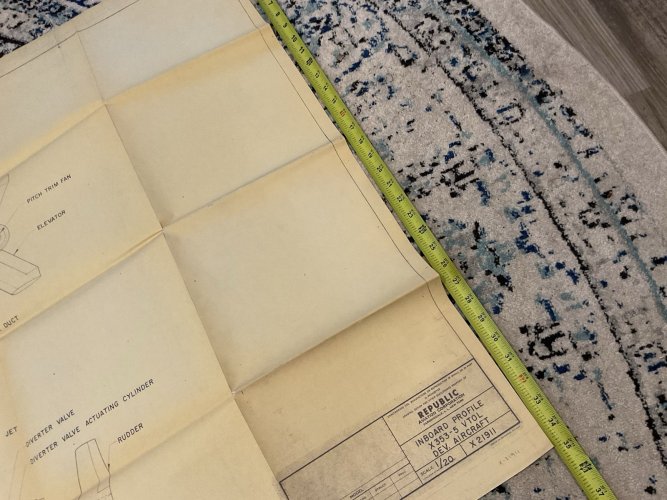

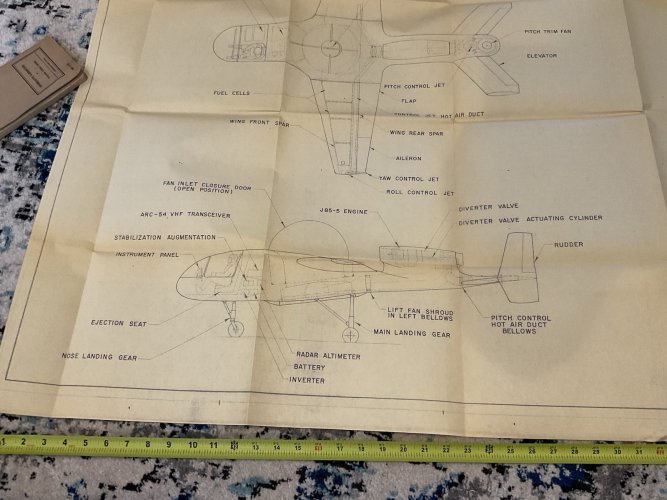

From AW 1965,

a VTOL Fighter Project.


Attachments

  • a.png
    110.9 KB · Views: 61
