Republic 1960s hypersonic bomber projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,360
Reaction score
3,395

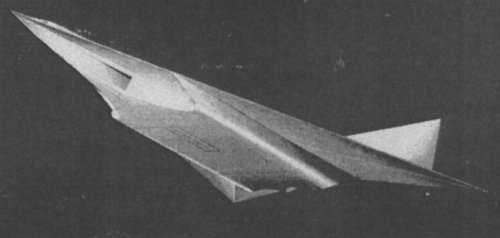

First project is a Mach 7 bomber powered by two turbojets and two ramjets. Speed 8,000km/h at 36,000m with 900 kg bomb out to a combat radius of 8,000km.

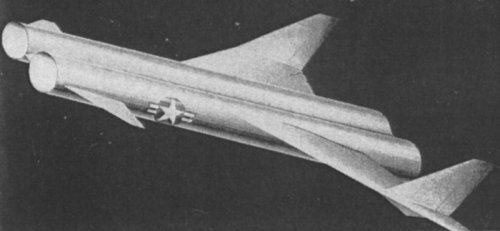

Second project is a 4,500km/h bomber for the 1970-75 timeframe powered by two nuclear ramjets, travelling 14,000km at 26,000m height. 2 crew, in an armoured compartment.

Source:
Air Revue December 1960, via Lark.


Attachments

  • RepublicMach7.jpg
    42.2 KB · Views: 414
  • RepublicNuclear.jpg
    44.8 KB · Views: 368

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,387
Reaction score
1,430
On that second one where exactly does the crew sit? ???


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
He,he he he he he....Matej you´re right!....if comes or goes. Maybe was a giant UCAV

Raravia


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,741
Remind me the tremendous projects of Myasichtev (this name is a pain in the ass to write correctly!) the M-56/ 58/59 (Fana de l'Aviation march/ april 2003). 4800 km/h, 16000 km range, and the like :eek:


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
Мясищев - not very complicated if you can read and write Russian ;) (for English speakers: Mya-sish-chev).


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
ALWAYS USE THE SEARCH FUNCTION, BEFORE CREATING A NEW THREAD ! ;)
(This was a narrow escape ...)

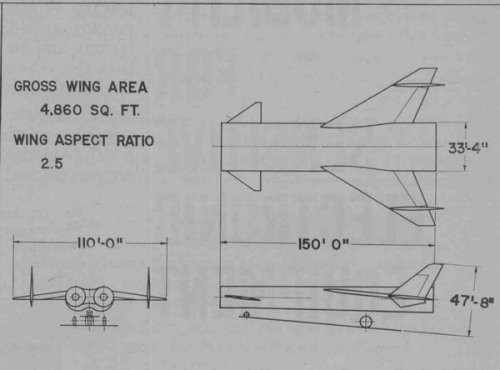

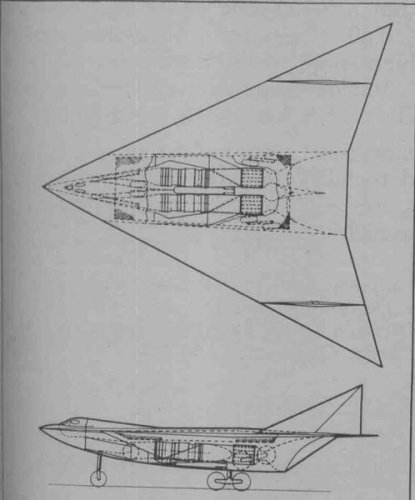

From Aviation Week August 1960:


Attachments

  • Republic-designs-1.jpg
    25.4 KB · Views: 208
  • Republic-designs-2.jpg
    29.9 KB · Views: 220

Spring

ACCESS: Confidential
Joined
Jun 4, 2008
Messages
92
Reaction score
0
The first one (the delta) is more strange than the second, and far more interesting, i'm puzzled about it aerodynamics, the nose, and the flatted shape near the intakes seem works as flow deflectors, maybe to get lift due the compresion?, you can see a similar shape on the F-22, any more data about it?

Is me? or the 60's-50's sharped wing/tail-tips for these high speed aircraft are used no more?, was it more draggy? and why that design was widely used on many projects?
