Reggiane Re.2003 recce bomber aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,619
Reaction score
4,581
Hi,

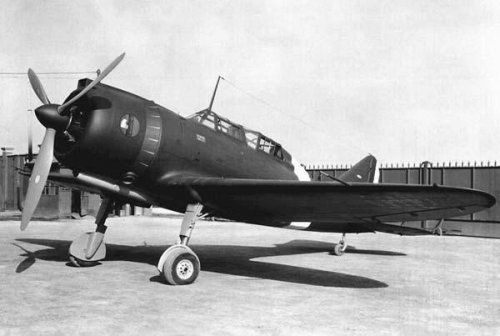

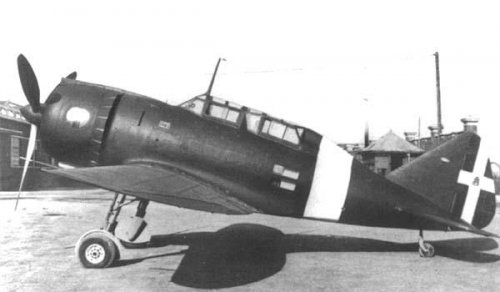

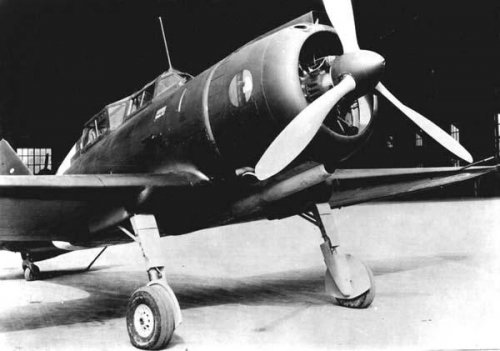

the Reggiane Re.2003 was a tandem two-seat recce bomber aircraft,developed from Re.2000 III,
equipped with 1025 hp Piaggio P.XIbis R.C.40 radial engine.


Attachments

  • Re.2003  1.JPG
    Re.2003 1.JPG
    25.4 KB · Views: 415
  • Re.2003  2.JPG
    Re.2003 2.JPG
    57 KB · Views: 405
  • Re.2003  3.JPG
    Re.2003 3.JPG
    62.3 KB · Views: 378

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593

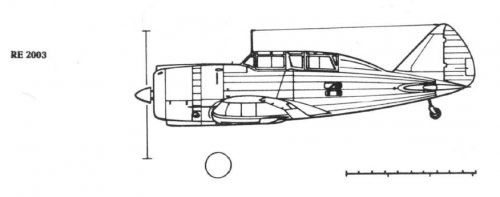

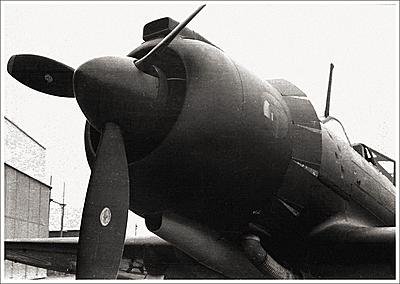

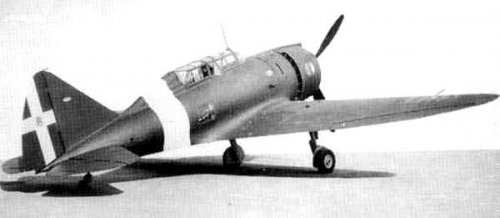

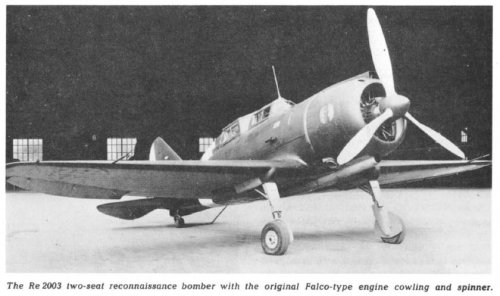

More pics of the Re.2003:


Attachments

  • Reggiane Re-2003 002.jpg
    Reggiane Re-2003 002.jpg
    18.5 KB · Views: 41
  • re2003-5.jpg
    23.2 KB · Views: 40
  • re2003-4.jpg
    17.9 KB · Views: 32
  • re2003-2.jpg
    30.5 KB · Views: 330
  • re2003-1.jpg
    30.5 KB · Views: 347

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
Interesting that it is a two-seater but with no obvious provision for defensive armament. In the recconnaisance role that might make sense if you are going in fast and high, but in the light bomber role?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,201
cluttonfred said:
Interesting that it is a two-seater but with no obvious provision for defensive armament. In the recconnaisance role that might make sense if you are going in fast and high, but in the light bomber role?

Indeed ! And in the recconnaisance role it would have made sense, to keep the aircraft aerodynamically as clean as possible,
a requirement not really met by the rear cockpit glazing, which reminds me much more to a trainer, like the Me 09 G-12, with
its bulged out rear cockpit to provide at least some forward view.
(photo from http://www.flickr.com/photos/farinihouseoflove/2210568148/sizes/m/in/photostream/)


Attachments

  • Me-109G-12.jpg
    92.6 KB · Views: 29

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,695
Reaction score
1,096

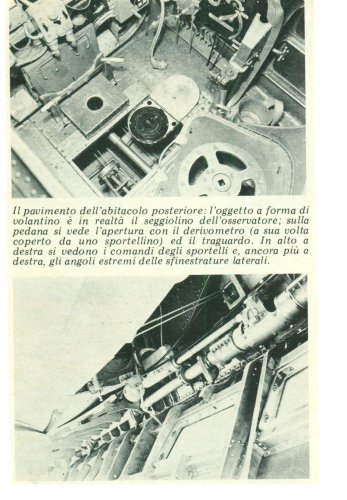

Apparently, the shape of the glazing of the rear canopy was at the request of the Ministero dell'Aeronautica. There was also glazing added to the rear cockpit floor to facilitate observation. Did the 'osservatore' also directly operate the camera, I wonder?

It is odd that the Direzione del Genio e delle Costruzioni Aeronautiche thought that ricognizione aerea could be performed by an aircraft without rear defence armament. Perhaps it was because the Re.2003 was so much faster than the Ro.37bis it was to replace? But, as cluttonfred noted, that still would not explain why no rear defence for the ground attack role also required of the Ro.37bis and its potential replacement.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357
...


Attachments

  • Reggiane Re-2003-.jpg
    Reggiane Re-2003-.jpg
    153.8 KB · Views: 71

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,201
Apophenia said:
There was also glazing added to the rear cockpit floor to facilitate observation. Did the 'osservatore' also directly operate the camera, I wonder?

Probably, just as a bomb aimer releases the bombs. But forward view would hardly be helpful then. To me, it looks like a
mission transferred to a trainer version as an afterthought. Windows in the underside probably can be added quite easily.
Have looked for a trainer version of the Re.2000, but without success.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,104
Website
www.amazon.com

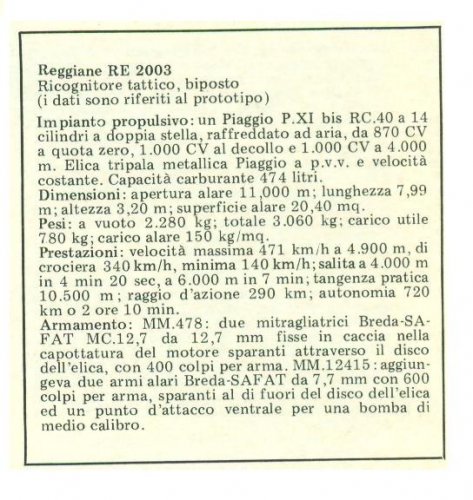

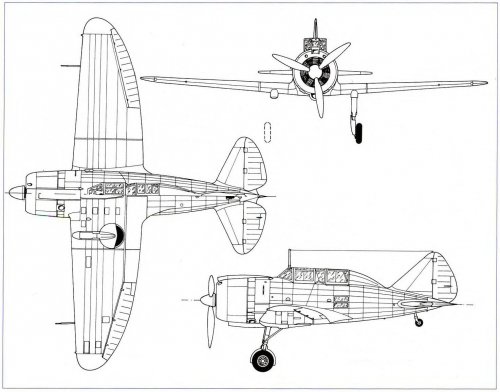

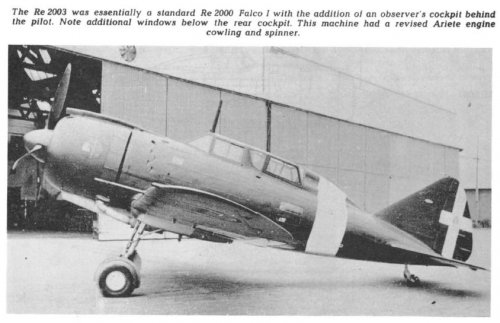

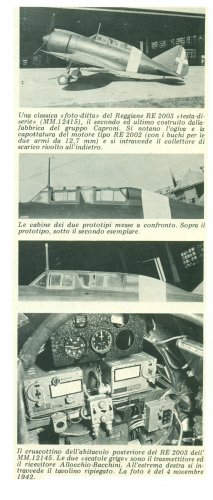

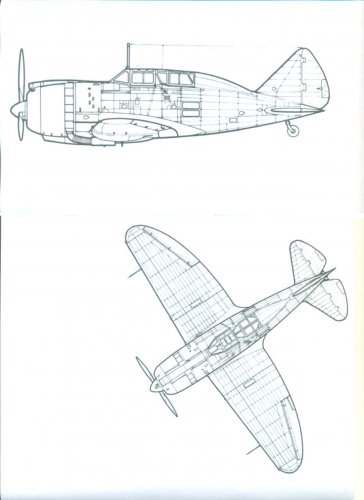

Some additional info


Attachments

  • 2003.jpg
    125.8 KB · Views: 49
  • 2003 001.jpg
    2003 001.jpg
    569.1 KB · Views: 62
  • 2003 002.jpg
    2003 002.jpg
    384 KB · Views: 54
  • 2003 003.jpg
    2003 003.jpg
    70.4 KB · Views: 47

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,104
Website
www.amazon.com
Apophenia said:
Apparently, the shape of the glazing of the rear canopy was at the request of the Ministero dell'Aeronautica. There was also glazing added to the rear cockpit floor to facilitate observation. Did the 'osservatore' also directly operate the camera, I wonder?

It is odd that the Direzione del Genio e delle Costruzioni Aeronautiche thought that ricognizione aerea could be performed by an aircraft without rear defence armament. Perhaps it was because the Re.2003 was so much faster than the Ro.37bis it was to replace? But, as cluttonfred noted, that still would not explain why no rear defence for the ground attack role also required of the Ro.37bis and its potential replacement.

Please see ...cameras?...clear windows in the internal part of the flaps


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,104
Website
www.amazon.com
Jemiba said:
Apophenia said:
There was also glazing added to the rear cockpit floor to facilitate observation. Did the 'osservatore' also directly operate the camera, I wonder?

Probably, just as a bomb aimer releases the bombs. But forward view would hardly be helpful then. To me, it looks like a
mission transferred to a trainer version as an afterthought. Windows in the underside probably can be added quite easily.
Have looked for a trainer version of the Re.2000, but without success.
Maybe a night fighter variant?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,695
Reaction score
1,096
Justo: Thanks for that -- great shot of the glazing in the flaps.

Jemiba said:
... To me, it looks like a mission transferred to a trainer version as an afterthought. Windows in the underside probably can be added quite easily. Have looked for a trainer version of the Re.2000, but without success.

Jens: I agree that the rear glazing looks like that of a trainer but those windows were shaped that way as the result of requested changes by the Ministero dell'Aeronautica. If the Re.2003 had started out as a twin-seat trainer, surely the Ministero request would have resulted a more streamlined arrangement. It seems that they saw some value in the observer having a degree of forward visibility.

In esecuzione ad ulteriori istruzioni emanate dal Ministero, la cabina dell'osservatore venne successivamente modificata per migliorarne la visibilità e vi venne predisposta l'installazione di una macchina fotoqrafica panoramica e di una macchina foto planimetrica.
http://www.alireggiane.com/t338-re-2003

A puzzle for me is why a two-seater was required at all. Why did the Ministero dell'Aeronautica not simply request that the Re.2002 Ariete fighter-bomber be equipped with cameras like single-seat Allied recce fighters of that time?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,201
Apophenia said:
Jens: I agree that the rear glazing looks like that of a trainer but those windows were shaped that way as the result of requested changes by the Ministero dell'Aeronautica. If the Re.2003 had started out as a twin-seat trainer, surely the Ministero request would have resulted a more streamlined arrangement. It seems that they saw some value in the observer having a degree of forward visibility.

The precise wording would be interesting here. Did they really asked for a tandem two seat aircraft with forward view for the observer in the back seat ?
Or did they just ask for good visibility ? A guideline determining a detail that way would be quite uncommon, I think.
