PZL-126 Mrówka

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
14
Hi Everyone!

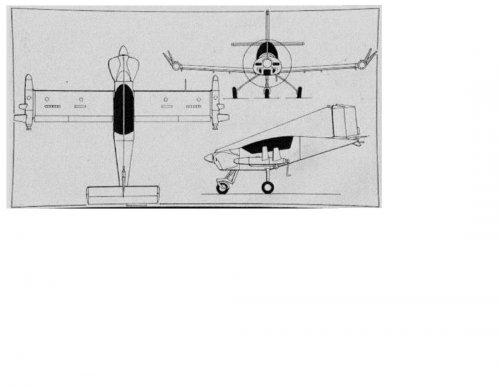

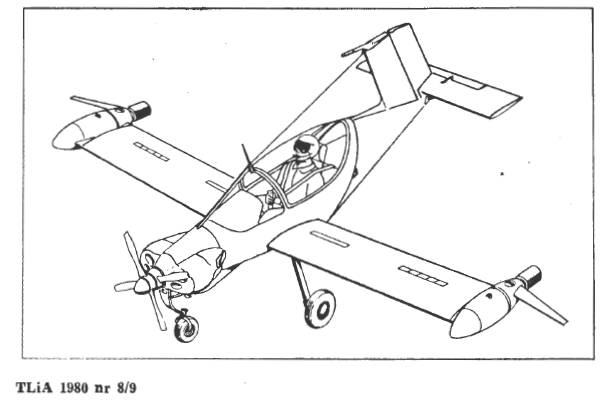

I found this 3-view line drawing of an interesting small aircraft, and I was wondering if anyone could help me identify it.

As far as I know, this 3-view appeared in JAWA at some time, but I'm not sure when.

Thanks!!!



Chuck


Attachments

  • aircraft 1.JPG
    aircraft 1.JPG
    62.3 KB · Views: 276

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147
Chuck,

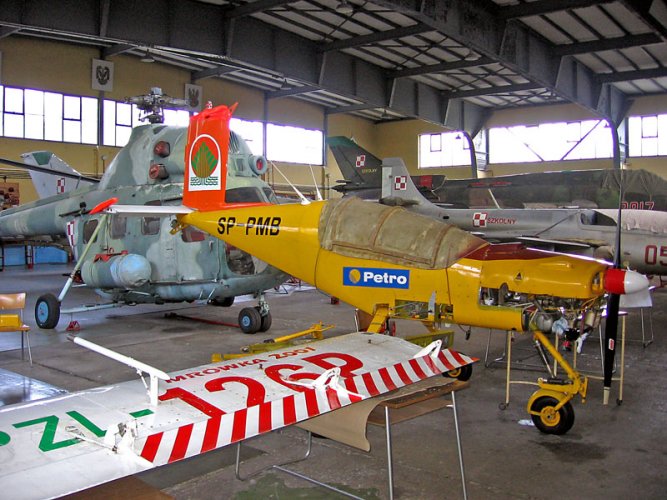

it's the PZL-126 Mrówka from Poland.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

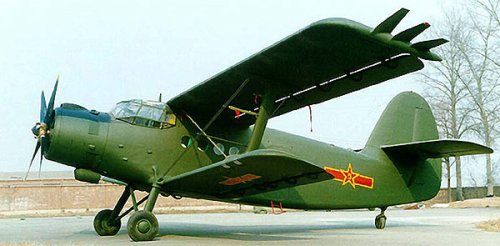

That's just another modification of Richard T. Whitcomb invention, the winglets, that serve to reduce drag by moving the wing tip vortex outboard. Another example is Chinese An-2 - Shijianzhuang built Y5-B, and NASA studies of highly-modified C-5 with devices like these.

Seems also that Mrówka winglets are ajustable-angle stuff, but I can be wrong.


Attachments

  • y5_1.jpg
    59.6 KB · Views: 161

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
OK, I was stupid this time. These pods at this mod were for agricultural chemicals...
